560123-0300

Description
Headers & Wire Housings DuraClik ISL RECPT HSG 3CKT
CategoryThe connector
File Size47KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

560123-0300 Online Shopping

Suppliers Part Number Price MOQ In stock
560123-0300 - - View Buy Now

560123-0300 Overview

Headers & Wire Housings DuraClik ISL RECPT HSG 3CKT

560123-0300 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerMolex
Product CategoryHeaders & Wire Housings
RoHSDetails
ProductWire Housings
TypeReceptacle Housing
Number of Positions3 Position
Pitch2 mm
Number of Rows1 Row
Mounting StyleFree Hanging
Termination StyleCrimp
Mounting Angle-
Contact Gender-
Contact Plating-
PackagingTray
Accessory Type-
ApplicationSignal, Wire to Board
Contact TypeSocket
Housing MaterialPolyester
Contact Material-
Flammability RatingUL 94 V-0
Row Spacing-
Housing GenderFemale
Maximum Operating Temperature+ 125 C
Minimum Operating Temperature- 40 C
Factory Pack Quantity20000
Unit Weight0.007725 oz
This document was generated on 03/01/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
5601230300
Active

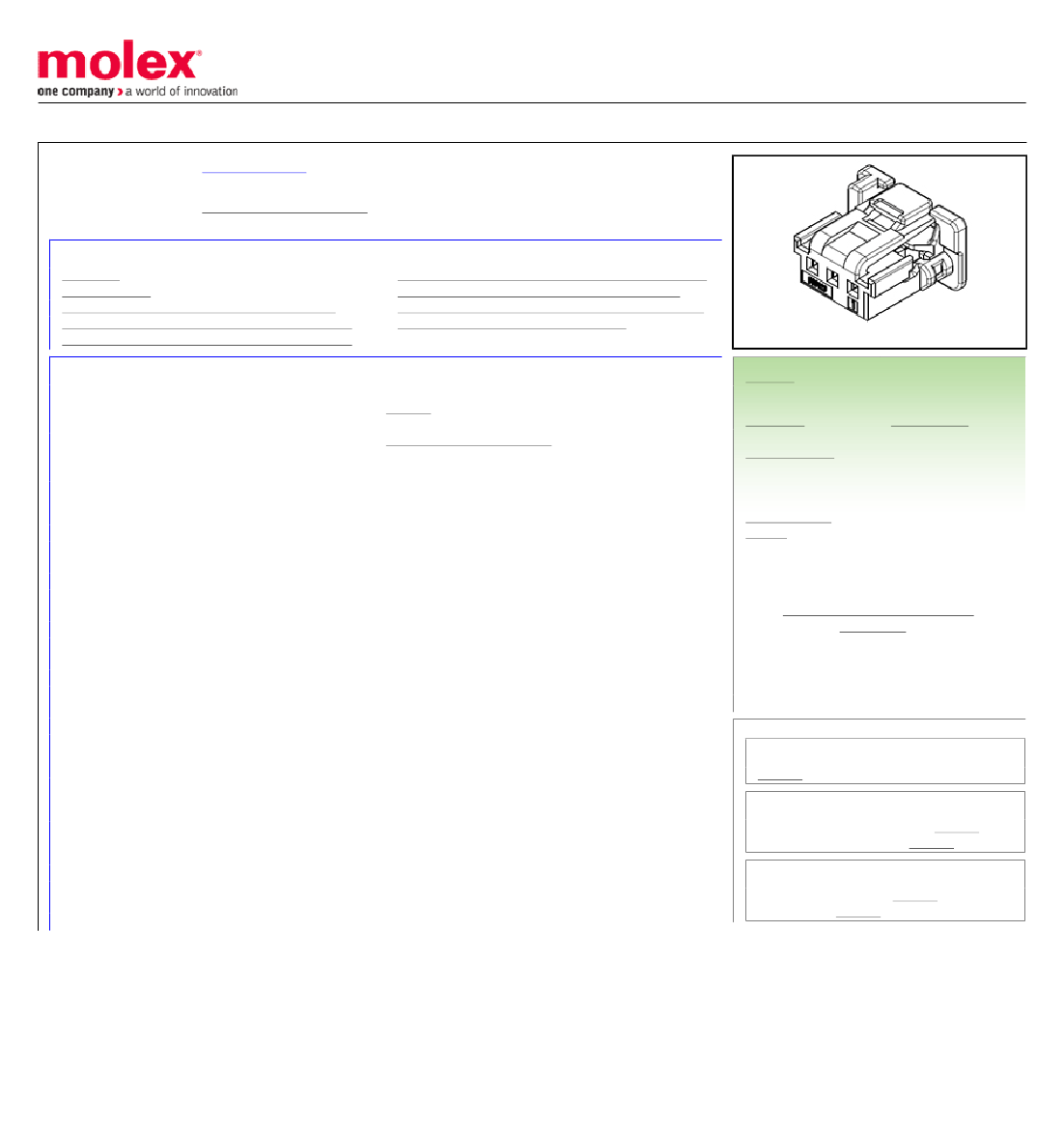

DuraClik Connector System
DuraClik ISL Wire-to-Board Receptacle Housing, Single Row, White, 3 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification 5601230900-_PS (PDF)
Product Specification PS-560123-002-001 (PDF)
Product Specification PS-560123-003-001 (PDF)
General
Product Family
Series
Application
Overview
Product Name
UPC
Physical
Circuits (maximum)
Color - Resin
Gender
Glow-Wire Capable
Keying to Mating Part
Lock to Mating Part
Material - Resin
Net Weight
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
Solder Process Data
Lead-freeProcess Capability
Material Info
Reference - Drawing Numbers
Application Specification
Packaging Specification
Product Specification
Sales Drawing
Application Specification AS-560123-001-001 (PDF)
Packaging Specification 5601230900-PK (PDF)
Packaging Specification PK-560123-001-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
EU ELV
Compliant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Not Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Compliant
Not Contained
Crimp Housings
560123
Signal, Wire-to-Board
DuraClik Connector System
DuraClik
889056009539
3
White
Receptacle
No
None
Yes
PBT
0.219/g
1
Tray
No
2.00mm
Yes
No
-40°C to +125°C
N/A
Search Parts in this Series
560123 Series
Mates With
DuraClik Right-Angle Header 502352 <br>
DuraClik Vertical Header 560020
AS-560123-001-001
5601230900-_PK, PK-560123-001-002
5601230900-_PS, PS-560123-002-001,
PS-560123-003-001
SD-560123-003
Use With
DuraClik ISL Terminal 560124 <br>DuraClik
ISL Retainer 560125
This document was generated on 03/01/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
