MRF6V2010N

Description
UHF BAND, Si, N-CHANNEL, RF POWER, MOSFET, TO-270AA, PLASTIC, ROHS COMPLIANT, CASE 1265-08, 2 PIN
CategoryDiscrete semiconductor    The transistor
File Size293KB,9 Pages
ManufacturerFREESCALE (NXP)
Environmental Compliance
Download Datasheet Compare View All

MRF6V2010N Overview

UHF BAND, Si, N-CHANNEL, RF POWER, MOSFET, TO-270AA, PLASTIC, ROHS COMPLIANT, CASE 1265-08, 2 PIN

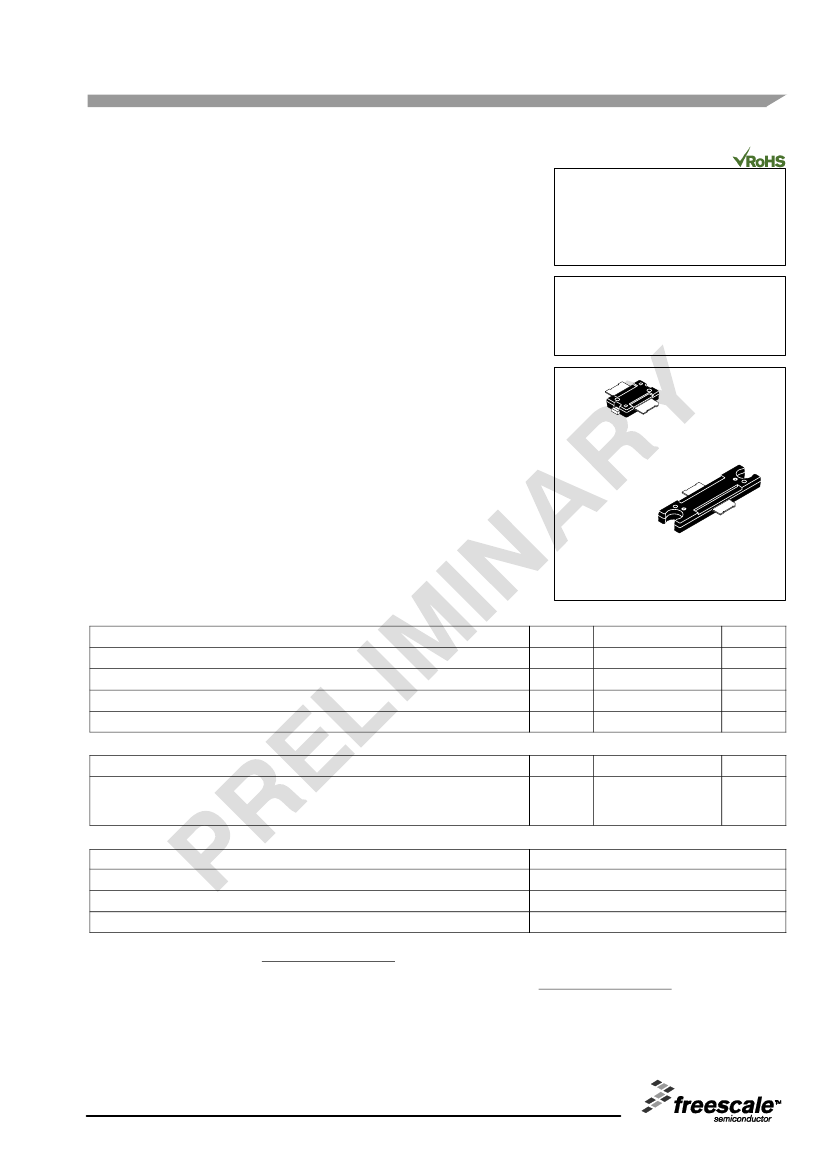

Freescale Semiconductor
Technical Data
Document Number: Order from RF Marketing
Rev. 4, 12/2006
RF Power Field Effect Transistor
N - Channel Enhancement - Mode Lateral MOSFETs
Designed primarily for pulsed wideband large - signal output and driver
applications with frequencies up to 450 MHz. Devices are unmatched and are
suitable for use in industrial, medical and scientific applications.
Typical CW Performance at 220 MHz: V
DD
= 50 Volts, I
DQ
= 35 mA,
P
out
= 10 Watts
Power Gain — 25 dB
Drain Efficiency — 64%
Capable of Handling 10:1 VSWR, @ 50 Vdc, 220 MHz, 10 Watts CW
Output Power
Features
Integrated ESD Protection
Excellent Thermal Stability
Facilitates Manual Gain Control, ALC and Modulation Techniques
225°C Capable Plastic Package
RoHS Compliant
MRF6V2010N
MRF6V2010NB
PREPRODUCTION
10 - 450 MHz, 10 W, 50 V
LATERAL N - CHANNEL
BROADBAND
RF POWER MOSFETs

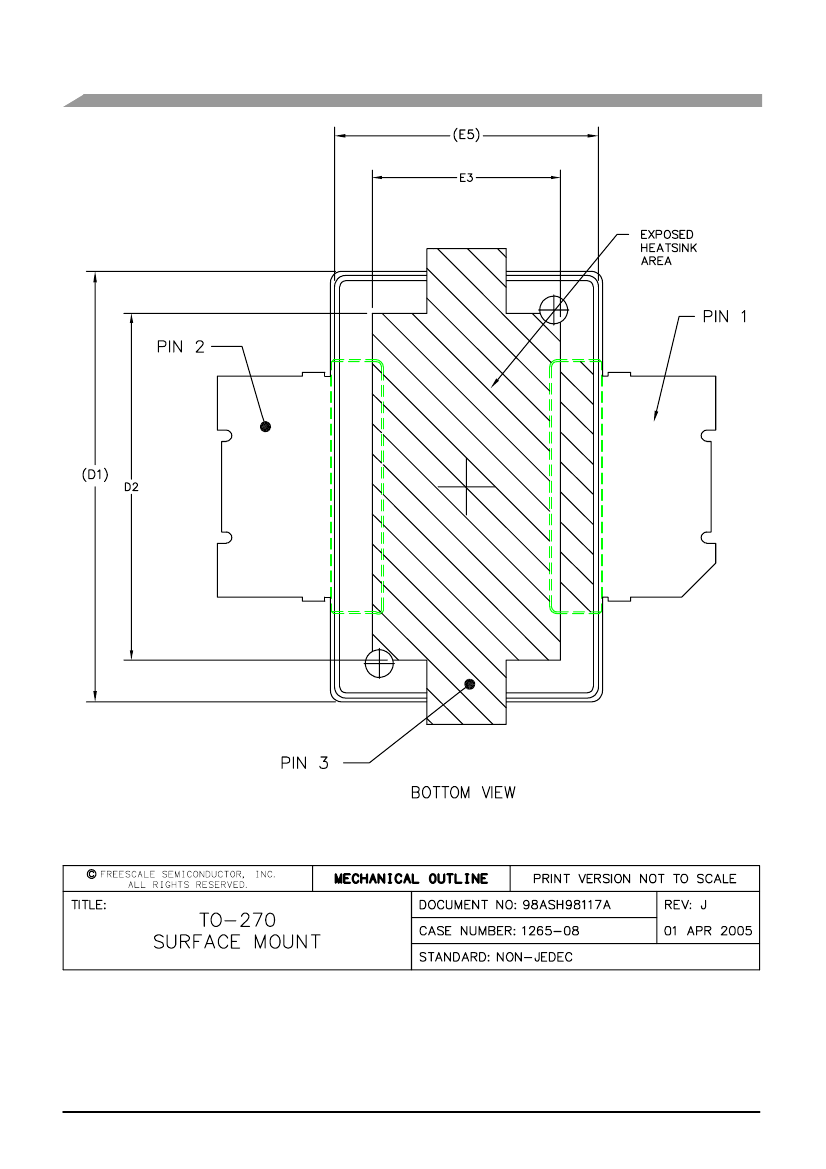

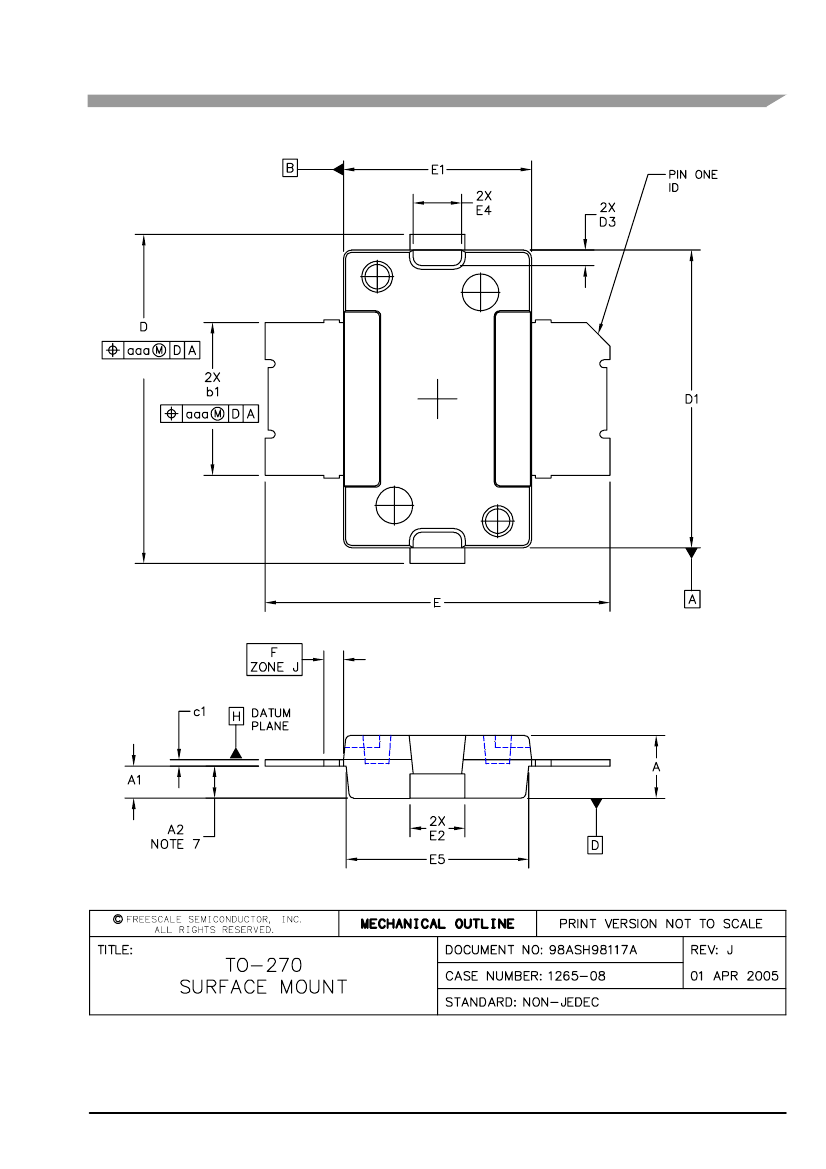

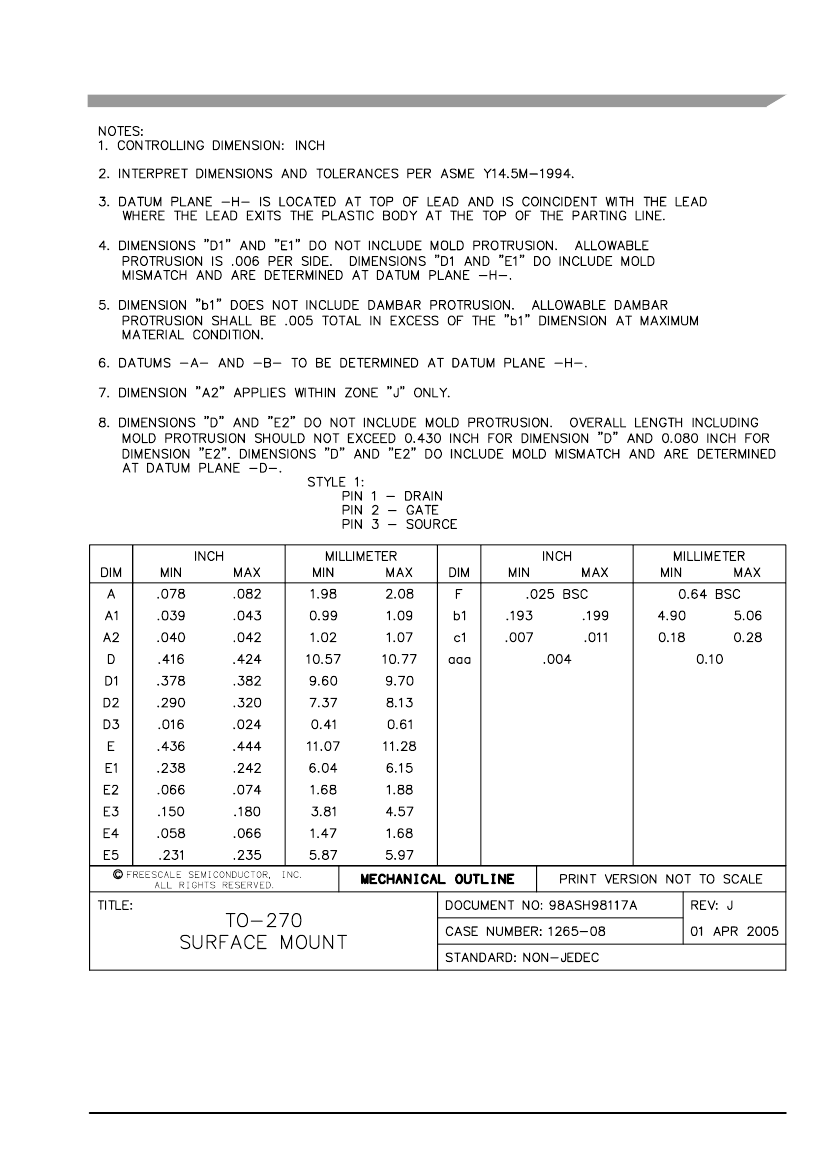

CASE 1265 - 08, STYLE 1
TO - 270- 2
PLASTIC
MRF6V2010N
CASE 1337 - 03, STYLE 1
TO - 272- 2
PLASTIC
MRF6V2010NB
Table 1. Maximum Ratings
Rating
Drain- Source Voltage
Gate- Source Voltage
Storage Temperature Range
Operating Junction Temperature
(1,2)
Symbol
V
DSS
V
GS
T
stg
T
J
Value
- 0.5, +110
- 0.5, +10
- 65 to +150
225
Unit
Vdc
Vdc
°C
°C
Table 2. Thermal Characteristics
Characteristic
Thermal Resistance, Junction to Case
Case Temperature TBD°C, TBD W CW
Case Temperature TBD°C, TBD W CW
Symbol
R
θJC
Value
(3)
TBD
TBD
Unit
°C/W
Table 3. ESD Protection Characteristics
Test Methodology
Human Body Model (per JESD22 - A114)
Machine Model (per EIA/JESD22 - A115)
Charge Device Model (per JESD22 - C101)
Class
TBD (Minimum)
TBD (Minimum)
TBD (Minimum)
1. Continuous use at maximum temperature will affect MTTF.
2. MTTF calculator available at http://www.freescale.com/rf. Select Tools/Software/Application Software/Calculators to access
the MTTF calculators by product. (Calculator available when part is in production.)
3. Refer to AN1955,
Thermal Measurement Methodology of RF Power Amplifiers.
Go to http://www.freescale.com/rf.
Select Documentation/Application Notes - AN1955.
This document contains information on a preproduction product. Specifications and information herein are subject to change without notice.
©
Freescale Semiconductor, Inc., 2006. All rights reserved.
MRF6V2010N MRF6V2010NB
1
RF Device Data
Freescale Semiconductor
