54143UB: DescriptionRing Terminal, ROHS COMPLIANT; CategoryThe connector terminals; File Size41KB，2 Pages; ManufacturerABB; Websitehttp://www.abb.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

54143UB Overview

Ring Terminal, ROHS COMPLIANT

54143UB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ABB
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
terminal gender	FEMALE
Terminal and terminal strip types	RING TERMINAL
Wire gauge	2 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

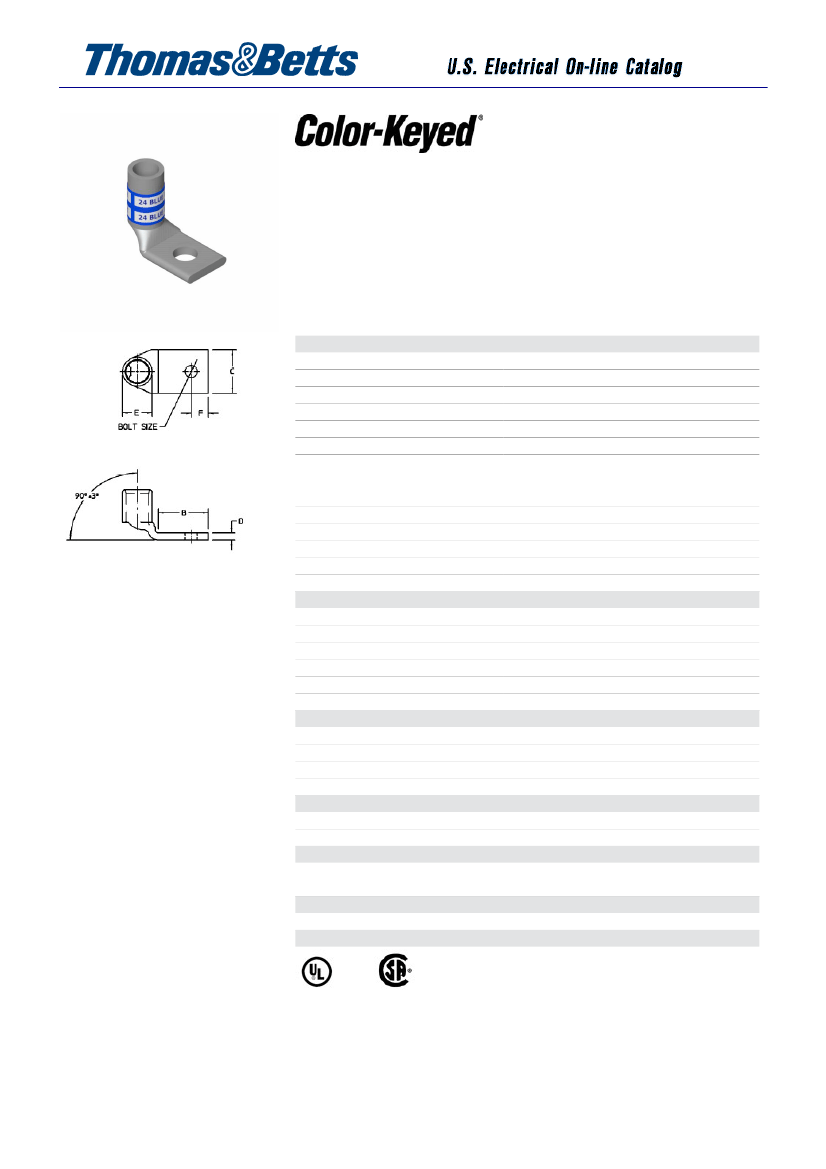

T&B Catalog Number:

UPC Number:

Description:

54143UB

78621063793

Copper One-Hole Lug - 90 degree Stan-

dard Barrel - max 35KV, #2 AWG Wire,

3/8" Bolt Size, Tin Plated with Inspection

Hole, Brown 33

Active

Status:

General

Material

Finish

Wire Size

Number of Studs

Stud Size

Tongue Angle

Barrel Length

Barrel Shape

Tongue Width

Peep Hole

Marking

Hole Shape

Die Color

Die Code

Copper

Tin Plated

#2 AWG

1

3/8

90

Standard

Y

Standard

Round

Brown

33

1.281

0.813

0.688

0.063

0.406

0.375

25

250

Each

3.28 lbs. per 100

Available on Website

Dimensions given for reference only. Dimensions

may vary up to +/- .030.

Dimension Information

A (inches)

B (inches)

C (inches)

D (inches)

E (inches)

F (inches)

Packaging

T&B Inner Pack

Package in Units

T&B Sold in UOM

T&B Weight Per UOM

Application Support

Overview

Connector & Tooling Chart

Notes

Certifications

RoHS Compliance

Yes

Certifications

File Nbr:

E9809

54143UB Related Products

	54143UB
Description	Ring Terminal, ROHS COMPLIANT
Is it Rohs certified?	conform to
Maker	ABB
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
terminal gender	FEMALE
Terminal and terminal strip types	RING TERMINAL
Wire gauge	2 AWG
Base Number Matches	1
