54854BE0310 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 54854BE0310

Preview

54854BE0310: DescriptionRing Terminal, ROHS COMPLIANT; CategoryThe connector terminals; File Size1MB，1 Pages; ManufacturerABB; Websitehttp://www.abb.com/; Environmental Compliance

Download Datasheet Parametric View All

54854BE0310 Overview

Ring Terminal, ROHS COMPLIANT

54854BE0310 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ABB
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Terminal and terminal strip types	RING TERMINAL
Wire gauge	4 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

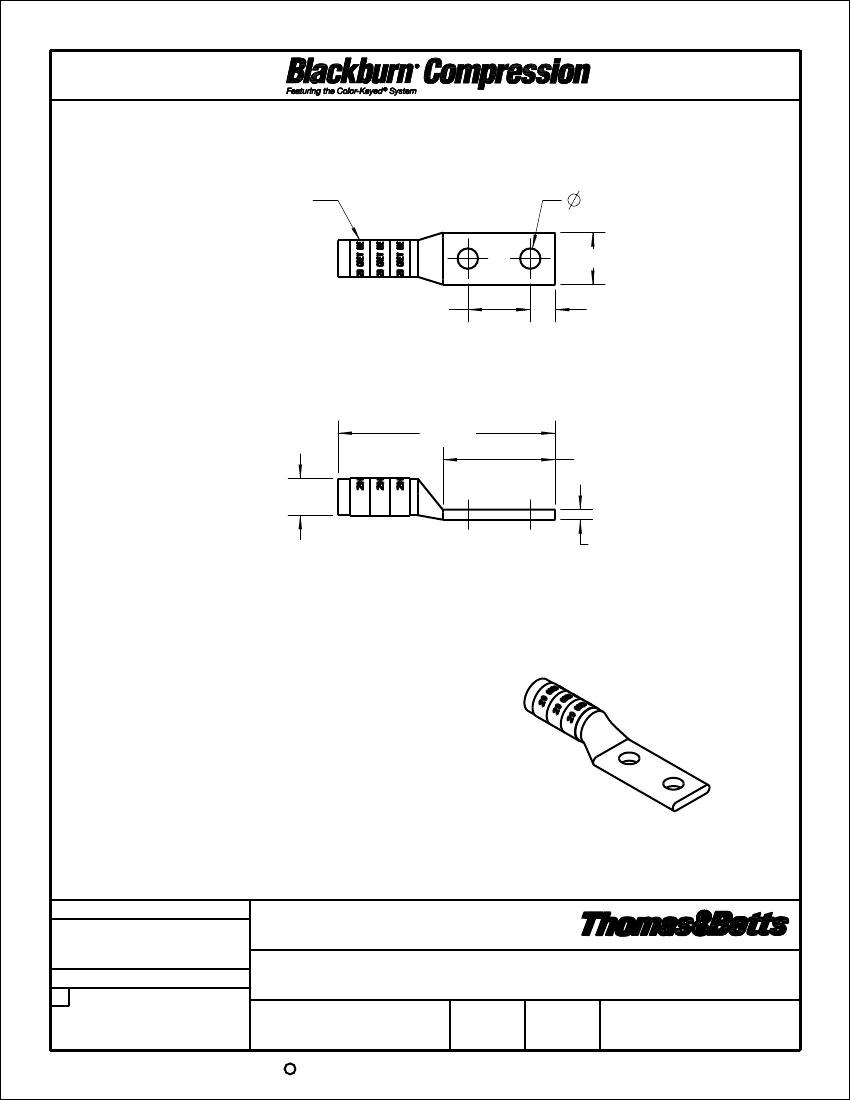

CATALOG NO. 54854BE0310

LONG

BARREL

.204

.520

.625

.250

2.175

.365

G

WIRE SIZE:

#

4

AWG

MATERIAL: HIGH CONDUCTIVITY COPPER

FINISH: TIN PLATED

GENERAL NOTES

1. ALL DIMENSIONS ARE FOR

REFERENCE ONLY.

2. DIMENSIONS IN BRACKETS [ ]

ARE IN METRIC UNITS.

REVISIONS

** SEE ERN ( **** )

FOR APPROVAL SIGNATURES

& RELEASE DATE.

PROJECT NO: ****

ORIGINAL PROJECT NO / ( ERN NO )

/( )

C

on

fig

ur

at

or

en

er

at

e

2 HOLE LUG

SHEET NO:

1 OF 1

REV. NO:

d

1.125

.100

www.tnb.com

DESCRIPTION:

DRAWING NO:

WSD-002114

0

54854BE0310

THIS DRAWING IS INTENDED FOR DESCRIPTIVE PURPOSES ONLY. AND THE RIGHT IS RESERVED TO DEVIATE FROM ANY OF THE DETAILS SHOWN HEREON.
