DL126TRS/D

Tape & Reel and Packaging

Specifications for

Small-Signal Transistors,

FETs and Diodes

Excerpted from the ON Semiconductor Small–Signal

Transistors, FETs and Diodes Device Data Book,

DL126/D.

http://onsemi.com

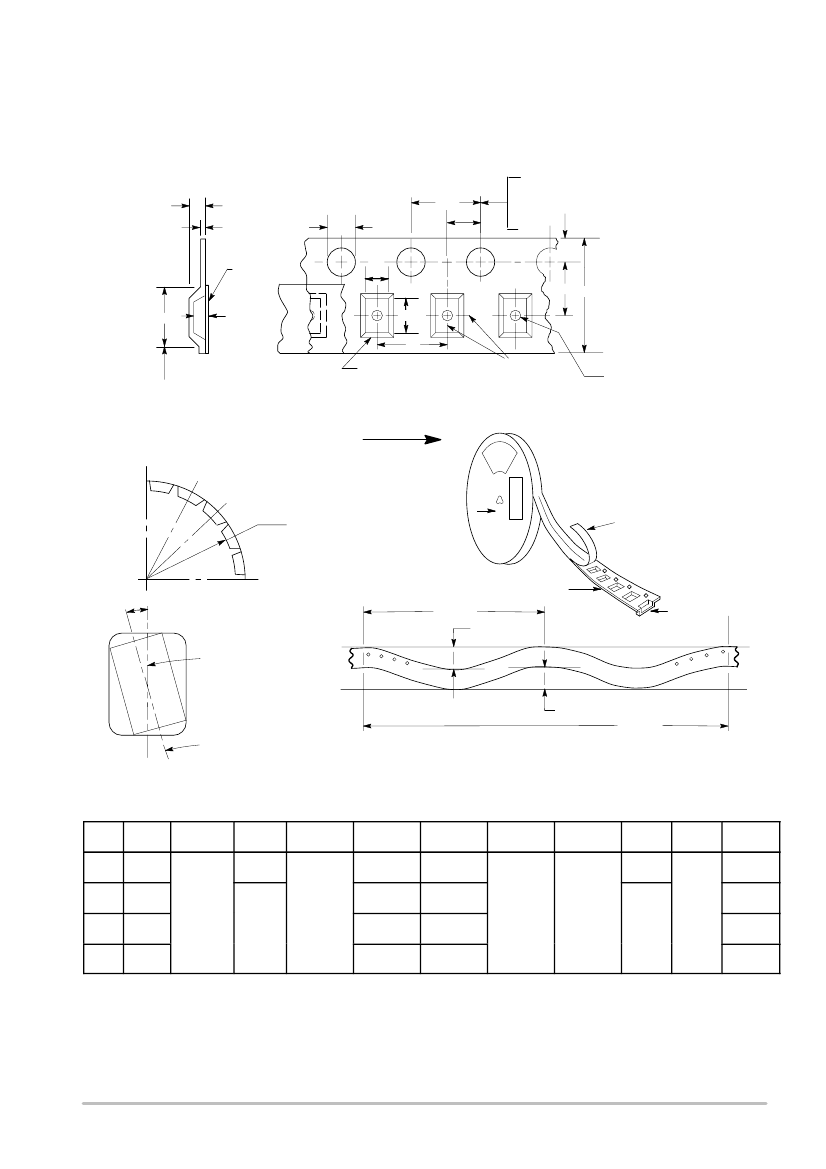

Embossed Tape and Reel is used to facilitate automatic pick and place equipment feed requirements. The tape is used as the

shipping container for various products and requires a minimum of handling. The antistatic/conductive tape provides a secure

cavity for the product when sealed with the “peel–back” cover tape.

•

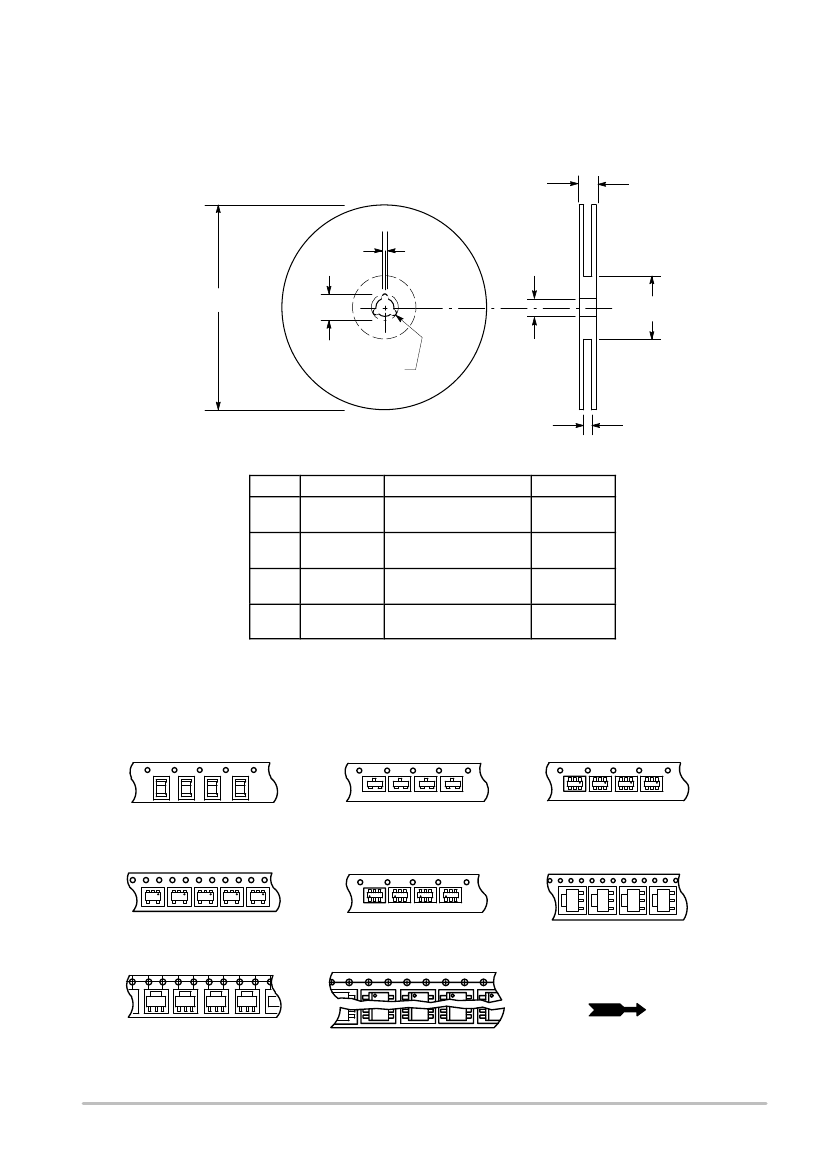

Two Reel Sizes Available (7″ and 13″)

Used for Automatic Pick and Place Feed Systems

Minimizes Product Handling

EIA 481, –1, –2

SOT–23, SC–59, SC–70/SOT–323,

SC–75/SOT–416/SC–90, SC–88/SOT–363,

SC–88A/SOT–353, SC–74/TSOP–6, SOD–123,

SOD–323 in 8 mm Tape

•

SOT–89, SOT–223 in 12 mm Tape

•

SO–16 in 16 mm Tape

Use the standard device title and add the required suffix as listed in the option table below (Table 1). Note that the individual

reels have a finite number of devices depending on the type of product contained in the tape. Also note the minimum lot size

is one full reel for each line item, and orders are required to be in increments of the single reel quantity.

Table 1. EMBOSSED TAPE AND REEL ORDERING INFORMATION

Package

Tape Width

(mm)

Pitch

(inch)

Reel Size

(inch)

178

330

178

330

178

330

178

330

178

330

(7)

(13)

(7)

(13)

(7)

(13)

(7)

(13)

(7)

(13)

Devices Per Reel

and Minimum

Order Quantity

3,000

10,000

3,000

10,000

3,000

10,000

3,000

1,000

4,000

500

2,500

Device

Suffix

SOT–23

SC–59

SC–70, SOT–323

SC–75, SOT–416, SC–90

SC–88, SOT–363

SC–88A, SOT–353

SC–74, TSOP–6

SOD–123

SOD–323

SOT–89

SOT–223

SO–16

Semiconductor Components Industries, LLC, 2001

November, 2001 – Rev.2

Publication Order Number:

DL126TRS/D
