EHUSBBAX: DescriptionUSB Connectors USB B TO A; CategoryThe connector; File Size173KB，1 Pages; ManufacturerSwitchcraft

Download Datasheet Parametric Compare View All

EHUSBBAX Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EHUSBBAX	-	-	View	Buy Now

EHUSBBAX Overview

USB Connectors USB B TO A

EHUSBBAX Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Switchcraft
Product Category	USB Connectors
RoHS	Details
Product	USB Receptacle Coupler
Gender	Female / Female
Standard	USB
Termination Style	-
Number of Contacts	-
Number of Ports	1 Port
Current Rating	-
Mounting Angle	Straight
Mounting Style	Panel
IP Rating	-
Packaging	Tray
Connector Type	USB
Contact Plating	Nickel
Insulator Color	Nickel
Maximum Operating Temperature	-
Minimum Operating Temperature	-
Factory Pack Quantity	25

Preview

Download Datasheet

View All

1.02

0.21

INSERT OVERMOLD

USB "A" CONNECTOR

RETAINING NUT

1.22

0.911

REF

USB "B" CONNECTOR

STANDARD E SERIES HOUSING

SEE TABLE FOR FINISH

0.083

REF

1.62

0.138 THRU

0.230 X 82°

(2) PLACES

REF

0.748

0.945

0.138

(2) PLACES

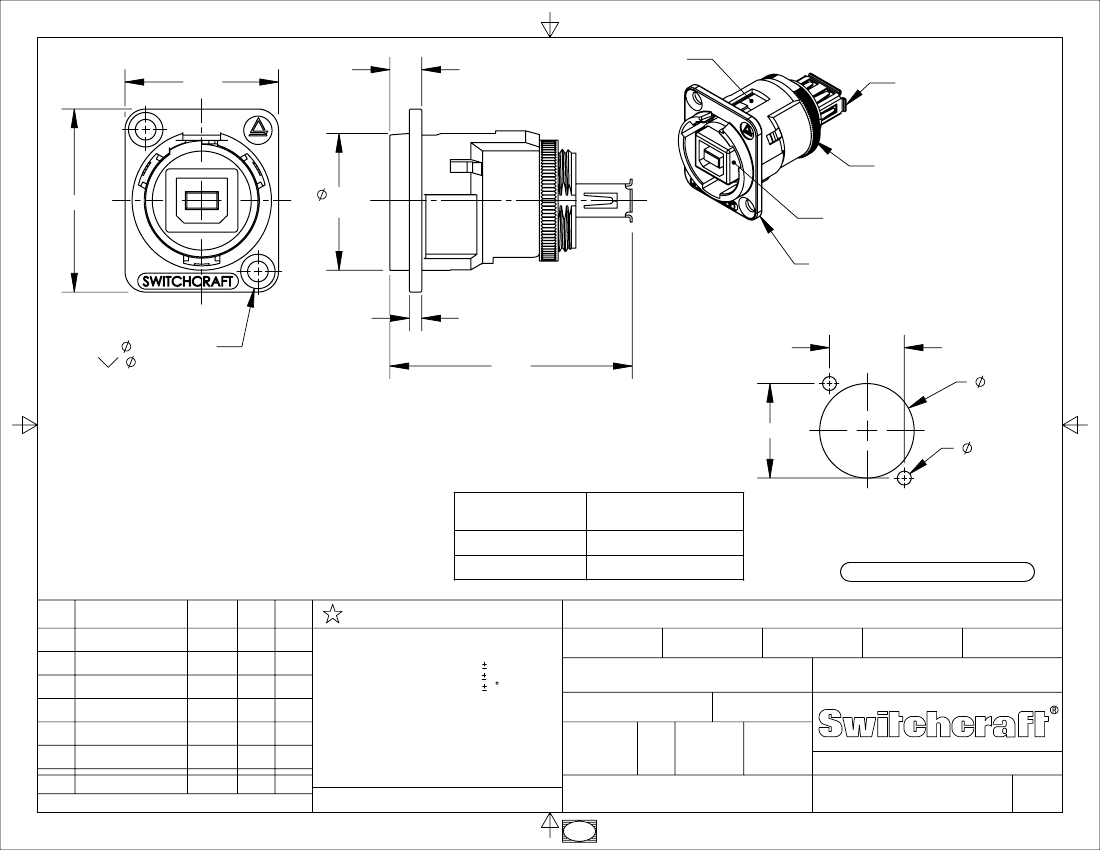

NOTES:

1. MATERIALS:

INSERT OVERMOLD - THERMOPLASTIC, BLACK

RETAINING NUT - BRASS, NICKEL PLATED

HOUSING - ZINC ALLOY

2. THIS PRODUCT IS RoHS COMPLIANT.

PART NUMBER HOUSING FINISH

EHUSBBAX

EHUSBBABX

NICKEL

BLACK CHROME

RECOMMENDED

PANEL CUT-OUT

CUSTOMER DRAWING

STAR SYMBOL DENOTES CRITICAL DIMENSION

1. ALL DIMENSIONS IN INCHES

- TWO PLACE DECIMALS

0.01

- THREE PLACE DECIMALS

0.005

- ANGLES

1

THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED

BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.

UNLESS OTHERWISE SPECIFIED

SIZE

FINISH

WIDTH

MULT

MATERIAL

SPEC No.

SCALE

LBS/M

TEMPER

SPEC No.

FIRST USED ON

DATE DRAWN

BY

CHKD

1.5:1

A

REV

26076

ECO NUMBER

7/15/06

DATE

RS

BY

TJK

APVD

5/5/09

RS

5/7/09

TJK

7/15/09

PART No.

APVD

SHEET

1

OF

1

REV

REVISIONS

DO NOT SCALE DRAWING

NAME

E SERIES CONNECTOR,

USB B FEMALE TO A FEMALE, RoHS

EHUSBBA_X SERIES

SolidWorks CAD File

A
