Indicator (Cylindrical 22/25-dia.)
M22
CSM_M22_DS_E_3_1
Round Indicator Series with 22 dia. and
25 dia. (when using a ring)
• Same type as the A22-series Pushbutton Switches.
• Use 25-dia. ring to install in 25-dia. panel cutouts.
• IP65
Refer to
Safety Precautions for All Pushbutton Switches
and
Safety Precautions
for the A22.

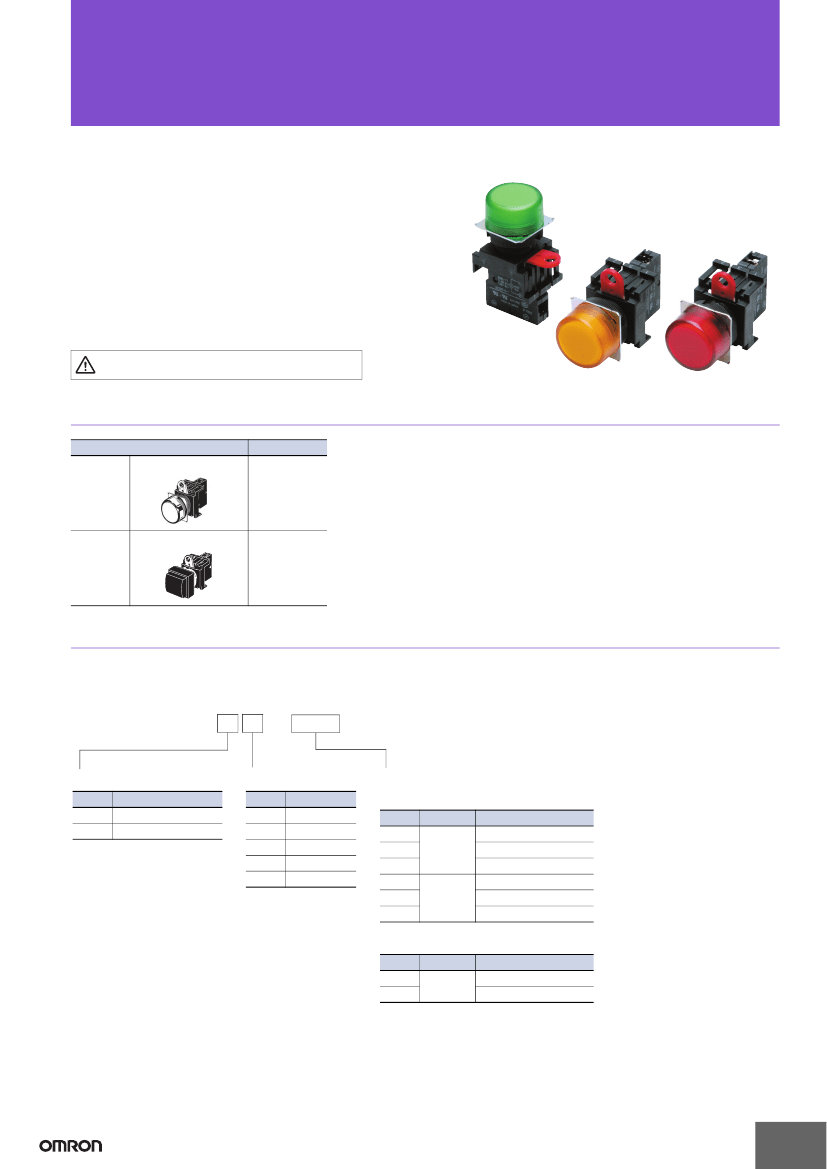

List of Models
Appearance
Flat
Round
Model
M22-F
Projection
Square
M22-C
Model Number Structure
Model Number Legend
......Shipped as a set which includes the Display, Lamp, and Socket Unit.
For information on combinations, refer to Ordering Information.
(1) (2)
(3)
M22
(1) Display Shape
Code
F
C
- F G -
24A
Description
Round/Flat
Square/Projection
(2) Illumination Color (3) Light Source
Without Voltage Reduction Unit
Code Description
R
G
Y
W
A
Red
Green
Yellow
White
Blue
Code
6A
12A
24A
5
12
24
Type
LED
Incan-
descent
lamp
Operating voltage
6 VAC/VDC
12 VAC/VDC
24 VAC/VDC
5 VAC/VDC
12 VAC/VDC
24 VAC/VDC
With Voltage Reduction Unit
Code
T1
T2
Type
LED
Operating voltage
100 VAC
200 VAC
•
LED incorporates the 24-VAC/VDC type.
1
M22
Ordering Information
Completely Assembled
.... Shipped as a set which includes the Display, Lamp, and Socket Unit.
Indicator
Appearance
Round/Flat
without Voltage
Reduction Unit
M22-F
Round/Flat
with Voltage
Reduction Unit
M22-F
Square/Projection
without Voltage
Reduction Unit
M22-C
Square/Projection
with Voltage
Reduction Unit
M22-C
Lighting
Operating
voltage
6 VAC/VDC
LED
12 VAC/VDC
24 VAC/VDC
100 VAC
LED
200 VAC
6 VAC/VDC
LED
12 VAC/VDC
24 VAC/VDC
100 VAC
LED
200 VAC
M22-C@-T2
M22-F@-T2
M22-C@-6A
M22-C@-12A
M22-C@-24A
M22-C@-T1
Set
M22-F@-6A
M22-F@-12A
M22-F@-24A
M22-F@-T1
R (red)
Y (yellow)
G (green)
W (white)
A (blue)
Illumination color
Note: Insert a symbol indicating the color of the Operation Unit in the box in the model number above.
Individual models: Refer to pages 3 to 4.
(The Display, Lamp, and Socket Unit can be ordered separately.)
■
Specifications: Refer to page 5.
■
Dimensions: Refer to page 6.
■
Accessories: Refer to the A22.
2
M22

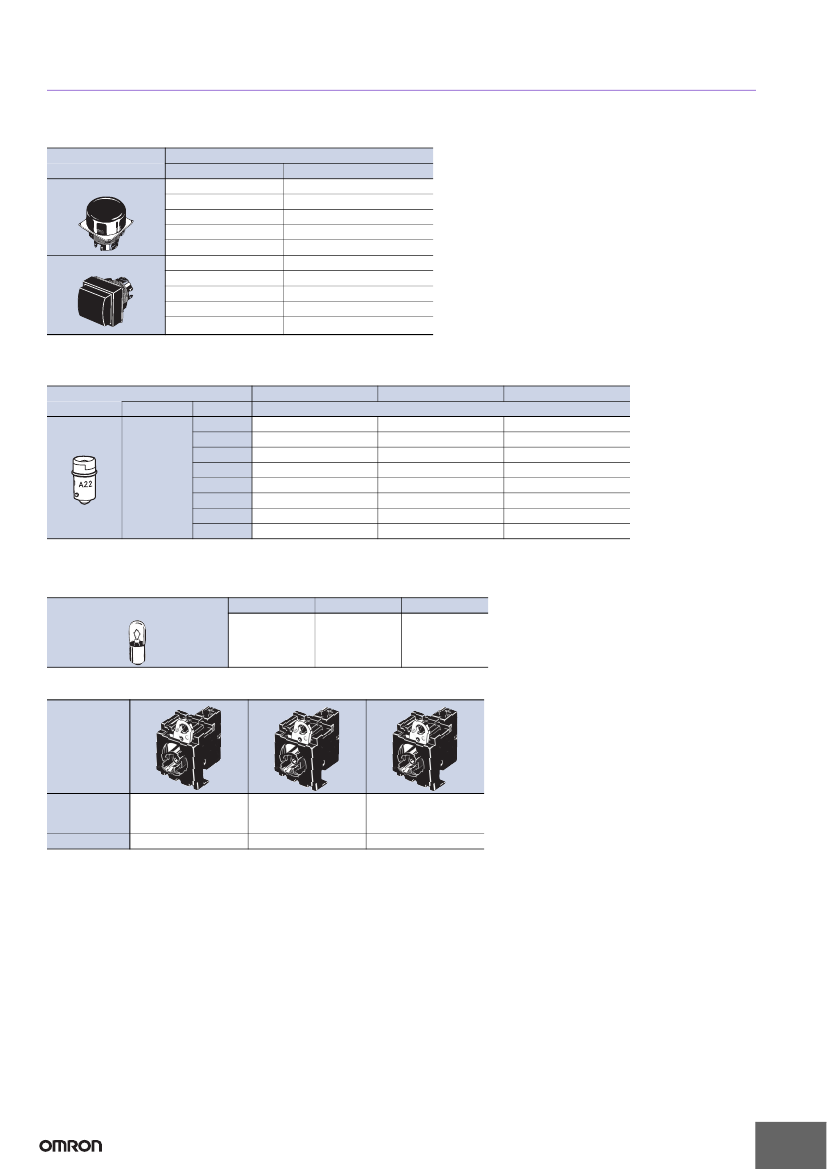

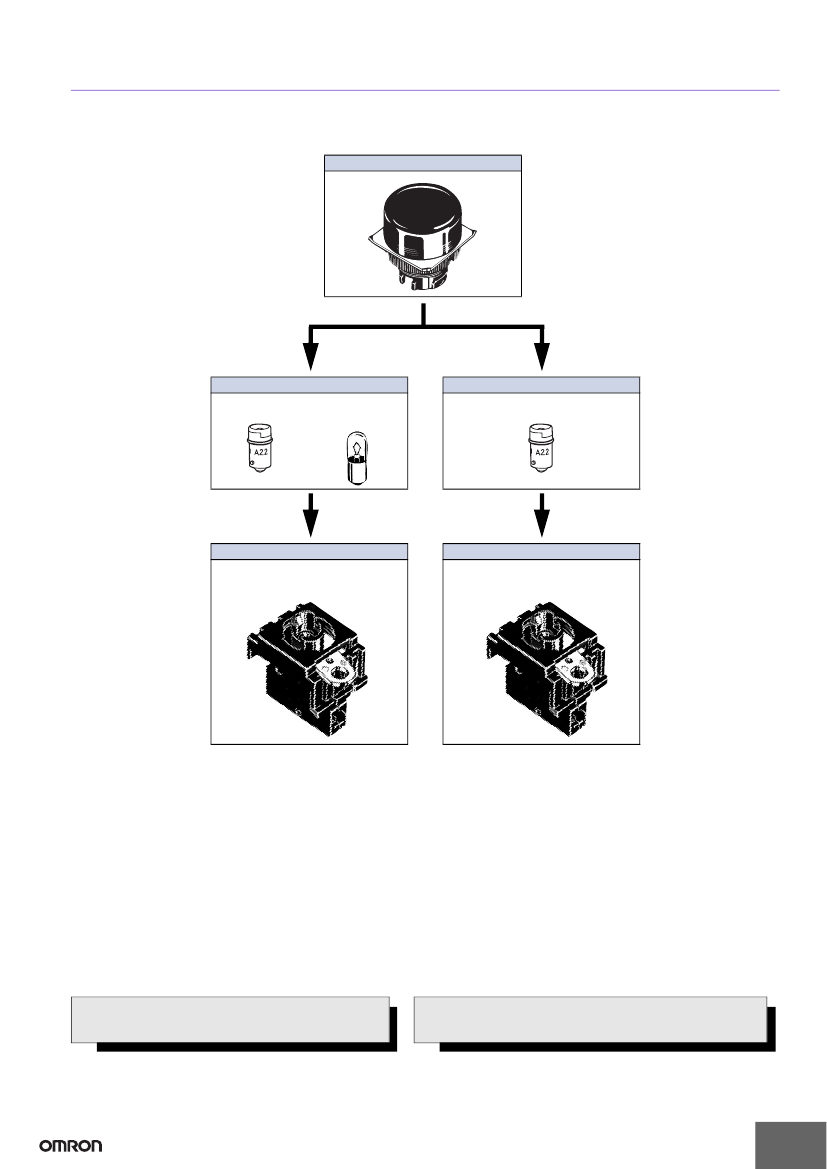

Ordering Information
Subassembled
.......... The Display, Lamp, or Socket Unit can be ordered separately. Use them in combination for models that are not
available as assembled Units. These can also be used as inventory for maintenance parts.
•
Ordering: Specify models on the following page.
Display
Lamp
LED
Incandescent
lamp
Lamp
LED
Socket Unit
Socket Unit
Without Voltage Reduction Unit
With Voltage Reduction Unit
Ordering set combinations: Refer to page 2.
■
Specifications: Refer to page 5.
■
Dimensions: Refer to page 6.
■
Accessories: Refer to the A22.
3
M22
Ordering Information
Subassembled
.......... The Display, Lamp, or Socket Unit can be ordered separately. Use them in combination for models that are not
available as assembled Units. These can also be used as inventory for maintenance parts.
Display
Sealing
Appearance
Round (Flat)
Color of Display
Red
Green
Yellow
White
Blue
Red
Green
Yellow
White
Blue
IP65
Model
M22-FR
M22-FG
M22-FY
M22-FW
M22-FA
M22-CR
M22-CG
M22-CY
M22-CW
M22-CA
Square (Projection)
Lamp
LED
Operating voltage
Appearance
AC/DC
LED light
Red
Green
Yellow
*
Blue
AC and DC
Red
Green
Yellow
*
Blue
6V
A22-6AR
A22-6AG
A22-6AY
A22-6AA
—
—
—
—
12 V
Model
—
—
—
—
A22-12AR
A22-12AG
A22-12AY
A22-12AA
24 V
—
—
—
—
A22-24AR
A22-24AG
A22-24AY
A22-24AA
Note: For voltage-reduction lighting, use the A22-24A@. Only 24-V LED lamps can be used.
* Used when the Display color is yellow or white.
Incandescent
Appearance
Operating voltage
5 VAC/VDC
A22-5
12 VAC/VDC
A22-12
24 VAC/VDC
A22-24
Socket Unit
Appearance
Item
Without Voltage
Classification
Reduction Unit
Model
M22-00
With Voltage
Reduction Unit
(110 VAC)
M22-00-T1
With Voltage
Reduction Unit
(220 VAC)
M22-00-T2
Note: For voltage-reduction lighting, use the A22-24A@. Only 24-V LED lamps can be used.
Accessories, Replacements, and Tools
The M22 uses the same accessories as the A22. Refer to the relevant information in the corresponding section for the A22.
4
M22
Specifications
Ratings
LED Lamp
Rated voltage
6 VAC/VDC
12 VAC/VDC
24 VAC/VDC
Rated current
8 mA
Operating voltage
6 VAC/VDC
±5%
12 VAC/VDC
±5%
24 VAC/VDC
±5%
Characteristics
Ambient operating temperature
Ambient operating humidity
Ambient storage temperature
Degree of protection
Electric shock protection class
PTI (tracking characteristic)
Degree of contamination
–20°C to 55°C
35% to 85%RH
–40°C to 70°C
IP65
Class II
175
3 (IEC60947-5-1)
Incandescent Lamp
Rated voltage
6 VAC/VDC
14 VAC/VDC
28 VAC/VDC
Rated current
200 mA
80 mA
40 mA
Operating voltage
5V
12 V
24 V
Approved Standard Ratings
UL, cUL (File No. E41515)
Input voltage: 120 V max. 2.6 W max. (A22-TN)
110 VAC (A22-T1)
200 VAC (A22-T2)
Voltage-reduction Lighting
Rated
voltage
110 VAC
8 mA
220 VAC
Rated
current
Operating
Applicable lamp
voltage
(BA9S/Base: 13)
100 VAC
(95 to 115 V) LED lamp
(A22-24@)
200 VAC
(190 to 230 V)
Note: Only Lamp Sockets are recognized by UL.
CCC (GB14048.5)
24 VAC/VDC max. (Without Voltage Reduction Unit)
100 VAC
(With Voltage Reduction Unit: M22-@@-T1)
200 VAC
(With Voltage Reduction Unit: M22-@@-T2)

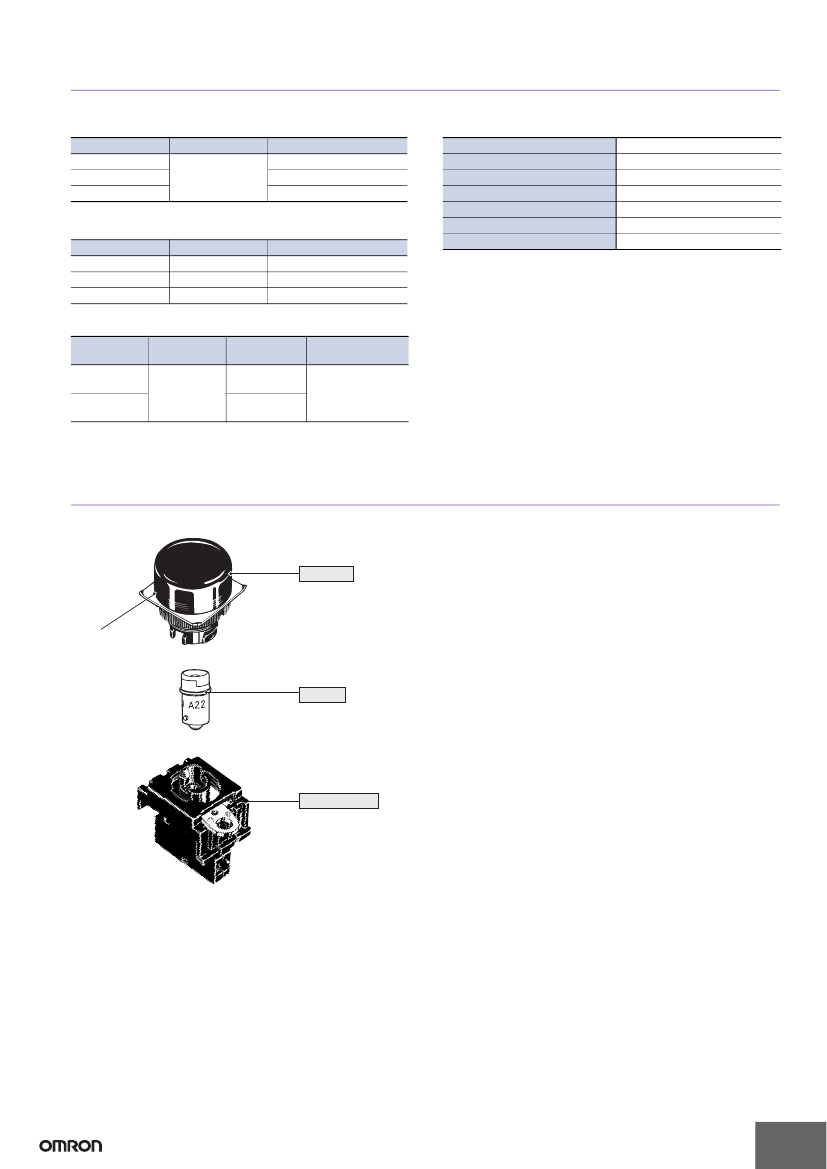

Nomenclature
Model Structure
Display
Available Colors
Red, green yellow, white, blue
Lock Ring
Lamp
Light Source
●LED
lamp
●Incandescent
lamp
Socket Unit
Lighting Method
●Lighted
(without Voltage Reduction Unit)
●Lighted
(with Voltage Reduction Unit)
5
