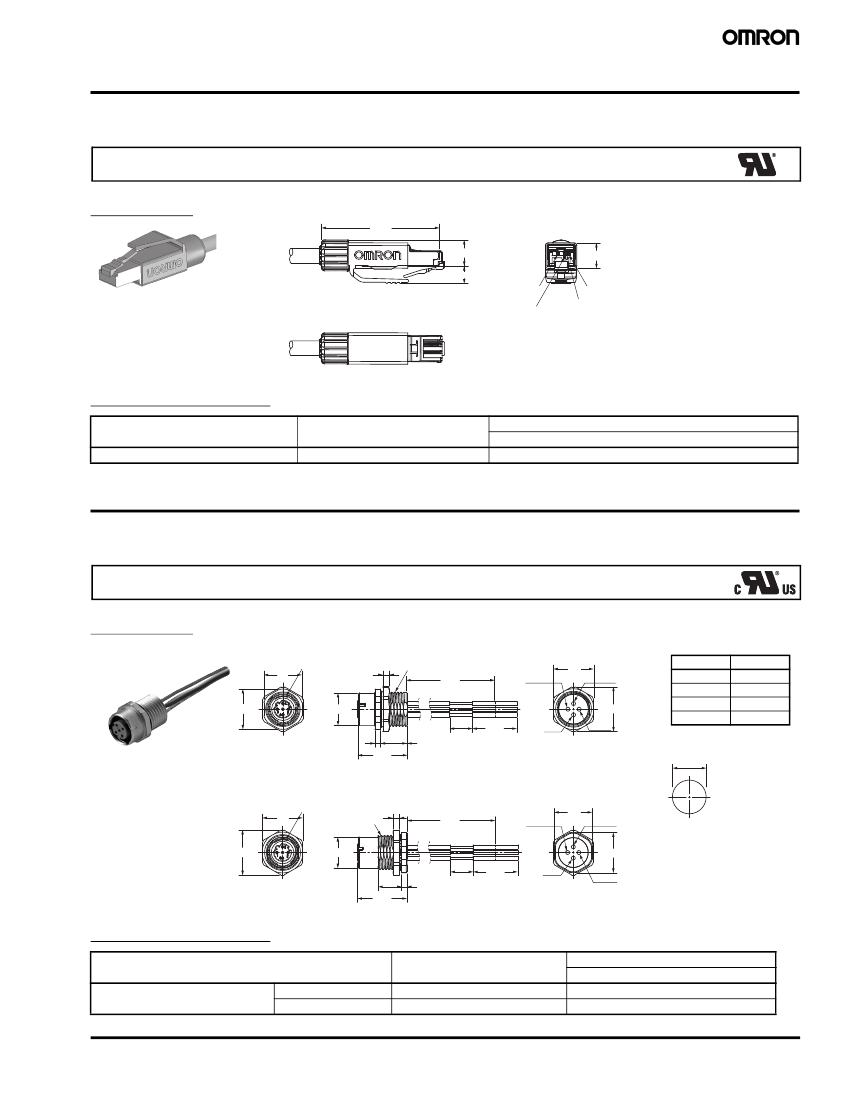

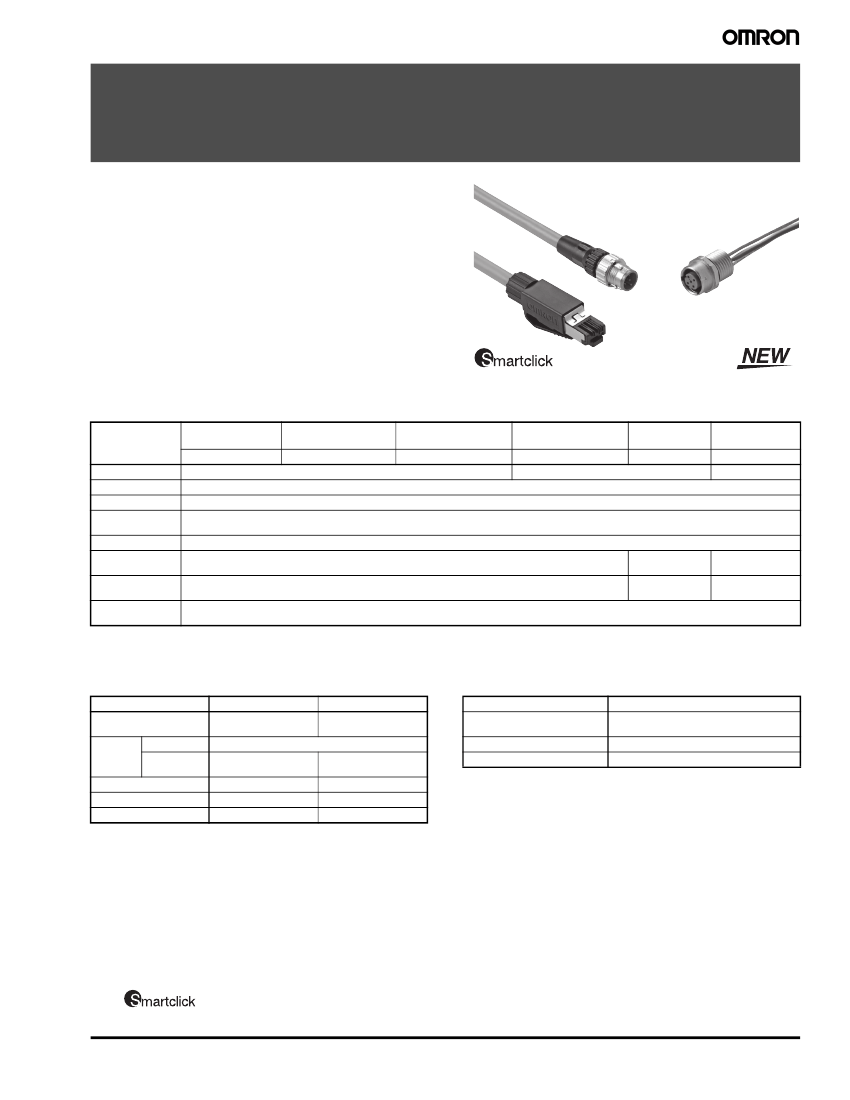

Industrial Ethernet Connectors
XS5@-T / XS6@-T
Support for Ethernet/IP, EtherCAT, and
Other Popular Networks Based on Ethernet
• Combines tough RJ45 Connectors for use outside of panels and
Environment-resistance Connectors with IP67 protection (M12).
• M12 Smartclick mates with any threaded M12 socket and
provides 'twist and click' connection with XS5P-T panel socket.
• M12 Smartclick connectors are shielded to protect against EMI.
• Separate RJ45 assembly connectors are available for easy wiring
on site.
• Uses AWG22 Cat5E cables that are suitable for wiring outside of
panels.
TM
■
Specifications
Type
Item / Model
Rated current
Rated voltage
Insulation
resistance
Cable with Connector Cable with Connectors
Cable with Connectors on Cable with Connectors on
on One End (M12)
on Both Ends (M12/M12) Both Ends (M12/RJ45)
Both Ends (RJ45/RJ45)
XS5H-T421-@M0-K
3A
30 V
500 MΩ min.
XS5W-T421-@M2-K
XS5W-T421-@MC-K
XS5W-T421-@MD-K
2.5 A
RJ45 Assembly
Connector
XS6G-T421-1
M12 Connector for
Panel Mounting
XS5P-T42@-5
3A
Contact resistance
20 mΩ max.
Withstand voltage
1,000 VAC for 60 s (leak current: 1 mA max.)
Ambient operating
−25
to 70°C
temperature
Ambient storage
temperature
Degree of
protection
−25
to 70°C
M12: IEC IP67, RJ45: IEC IP20
−40
to 70°C
−40
to 70°C
−25
to 70°C
−25
to 70°C
■
Materials and Finish
Connector
Item
Model
M12
PBT plastic (UL94V-0),
light gray
Phosphor bronze
Nickel base, 0.4-μm
gold-plating
Nickel-plated zinc alloy
PBT
Rubber
Nickel base, 1.4-μm
gold-plating
—
—
—
RJ45
PA plastic (UL94V-0),
black
Contact Block
Contacts Materials
Finish
Fixtures
Cover
O-ring
Cable
Specifications
Cores and colors
Outer Diameter
Sheath color
UL CM PVC (double shielding) Cat. 5E
AWG22 (0.26/7):
Yellow, orange, white, and blue
6.5 mm
Light blue
Note:
TM
is a registered trademark of the OMRON Corporation.
Industrial Ethernet Connectors
XS5@-T / XS6@-T
1
4-Pin Connectors with Cable Attached
■
XS5H -
Plug on One Cable End
XS5H-T421-@M0-K
(1 x M12)
TM
Dimensions
(Unit: mm)
L (cable length)
44.7
2
3
4
1
14.9 dia.
M12
D - Coding
Ordering Information
Type
Cable length L (m)
0.5
1
2
3
5
10
15
Model
Straight
XS5H-T421-BM0-K
XS5H-T421-CM0-K
XS5H-T421-DM0-K
XS5H-T421-EM0-K
XS5H-T421-GM0-K
XS5H-T421-JM0-K
XS5H-T421-KM0-K
Cable with Connector on One End
(M12)
Note:
Ask your OMRON representative about other specifications.
Model Number Legend
Use this model number legend to identify products from their model number.
When ordering, use a model number from the table in
Ordering Information.
XS5H - T421 -
@M@
-K
1
2 34 5
6 7
8
9
1. Type
H:
Connector connected to cable, M12 plug on one cable end
2. Signal type
T:
Ethernet
3. Connector Poles
4:
4 poles
4. Contact Plating
2:
0.4-μm gold plating - M12 connectors
5. Cable Connection Direction
1:
Straight
6. Cable Length
A:
0.3 m
G: 5 m
B:
0.5 m
J: 10 m
C:
1m
K: 15 m
D:
2m
E:
3m
7. Connections
M:
A
Yellow,
B
White,
C
Orange,
D
Blue
(Numbers inside circles are terminal numbers)
8. Connectors on One End/Both Ends
0:
One M12 Plug
9. Cable Specifications
K:
UL CM PVC (double shielded) / Cat.5E

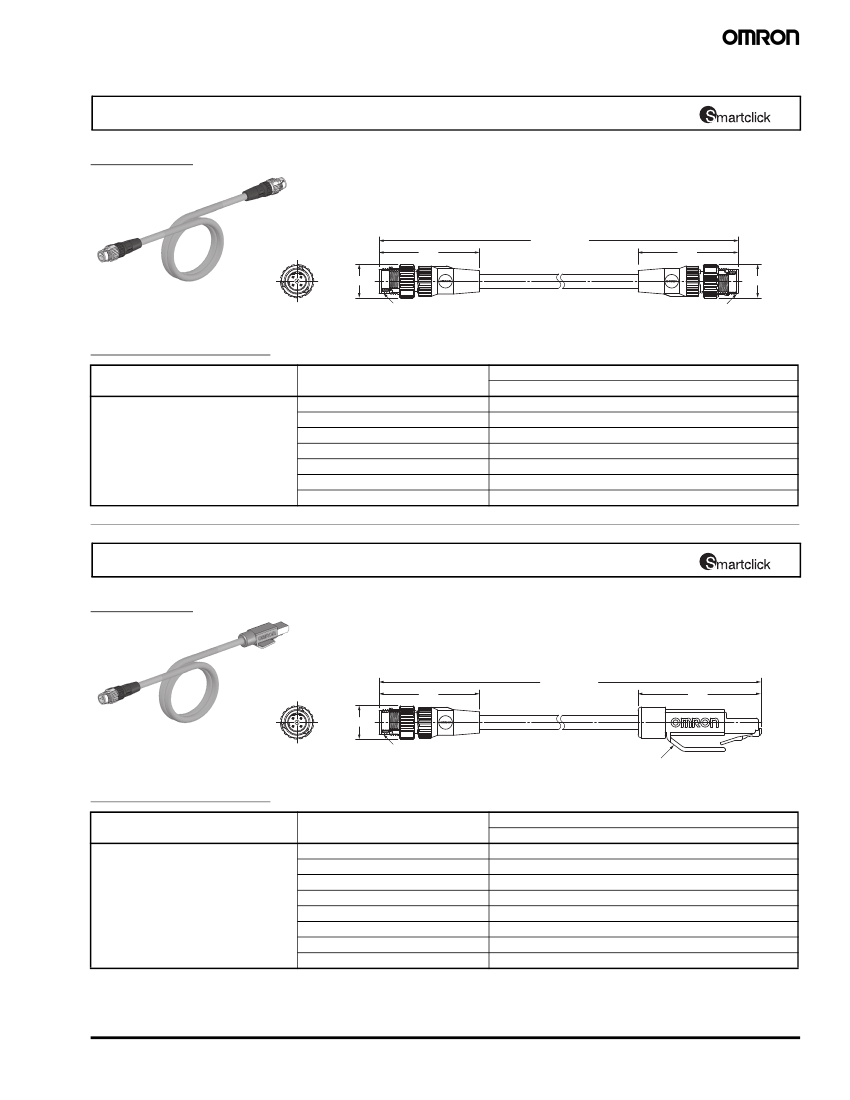

2
Industrial Ethernet Connectors
XS5@-T / XS6@-T
■
XS5W -
Plugs on Both Cable Ends
XS5W-T421-@M2-K
(2 x M12)
TM
Dimensions
(Unit: mm)
L (cable length)
44.7
44.7
2
3
4
1
14.9 dia.
M12
14.9 dia.
D - Coding
M12
Ordering Information
Type
Cable length L (m)
0.5
1
2
3
5
10
15
Model
Straight
XS5W-T421-BM2-K
XS5W-T421-CM2-K
XS5W-T421-DM2-K
XS5W-T421-EM2-K
XS5W-T421-GM2-K
XS5W-T421-JM2-K
XS5W-T421-KM2-K
Cable with Connector on Both Ends
(M12 / M12)
XS5W-T421-@MC-K
(1x M12 and 1x RJ45)
TM
Dimensions
(Unit: mm)
L (cable length)
44.7
54.7
2
3
4
1
14.9 dia.
M12
RJ45
D - Coding
Ordering Information
Type
Cable length L (m)
0.3
0.5
1
2
3
5
10
15
Model
Straight
XS5W-T421-AMC-K
XS5W-T421-BMC-K
XS5W-T421-CMC-K
XS5W-T421-DMC-K
XS5W-T421-EMC-K
XS5W-T421-GMC-K
XS5W-T421-JMC-K
XS5W-T421-KMC-K
Cable with Connector on Both Ends
(M12 / RJ45)
Note:
Ask your OMRON representative about other specifications.
Industrial Ethernet Connectors
XS5@-T / XS6@-T
3
XS5W-T421-@MD-K
(2 x RJ45)
Dimensions
(Unit: mm)
L (cable length)
54.7
54.7
RJ45
RJ45
Ordering Information
Type
Cable length L (m)
0.3
0.5
1
2
3
5
10
15
Model
Straight
XS5W-T421-AMD-K
XS5W-T421-BMD-K
XS5W-T421-CMD-K
XS5W-T421-DMD-K
XS5W-T421-EMD-K
XS5W-T421-GMD-K
XS5W-T421-JMD-K
XS5W-T421-KMD-K
Cable with Connector on Both Ends
(RJ45 / RJ45)
Note:
Ask your OMRON representative about other specifications.
Model Number Legend
Use this model number legend to identify products from their model number.
When ordering, use a model number from the table in
Ordering Information.
XS5W - T421 -
@M@
-K
1
2 34 5
6 7
8
9
1. Type
W:
Connector connected to cable, plugs on both cable ends
2. Signal type
T:
Ethernet
3. Connector Poles
4:
4 poles
4. Contact Plating
2:
0.4-μm gold plating - M12 connectors
1.4
μm
gold plating - RJ45 connectors
5. Cable Connection Direction
1:
Straight
6. Cable Length
A:
0.3 m
G: 5 m
B:
0.5 m
J: 10 m
C:
1m
K: 15 m
D:
2m
E:
3m
7. Connections
M:
A
Yellow,
B
White,
C
Orange,
D
Blue
(Numbers inside circles are terminal numbers)
8. Connectors on One End/Both Ends
2:
Two M12 Plugs
C:
One M12 Plug + One RJ45 Plug
D:
Two RJ45 Plugs
9. Cable Specifications
K:
UL CM PVC (double shielded) / Cat.5E
4
Industrial Ethernet Connectors
XS5@-T / XS6@-T
Assembly Connector - RJ45
■
XS6G -
Plugs
XS6G-T421-1
Dimensions
52.6
11.8
8.1
Contact 6
Contact 3
Contact 1
Contact 2
11.3
(Unit: mm)
Applicable wires
6.1 to 6.9 dia.
Stranded wires: AWG22 to AWG24
Solid wires: AWG22 to AWG23
Ordering Information
Type
RJ45 Assembly Connector
Cable length L (m)
---
Model
Straight
XS6G-T421-1
4-Pin Panel-mount Connectors
■
XS5P -
Sockets
XS5P-T42@-5
(Rear or Front locking M12 socket)
Dimensions
XS5P-T426-5 (Rear Locking)
M12
17
2.8
PG9
500
Orange
18
White
(Unit: mm)
Wiring
Terminal No.
1
2
3
4
Color
Yellow
White
Orange
Blue
18
14.6 dia.
10
±3
11.9
22.1
(20)
Blue
20
Yellow
D - Coding
2.5
Panel Cutout Dimension
15.3
+0.1
dia.
0
XS5P-T427-5 (Front Locking)
M12
18
PG9
2.8
500
Orange
17
White
Panel thickness (t)
= 1 to 4
20
13.9 dia.
10
±3
D - Coding
10.5
22.1
2.5
(20)
Blue
18
Yellow
Note 1: The panel cutout dimen-
sion is the same for
Front-locking and Rear-
locking Connectors.
Note 2: Rotational positioning is
not possible for connec-
tor rotation.
Ordering Information
Type
M12 Connector for Panel Mounting
Rear Locking
Front Locking
Cable length L (m)
0.5 m
0.5 m
Model
Straight
XS5P-T426-5
XS5P-T427-5
Industrial Ethernet Connectors
XS5@-T / XS6@-T
5
