Micro-USB connectors meeting USB 2.0 Standard
ZX Series
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Note : Contact us to ascertain whether a TID number has
been acquired for an individual product.
Fig.1
■Overview
Extremely small highly reliable connectors complying with
physical, electrical and environmental requirements of
Micro-USB standard (USB 2.0).
Receptacles and plugs are available in a wide variety of
mounting and termination styles, allowing their use in
various applications.
Drop-in
(Mid-mount)
Reverse
(Top mount)
Standard
(Bottom mount)
■Features
1. Size reduction
Compared with the standard Mini-USB connectors, the
size of ZX connectors is reduced by approximately 60%
while still allowing a high-speed data transfer of 480 Mbps,
specified in USB 2.0.
2. Receptacle styles
Two interface configurations: Micro-B and Micro-AB in
standard, mid-mount and reverse mounting styles.
SMT and through-hole (shell) PC board terminations.
Fig.2
3. Plug styles
Corresponding to the receptacle styles, two interface
configurations: Micro-A and Micro-B, with direct wire or
PCB wire soldering.
Several plug styles can be used for data transmission,
earphone or charging applications.
USB 2.0 Hi-Speed (480 Mbps)
Eye diagram measurement results :
Measured with 2.4 m long USB 2.0 cable
4. Smooth mating and unmating
A smooth mating and unmating operation results in less
wear and a longer product life. The unique Hirose active
latch mechanism produces a reliable and durable
connector.
Even after repeated use, the user will experience a
smooth click sensation when mating the connectors.
Note : The statement above only applies when using both
plug and receptacles made by Hirose Electric.
200 mV/div
TP2
500ps/div
Fig.3
5. Hirose was the first company to obtain a
Micro-USB certification (TID number).
2017.12④
1
ZX Series●Micro-USB connectors meeting requirements of USB 2.0 Standard

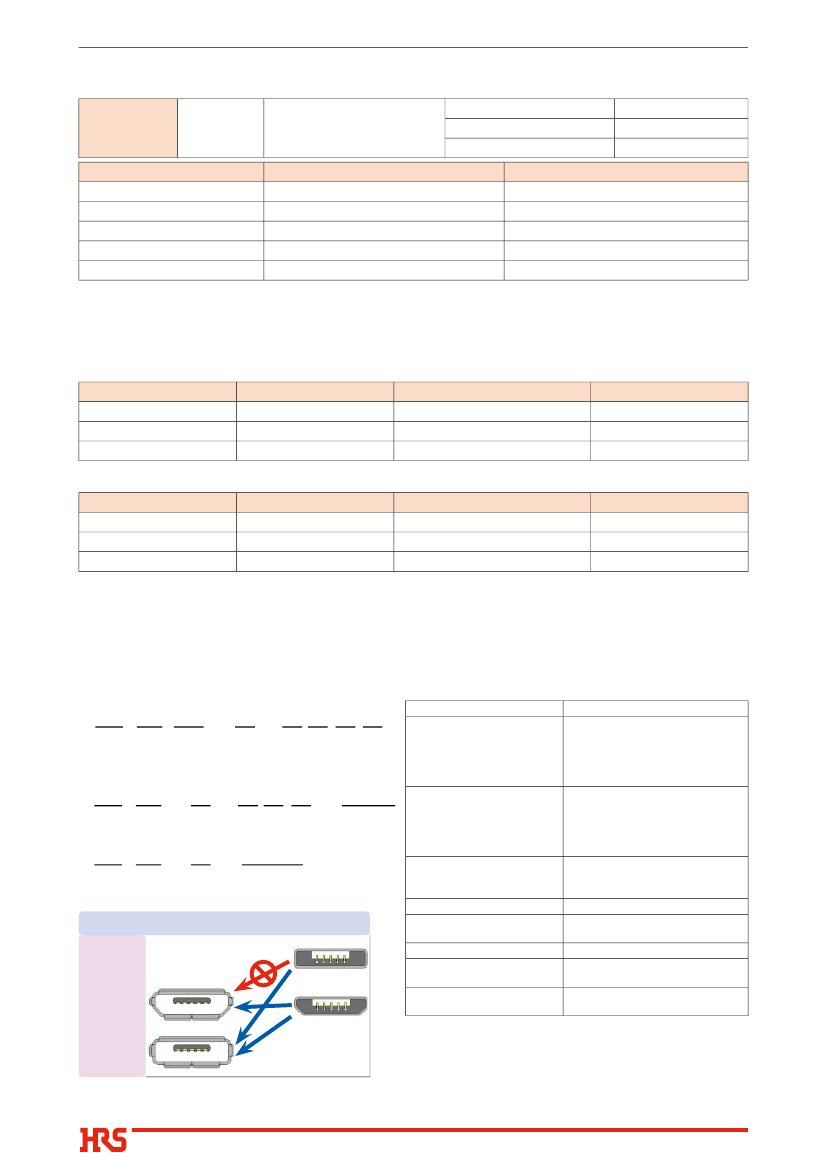

■Product
Specifications
1A (per contact) or
Ratings
Current rating
1.8A (contacts No. 1 and 5) and
0.5A (contacts No. 2, 3, and 4)
Item
1. Contact resistance
2. Withstanding voltage
3. Capacitance
4. Durability
5. Total insertion/removal force
30mø max.
No flashover or insulation breakdown
2pF max.
Specification
100mA
100V AC / 1 minute
Between adjacent contacts at 1,000Hz (AC voltage)
Voltage rating
Operating temperature range
Storage temperature range
30V AC
-30°C to +85°C (Note1)
-30°C to +60°C
Conditions
Contact resistance : Rise from initial value of 10mø max. 10,000 cycles
Insertion force : 35N max., Removal force : 8N min.
Mated with corresponding connector
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Note1 : Includes temperature rise caused by current flow.
Note2 : Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications
for a specific part number shown.
■Materials
/ Finish
●Receptacles
Part
Insulator
Contacts
Shell
Material
LCP
Copper alloy
Stainless steel
Finish
Micro-B: Black, Micro-AB: Gray
Selective gold plated
Tin alloy plating
Remarks
UL94V-0
---------------
---------------
●Plugs
Part
Insulator
Contacts
Shell
Material
LCP
Copper alloy
Stainless steel
Finish
Micro-B: Black, Micro-AB: Gray
Selective gold plated
Tin alloy plating
Remarks
UL94V-0
---------------
---------------
■Product
Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
●Receptacles
ZX 62 RD - B - 5 P
*
8
q
w
e
r
t
y
u
i
qSeries
name
wTermination
style
●Plugs
ZX 40 - B - 5 S
*
- UNIT
q
w
r
t
y
u
o
eBoard
mounting style
(Receptacles)
ZX 40 - B - SLDA
q
w
r
o
Interface
Micro-A
Receptacle
Plug
Micro-B
Blank
D
R
RD
M
rMating
side configuration A
B
AB
tNumber
of contacts
yContact
type
P
S
uSerial
No.
iShell
termination style – Blank SMT
Receptacles
8 Through hole (solder tab length: 0.8mm)
oComponents-plugs
UNIT Assembly (Insulator/contact/lock)
Cover (Note 1)
Note 1 : Classifiers such as A, B, and C are entered for *.
ZX
10's : Right-angle PCB wire, SMT
20's : Straight, PCB wire
40's : Direct wire
60's : Right-angle, PCB wire
80's : Cradle SMT
Standard (Bottom mount)
Standard (Bottom mount) through hole
Reverse (Top mount)
Reverse (Top mount) through hole
Drop-in (Mid-mount)
Micro-A
Micro-B
Micro-AB
5
Receptacle- Male
Plug – Female
Micro-AB
2
ZX Series●Micro-USB connectors meeting requirements of USB 2.0 Standard

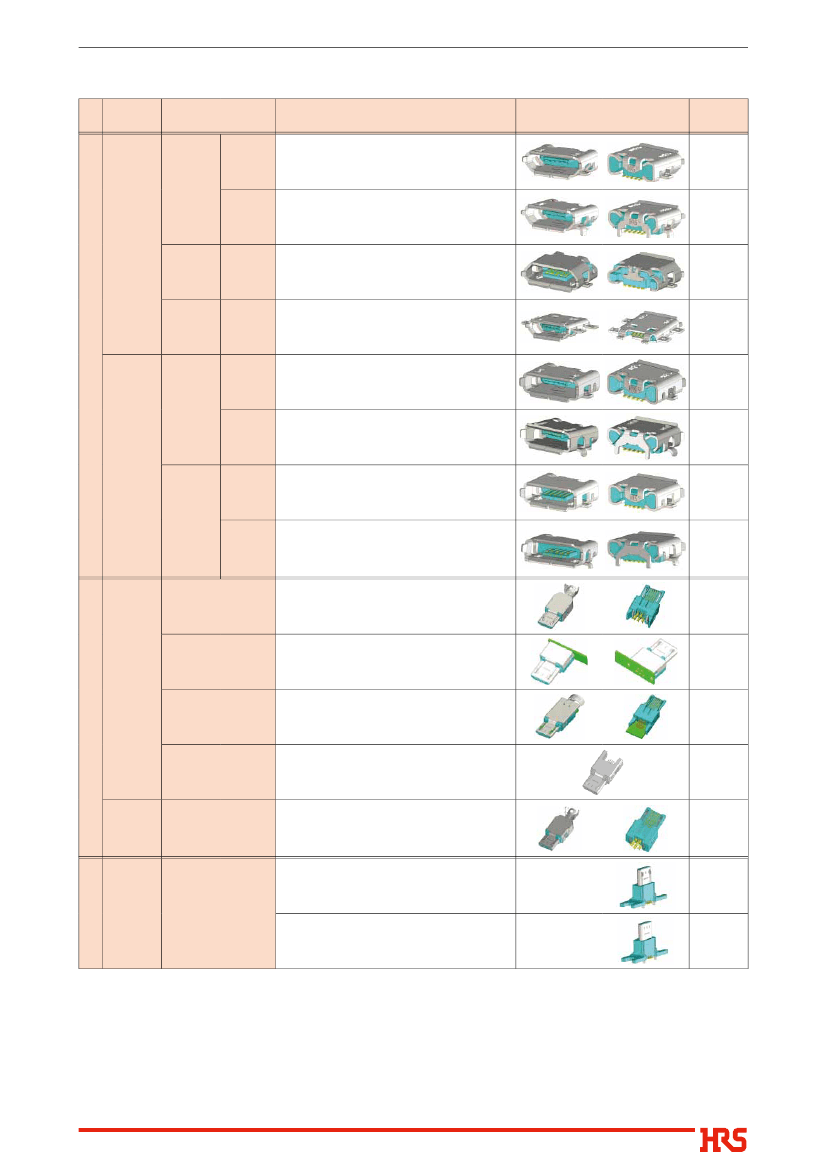

■Configurations
Mating side
configuration
Type
Part No.
3D Image
Page
SMT
Standard
ZX62-B-5PA(33)
4
SMT
+
DIP
ZX62D-B-5PA8(30)
4
Micro-B
Reverse
SMT
ZX62R-B-5P(30)
5
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
R e c e p t a c l e s
Drop-in
SMT
ZX62M-B-5P(30)
5
SMT
Standard
ZX62-AB-5PA(31)
6
SMT
+
DIP
ZX62D-AB-5P8(30)
6
Micro-AB
SMT
Reverse
ZX62R-AB-5P(30)
7
SMT
+
DIP
ZX62RD-AB-5P8(30)
7
Direct wire soldering
Assembly
(insulator/contacts/lock)
Cover-top
Cover-bottom
Assembly
(insulator/contacts/lock)
Cover
Assembly
(insulator/contacts/lock)
Cover-top
Cover- bottom
Assembly
(insulator/contacts/lock)
Cover
Assembly
(insulator/contacts/lock)
Cover-top
Cover- bottom
: ZX40-B-5S-UNIT(31)
: ZX40-B-SLDA
: ZX40-SLDB
9 and 10
PCB wire soldering
(straight, through hole)
P l u g s
Micro-B
: ZX20-B-5S-UNIT(30)
: ZX20-B-SLDC
: ZX64-B-5S-UNIT(31)
: ZX64-B-SLDA
: ZX64-SLDB
: ZX64-B-5S-UNIT(31)
: ZX64-B-SLDC
: ZX40-A-5S-UNIT(30)
: ZX40-A-SLDA
: ZX40-SLDB
With lock
11
PCB wire soldering
(SMT)
12 and 13
PCB wire soldering
(SMT)
12 and 13
Micro-A
Direct wire soldering
14 and 15
Cradles
ZX80-B-5S(30)
Micro-B
16
SMT
+
DIP
ZX80-B-5SA(30)
Without lock
16
Note : 1 Part numbers in the Plugs section of the above table list the Assembly (insulator/contacts/locks) and the corresponding Shields/Covers.
Note : 2 Optional Printed Circuit boards for the Plugs are shown for reference only. Not supplied with applicable connectors.
Note : 3 The color of the insulators body in the Assembly (insulator/contacts/lock) shown in the 3D Image column above is blue for clarity. Refer to
the Materials (Page 2) for correct colors.
3
ZX Series●Micro-USB connectors meeting requirements of USB 2.0 Standard

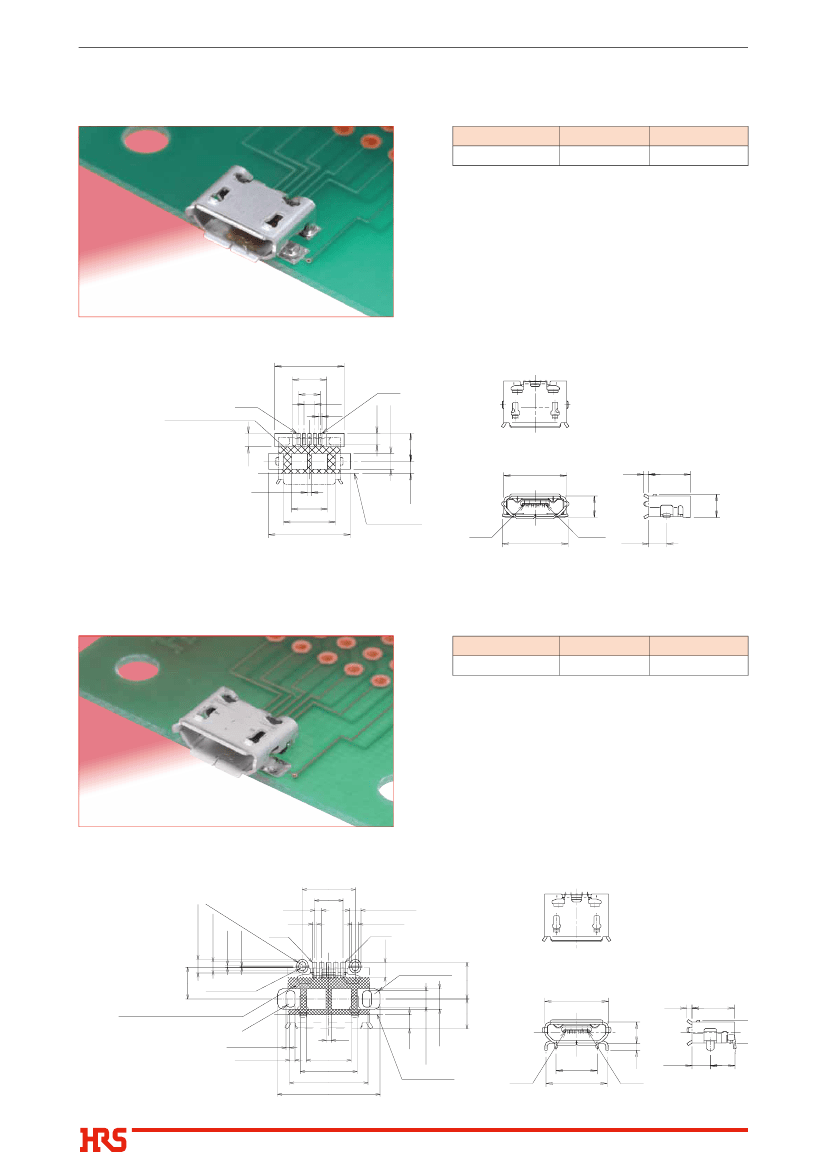

■Receptacles
●
Micro B - Standard (Bottom mount), Shell SMT
Part No.
ZX62-B-5PA(33)
HRS No.
242-0033-8 33
Packaging
3,500pcs/reel
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
BRecommended
PCB mounting pattern
8.3
4.1
2.6
No.5
1.35
1.9
3.35
1.3
0.4
No.1
NO CONDUCTIVE
TRACES
1.6
7.5
1.45
0.5
4.3
6.2
9.8
0.6
5
PCB EDGE
No.1
7.9
No.5
2.5
2.15
All dimensions : mm
●
Micro B - Standard (Bottom mount), Shell through hole
Part No.
ZX62D-B-5PA8(30)
HRS No.
242-0056-3 30
Packaging
2,000pcs/reel
BRecommended
PCB mounting pattern
1.25(LAND)
0.85(TH)
R0
.52
4.85
2.6
5(L
0.2
0.1
0.65
0.4
AN
D)
No.1
1.05(LAND)
0.65(TH)
No.5
1.35
R0.325(TH)
3.35
R0.5(LAND)
2.9
7.5
2.75
PCB EDGE
No.1
4.85
7.2
No.5
0.8
R0.325(TH)
0.5(TH)
4.1
5.2
7.2
9.4
1.3
0.5
1.5(TH)
1.9
2.5
NO CONDUCTIVE TRACES
(TH)
.3
R0
0.6
2.15
2.8
5
2.9
All dimensions : mm
4
ZX Series●Micro-USB connectors meeting requirements of USB 2.0 Standard
■Receptacles
●
Micro B - Reverse (Top mount) Shell SMT
Part No.
ZX62R-B-5P(30)
HRS No.
242-0028-8 30
Packaging
2,000pcs/reel
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
BRecommended
PCB mounting pattern
8.3
No.5
4.1
2.6
1.3
0.4
3.35
2
No.1
1.35
0.43
1.9
0.5
2.9
3.9
5.6
6.6
9.8
1.45
No.5
No.1
2.5
0.6
5
NO CONDUCTIVE TRACES
7.5
8.8
2.15
All dimensions : mm
●
Micro B - Drop-in (Mid-mount), Shell SMT
Part No.
ZX62M-B-5P(30)
HRS No.
242-0024-7 30
Packaging
1,500pcs/reel
11.5
7.5
BRecommended
PCB mounting pattern
1.4
2.4
2.74
4.3
5
5.3
4.8
1.9
No.1
0.25
1.3
2.6
4.7
No.5
No.1
4.7
2
7.5
3
No.5
7.15
1.5
5.15
1.05
3.6
0.4
1.3
2.6
6.9
7.8
8.8
12
PCB EDGE
2.4
All dimensions : mm
1.25
0.6
1.23
1.9
4.3
.
R0
4
C
0.
5
