E3FA/E3RA PHOTOELECTRIC SENSORS
The next generation in sensing performance
M18
Plastic
Housing
»
S t a n d a rd & s p e c i a l a p p l i c a t i o n s
»
Ro b u s t wa te r p ro o f h o u s i n g
»
S i m p l i c i ty i n s e t u p & i n s t a l l a t i o n
E3FA/E3RA Series — The All-Application Sensor
Omron’s next generation of photoelectric sensors represents one of the largest varieties of dependable and
easy-to-use photoelectric sensors on the market. Regardless of your industry or application, the E3FA/E3RA
series is the right sensor for the job.
Key Features
»
» Universal»M18»cylindrical»plastic»housing»in»straight»
or»90°»angled»(radial)»models
»
» Rugged»IP67,»IP69K»housing»withstands»high-
pressure»and»high-temperature»wash»down
»
» Bright»LED»indicators»provide»status»visibility»from»
almost»any»angle
»
» High»power»red»LED»for»easy»sensor»alignment»and»
dependable»outputs»in»dusty»environments
»
» High»EMC»protection»and»ambient»light»immunity»
for»detection»stability»in»environments»with»excess»
noise»or»background»light
»
» Compact»size»and»shape»for»increased»
installation»flexibility
Full line-up of sensors to
increase mounting flexibility
and meet the needs of a wide
range of applications.

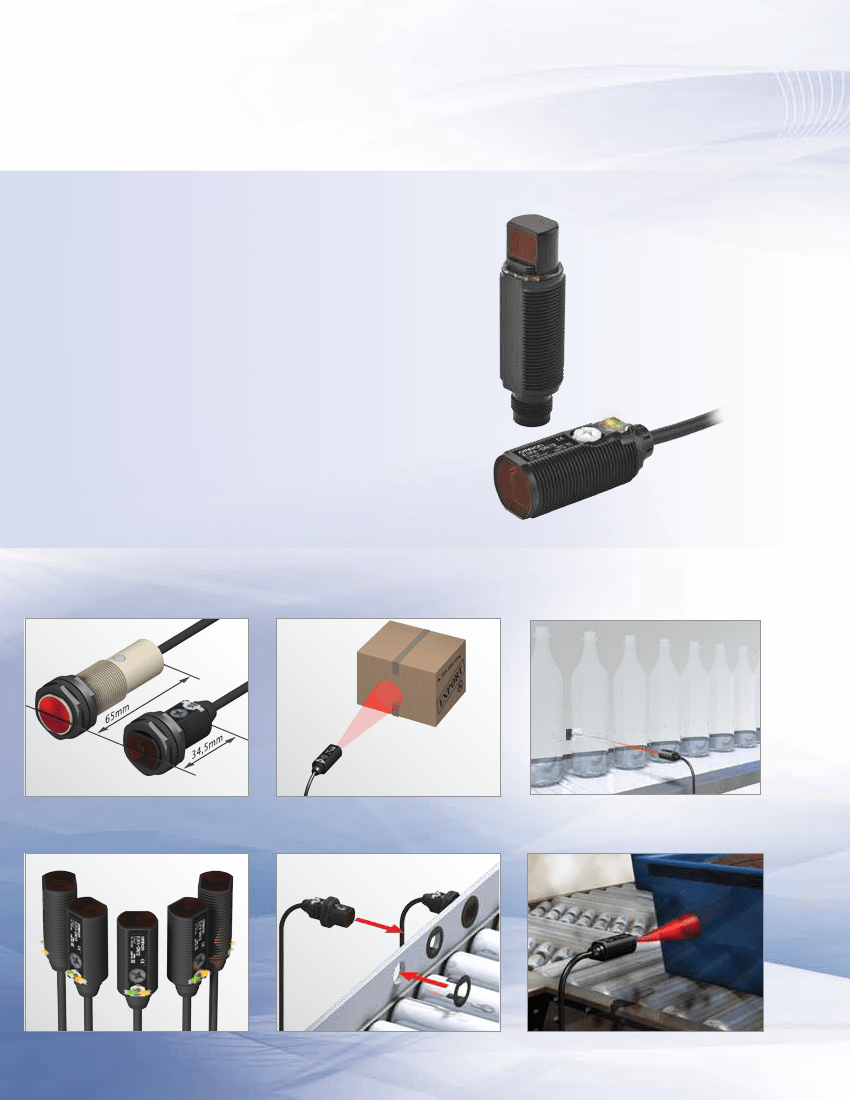

Unrivaled Detection with Simplicity in Setup and Installation
The»short»body»of»the»E3FA/E3RA»fits»in»
tighter»mounting»spaces.
Visible»red»LED»light»for»easy»alignment.
Transparent»object»detection»sensors»utilize»
Omron’s»unique»technology»for»detecting»objects»
with»birefringent»(double»refraction)»properties.
Bright»LED»indicators»for»status»visibility»
and»large»sensor»adjustors»for»use»with»a»
standard»size»screwdriver.»
Flush,»snap»mounting»option»for»quick»
and»easy»installation.
High»power»LED»to»compensate»for»dirt»
and»misalignment.»
One Family for All Applications
Special Models
The»E3FA»series»includes»
special»models»to»solve»
challenging»applications.
»
» Background»Suppression
»
» Limited»Distance»Detection
»
» Transparent»Object»Detection
Background»suppression»sensors»for»stable»detection»independent»of»
color»or»background.

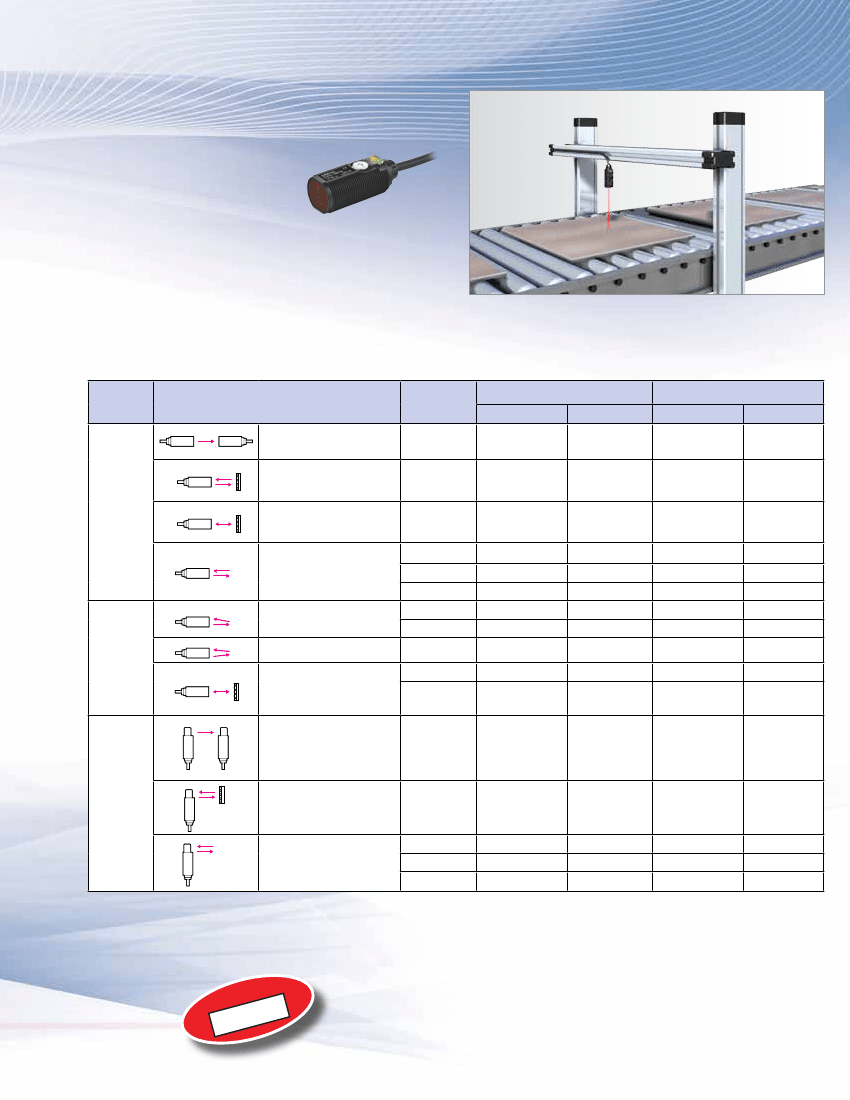

Ordering Information
Setup
Sensor type
Sensing
distance
Pre-wired (2m)
Straight
Through-beam *1
Retro-reflective
(using reflector E39-R1S
sold separately.)
Retro-reflective (coaxial)
(using reflector E39-R1S
sold separately.)
Diffuse-reflective
20m
0.1 to 4m
E3FA-TP11 2M
E3FA-RP11 2M
PNP
M12 connector
E3FA-TP21
E3FA-RP21
Pre-wired (2m)
E3FA-TN11 2M
E3FA-RN11 2M
NPN
M12 connector
E3FA-TN21
E3FA-RN21
0 to 500mm
E3FA-RP12 2M
E3FA-RP22
E3FA-RN12 2M
E3FA-RN22
100mm
300mm
1m
E3FA-DP11 2M
E3FA-DP12 2M
E3FA-DP13 2M
E3FA-LP11 2M
E3FA-LP12 2M
E3FA-VP11 2M
E3FA-BP11 2M
E3FA-BP12 2M
E3RA-TP11 2M
E3FA-DP21
E3FA-DP22
E3FA-DP23
E3FA-LP21
E3FA-LP22
E3FA-VP21
E3FA-BP21
E3FA-BP22
E3RA-TP21
E3FA-DN11 2M
E3FA-DN12 2M
E3FA-DN13 2M
E3FA-LN11 2M
E3FA-LN12 2M
E3FA-VN11 2M
E3FA-BN11 2M
E3FA-BN12 2M
E3RA-TN11 2M
E3FA-DN21
E3FA-DN22
E3FA-DN23
E3FA-LN21
E3FA-LN22
E3FA-VN21
E3FA-BN21
E3FA-BN22
E3RA-RN21
Special
Applications
BGS (Background
suppression)
Limited distance reflective
Transparent detection
(using reflector E39-RP1 sold
separately.)
100mm
200mm
10 to 50mm
100 to 500mm
0.1 to 2m
15m
Radial
Through-beam *1
Retro-reflective
(using reflector E39-R1S
sold separately.)
Diffuse-reflective
0.1 to 3m
E3RA-RP11 2M
E3RA-RP21
E3RA-RN11 2M
E3RA-RN21
100mm
300mm
700mm
E3RA-DP11 2M
E3RA-DP12 2M
E3RA-DP13 2M
E3RA-DP21
E3RA-DP22
E3RA-DP23
E3RA-DN11 2M
E3RA-DN12 2M
E3RA-DN13 2M
E3RA-DN21
E3RA-DN22
E3RA-DN23
*1 The set type includes the emitter and receiver.
Note: All sensors are 10-30 VDC. Light-On/Dark-On selectable by wiring.
ink
ck L
Qui
B278
Use this document as a guide to find the right E3FA/E3RA sensor for your
application. Enter the
Quick Link Code
in the Search Center of the Omron
website (www.omron247.com) to download comprehensive E3FA/E3RA
product documentation such as datasheets, brochures, manuals and CAD files.

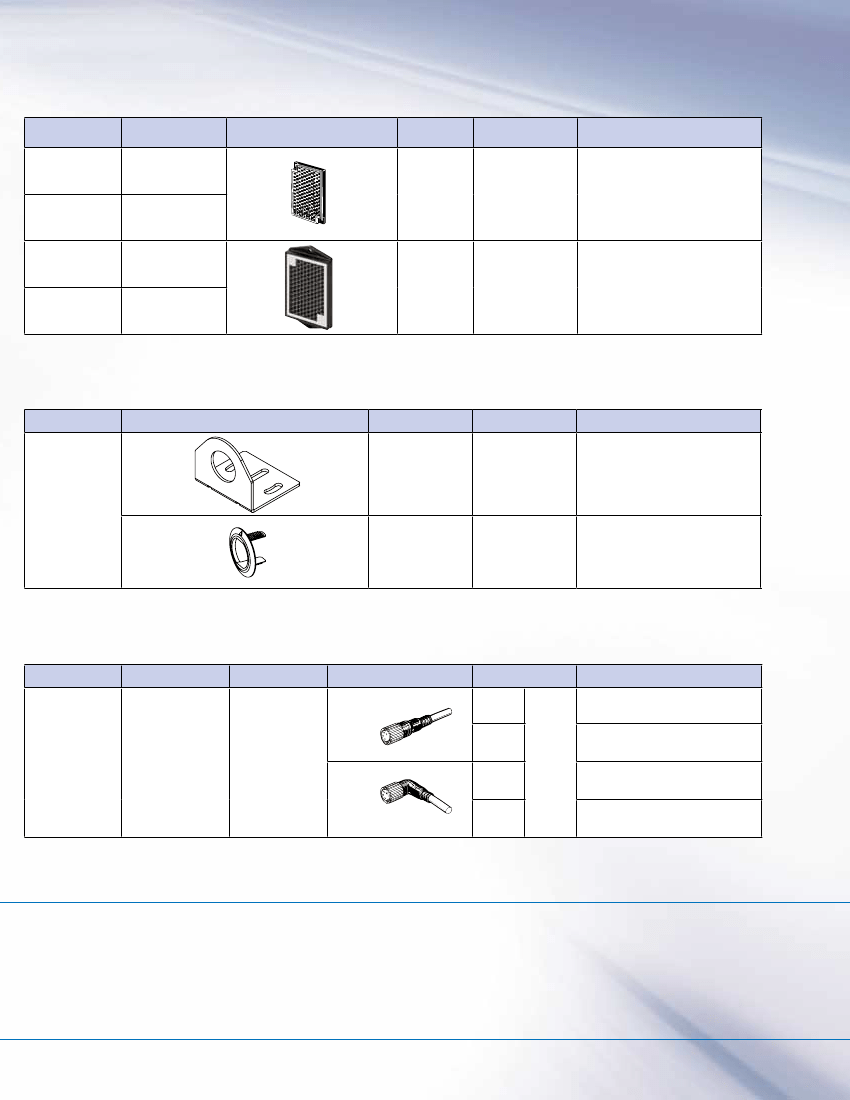

Accessories
Reflectors
Reflectors required for Retro-reflective Sensors: A Reflector is not provided with the Sensor. Be sure to order a Reflector separately.
Sensor
Sensing
distance
0.1 to 4 m
E39-R1S
E3FA-R92
0 to 500 mm
1
for E3FA-R9 and E3RA-R9
Appearance
Model
Quantity
Remarks
E3FA-R91
E3FA-B91
100 to 500 mm
E39-RP1
1
for E3FA-B9
E3FA-B92
0.1 to 2 m
Mounting Brackets
A Mounting Bracket is not included with the Sensor. Order a Mounting Bracket separately if required.
Sensor
Appearance
Model (Material)
Quantity
Remarks
E39-L183
(SUS304)
All types
1
Mounting bracket
E39-L182
(POM)
1
Flush mounting bracket
Sensor I/O connectors
Models for Connectors: A Connector is not provided with the Sensor. Be sure to order a Connector separately.
Sensor
Size
Cable
Appearance
Cable Type
2m
Straight
5m
All types
M12
Standard
2m
Angle
5m
XS2F-M12PVC4A5M
4-wire
XS2F-M12PVC4A2M
XS2F-M12PVC4S5M
Remarks
XS2F-M12PVC4S2M
