Electronic housing - UEG 30/2 - 2790240
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Electronic housing, for two PCBs, fully equipped with 8 screw or tab connections per side

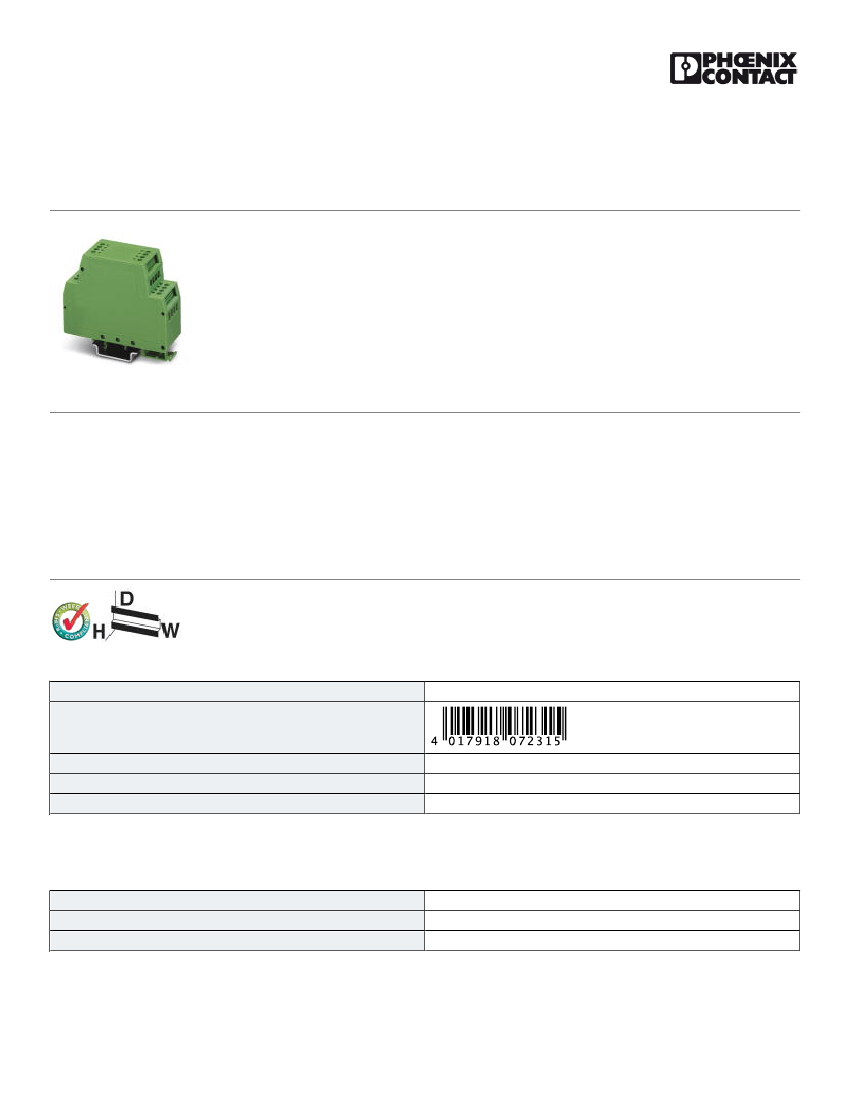

The illustration shows version UEG
30/1
Product Features
■
■
■
■
■
■
Universal P1-UEG... PCBs are available for laboratory samples and small series
Cost-effective series production, since the base element and the assembled PCB are soldered by machine
Up to 16 connections on two levels
Can be snapped onto standard NS 35/7,5 and NS 35/15 DIN rails
Installation of one or two PCBs in the housing
Efficient assembly thanks to overlapping housing parts
Key Commercial Data
Packing unit
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
72.94 g
85369010
Germany
1 pc
Technical data
General
Housing type
Housing material
Color
Complete housing
Polyamide (PA 6.6)
green
Ambient conditions
04/24/2016 Page 1 / 5
https://www.phoenixcontact.com/us/products/2790240
Electronic housing - UEG 30/2 - 2790240
Technical data
Ambient conditions
Ambient temperature (operation)
-40 °C ... 105 °C (depending on power dissipation)
Dimensions
Constructional height
Width
Pitch
70 mm
30 mm
5 mm
Technical data
Flammability rating according to UL 94
Power dissipation without gap
Power dissipation with 20 mm gap
Number of positions
V0
4W
7.2 W
16
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Stripping length
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
24
12
8 mm
Standards and Regulations
Flammability rating according to UL 94
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27180401
27180401
27180506
27180506
27180802
27182702
27182702
27182702
ETIM
ETIM 2.0
ETIM 3.0
EC001031
EC001031
04/24/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/2790240
Electronic housing - UEG 30/2 - 2790240
Classifications
ETIM
ETIM 4.0
ETIM 5.0
EC001031
EC001031
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31261501
31261501
31261501
31261501
31261501
Approvals
Approvals
Approvals
UL Recognized / EAC / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
EAC
cULus Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
30-12
10 A
300 V
D
30-12
10 A
300 V
04/24/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/2790240
Electronic housing - UEG 30/2 - 2790240
Accessories
Accessories
Bridge
Wire bridge - DB 50- 90 GY - 2820929
Wire bridge, Color: gray

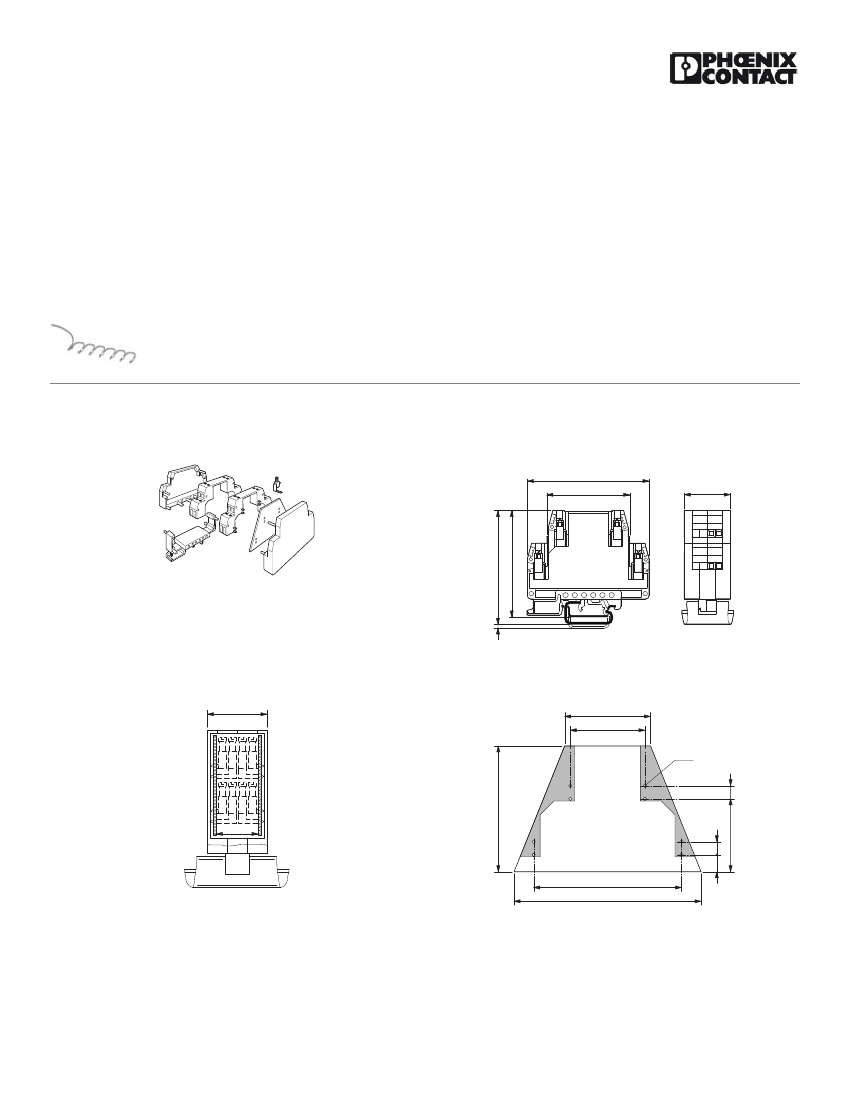

Drawings
Explosion drawing
Dimensional drawing
79,5
53
B
Dimensional drawing
30
2,5
75
70
Dimensional drawing
32,8
28,5
Ø1,3
56,5
71,5
UEG 30/2, enlarged internal area, with 2 PCBs arranged as mirror image,
up to max. 16 pos.
04/24/2016 Page 4 / 5
6,5 5
27,9
19
48,1
5
https://www.phoenixcontact.com/us/products/2790240
Electronic housing - UEG 30/2 - 2790240
Schematic diagram
