DT120PW240C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> DT120PW240C

DT120PW240C: DescriptionDesktop AC Adapters 120W 24V 5A; CategoryPower/power management; File Size175KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric Compare View All

DT120PW240C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DT120PW240C	-	-	View	Buy Now

DT120PW240C Overview

Desktop AC Adapters 120W 24V 5A

DT120PW240C Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	TDK Corporation
Product Category	Desktop AC Adapters
RoHS	Details
Region	Universal
Input Voltage	90 VAC to 264 VAC
Number of Outputs	1 Output
Output Power	120 W
Output Voltage-Channel 1	24 V
Output Current-Channel 1	5 A
Mounting Style	Desktop
Factory Pack Quantity	1
Unit Weight	1.400 lbs

Preview

Download Datasheet

View All

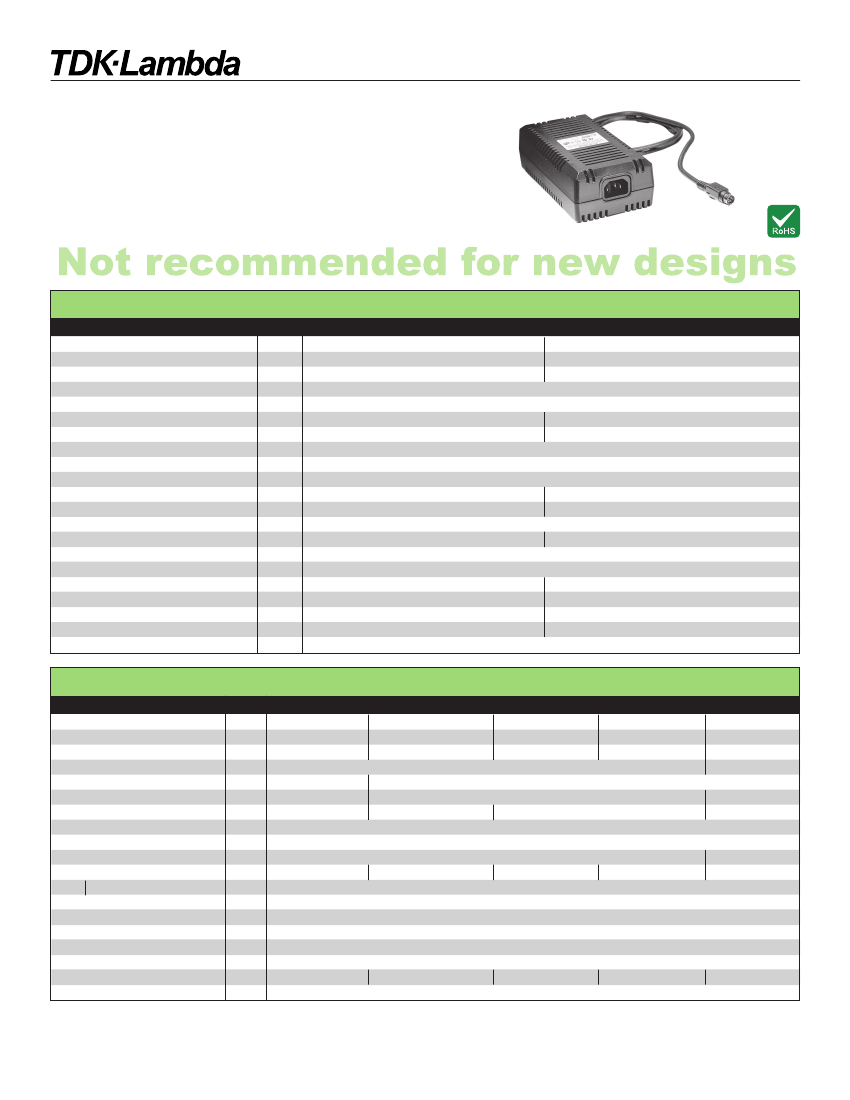

DT Series

External Power Supplies

Features

Low Proﬁle Light Weight

Single and Multiple Outputs

2 Wire or 3 Wire Input Versions

Wide Range Input

Low Conducted EM

Speciﬁcations

Model

Maximum Output Power

Number of Outputs

Minimum Load

Input Voltage Range

Efﬁciency

Inrush Current (@120VAC)

Size (L x W x H)

Regulation

Ripple/Noise

Overcurrent Protection

Overvoltage Protection

Hold Up Time (120VAC)

Operating Temperature

Storage Temperature

EMI

Safety

Input Connector

Output Cable

Output Connector ID x OD

Center Pin

Warranty

°C

yrs

DT27

27W

yes

90~264VAC (47~63Hz)

75% (typical)

50A

106x60x30

Line: Typically 1%, Load: Typically 5%

Typically 1%

Short Circuit, auto restart

+5V only

0~40°C

-40~70°C

FCC Class B, EN55022B, (EN50081-1 DT15W, DT30U)

UL60950-1, CSA 22.2 234, EN60950-1

IEC320 C7

1.0

2.1 x 5.5

Positive

One year

150% max

50A

106x60x30

DT36PW

36W

(1)

Speciﬁcations

Model

Maximum Output Power

Number of Outputs

Minimum Load

Input Voltage Range

Efﬁciency (typical)

Inrush Current (@115VAC)

Size (L x W x H)

Regulation

(1)

Ripple/Noise

(1)

Overcurrent Protection

Overvoltage Protection

Hold Up Time (115VAC)

Operating Temperature

Storage Temperature

EMI

Safety

Input Connector

Output Cable (minimum)

Warranty

°C

yrs

DT45PW

45W

yes

75%

27A

130x69x40

DT60PWxxxP

DT60PW201

DT70PWxxxP

60W

70W

yes

90~264VAC (47~63Hz)

75%

27A

130x69x40

154x85x53

Line: Typically 1%, Load: Typically 5%

Typically 1%

Short Circuit, auto restart

150% max

+5V only

0~40°C

-40~70°C

FCC Class B, EN55022B

UL60950-1, CSA 22.2 60950-1, EN60950-1

IEC320 C13

1.0

One year

DT100PW

100W

90-132/180-264

50A

185x105x60

+5V only

Shutdown

150% max

1.0

(1) See Lambda website for full speciﬁcation

1-800-526-2324 • www.us.tdk-lambda.com/lp/
