Part Number

Search

796380-2

Description
R/A STRN RELIEF KIT,SZ 13,CPC
CategoryThe connector    Connector bracket
File Size212KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

796380-2 Online Shopping

Suppliers Part Number Price MOQ In stock
796380-2 - - View Buy Now

796380-2 Overview

R/A STRN RELIEF KIT,SZ 13,CPC

796380-2 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codecompliant
Factory Lead Time8 weeks
Connector bracket typeCONNECTOR ACCESSORY
Base Number Matches1
4

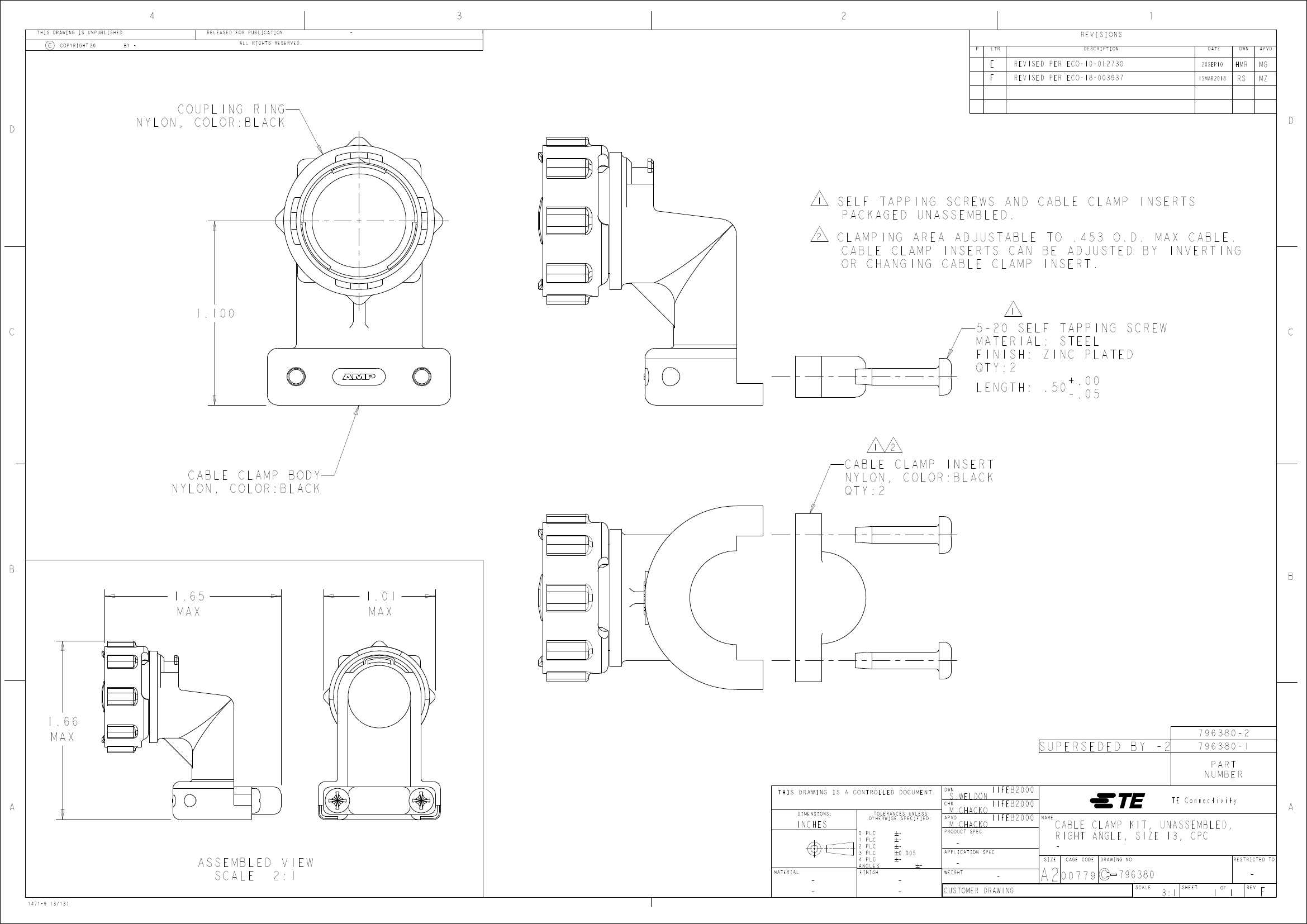

THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
-
3
2
REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
C
COPYRIGHT
20
E
F
REVISED PER ECO-10-012730
REVISED PER ECO-18-003937
20SEP10
15MAR2018
HMR
RS
MG
MZ
D
COUPLING RING
NYLON, COLOR:BLACK
D
1
2
SELF TAPPING SCREWS AND CABLE CLAMP INSERTS
PACKAGED UNASSEMBLED.
CLAMPING AREA ADJUSTABLE TO .453 O.D. MAX CABLE.
CABLE CLAMP INSERTS CAN BE ADJUSTED BY INVERTING
OR CHANGING CABLE CLAMP INSERT.
1.100
C
1
5-20 SELF TAPPING SCREW
MATERIAL: STEEL
FINISH: ZINC PLATED
QTY:2
+.00
LENGTH: .50
-.05
C
1
2
CABLE CLAMP BODY
NYLON, COLOR:BLACK
CABLE CLAMP INSERT
NYLON, COLOR:BLACK
QTY:2
B
B
1.65
MAX
1.01
MAX
1.66
MAX
SUPERSEDED BY -2
DWN
CHK
DIMENSIONS:
796380 -2
796380 -1
PART
NUMBER
THIS DRAWING IS A CONTROLLED DOCUMENT.
A
S.WELDON
M.CHACKO
11FEB2000
11FEB2000
11FEB2000
NAME
TE Connectivity
INCHES
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
APVD
A
ASSEMBLED VIEW
SCALE
2:1
1471-9 (3/13)
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
-
0.005
-
PRODUCT SPEC
M.CHACKO
APPLICATION SPEC
-
-
-
-
-
-
WEIGHT
-
-
CUSTOMER DRAWING
A2
00779
SIZE
CABLE CLAMP KIT, UNASSEMBLED,
RIGHT ANGLE, SIZE 13, CPC
-
CAGE CODE
DRAWING NO
RESTRICTED TO
796380
SCALE
3:1
SHEET
1
OF
1
REV
-
F
