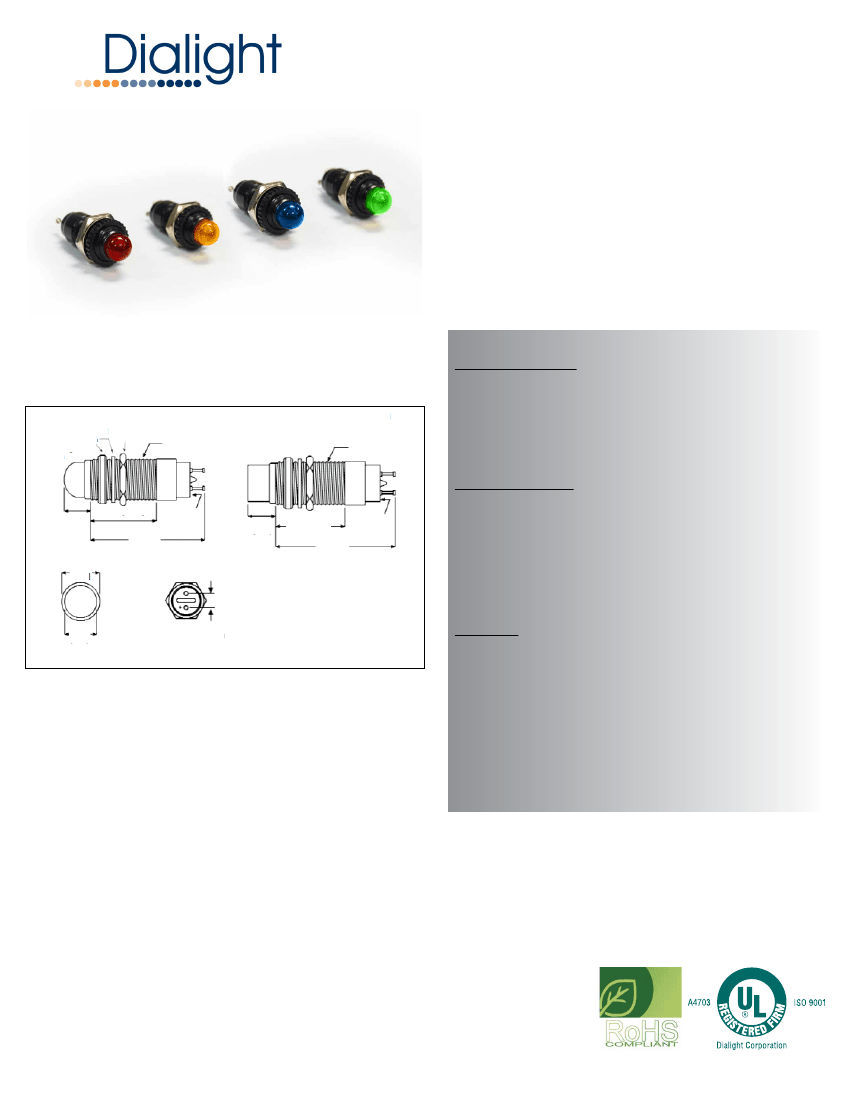

Application:
Dialight’s 249 series LED panel mount indicator is available with a
variety of LED’s including AllnGap and InGan technology for high
brightness applications. These indicators are designed for a variety
of applications such as:
•
Main and remote power indication
•
Status indication
•
Maintenance and warning indication
•
Instrumentation
•
Process control
...and many more!
Front or Rear Panel Mount Indicators
STOVEPIPE LENS
Lockwash - .22 x 1/2
OD Internal Tooth
Knurled Flange Nut
.099 x .509
max OD
Nut - 3/32 x 1/2 Flat Hex
3/8 - 32 NEF THD
3/8 - 32 NEF THD
249 Series
Mechanical Information
Mounting Hole Size:
Max Panel Thickness:
Mounting Torque:
Electrical specifications
0.375” (9.53 mm)
.312” (7.92 mm)
8-10 in-lbs torque
CYLINDRICAL LENS
1
.571 [14.50]
.230
[5.80]
.993
[25.20]
(+) ANODE
POLARITY
MARK
.230
[5.80]
.571 [14.50]
.993
[25.20]
(+) ANODE
POLARITY
MARK
Operating Voltage:
Operating Temp:
Storage Temp:
Electrical connection
Construction
Housing:
Terminals:
Knurled Flange Nut:
Lock washer:
Nut:
3.6, 5, 10, 14, and 28V DC
-55
o
C to +71
o
C
-55
o
C to +71
o
C
Turret terminals for wire wrapping
.330
[8.40]
Cylindrical lens will provide wider viewing angle.
.280
[7.10]
.16
[4.06]
Dimensions in inches [mm]
All measurements are typical
Hardware includes knurled ring, lock washer & hex nut
Aluminum – Black Anodized
Phosphor Bronze – Fused Tin
Aluminum – Black Anodized
Phosphor Bronze – White Nickel Plated
Brass – White Nickel Plated
Certifications & Ratings
•
RoHS Compliant
Features and Benefits
•
Lower power consumption – uses up to 90% less energy that on
incandescent indicator
•
Resistant to shock and vibration
•
Front or rear panel mounting
•
Polarity indication by terminal (+) denotes anode
•
Available in either cylindrical or stovepipe lens, unique internal Fresnel
design provides uniform illumination
•
Long life, up to 100K hours
•
Aluminum black anodized housing enhances contrast
•
No heat generated
•
Available in red, yellow, green, and blue
www.dialight.com
•
Dialight HQ (P) 732-919-3119
Front or Rear Panel Mount Indicators
Part Number
249-4162-3734-504F
249-7867-3731-504F
249-7967-3732-504F
249-8067-3733-504F
249-4164-3734-504F
249-7868-3731-504F
249-7968-3732-504F
249-8068-3733-504F
249-4166-3734-504F
249-7870-3731-504F
249-7970-3732-504F
249-8070-3733-504F
249-4167-3734-504F
249-7871-3731-504F
249-7971-3732-504F
249-8071-3733-504F
249-4168-3734-504F
249-7872-3731-504F
249-7972-3732-504F
249-8072-3733-504F
249 Series
Color
Blue
Red
Green
Yellow
Blue
Red
Green
Yellow
Blue
Red
Green
Yellow
Blue
Red
Green
Yellow
Blue
Red
Green
Yellow
Voltage (VDC)*
Stovepipe Cap
3.5**
3.6
3.6
3.6
5
5
5
5
10
10
10
10
14
14
14
14
28
28
28
28
Current (mA)
10
20
20
20
10
20
20
20
10
20
20
20
10
20
20
20
10
20
20
20
Typical Intensity (mcd)
1500
170
100
150
1500
170
100
150
1500
170
100
150
1500
170
100
150
1500
170
100
150
Cylindrical Cap
249-4162-3334-504F
249-7867-3331-504F
249-7967-3332-504F
249-8067-3333-504F
249-4164-3334-504F
249-7868-3331-504F
249-7968-3332-504F
249-8068-3333-504F
249-4166-3334-504F
249-7870-3331-504F
249-7970-3332-504F
249-8070-3333-504F
249-4167-3334-504F
249-7871-3331-504F
249-7971-3332-504F
249-8071-3333-504F
249-4168-3334-504F
249-7872-3331-504F
249-7972-3332-504F
249-8072-3333-504F
Blue
Red
Green
Yellow
Blue
Red
Green
Yellow
Blue
Red
Green
Yellow
Blue
Red
Green
Yellow
Blue
Red
Green
Yellow
3.5**
3.6
3.6
3.6
5
5
5
5
10
10
10
10
14
14
14
14
28
28
28
28
10
20
20
20
10
20
20
20
10
20
20
20
10
20
20
20
10
20
20
20
700
55
40
75
700
55
40
75
700
55
40
75
700
55
40
75
700
55
40
75
* Dialight recommends tolerance of 5% of specified voltage range
** VF typical - Requires current limiting resistor
