D2818-21 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> D2818-21

D2818-21: DescriptionIC & Component Sockets 18 PIN DIL IC SOCKET VERT PC TAIL; CategoryThe connector socket; File Size171KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

D2818-21 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D2818-21	-	-	View	Buy Now

D2818-21 Overview

IC & Component Sockets 18 PIN DIL IC SOCKET VERT PC TAIL

D2818-21 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	STANDARD: UL 94V-0
body width	0.4 inch
subject depth	0.169 inch
body length	0.9 inch
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact material	NOT SPECIFIED
Contact style	RND PIN-SKT
current rating	1.8 A
Device slot type	IC SOCKET
Type of equipment used	DIP18
Shell material	POLYESTER
JESD-609 code	e0
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	18
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

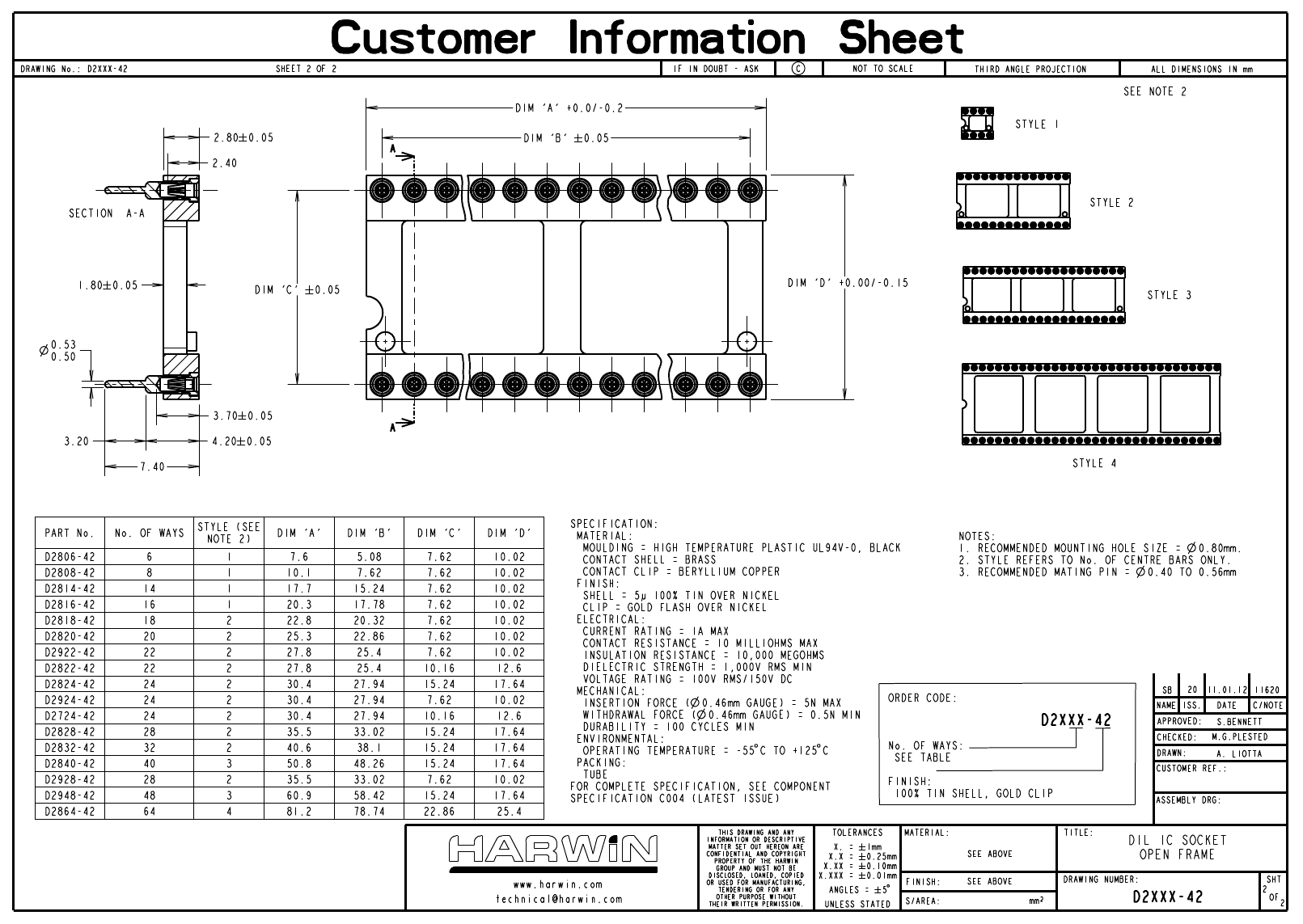

Preview

Download Datasheet

View All

D2818-21 Related Products

	D2818-21	D2806-21	D2816-21	D2724-21	D2820-21	D2816-01
Description	IC & Component Sockets 18 PIN DIL IC SOCKET VERT PC TAIL	IC & Component Sockets 6 PIN DIL IC SOCKET VERT PC TAIL	IC & Component Sockets 16 WAY IC SKT ASSY	IC & Component Sockets 24 PIN DIL IC SOCKET VERT PC TAIL	IC & Component Sockets 20 WAY IC SKT ASSY	IC & Component Sockets 16 PIN DIL IC SOCKET VERT PC TAIL
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0
body width	0.4 inch	0.4 inch	0.4 inch	0.5 inch	0.4 inch	0.4 inch
subject depth	0.169 inch	0.169 inch	0.169 inch	0.169 inch	0.169 inch	0.169 inch
body length	0.9 inch	0.3 inch	0.8 inch	1.2 inch	1 inch	0.8 inch
Contact to complete cooperation	GOLD FLASH	GOLD FLASH	GOLD FLASH	NOT SPECIFIED	GOLD FLASH	GOLD
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
current rating	1.8 A	1.8 A	1.8 A	1.8 A	1.8 A	1.8 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	DIP18	DIP6	DIP16	DIP24	DIP40	DIP16
Shell material	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	18	6	16	24	20	16
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	0.3 mm	0.3 mm	0.3 mm	0.4 mm	0.3 mm	0.3 mm
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	1	1	1
Contact completed and terminated	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
JESD-609 code	e0	e0	e0	-	e0	e0
