Part Number

Search

43640-0400

Description
Headers & Wire Housings PLUG PANEL MOUNT 4P SINGLE ROW
CategoryThe connector    The connector
File Size41KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

43640-0400 Online Shopping

Suppliers Part Number Price MOQ In stock
43640-0400 - - View Buy Now

43640-0400 Overview

Headers & Wire Housings PLUG PANEL MOUNT 4P SINGLE ROW

43640-0400 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
Factory Lead Time8 weeks
Other featuresMICRO-FIT 3.0
subject depth0.665 inch
body length0.506 inch
Body/casing typePLUG
Connector typeRECTANGULAR POWER CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Durability30 Cycles
empty shellNO
Filter functionNO
IEC complianceNO
maximum insertion force11.5648 N
Minimum insulation diameter0.05 inch
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialPOLYESTER
MIL complianceNO
Plug contact pitch0.118 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE AND PANEL
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
polarization keyPOLARIZED HOUSING
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Shell materialPOLYESTER
Terminal length
Termination typeCRIMP
Total number of contacts4
UL Flammability Code94V-0
Maximum wire diameter20 AWG
Minimum wire diameter30 AWG
Evacuation force-minimum value3.614 N
Base Number Matches1

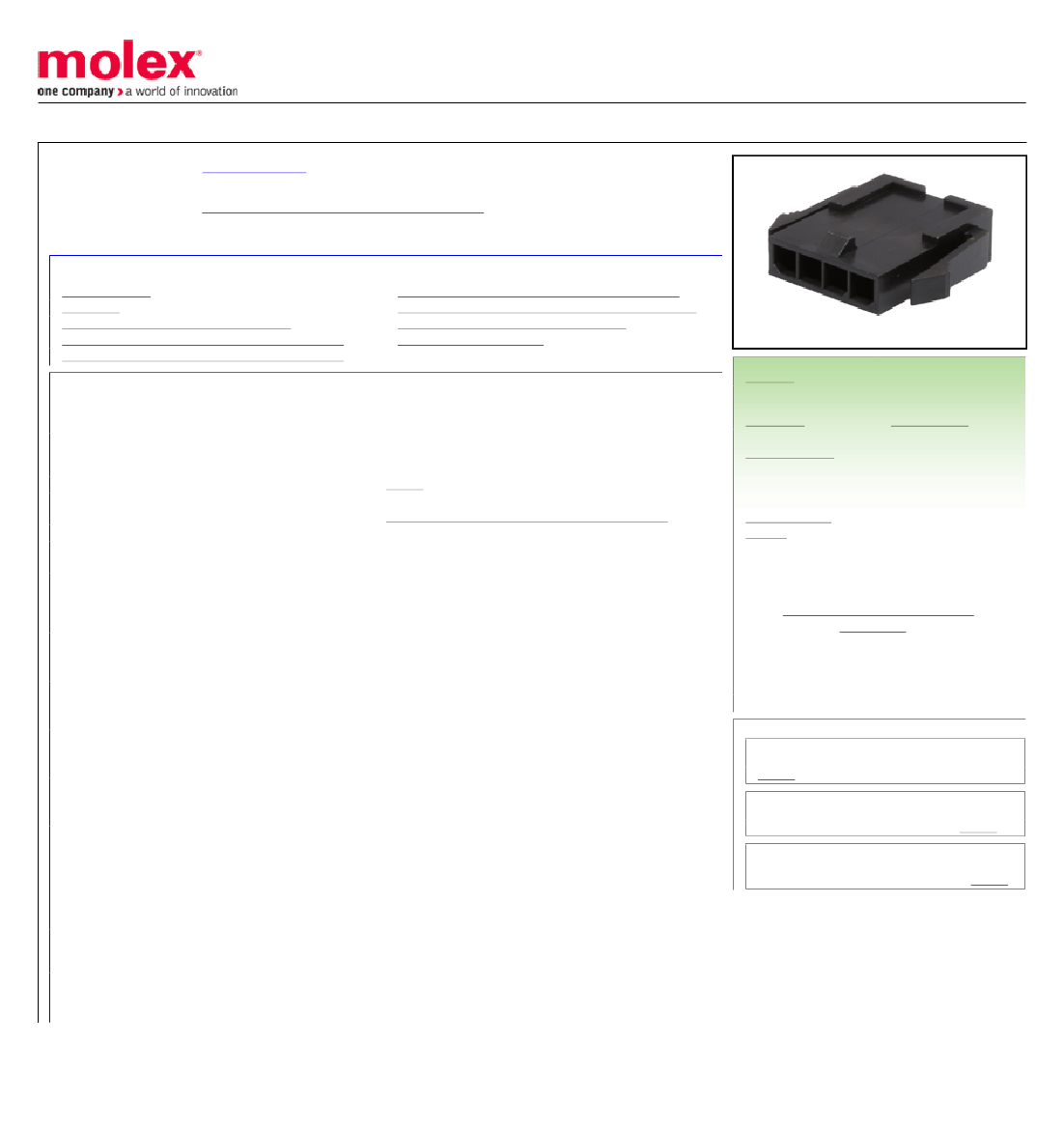

This document was generated on 03/01/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0436400400
Active
Micro-Fit 3.0 Connector System Product Family
Micro-Fit 3.0 Plug Housing, Single Row, 4 Circuits, UL 94V-0, Panel Mount Ears, Low-
Halogen, Black
Documents:
Drawing (PDF)
3D Model
Product Specification PS-43650 (PDF)
Product Specification TS-43045-001-001 (PDF)
Product Specification TS-43045-002-001 (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Application
Overview
Product Literature Order No
Product Name
UPC
Physical
Circuits (maximum)
Color - Resin
Flammability
Gender
Glow-Wire Capable
Keying to Mating Part
Lock to Mating Part
Material - Resin
Net Weight
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
Solder Process Data
Lead-freeProcess Capability
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Product Specification TS-46235-001-001 (PDF)
Packaging Specification PK-43640-003-001 (PDF)
RoHS Certificate of Compliance (PDF)
Product Literature (PDF)
Series image - Reference only
EU ELV
Not Relevant
LR19980
E29179
Crimp Housings
43640
Power, Wire-to-Wire
Micro-Fit 3.0 Connector System Product Family
987650-5984
Micro-Fit 3.0
800754366144
4
Black
94V-0
Plug
No
None
Yes
Nylon
0.836/g
1
Bag
Yes
3.00mm
Yes
No
-40°C to +105°C
N/A
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Not Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
43640 Series
Mates With
Micro-Fit 3.0 Receptacle Housing 43645
Use With
Micro-Fit 3.0 Male Crimp Terminals 43031
PK-43640-003-001
PS-43650, TS-43045-001-001, TS-43045-002-001,
TS-46235-001-001
SD-43640-****
This document was generated on 03/01/2018
