93601-2243 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 93601-2243

93601-2243: DescriptionHeavy Duty Power Connectors HE HOOD T/ENTRY 1LVR M25 7816.4995.1; CategoryThe connector; File Size32KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

93601-2243 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	93601-2243	-	-	View	Buy Now

93601-2243 Overview

Heavy Duty Power Connectors HE HOOD T/ENTRY 1LVR M25 7816.4995.1

93601-2243 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Heavy Duty Power Connectors
RoHS	Details
Factory Pack Quantity	5

Preview

Download Datasheet

View All

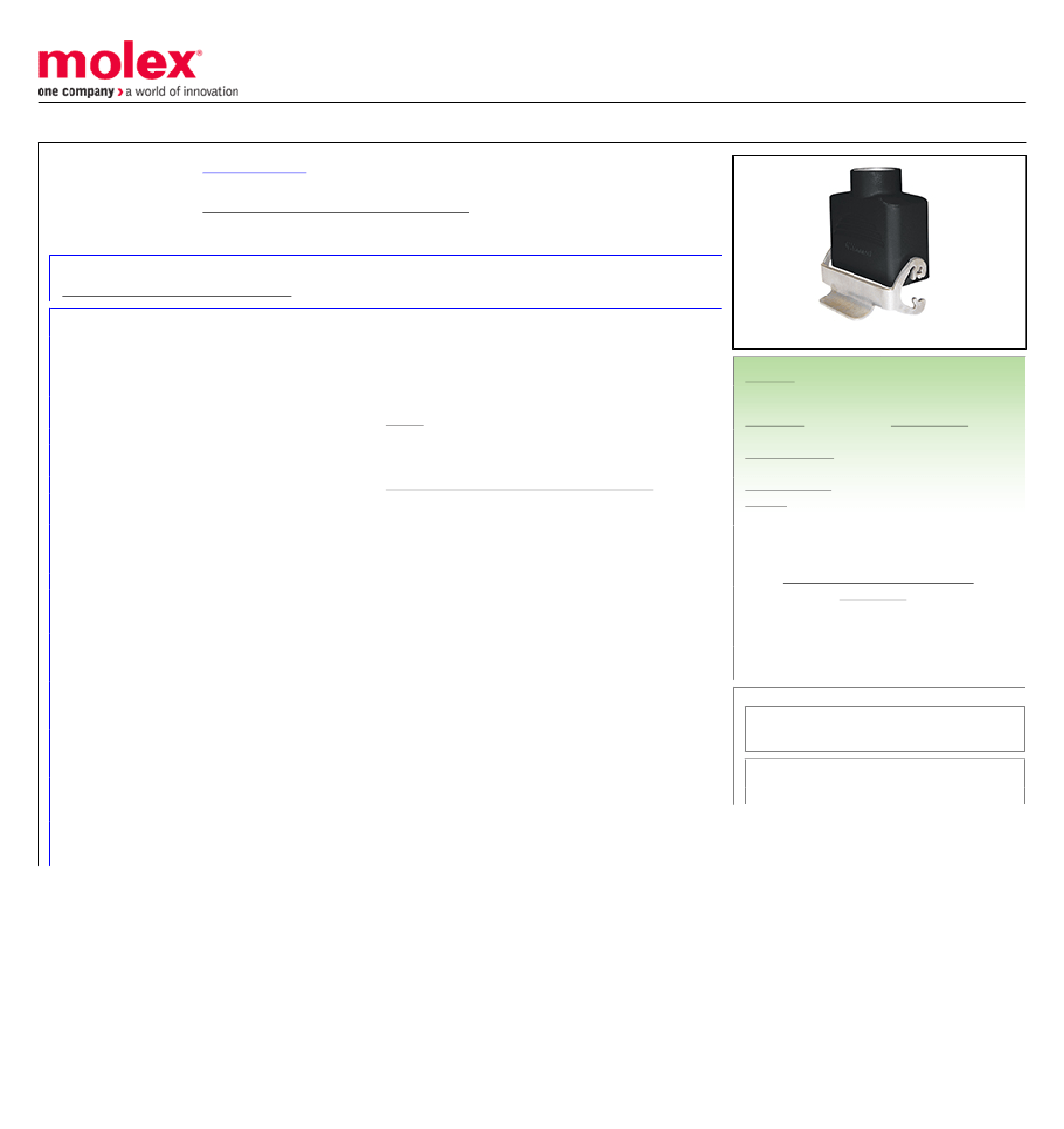

This document was generated on 10/20/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0936012243

Active

GWconnect® Heavy Duty Connectors (HDC)

GWconnect HE - Harsh Environment, Single Lever Hood, Die-cast Aluminum, with 1

Lever, Side Entry, Size 16A «66x16», M25 Extended Thread, Black

Documents:

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

General

Product Family

Series

Component Size

Component Type

IP Rating

Overview

Product Category

Product Name

Standard

Type

UPC

Physical

Entry Location

Hood Coating

Hood Color

Lock to Mating Part

Material - Hood

Material - Lever

Number of Levers

Packaging Type

Thread Size

Thread Type

Electrical

Voltage - Maximum

Material Info

Engineering Number

256883

E249674

Industrial Connectors / Enclosures

93601

16A «66X16»

Single Lever Hood

IP66, IP69

GWconnect® Heavy Duty Connectors (HDC)

Heavy Duty Connectors

GWconnect

ANSI/UL 50, ANSI/UL 50 E, CSA C22.2 No.94-1-2, EN

61984

887191878980

Top

Polyester Powder

Black RAL 9005

Yes

Die-cast Aluminum

Galvanized Steel

Bag

M25

(M) Metric

500V

7816.4995.1

Series image - Reference only

EU ELV

Not Reviewed

EU RoHS

China RoHS

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Reviewed

Search Parts in this Series

93601 Series

Use With

Size 16A 66x16» S-A and S-D Inserts

This document was generated on 10/20/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
