IDC Socket: WTB
24-9159
INTER
CONNECT

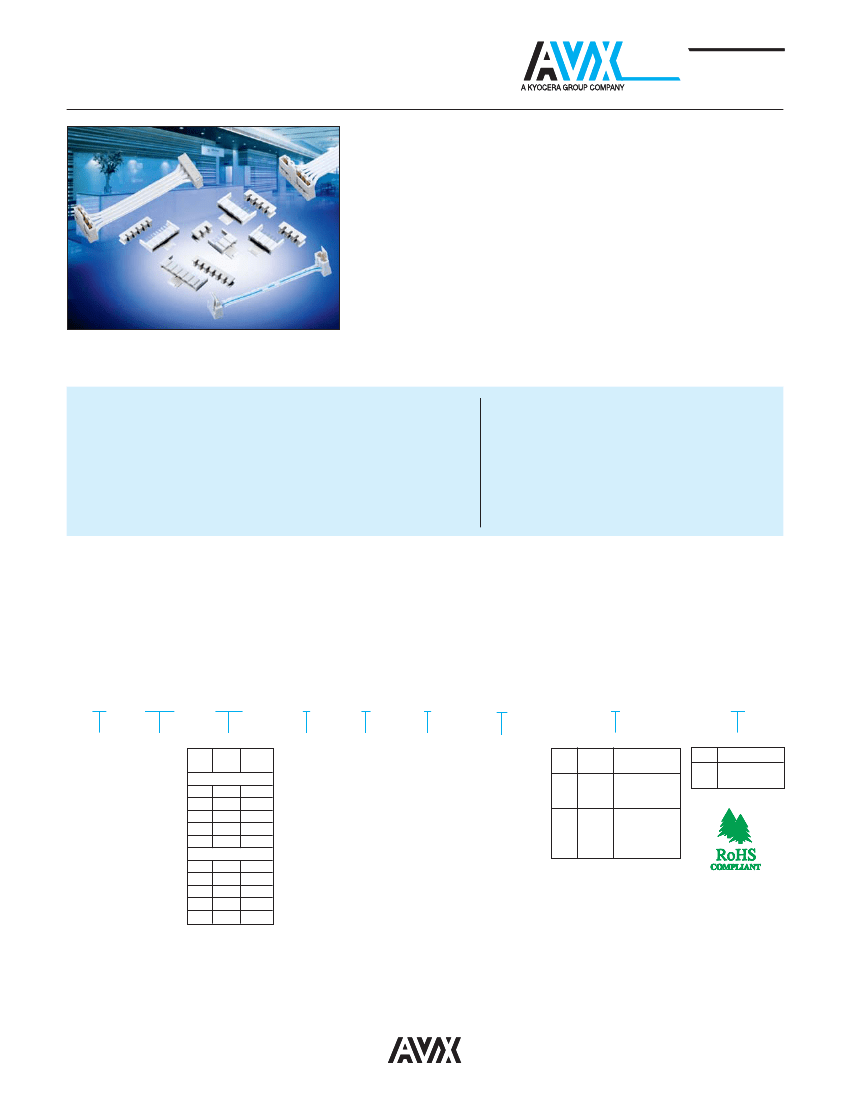

AVX developed the 9159 Series of SMT connectors for co-planar PCB
mating for the challenging Solid State Lighting (SSL) market. These
connectors needed to be small, low in height, carry up to 5 Amps/contact
and then function up to 125C for extended periods. This application has
been very unique to the SSL market where PCB’s are stacked end-to-end
to create linear strip lighting in everything from office to transportation
applications where products are exposed to harsh mechanical and
environmental environments.
The IDC cable socket connector allows for 22-24AWG discrete or cabled
wires to be easily and reliability terminated into a 9159 standard interface
plug connector. This will allow power and signals to be connectors onto a
PCB socket connector while providing positive latching. The wire assembly
support block allows for 2 through 6 wires to be terminated all in one step
with any standard bench top press. IDC covers provide both through
(daisy chain applications) and wire stop termination options.
APPLICATIONS
• Provides Wire-to-Board capabilities to standard 9159 2-Piece con-
nector system
• In conjunction with the IDC plug WTB connector (14-9159), these
connectors provide maximum flexibility to bring power and signal
wires onto or off of any board level 9159 connector
• Reference application notes 201-01-123
• Reference Product Specification 201-01-119
FEATURES AND BENEFITS
• Mates with standard 9159 horizontal plug,
keeping same BTB connector system
• Economical and reliable IDC wire termination
• Gold plated BeCu contact system for high
reliability in harsh environments
• Integrally molded latch offers positive latching
after mating
ELECTRICAL
• Current Rating: 5 Amps / Contact
• Voltage Rating: 125 VAC
ENVIRONMENTAL
• Operating Temperature:
-40ºC to +125ºC
MECHANICAL
•
•
•
•
Insulator Material: Nylon: UL94VO
Contact Material: Phosphor Bronze
Plating: Gold / Tin over Nickel
Durability: 10 Cycles
HOW TO ORDER
24
Prefix
Right Angle
Wired Socket
IDC Terminations
9159
Series
00X
Number of Ways
No of
Code Ways Details
THROUGH WIRE CAP
002
2
Page 2
003
3
Page 3
004
4
Page 4
005
5
Page 5
006
6
Page 6
WIRE STOP CAP
002
2
Page 7
003
3
Page 8
004
4
Page 9
005
5 Page 10
006
6 Page 11
1
2 Part
PCB Strip
Connector
2 Part
Wired IDC
Strip
Connector
X
Wire Gauge
2 = 22AWG
3 = 24AWG
2
Wire
Insulation
Diameter
ø1.10mm
to ø1.60mm
9
Color Options
9 = UL
X
Cap Options
Code
Cap
Option
Description
6
Plating Option
Code
Contact
6 Gold on Contact
Tin on IDC
0
9
Allows wires
Through
to be terminated
Wire
at any point
Terminates end
Wire
of wire.
Stop
End protected
with Stop Face
Certification: UL File #E90723
1
IDC Socket: WTB
24-9159
INTER
CONNECT

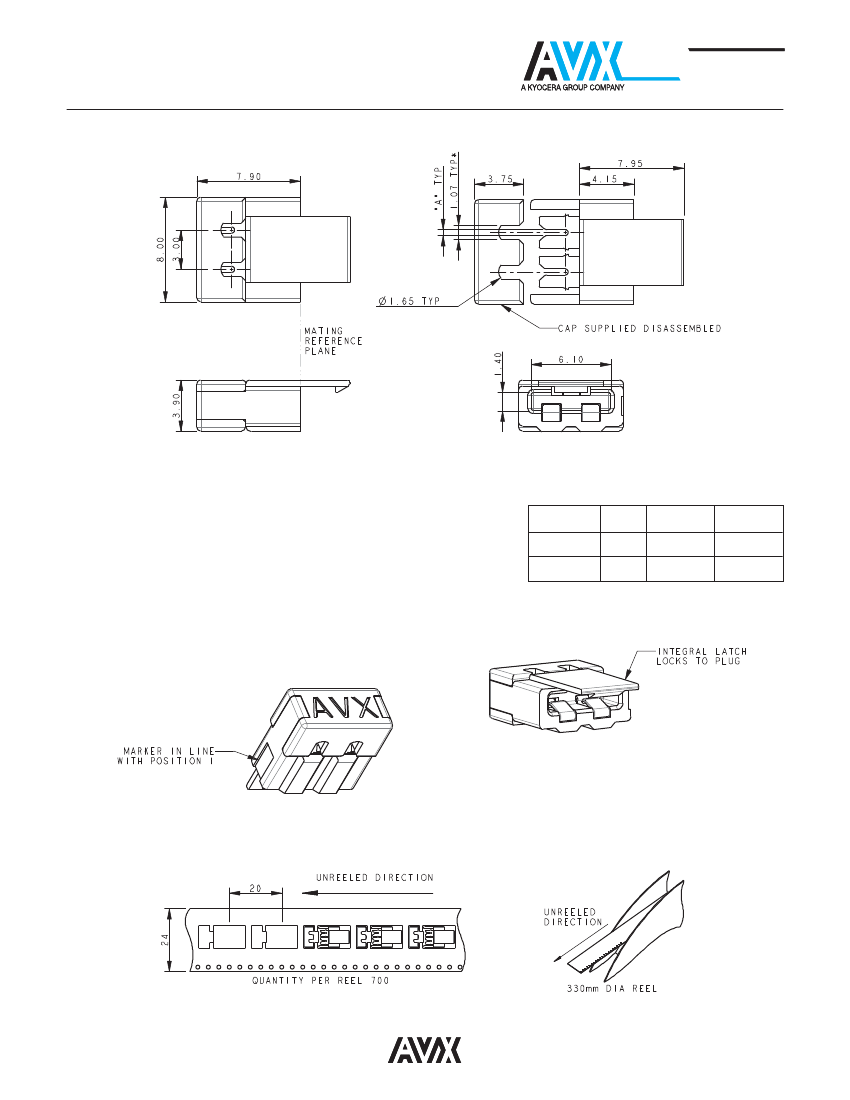

SOCKET WIRED – 2 WAY THROUGH WIRE CAP
NOTES:
1. FOR MORE INFORMATION REFER TO PRODUCT SPEC 201-01-119.
FOR WIRE ASSEMBLY REFER TO APPLICATION NOTES 201-01-123.
2. THROUGH WIRE CAP, FOR TERMINATION OF WIRE IN ANY POSITION.
Wire Gauge
3. CAP ACTS AS WIRE ASSEMBLY TOOL. WIRE PREFIT TO CAP, NARROW SLOT TO GRIP WIRE,
22AWG
PERMANENT ASSEMBLY.
(Stranded Wire)
24AWG
4. GENERAL TOLERANCE ±0.20 UNLESS SPECIFIED.
(Standed Wire)
5. INSULATOR MATERIAL: NYLON 46, GLASS FILLED, UL94 V-0. COLOR REFER TO PAGE 1.
6. CONTACT MATERIAL: COPPER ALLOY, PLATING NICKEL BASE ALL OVER, GOLD ON CONTACT,
TIN ON IDC.
7. PACKING IN TAPE AND REEL. QTY PER REEL 700, POCKET CONTAINS 1 CONNECTOR AND 1 CAP.
8. WIRE GAUGE OPTIONS, SEE TABLE.
9. ASSEMBLY AIDS, REFER TO PAGE 12.
Code
(page 1)
122
132
Dimension A
0.47
0.37
Wire Insulation
Diameter
1.10 to 1.60
1.10 to 1.60
PACKING DETAILS
CAP AND CONNECTOR SUPPLIED TOGETHER (2 PARTS)
2
IDC Socket: WTB
24-9159
INTER
CONNECT

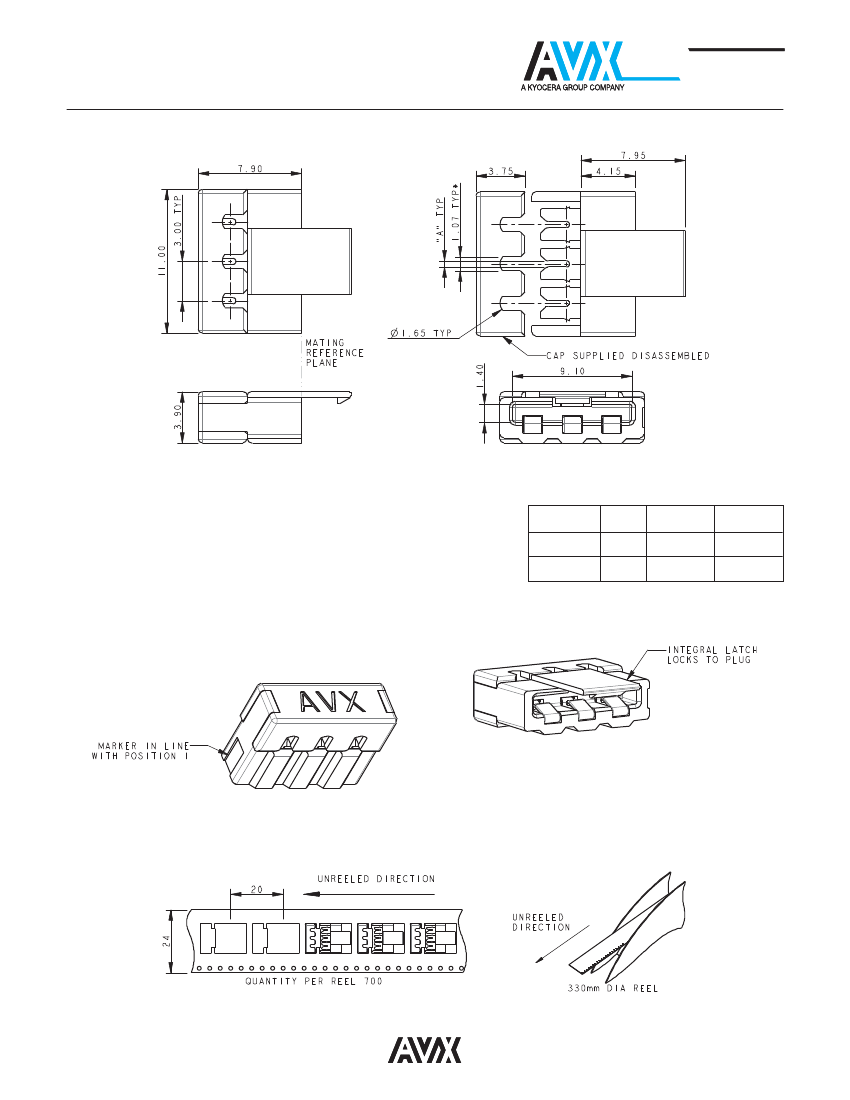

SOCKET WIRED – 3 WAY THROUGH WIRE CAP
NOTES:
1. FOR MORE INFORMATION REFER TO PRODUCT SPEC 201-01-119.
FOR WIRE ASSEMBLY REFER TO APPLICATION NOTES 201-01-123.
2. THROUGH WIRE CAP, FOR TERMINATION OF WIRE IN ANY POSITION.
Wire Gauge
3. CAP ACTS AS WIRE ASSEMBLY TOOL. WIRE PREFIT TO CAP, NARROW SLOT TO GRIP WIRE,
22AWG
PERMANENT ASSEMBLY.
(Stranded Wire)
24AWG
4. GENERAL TOLERANCE ±0.20 UNLESS SPECIFIED.
(Standed Wire)
5. INSULATOR MATERIAL: NYLON 46, GLASS FILLED, UL94 V-0. COLOR REFER TO PAGE 1.
6. CONTACT MATERIAL: COPPER ALLOY, PLATING NICKEL BASE ALL OVER, GOLD ON CONTACT,
TIN ON IDC.
7. PACKING IN TAPE AND REEL. QTY PER REEL 700, POCKET CONTAINS 1 CONNECTOR AND 1 CAP.
8. WIRE GAUGE OPTIONS, SEE TABLE.
9. ASSEMBLY AIDS, REFER TO PAGE 12.
Code
(page 1)
122
132
Dimension A
0.47
0.37
Wire Insulation
Diameter
1.10 to 1.60
1.10 to 1.60
PACKING DETAILS
CAP AND CONNECTOR SUPPLIED TOGETHER (2 PARTS)
3
IDC Socket: WTB
24-9159
INTER
CONNECT

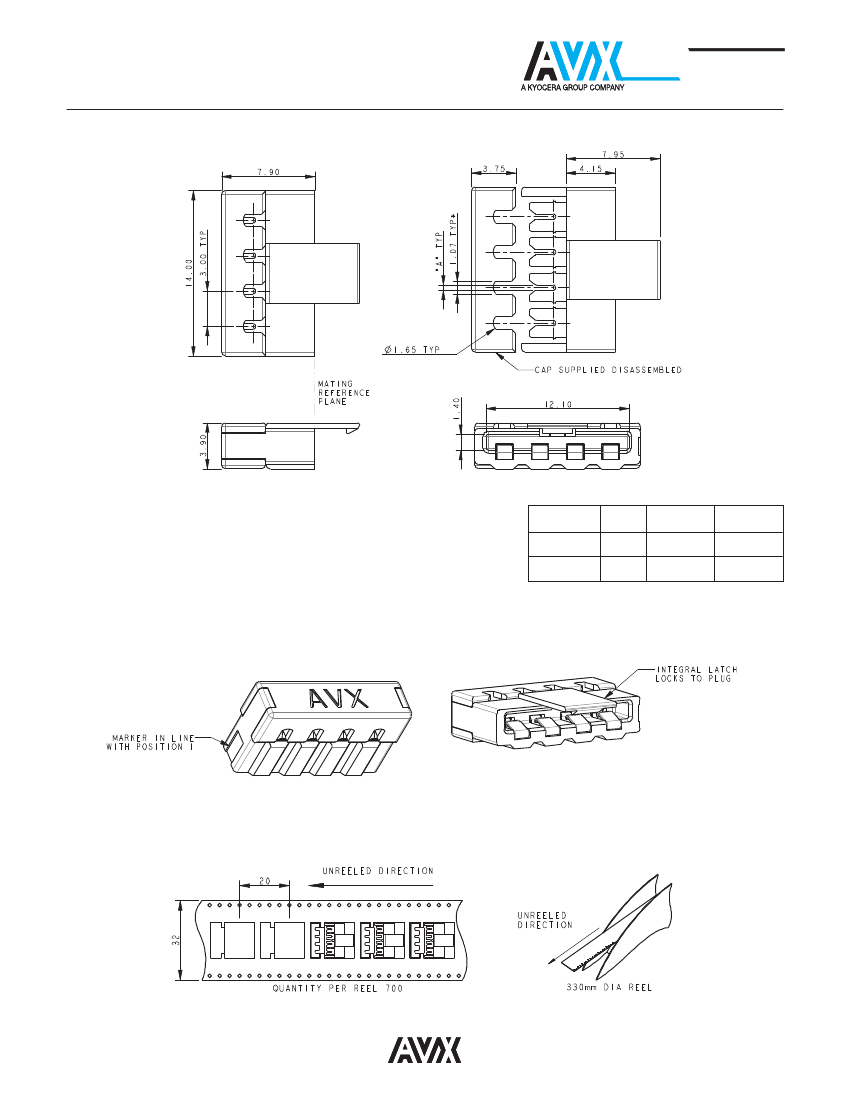

SOCKET WIRED – 4 WAY THROUGH WIRE CAP
NOTES:
1. FOR MORE INFORMATION REFER TO PRODUCT SPEC 201-01-119.
FOR WIRE ASSEMBLY REFER TO APPLICATION NOTES 201-01-123.
2. THROUGH WIRE CAP, FOR TERMINATION OF WIRE IN ANY POSITION.
Wire Gauge
3. CAP ACTS AS WIRE ASSEMBLY TOOL. WIRE PREFIT TO CAP, NARROW SLOT TO GRIP WIRE,
22AWG
PERMANENT ASSEMBLY.
(Stranded Wire)
24AWG
4. GENERAL TOLERANCE ±0.20 UNLESS SPECIFIED.
(Standed Wire)
5. INSULATOR MATERIAL: NYLON 46, GLASS FILLED, UL94 V-0. COLOR REFER TO PAGE 1.
6. CONTACT MATERIAL: COPPER ALLOY, PLATING NICKEL BASE ALL OVER, GOLD ON CONTACT,
TIN ON IDC.
7. PACKING IN TAPE AND REEL. QTY PER REEL 700, POCKET CONTAINS 1 CONNECTOR AND 1 CAP.
8. WIRE GAUGE OPTIONS, SEE TABLE.
9. ASSEMBLY AIDS, REFER TO PAGE 12.
Code
(page 1)
122
132
Dimension A
0.47
0.37
Wire Insulation
Diameter
1.10 to 1.60
1.10 to 1.60
PACKING DETAILS
CAP AND CONNECTOR SUPPLIED TOGETHER (2 PARTS)
4
IDC Socket: WTB
24-9159
INTER
CONNECT

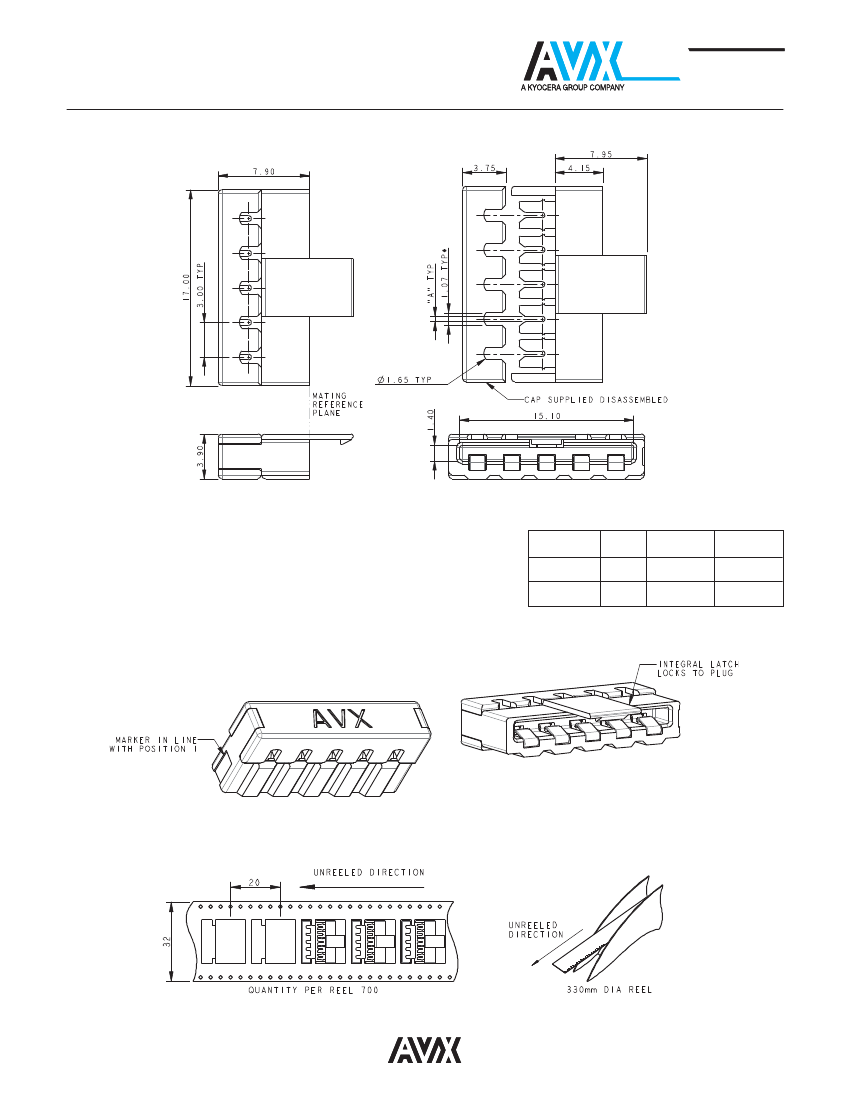

SOCKET WIRED – 5 WAY THROUGH WIRE CAP
NOTES:
1. FOR MORE INFORMATION REFER TO PRODUCT SPEC 201-01-119.
FOR WIRE ASSEMBLY REFER TO APPLICATION NOTES 201-01-123.
2. THROUGH WIRE CAP, FOR TERMINATION OF WIRE IN ANY POSITION.
Wire Gauge
3. CAP ACTS AS WIRE ASSEMBLY TOOL. WIRE PREFIT TO CAP, NARROW SLOT TO GRIP WIRE,
22AWG
PERMANENT ASSEMBLY.
(Stranded Wire)
24AWG
4. GENERAL TOLERANCE ±0.20 UNLESS SPECIFIED.
(Standed Wire)
5. INSULATOR MATERIAL: NYLON 46, GLASS FILLED, UL94 V-0. COLOR REFER TO PAGE 1.
6. CONTACT MATERIAL: COPPER ALLOY, PLATING NICKEL BASE ALL OVER, GOLD ON CONTACT,
TIN ON IDC.
7. PACKING IN TAPE AND REEL. QTY PER REEL 700, POCKET CONTAINS 1 CONNECTOR AND 1 CAP.
8. WIRE GAUGE OPTIONS, SEE TABLE.
9. ASSEMBLY AIDS, REFER TO PAGE 12.
Code
(page 1)
122
132
Dimension A
0.47
0.37
Wire Insulation
Diameter
1.10 to 1.60
1.10 to 1.60
PACKING DETAILS
CAP AND CONNECTOR SUPPLIED TOGETHER (2 PARTS)
5
