LM1235HP Series
SMD Power Choke Coil
SMD Power Choke Coil
1. PART NO. EXPRESSION :
PIC1235HP SERIES
LM 1 2 3 5 H P 1 R 0 M F -
□□
(a)
(b)
(c)
(d) (e)(f)
(g)
(a) Series code
(b) Dimension code
(c) Type code
(d) Inductance code : 1R0 = 1.0uH
(e) Tolerance code : M = ± 20%, Y = ± 30%
(f) F : RoHS Compliant
(g) 11~99 : Internal controlled number

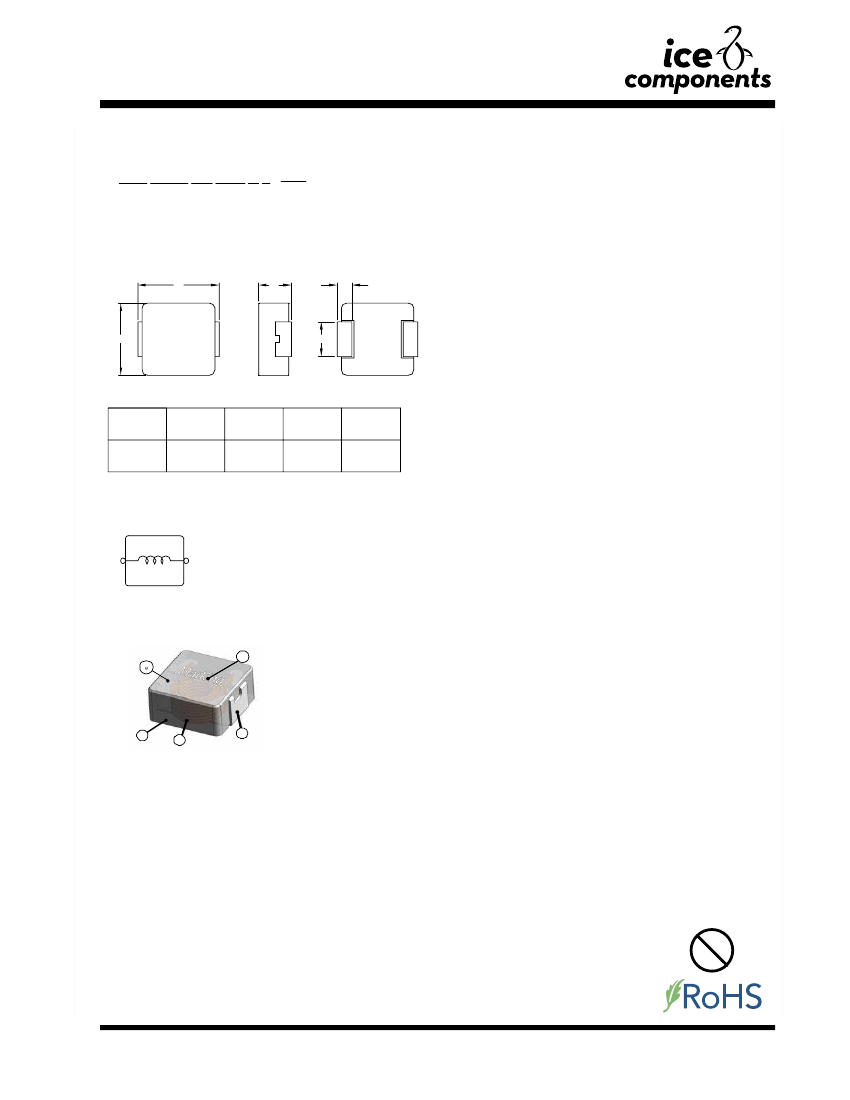

2. CONFIGURATION & DIMENSIONS :
A
C
D
1R0
1206
B
E
Unit:m/m
A
1 3.5 ± 0.5
B
12.5± 0.3
C
3.3± 0.2
D
2 .3± 0.3
E
4.7± 0.3
3. SCHEMATIC :
4. MATERIALS :
d
(a) Core : Carbonyl Powder.
(b) Wire : Polyester Wire or equivalent
(c) Solder Plating : 100% Pb free solder
(d) Ink : Halogen-free ketone
(e) Paint : Epoxy resin
e
a
b
c
5. GENERAL SPECIFICATION :
a) Test Freq. : L : 100KHz/1.0V
b) Ambient Temp. : 25° C
c) Operating Temp. : -40° C to +125° C
d) Storage Temp. : -10° C to + 40° C
e) Humidity Range : 50 ~ 60% RH (Product without taping)
f) Heat Rated Current (Irms) will cause the coil temperature rise approximately Δt of 40°C (keep 1min.)
g) Saturation Current (Isat) will cause L0 to drop 20% typical. (keep quickly).
h) Part Temperature (Ambient+Temp. Rise) : Should not exceed 125° C under worst case operating conditions.
Pb
(09/13) LM1235HP-1
20.02.2012
NOTE : Specifications subject to change without notice. Please check our website for latest information.
800.729.2099 tel
SUPERWORLD ELECTRONICS (S) PTE LTD
www.icecomponents.com
PG. 1
LM1235HP Series
SMD Power Choke Coil
SMD Power Choke Coil
6. ELECTRICAL CHARACTERISTICS :
Inductance L
(
μH
)
@ 0A
0.10
0 .15
0 .22
0 .33
0 .47
0 .60
0 .68
0 .82
1 .00
1 .50
1 .80
2 .20
3 .30
4 .70
5 .60
6 .80
8 .20
1 0.0
0
PIC1235HP SERIES
Part No.
LM1235HPR10YF
LM 1 235 HPR15YF
LM12 35 HP R22MF
LM12 35 HP R33MF
LM12 35 HP R47MF
LM12 35 HP R60MF
LM12 35 HP R68MF
LM12 35 HP R82MF
LM12 35 HP 1R0MF
LM12 35 HP 1R5MF
LM12 35 HP 1R8MF
LM12 35 HP 2R2MF
LM12 35 HP 3R3MF
LM12 35 HP 4R7MF
LM12 35 HP 5R6MF
LM12 35 HP 6R8MF
LM12 35 HP 8R2MF
LM 1 235 HP1 00MF
Irms
(A)
Typ.
43
41
3 8.5
3 6.5
32
29
28
25
24
19
17
16
12
10
9.5
9
8.5
7
Isat
(A)
Typ.
84
75
65
62
55
51
49
44
40
35
30
29
27
24
19
18
16
14
DCR
( mΩ )
Typ. @ 25° C
0.36
0.4
0.7
0 .85
1.2
1.5
1.9
2.2
2.7
4.8
5.2
6.3
11
1 5.3
18
20
23
29
DCR
( mΩ )
Max. @ 25° C
0.43
0 .48
0 .81
1.0
1.8
2.2
2.5
3
3.5
5.5
7
8.0
1 3.5
1 8.5
22
24
28
34
Tolerance : M = ± 20%, Y = ± 30%
Pb
NOTE : Specifications subject to change without notice. Please check our website for latest information.
800.729.2099 tel
SUPERWORLD ELECTRONICS (S) PTE LTD
www.icecomponents.com
(09/13) LM1235HP-2
20.02.2012
PG. 2
LM1235HP Series
SMD Power Choke Coil
SMD Power Choke Coil

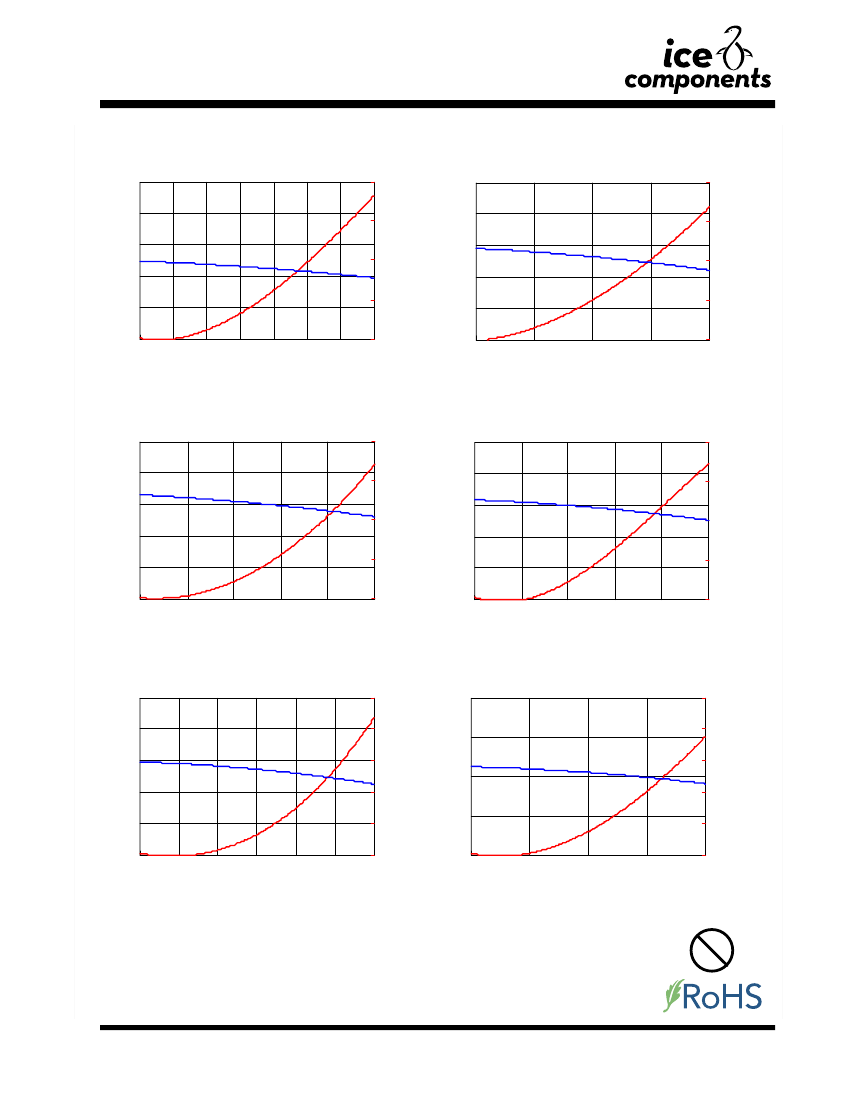

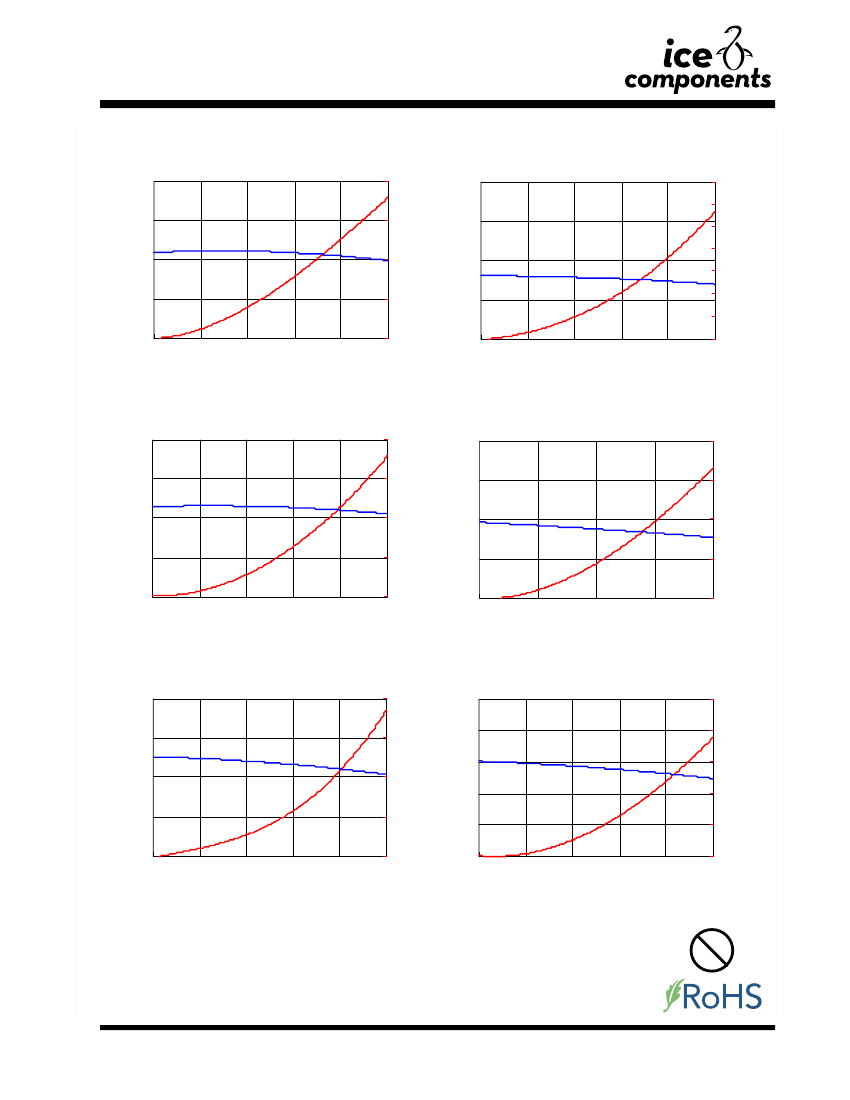

7. CHARACTERISTICS CURVES :
LM1235HPR10YF
TM
PC1235HP-R10
0 .2
12 0
0 .4
PIC1235HP SERIES
LM1235HPR15YF
TM
PC1235HP-R15
14 0
12 0
0. 15
90
0 .3
INDUCTANCE(uH)
INDUCTANCE(uH)
TEMP. RISE(
o
C)
80
0 .2
60
0 .1
60
0. 05
30
0 .1
40
20
0
0
0
0
0
16.8
33. 6
50.4
67. 2
84
DC CURRENT(A)
0
15
30
45
60
75
DC CURRENT(A)
LM1235HPR22MF
0 .4
TM
PC1235HP-R22
12 0
0 .8
LM1235HPR33MF
TM
PC1235HP-R33
12 0
INDUCTANCE(uH)
INDUCTANCE(uH)
0 .3
90
0 .6
90
TEMP. RISE(
o
C)
0 .2
60
0 .4
60
0 .1
30
0 .2
30
0
0
0
13
26
39
52
65
0
0
DC CURRENT(A)
0
15.5
31
46.5
62
DC CURRENT(A)
0 .8
LM1235HPR47MF
TM
PC1235HP-R47
LM1235HPR60MF
12 0
1
TM
PC1235HP-R60
15 0
0 .8
12 0
INDUCTANCE(uH)
INDUCTANCE(uH)
0 .6
90
TEMP. RISE(
o
C)
0 .6
90
0 .4
60
0 .4
60
0 .2
30
0 .2
30
0
0
0
0
0
11
22
33
44
55
0
10.2
20. 4
30.6
40. 8
51
DC CURRENT(A)
DC CURRENT(A)
Pb
NOTE : Specifications subject to change without notice. Please check our website for latest information.
800.729.2099 tel
SUPERWORLD ELECTRONICS (S) PTE LTD
www.icecomponents.com
(09/13) LM1235HP-3
20.02.2012
TEMP. RISE( C)
o
TEMP. RISE(
o
C)
TEMP. RISE(
o
C)
10 0
PG. 3
LM1235HP Series
SMD Power Choke Coil
SMD Power Choke Coil

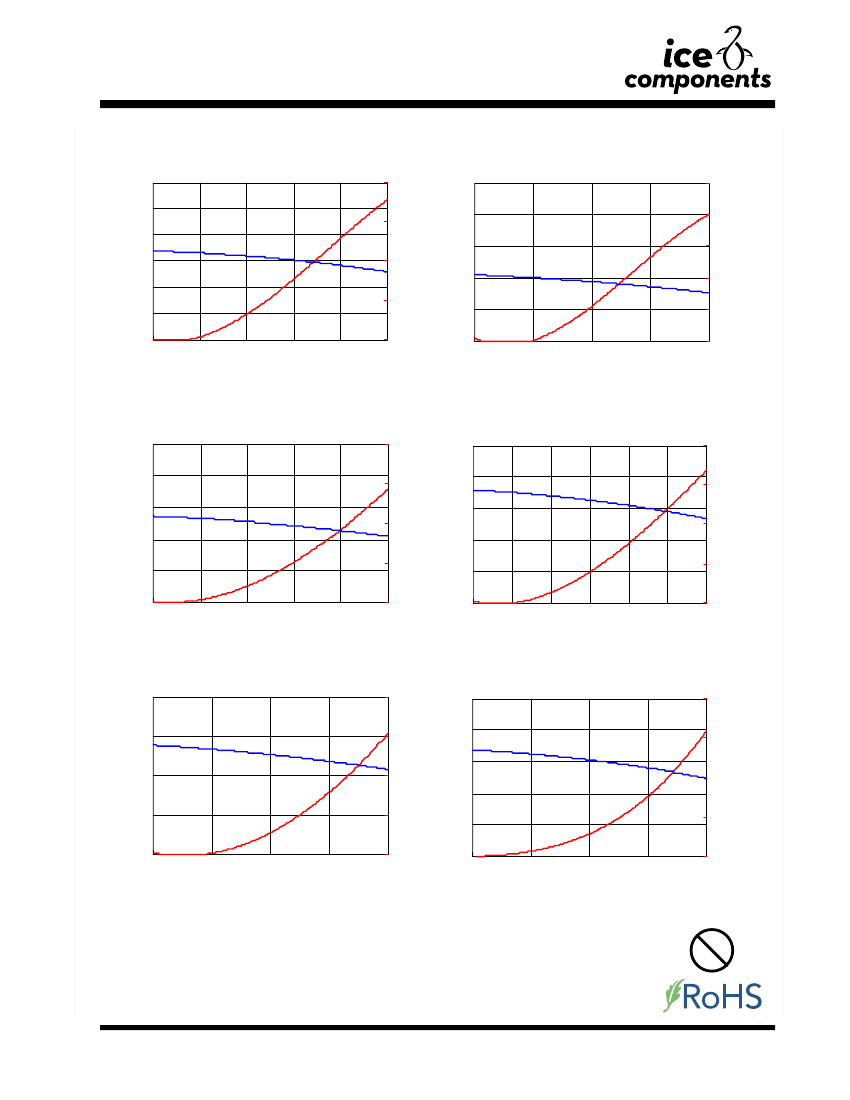

7. CHARACTERISTICS CURVES :
LM1235HPR68MF
TM
PC1235HP-R68
1 .5
12 0
1 .5
PIC1235HP SERIES
LM1235HPR82MF
TM
PC1235HP-R82
12 0
1 .2
1 .2
INDUCTANCE(uH)
INDUCTANCE(uH)
90
90
TEMP. RISE(
o
C)
0 .9
60
0 .6
0 .9
60
0 .6
30
0 .3
30
0 .3
0
0
0
0
0
7
14
21
28
35
42
49
DC CURRENT(A)
0
11
22
33
44
DC CURRENT(A)
LM1235HP1R0MF
1 .5
TM
PC1235HP-1R0
12 0
2 .5
LM1235HP1R5MF
TM
PC1235HP-1R5
12 0
1 .2
2
INDUCTANCE(uH)
INDUCTANCE(uH)
90
90
TEMP. RISE(
o
C)
0 .9
60
0 .6
1 .5
60
1
30
0 .3
30
0 .5
0
0
0
0
0
8
16
24
32
40
DC CURRENT(A)
0
7
14
21
28
35
DC CURRENT(A)
3
LM
TM
35 HP 1R8MF
12
PC1235HP-1R8
10 0
4
LM
TM
35 HP 2R2MF
12
PC1235HP-2R2
15 0
2 .4
80
12 0
INDUCTANCE(uH)
INDUCTANCE(uH)
3
TEMP. RISE(
o
C)
1 .8
60
90
2
60
1 .2
40
1
30
0 .6
20
0
0
0
0
0
5
10
15
20
25
30
0
7.25
14.5
21. 75
29
DC CURRENT(A)
DC CURRENT(A)
Pb
NOTE : Specifications subject to change without notice. Please check our website for latest information.
800.729.2099 tel
SUPERWORLD ELECTRONICS (S) PTE LTD
www.icecomponents.com
(09/13) LM1235HP-4
20.02.2012
TEMP. RISE(
o
C)
TEMP. RISE(
o
C)
TEMP. RISE(
o
C)
PG. 4
LM1235HP Series
SMD Power Choke Coil
SMD Power Choke Coil
7. CHARACTERISTICS CURVES :
