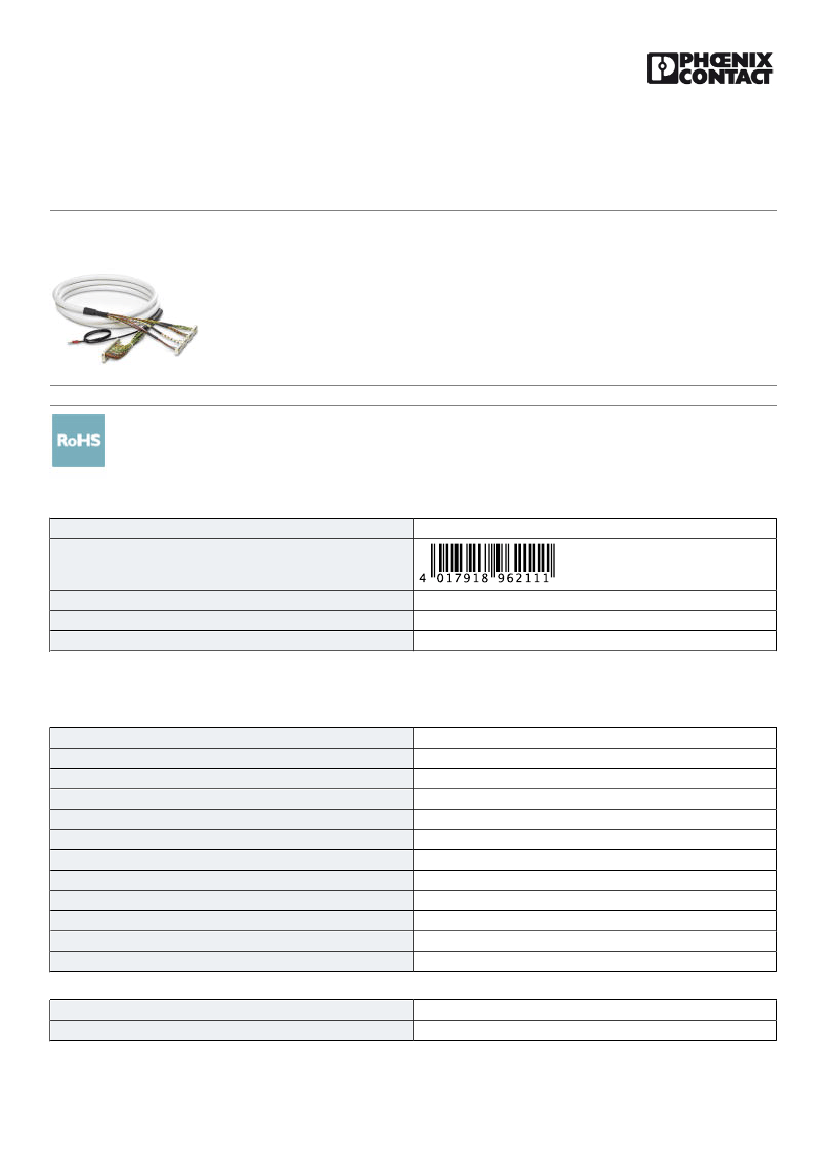

Cable - FLKMIL-50/4FLK14/EZ-DR/ 200/CS - 2306304
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Assembled shielded round cable for Yokogawa CS3000 CentumVP ADV561, ADV161 with 1 x IDC/FLK
socket strip (50-position) on 4 x IDC/FLK socket strip (14-position), Cable length: 2 m
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4017918962111
85444290
Made to Order (non-returnable)
1 STK
Technical data
General
Nominal voltage U
N
Max. current carrying capacity per path
Max. conductor resistance
Length of cable
Single wire, cross section
Single wire, cross section [AWG]
Conductor construction: Number of litz wires:
Single wire, material
External diameter
Shielding
Outer sheath, material
External sheath, color
30 V DC
500 mA (Up to 55°C ambient temperature)
0.16 Ω/m
2m
0.14 mm²
26
7
Cu tin-plated
11 mm
yes
PVC
gray RAL 7035
Environmental conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-20 °C ... 50 °C
-20 °C ... 70 °C
11/15/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/2306304
Cable - FLKMIL-50/4FLK14/EZ-DR/ 200/CS - 2306304
Technical data
Environmental conditions
Flame resistance
Resistance to oil
Gasoline resistance
IEC 60332-3-22
DIN VDE 0472 Part 803, test type B
Against occasional splashes
Connector, module side
Connection name
Connection method
Number of connections
Number of positions
Pitch
Field level
IDC/FLK socket strip
4
14
2.54 mm
Connector, controller side
Connection name
Connection method
Number of connections
Number of positions
Pitch
Controller level
IDC/FLK socket strip
1
50
2.54 mm
Supported controller
Controller
- suitable I/O card
Controller
- suitable I/O card
YOKOGAWA CS3000 CentumVP
ADV161
ADV561
YOKOGAWA STARDOM
NFDV161
NFDV561
Standards and Regulations
Resistance to oil
Flame resistance
DIN VDE 0472 Part 803, test type B
IEC 60332-3-22
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
11/15/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/2306304
Cable - FLKMIL-50/4FLK14/EZ-DR/ 200/CS - 2306304

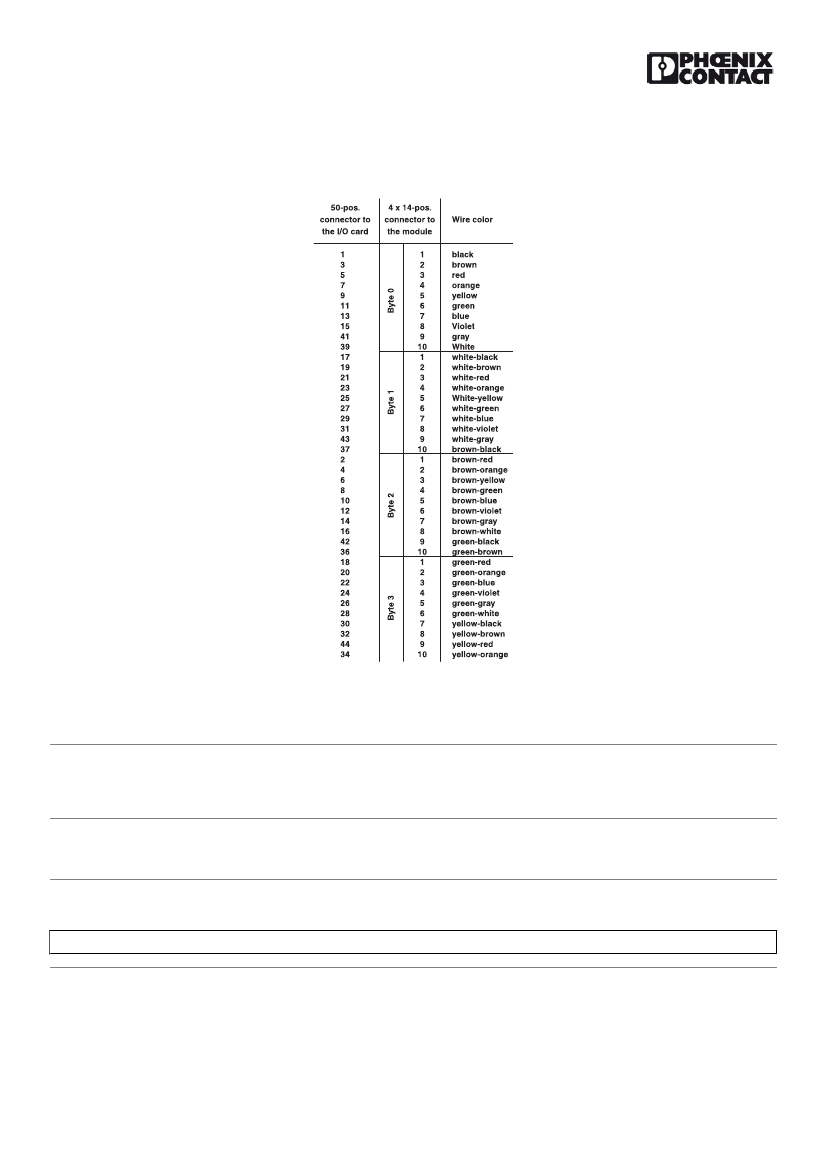

Connection diagram
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC RU C-DE.A*30.B00767
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/15/2016 Page 3 / 3
