293300-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 293300-1

293300-1: DescriptionNECTOR S BUS BAR ASSY HV-1 TAB WHITE; CategoryThe connector; File Size687KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

293300-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	293300-1	-	-	View	Buy Now

293300-1 Overview

NECTOR S BUS BAR ASSY HV-1 TAB WHITE

293300-1 Parametric

Parameter Name	Attribute value
Attachment type	bus bar
keyed arrangement	HV-1
Number of Positions	2
Voltage (VAC)	250
flange	with
Shell color	White
Encapsulation method	bag

Preview

Download Datasheet

View All

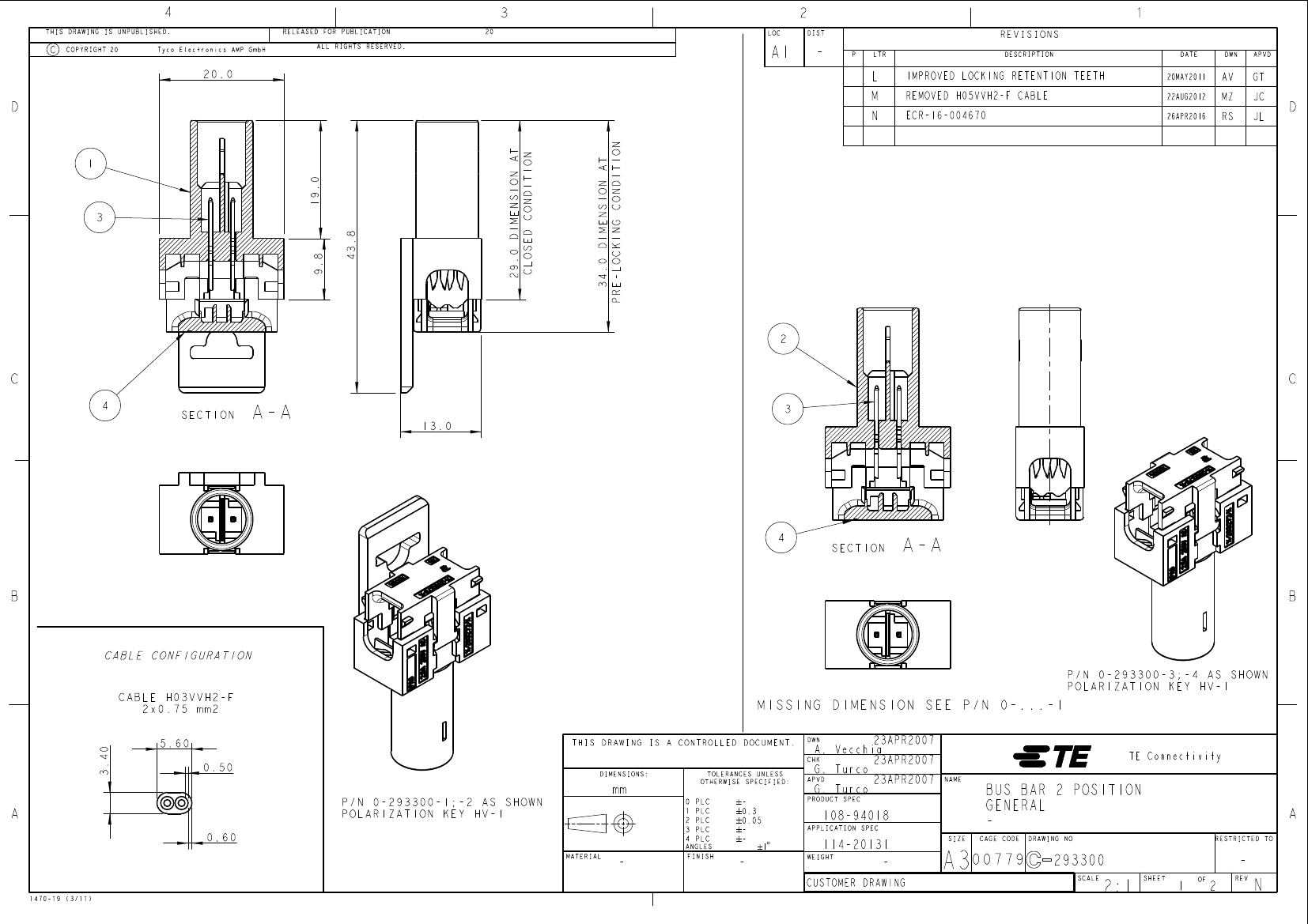

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

Tyco Electronics AMP GmbH

LOC

DIST

20.0

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

IMPROVED LOCKING RETENTION TEETH

REMOVED H05VVH2-F CABLE

ECR-16-004670

20MAY2011

22AUG2012

26APR2016

29 .0 DIMENSION AT

CLOSED CONDITION

19.0

43.8

34 .0 DIMENSION AT

PRE-LOCKING CONDITION

9.8

SECTION

A-A

13.0

SECTION

A-A

CABLE CONFIGURATION

CABLE H03VVH2-F

2x0.75 mm2

5.60

0.50

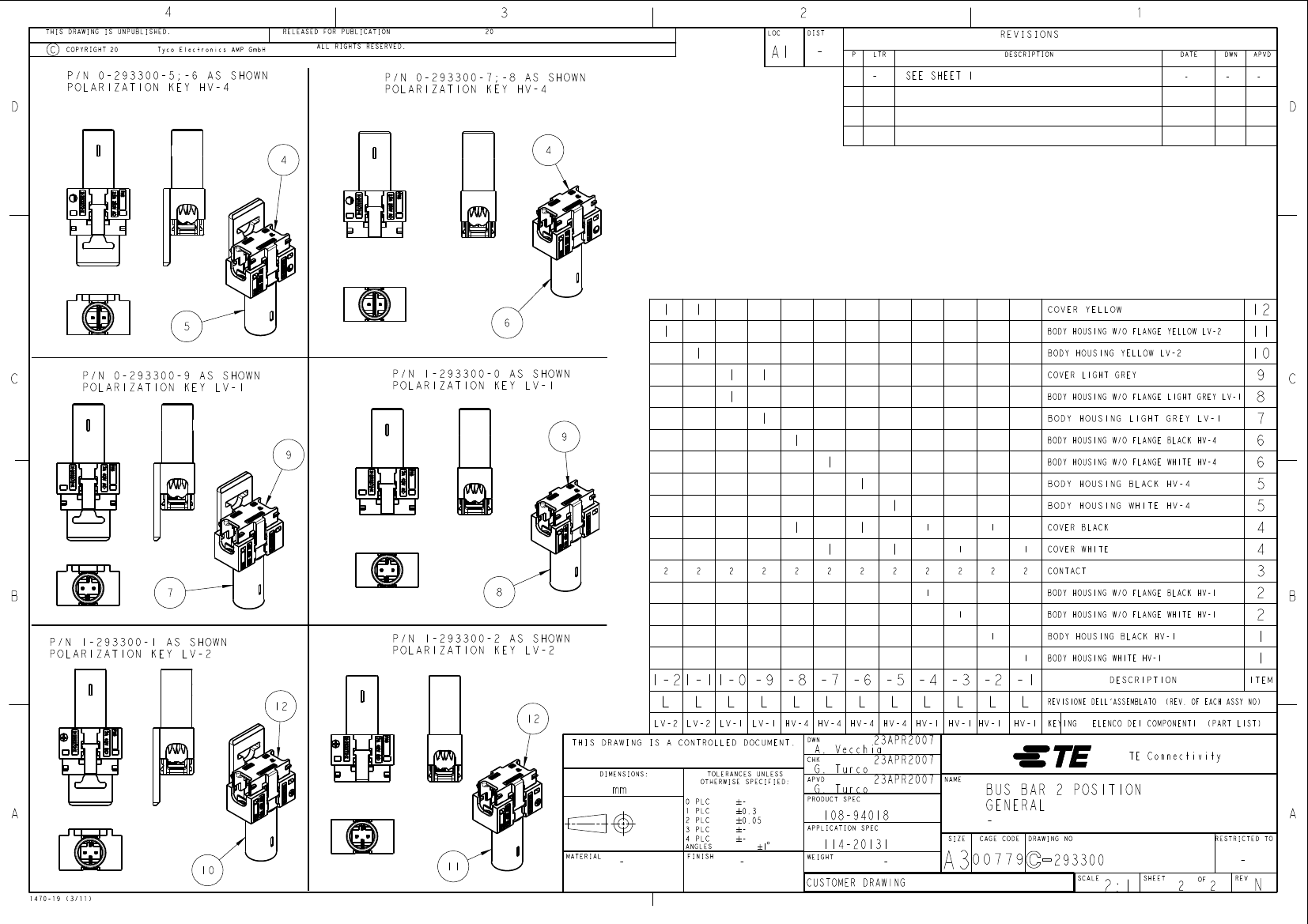

P/N 0-293300-1;-2 AS SHOWN

POLARIZATION KEY HV-1

0.60

MATERIAL

P/N 0-293300-3;-4 AS SHOWN

POLARIZATION KEY HV-1

MISSING DIMENSION SEE P/N 0-...-1

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

3.40

A. Vecchia

G. Turco

23APR2007

NAME

TE Connectivity

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

ANGLES

PLC

0.3

0.05

PRODUCT SPEC

G. Turco

APPLICATION SPEC

108-94018

114-20131

SIZE

FINISH

1 $

WEIGHT

CUSTOMER DRAWING

1470-19 (3/11)

00779

CAGE CODE

BUS BAR 2 POSITION

GENERAL

DRAWING NO

RESTRICTED TO

293300

SCALE

2:1

SHEET

REV
