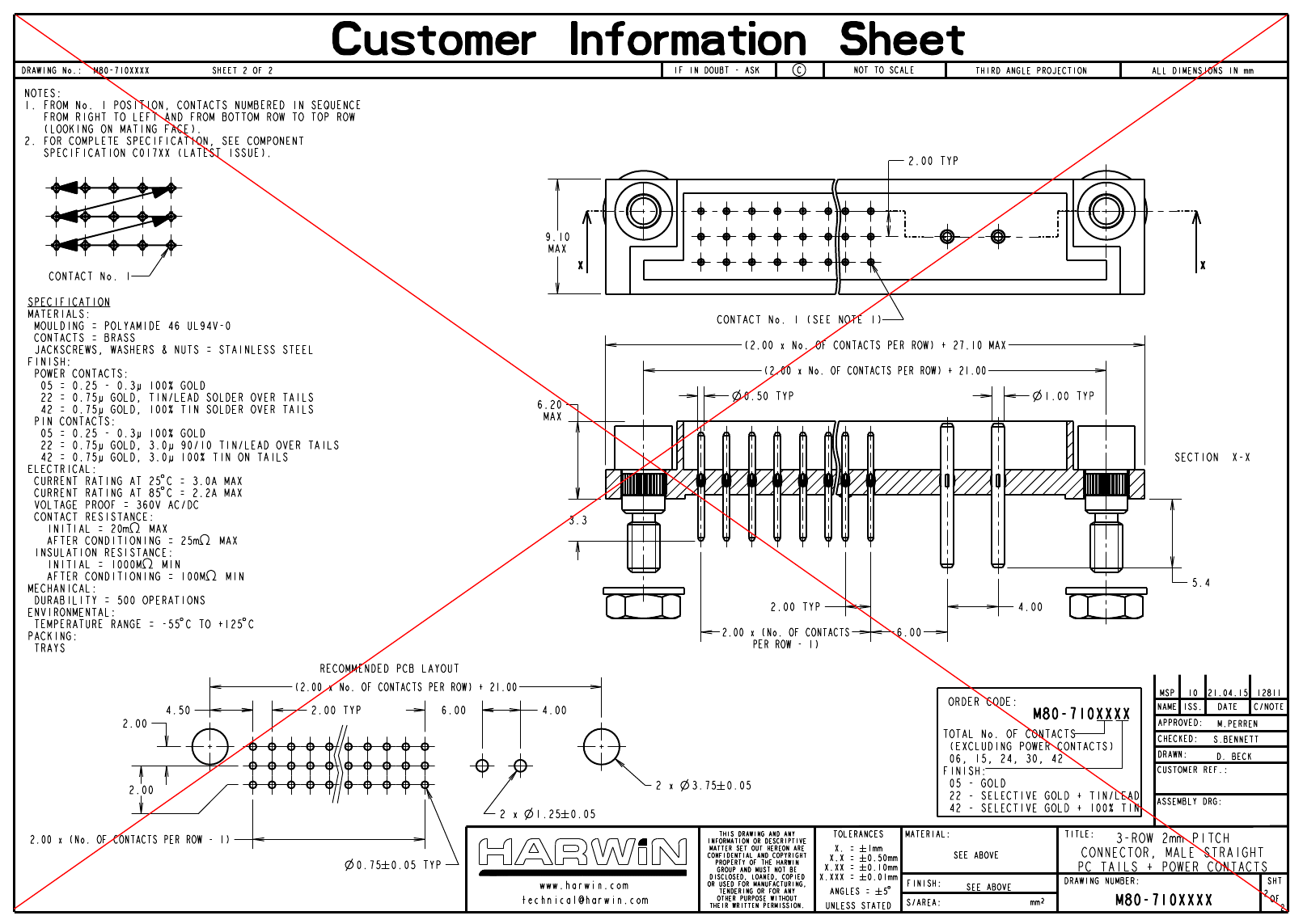

Power to the Board 30S+2P VERT MALE WITH J/S TIN
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Harwin |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | TRAY PACKAGING |
| Board mount options | HOLE .138-.163 |
| body width | 0.358 inch |
| subject depth | 0.244 inch |
| body length | 1.854 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact arrangement | S30P2 |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | Matte Tin (Sn) |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| Contact resistance | 25 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Durability | 500 Cycles |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | POLYAMIDE |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Mixed contacts | YES |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| Plating thickness | 30u inch |
| Rated current (signal) | 3 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell material | BRASS |
| Terminal length | 0.13 inch |
| Termination type | SOLDER |
| Total number of contacts | 32 |
| UL Flammability Code | 94V-0 |
| M80-7103042 | M80-7101505 | M80-7103022 | M80-7102442 | M80-7102422 | M80-7100642 | M80-7101522 | M80-7100622 | |
|---|---|---|---|---|---|---|---|---|
| Description | Power to the Board 30S+2P VERT MALE WITH J/S TIN | Power to the Board legacy 3 row M Vertical PCB Conn | Power to the Board 30S+2P VERT MALE WITH J/S TIN/LEAD | Power to the Board 24S+2P VERT MALE WITH J/S TIN | Power to the Board 24S+2P VERT MALE WITH J/S TIN/LEAD | Power to the Board 6S+2P VERT MALE WITH J/S TIN | Power to the Board 15S+2P VERT MALE WITH J/S TIN/LEAD | Power to the Board 6S+2P VERT MALE WITH J/S TIN/LEAD |
| Is it lead-free? | Lead free | Lead free | Contains lead | Lead free | Contains lead | Lead free | Contains lead | Contains lead |
| Is it Rohs certified? | conform to | conform to | incompatible | conform to | incompatible | conform to | incompatible | incompatible |
| Maker | Harwin | Harwin | Harwin | Harwin | Harwin | Harwin | Harwin | Harwin |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Board mount options | HOLE .138-.163 | HOLE .138-.163 | HOLE .138-.163 | HOLE .138-.163 | HOLE .138-.163 | HOLE .138-.163 | HOLE .138-.163 | HOLE .138-.163 |
| body width | 0.358 inch | 0.358 inch | 0.358 inch | 0.358 inch | 0.358 inch | 0.358 inch | 0.358 inch | 0.358 inch |
| subject depth | 0.244 inch | 0.244 inch | 0.244 inch | 0.244 inch | 0.244 inch | 0.244 inch | 0.244 inch | 0.244 inch |
| body length | 1.854 inch | 1.461 inch | 1.854 inch | 1.697 inch | 1.697 inch | 1.224 inch | 1.461 inch | 1.224 inch |
| Body/casing type | RECEPTACLE | PLUG | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact arrangement | S30P2 | S15P2 | S30P2 | S24P2 | S24P2 | S6P2 | S15P2 | S6P2 |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE | MALE | MALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact resistance | 25 mΩ | 25 mΩ | 25 mΩ | 25 mΩ | 25 mΩ | 25 mΩ | 25 mΩ | 25 mΩ |
| Contact style | RND PIN-SKT | HYBRID | RND PIN-SKT | HYBRID | HYBRID | HYBRID | HYBRID | HYBRID |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO | NO |
| Durability | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO | NO |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK |
| insulator material | POLYAMIDE | POLYAMIDE | POLYAMIDE | POLYAMIDE | POLYAMIDE | POLYAMIDE | POLYAMIDE | POLYAMIDE |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO | NO |
| Mixed contacts | YES | YES | YES | YES | YES | YES | YES | YES |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE | ONE | ONE |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Rated current (signal) | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A |
| Guideline | UL | UL | UL | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.13 inch | 0.13 inch | 0.13 inch | 0.13 inch | 0.13 inch | 0.13 inch | 0.13 inch | 0.13 inch |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 32 | 17 | 32 | 26 | 26 | 8 | 17 | 8 |
| Other features | TRAY PACKAGING | - | POLARIZED, SHROUDED | TRAY PACKAGING | POLARIZED, SHROUDED | TRAY PACKAGING | POLARIZED, SHROUDED | POLARIZED, SHROUDED |
| Contact completed and terminated | Matte Tin (Sn) | - | Tin/Lead (Sn/Pb) | Matte Tin (Sn) | Tin/Lead (Sn/Pb) | Tin (Sn) - with Nickel (Ni) barrier | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| empty shell | NO | - | NO | NO | NO | NO | NO | NO |
| Filter function | NO | - | NO | NO | NO | NO | NO | NO |
| JESD-609 code | e3 | - | e0 | e3 | e0 | e3 | e0 | e0 |
| Plating thickness | 30u inch | - | 30u inch | 30u inch | 30u inch | 30u inch | 30u inch | 30u inch |
| Shell material | BRASS | - | PLASTIC | BRASS | PLASTIC | BRASS | PLASTIC | PLASTIC |
| UL Flammability Code | 94V-0 | - | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
