MWDL-37GP-4K5-2M

Description
D-Sub Micro-D Connectors
CategoryThe connector
File Size557KB,2 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

MWDL-37GP-4K5-2M Online Shopping

Suppliers Part Number Price MOQ In stock
MWDL-37GP-4K5-2M - - View Buy Now

MWDL-37GP-4K5-2M Overview

D-Sub Micro-D Connectors

MWDL-37GP-4K5-2M Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerGlenair
Product CategoryD-Sub Micro-D Connectors
Number of Positions37 Position
Factory Pack Quantity1

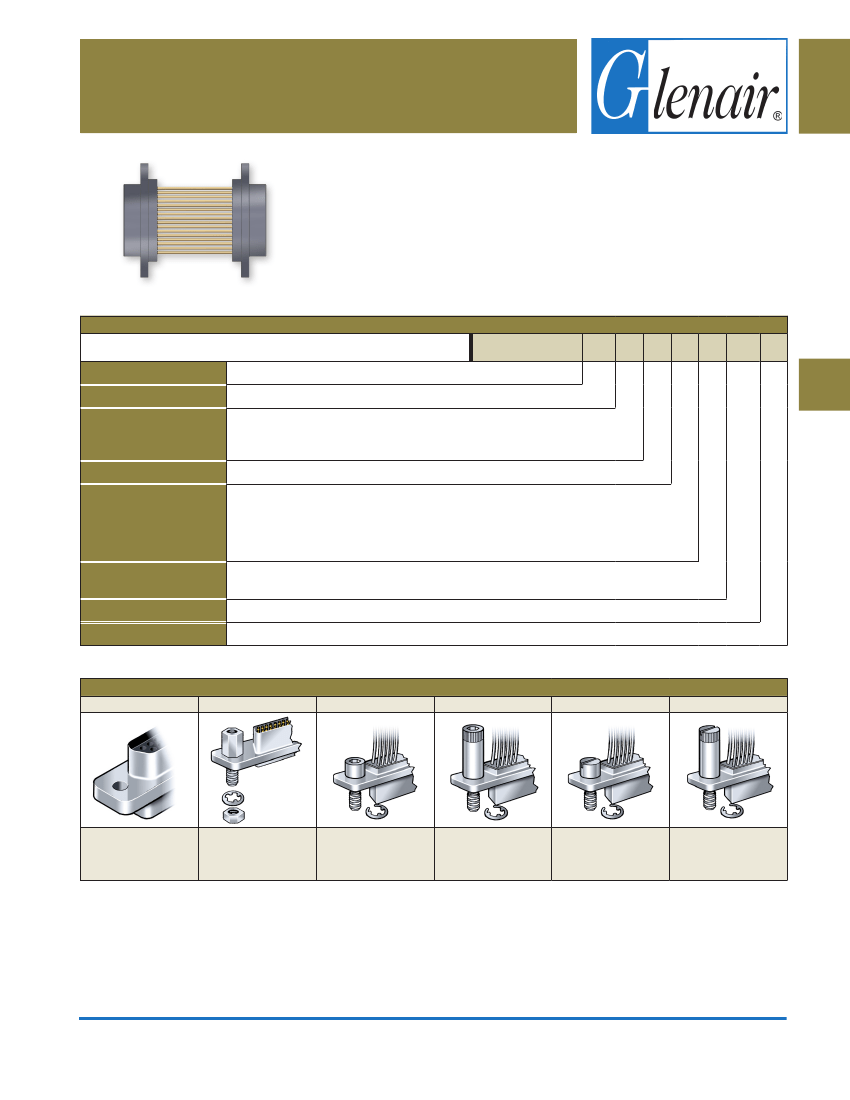

MWDL Low Profile Plastic Shell Micro-D
Back-To-Back Cables
Factory terminated "back-to-back" jumper cables simplify ordering and reduce
assembly labor. Contacts are crimped to wire and potted with epoxy. Pin contacts
are gold-plated high performance TwistPin type and are recessed into insulator to
prevent damage. Socket contacts are gold plated, machined copper alloy. Glass-
filled high temperature thermoplastic connector body. M22759/11 standard wire,
or M22959/33 lightweight, high strength space grade wire. Meets performance
requirements of MIL-DTL-83513, Class P. Available with 9 to 51 contacts. 3 A., 600 Vac,
-55°C to +150°C.
How To Order
Sample Part Number
Series
Contact Layout
Connector Type
Wire Gage (AWG)
MWDL
- Low Profile Plastic Shell Micro-D
9, 15, 21, 25, 31, 37, 51
(See Table II)
GP
- Pin Connector Both Ends
GS
- Socket Contacts Both Ends
CS
- Pin Connector to Socket Connector
4
- #24
6
- #26
8
- #28
0
- #30 (J Wire Only)
K
Standard Wire
Extruded PTFE per M22759/11,
Silver-Plated Conductors (#30 AWG not available)
J
- Space Grade Wire
High Strength, Lightweight, Crosslinked Modified ETFE per M22759/33 Silver-Plated Conductors
1
- White
5
- Color-Coded per MIL-STD-681. Wires 1-10 are solid color, 11 and up are striped
7
- 10 Color Repeat, wires are solid color per MIL-STD-681color code system.
18
- 18 inches (2" minimum for 2 rows, 3" minimunm for 3 rows).
B, M, M1, S, S1, P
(See Table I)
MWDL
-37
GP
-6
K
1
-18
P
Wire Type
Wire Color Code
Wire Length (Inches)
Mounting Hardware

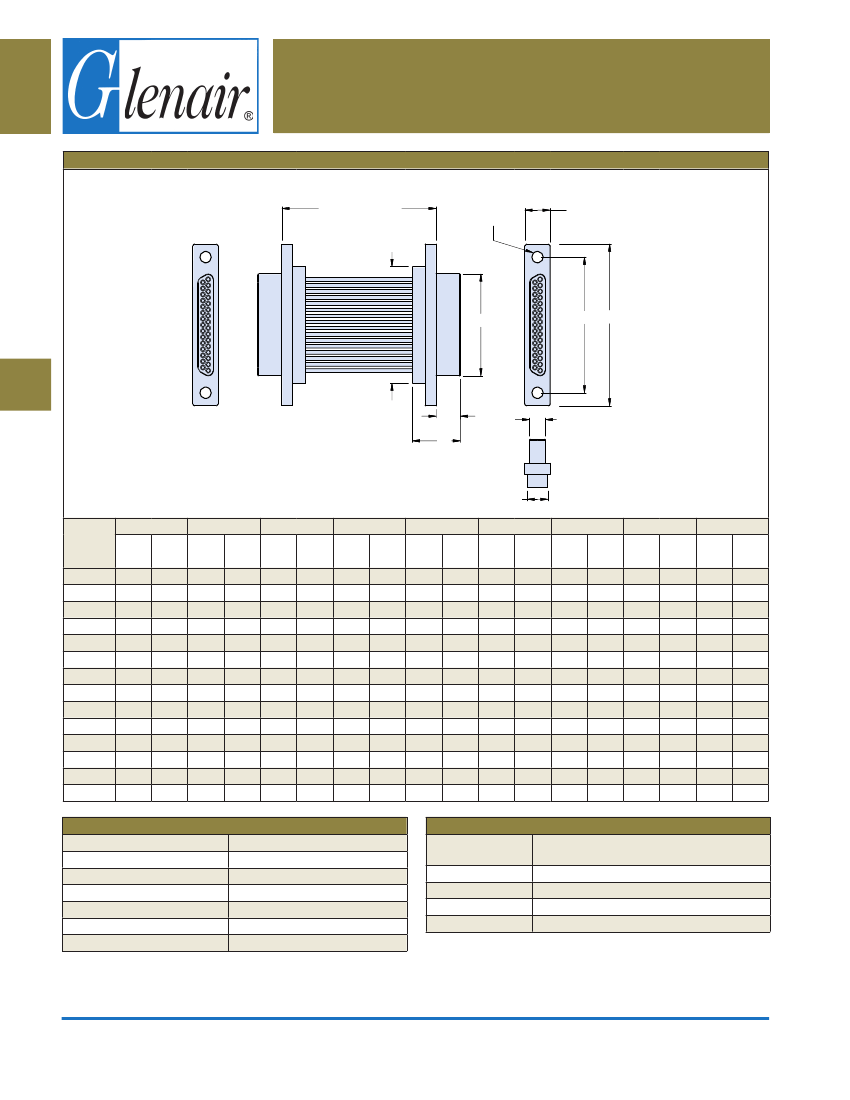

Table I: Mounting Hardware
B
P
M
M1
S
S1
M
N
Thru-Hole
Jackpost
#2-56
Hex Head Jackscrew
#2-56
Hex Head
Jackscrew, Extended
#2-56
Slot Head Jackscrew
#2-56
Slot Head Jackscrew,
Extended
#2-56
Q
© 2013 Glenair, Inc.
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
E-21
E-Mail: sales@glenair.com
