818-100: DescriptionLED Mounting Hardware Perm-O-Pad Rect IC Mnt Natural; CategoryLED optoelectronic/LED; File Size32KB，1 Pages; ManufacturerBivar

Download Datasheet Parametric Compare View All

818-100 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	818-100	-	-	View	Buy Now

818-100 Overview

LED Mounting Hardware Perm-O-Pad Rect IC Mnt Natural

818-100 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Bivar
Product Category	LED Mounting Hardware
RoHS	Details
Packaging	Bulk
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

REV.

DESCRIPTION

DATE

APPROVED

C

Engineering Update w/o Changes

03/01/04

M. C.

H

REF.

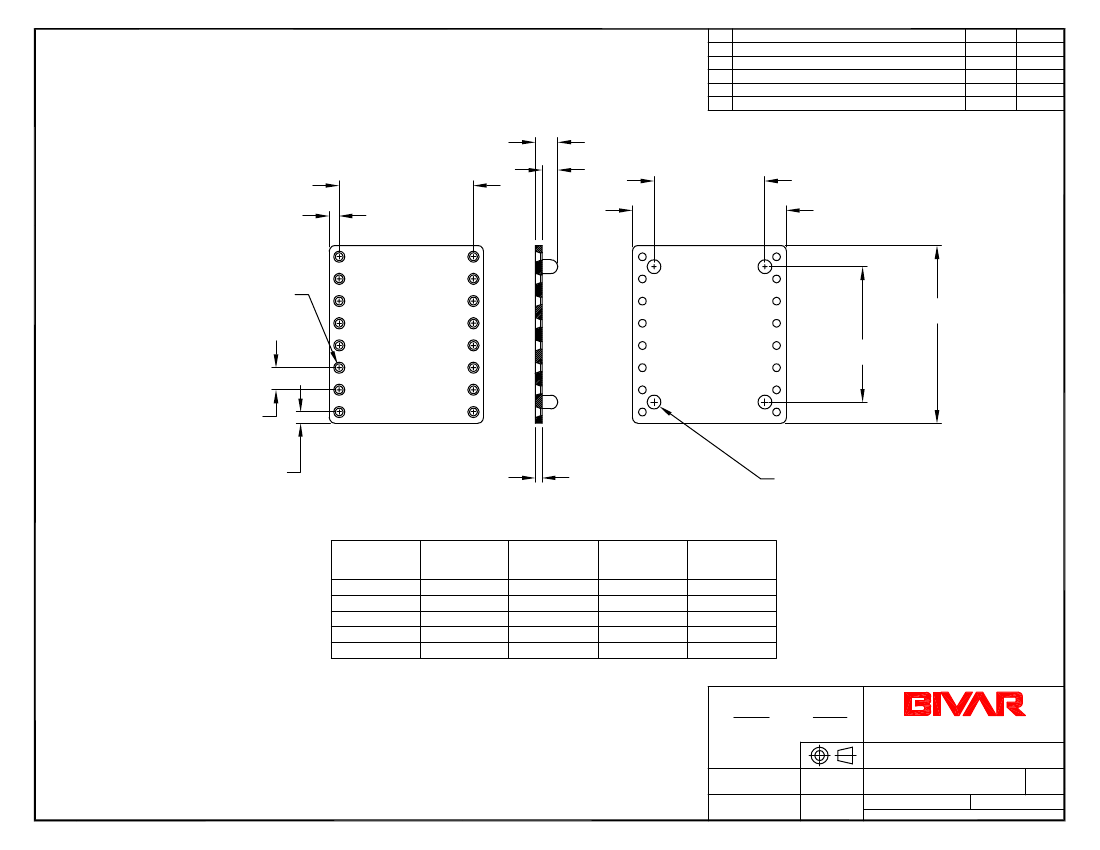

0.605 [15.4mm]

0.045 [1.1mm]

F

0.50 [12.7mm]

0.695 [17.7mm]

Ø.035 [Ø0.9mm]

W/ Ø .050 C'SINK

TYP.

0.800 [20.3mm]

0.61 [15.5mm]

0.100 [2.5mm]

TYP.

0.050 [1.3mm]

0.030 [0.8mm]

Ø.062 [Ø1.6mm]

TYP.

PART

NO.

818-030

818-045

818-060

818-080

818-100

A55485/06

M38527/06

-

F

.000

.015 (.38)

.030 (.76)

.050 (1.3)

.070 (1.8)

H

.030 (.76)

.045 (1.1)

.060 (1.5)

.080 (2.0)

.100 (2.5)

COLOR

BLACK

STANDARD TOLERANCE

®

3. MATERIAL: NYLON 6/6, 94V-2, BLACK. BIVAR MATERIAL CODE 03-NL-BK.

BASF ULTRAMID NYLON 6/6 A3K NATURAL W/BLACK PIGMENT ADDED.

2. MATERIAL: NYLON 6/6, 94V-2, NATURAL. BIVAR MATERIAL CODE 03-NL.

BASF ULTRAMID NYLON 6/6 A3K NATURAL.

1. GENERAL SPECIFICATIONS: BIVAR MOLDED COMPONENT SPECIFICATION BV00-E101.

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

.X

.XX

.XXX

DESIGNED:

± .1

± .01

± .005

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

TITLE:

DUAL IN-LINE MOUNT

DATE:

PART NO:

REVISION:

Michael Chen

CHECKED:

10/03/03

DATE:

818-XXX

C

1

CAGE CODE : 32559

SHEET #

1

OF

D. Green

10/03/03

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.

818-100 Related Products

	818-100	818-030	816-100	818-060	818-080
Description	LED Mounting Hardware Perm-O-Pad Rect IC Mnt Natural	Circuit Board Hardware - PCB Perm-O-Pad Rect IC Mnt Natural	LED Mounting Hardware Perm-O-Pad Rect IC Mnt Natural	Circuit Board Hardware - PCB Perm-O-Pad Rect IC Mnt Natural	Circuit Board Hardware - PCB Perm-O-Pad Rect IC Mnt Natural
Product Attribute	Attribute Value	Attribute Value	-	Attribute Value	Attribute Value
Manufacturer	Bivar	Bivar	-	Bivar	Bivar
Product Category	LED Mounting Hardware	Circuit Board Hardware - PCB	-	Circuit Board Hardware - PCB	Circuit Board Hardware - PCB
RoHS	Details	Details	-	Details	Details
Packaging	Bulk	Bulk	-	Bulk	Bulk
Factory Pack Quantity	1000	1000	-	1000	1000
Product	-	Component Mounts	-	Component Mounts	Component Mounts
Type	-	Dual In-Line	-	DIP	DIP
Length	-	20.3 mm	-	20.3 mm	20.3 mm
Material	-	Nylon	-	Nylon	Nylon
Color	-	Black	-	Black	Black
