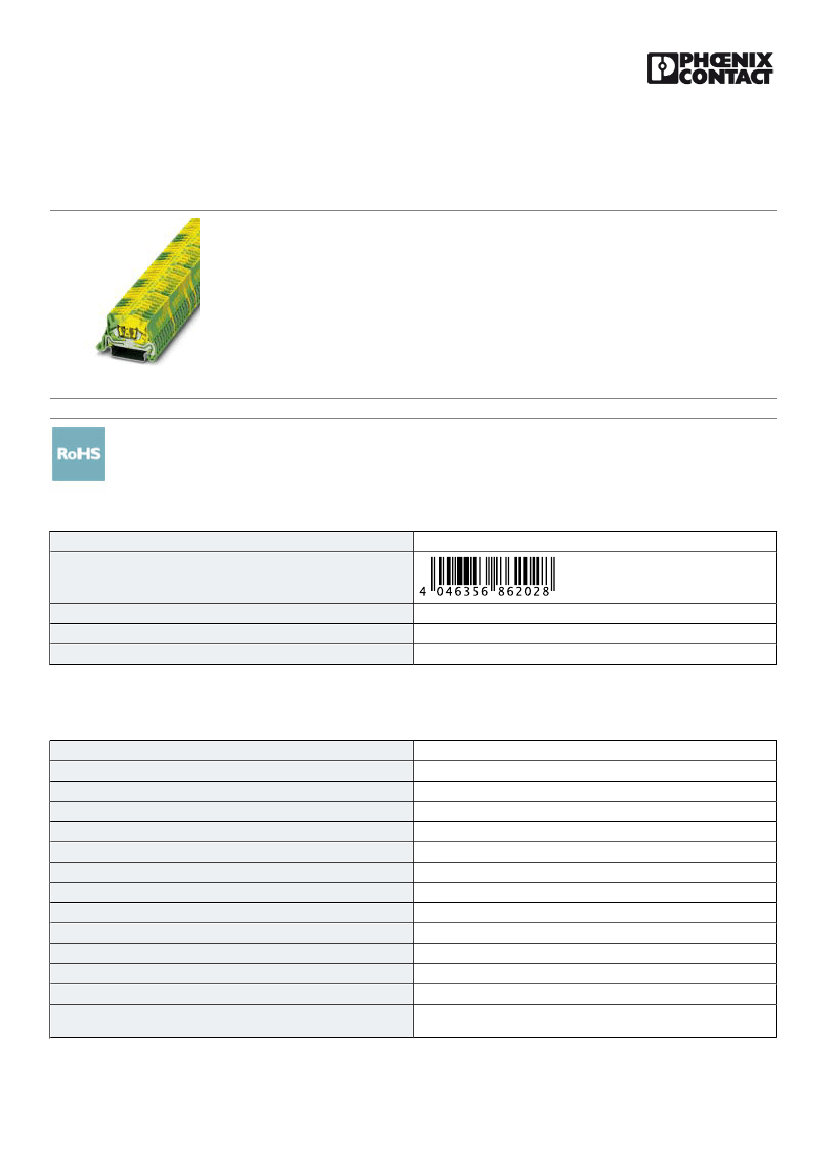

Mini feed-through terminal block - MSB 2,5-NS 35-PE BD:PE - 3244149
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Mini feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.08 mm² - 4
mm², AWG: 28 - 12, Width: 5.2 mm, Height: 22 mm, Color: green-yellow, Mounting type: NS 35/7,5, NS 35/15
The figure shows a similar product
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356862028
85369010
Made to Order (non-returnable)
50 STK
Technical data
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
1
2
1
2.5 mm²
green-yellow
PA
V0
8 kV
3
III
I
Yes
130 °C
130 °C
11/15/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/3244149
Mini feed-through terminal block - MSB 2,5-NS 35-PE BD:PE - 3244149
Technical data
General
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
End cover width
Length
Height
Height NS 35/7,5
Height NS 35/15
5.2 mm
4 mm
42.7 mm
22 mm
32 mm
39.5 mm
Connection data
Note
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Connection in acc. with standard
Please observe the current carrying capacity of the DIN rails.
Spring-cage connection
IEC 60947-7-2
0.08 mm²
4 mm²
28
12
0.08 mm²
2.5 mm²
28
14
0.14 mm²
0.14 mm²
2.5 mm²
0.5 mm²
IEC/EN 60079-7
11/15/2016 Page 2 / 3
Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm²
https://www.phoenixcontact.com/hq/products/3244149
Mini feed-through terminal block - MSB 2,5-NS 35-PE BD:PE - 3244149
Technical data
Connection data
Stripping length
Internal cylindrical gage
8 mm
A3
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-2
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC EAC-Zulassung
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/15/2016 Page 3 / 3
