234199 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 234199

234199: DescriptionERNI Electronics 50P 1.27MM VERT FML 13.65MM 3GBITS 1.1A; CategoryThe connector The connector; File Size95KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

234199 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	234199	-	-	View	Buy Now

234199 Overview

ERNI Electronics 50P 1.27MM VERT FML 13.65MM 3GBITS 1.1A

234199 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.283 inch
subject depth	0.537 inch
body length	1.449 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	700VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.5004 N
Insulation resistance	10000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	234199
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
Rated current (signal)	0.5 A
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
Evacuation force-minimum value	.5004 N
Base Number Matches	1

Preview

Download Datasheet

View All

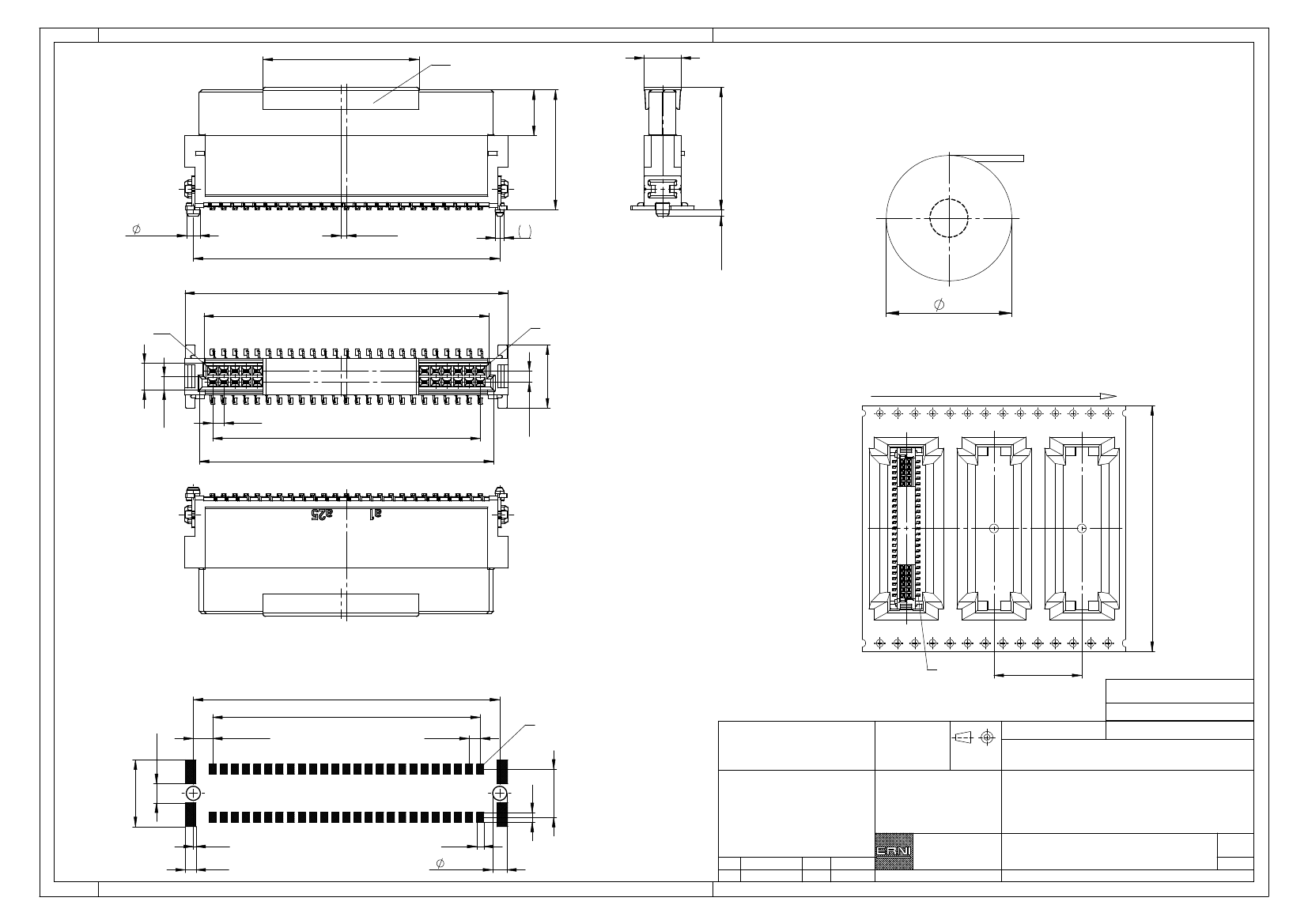

17,76

Ansaughaube

4,2

hood

5,2

Verpackt im Gurt nach DIN IEC 60286-3

Tape on Reel Packaging according to DIN IEC 60286-3

Verpackungseinheit: 170 Stück

13,65

13,95

Packaging unit: 170 pcs

34,9

±0,03

36,8

32,5

a25

0,75

-0,05

1,5

-0,03

0,635

330

3,05

7,2

Abspulrichtung -

Reel off Direction

1,55

24 x 1,27 = 30,48

33,5

1,27

Anforderungsstufe 1

Performance Level 1

BA 7-23 - hohe Bauhöhe

Proprietary notice pursuant to ISO 16016 to be observed.

Kontaktbereich vergoldet

Mating Area gold plating

Anschlussbereich verzinnt 4-6µm

Terminal Area 4-6µm tin plating

Koplanarität der Anschlüsse

≤

0,1mm

Coplanarity Area of Termination

≤

0,1mm

Leiterplatten-Layout Vorschlag für SMT

PCB-Layout Proposal for SMT

34,9

±0,03

24 x 1,27 = 30,48

2,21

±0,03

2,2

1,27

type 7-23 - high profile

Information:

Tolerances

All Dimensions

in mm

Scale

3:1

0,3

1,2

0,8

1,6

-0,03

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

29.10.2013

Date

Designation

7,6

5,5

Subject to modification without

prior notice.

Drawing will not be updated.

1,1

Federl. SMC-B 50-SMD-BA7-23

Female SMC-B 50-SMT-type7-23

www.ERNI.com

Class

234199

SMCB
