Front adapters - FLK 50-PA/EZ-DR/HF/KS/ 100/YOC - 2904985
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Cast front adapter with attached, halogen-free round cable and a 50-pos. socket strip injection-molded on
both sides for the connection of Yokogawa ProSafe controllers. Cable length: 1.0 m

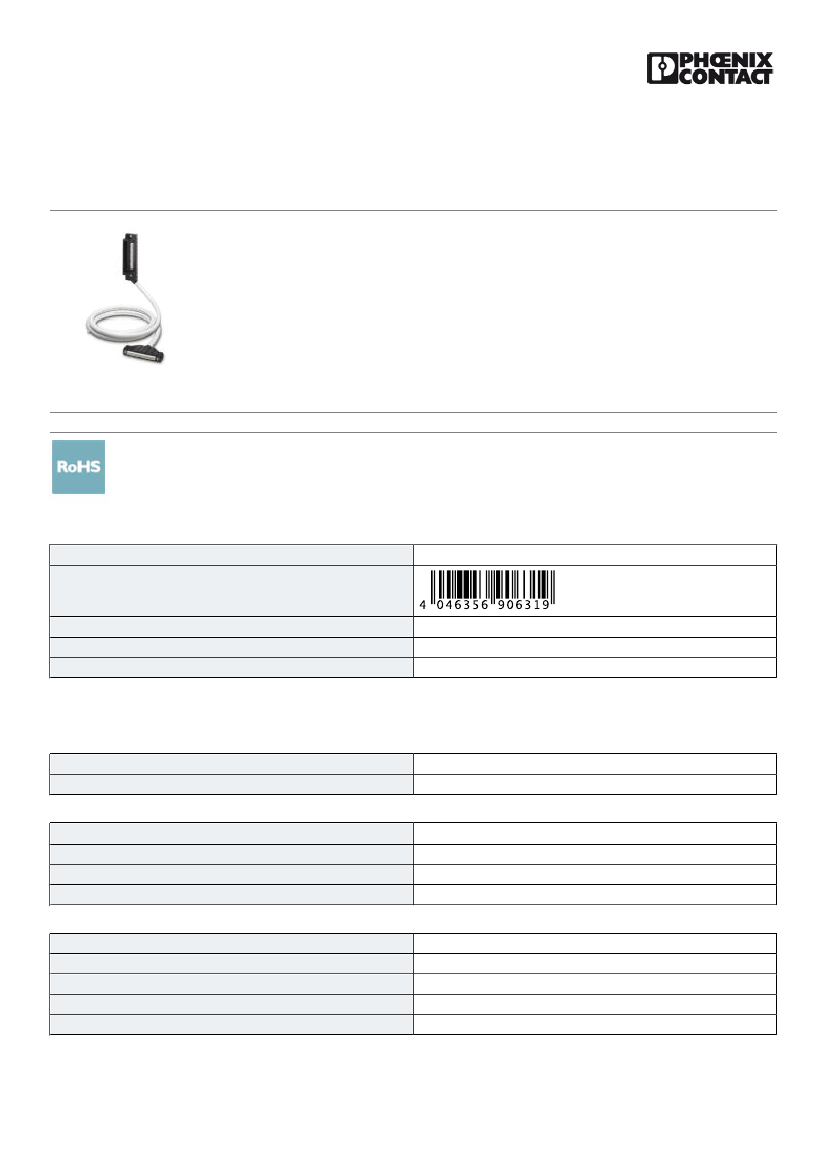

Illustration shows the product FLK
50-PA/EZ-DR/KS/ 200/YUC
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356906319
85444290
Made to Order (non-returnable)
1 STK
Technical data
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-20 °C ... 55 °C
-20 °C ... 70 °C
General
Nominal voltage U
N
Max. permissible current
Designation
Standards/regulations
30 V DC
500 mA (per path at 55°C)
Halogen-free sheath
IEC 60754-1
Connection data 1
Connection name
Connection method
Torque
Number of connections
Number of positions
Controller level
Yokogawa, I/O cards compatible
0.5 Nm (Screw connection)
1
50
11/15/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/2904985
Front adapters - FLK 50-PA/EZ-DR/HF/KS/ 100/YOC - 2904985
Technical data
Connection data 2
Connection name
Connection method
Torque
Number of connections
Number of positions
Field level
Yokogawa, KS compatible
0.5 Nm (Screw connection)
1
50
Cable
Structural data
Individual wires per module
Single wire, material
Single wire, cross section
External diameter
Length of cable
Outer sheath, material
External sheath, color
Shielding
Halogen-free cable
Max. conductor resistance
Cable insulation resistance
Cable impedance
Cable resistance
Cable capacity
Insulation
Flame resistance
Resistance to oil
Gasoline resistance
in acc. to UL style 2464/1061
7
Cu tin-plated
0.14 mm²
11 mm
1m
PVC
gray RAL 7035
yes
Yes
0.16 Ω/m
approx. 153 MΩ/km
approx. 120 Ω
approx. 155 Ω/km
approx. 130 pF/m
Semi-rigid PVC
IEC 60332-3
DIN VDE 0472 Part 803, test type B
Against occasional splashes
Supported controller
Controller
Yokogawa ProSafe-RS
Standards and Regulations
Resistance to oil
Flame resistance
Designation
Standards/regulations
DIN VDE 0472 Part 803, test type B
IEC 60332-3
Halogen-free sheath
IEC 60754-1
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
11/15/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/2904985
Front adapters - FLK 50-PA/EZ-DR/HF/KS/ 100/YOC - 2904985
Connection diagram
50-pos.
connector to
the I/O card
50-pos.
connector to
the module
Wire color
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
black
brown
red
orange
yellow
green
blue
violet
gray
white
white-black
white-brown
white-red
white-orange
white-yellow
white-green
white-blue
white-violet
white-gray
brown-black
brown-red
brown-orange
brown-yellow
brown-green
brown-blue
brown-violet
brown-gray
brown-white
green-black
green-brown
green-red
green-orange
green-blue
green-violet
green-gray
green-white
yellow-black
yellow-brown
yellow-red
yellow-orange
yellow-blue
yellow-violet
yellow-gray
yellow-white
gray-black
gray-brown
gray-red
gray-orange
gray-yellow
gray-green
