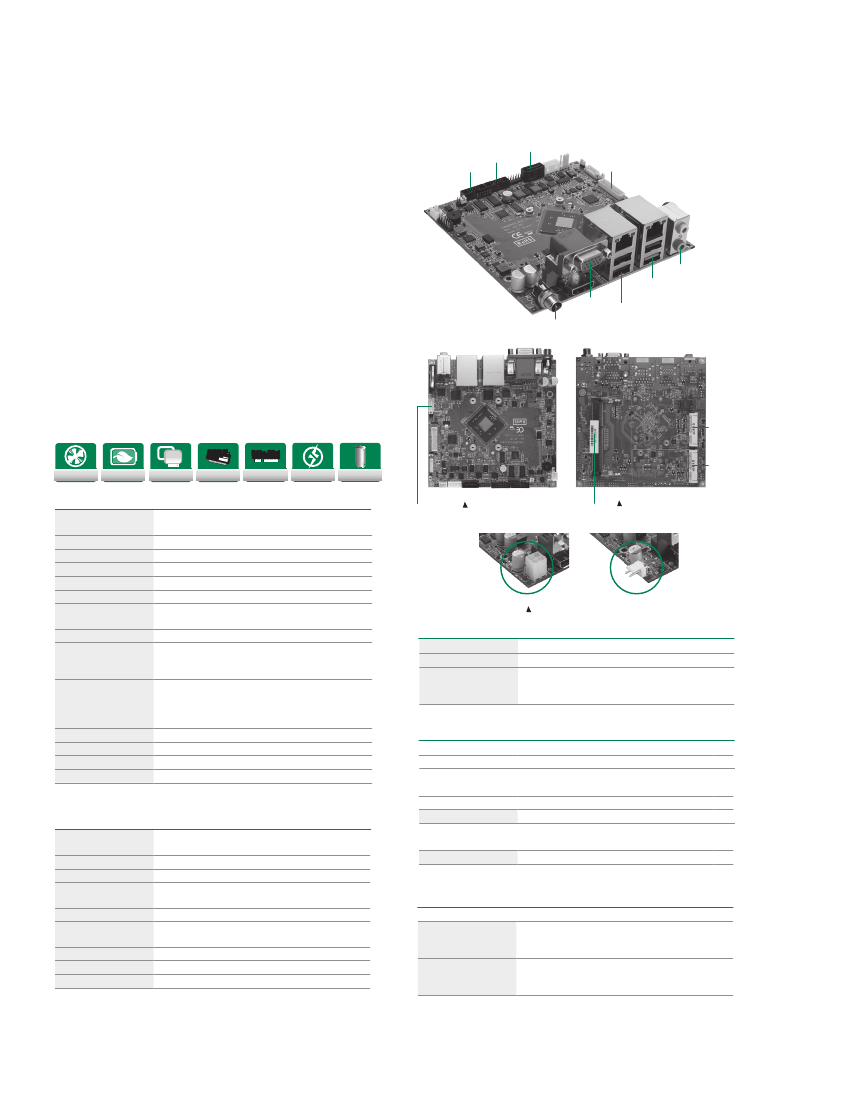

NANO840

Nano-ITX SBC with Intel® Atom™ Processor E3845/E3827 LVDS/ VGA/HDMI,

Dual LANs and Audio

Features

●

Intel® Atom™ processor E3845/E3827

●

1 DDR3L-1066/1333 SO-DIMM, up to 8GB

●

5 USB 2.0 ports and 1 USB 3.0 port

●

2 COM ports

●

2 PCI Express Mini Card slots

COM 1

COM 2

SATA

LVDS

Audio

Ethernet+USB 2.0

3+USB 3.0

VGA+HDMI

Ethernet+USB 2.0 1/2

+12V power input

Half-size

PCIe

Mini Card

DDR3L

PCIe Mini

Fanless

Low Power

DualView

DDR3L

PCIe Mini

AiRD

Full Solid

Cap Design

Core System

CPU

System Memory

Chipset

BIOS

SSD

Watchdog Timer

Expansion Interface

Battery Lithium

Power Input

Intel® Atom™ processor E3845 quad core, E3827 dual core

onboard

1 x 204-pin DDR3L-1066/1333 SO-DIMM, up to 8GB

SoC integrated

AMI

N/A

255 levels, 1~255 sec.

1 x Full-size PCI Express Mini Card with mSATA

1 x Half-size PCI Express Mini Card

Lithium 3V/220mAH

DC power jack connector

+12V DC-in

AT Auto Power On function supported

Intel® Atom™ E3845 @1.91 GHz 8GB DDR3L

Max. RMS: +12V @ 0.9A

Intel® Atom™ E3827 @1.75 GHz 8GB DDR3L

Max. RMS: +12V @ 0.8A

120 x 120 mm

1.6 mm

-40°C ~ +80°C (-40°F ~ 176°F), operation

10% ~ 95% relative humidity, non-condensing

USB 2.0 4/5

Top view

DDR3L

SO-DIMM

Rear view

Full-size PCIe

Mini Card

with mSATA

supported

Internal power connector (Optional)

Display

Chipset

Memory Size

Display Interface

Intel® HD Graphics

Share System memory

1 x VGA

1 x LVDS; 18/24-bit single/dual channel

1 x HDMI

Power Requirements

Size

Board Thickness

Temperature

Relative Humidity

Packing List

Standard

Quick installation guide, user’s manual/utility CD and cable

Cable

Part Number

59382620000E

I/O

MIO

SATA

Hardware Monitoring

Ethernet

Audio

USB

SMBus

Digital I/O

TPM

1 x RS-232/422/485 (+5V/+12V powered)

1 x RS-232

1 x SATA-300

Detect CPU/system temperature and voltage

2 ports 10/100/1000 Mbps supports Wake-on-LAN,

PXE Boot ROM with Intel® i210IT

HD Codec audio as MIC-in/Line-out with Realtek ALC662

5 x USB 2.0

1 x USB 3.0

System Management Bus for advanced monitoring/control

8 channels IN/OUT programmed

ST ST33TPM12LPC with TPM 1.2 compliant

Description

1 x COM cable w/ bracket, P=2.0 mm, L=300 mm

Qty

Optional

50966124030E

ADAPTER 12V60W FSP060-DIBAN2 W/SCREW

Ordering Information

Standard

NANO840VHGGA-E3845

(P/N: E38K840100)

NANO840VHGGA-E3827

(P/N: E38K840101)

Nano-ITX SBC with Intel® Atom™ processor E3845

(1.91 GHz, 2 MB Cache, 10 W), VGA/LVDS/HDMI, 2 GbE

LANs, audio and gift box

Nano-ITX SBC with Intel® Atom™ processor E3827

(1.75 GHz, 1 MB Cache, 8 W), VGA/LVDS/HDMI, 2 GbE

LANs, audio and gift box

143

* All specifications and photos are subject to change without notice.
