MICRO SWITCH™ Sealed

Subminiature Basic Switches

ZW Series

Datasheet

MICRO SWITCH™ ZW Series

Sealed Subminiature Basic Switches

Honeywell’s MICRO SWITCH™ ZW Series is a sealed subminiature snap action switch from the Honeywell family of

Z Series subminiature basic switches. Although small in size, the ZW Series is rated for controlling electrical loads

ranging from logic level/computer-based circuits to power-duty switching (up to 6 amps and up to 250 Vac).

Switches supplied with integral wire leads are sealed to IP67 and are suitable for applications where a switch

assembly would be exposed to liquids or particulate contaminates in the environment from indoor or outdoor use.

A wide variety of stainless steel levers are available and when combined with the subminiature package size,

can adapt the switch for many different applications. The ZW Series is certified to UL, cUL, ENEC, and CQC for

worldwide use.

What makes our switches better?

The IP67-rated sealed switch is designed to operate in a

variety of demanding applications, reducing the challenge of

harsh environments

Wide variety of electrical current carrying capacity allows for

a solution in many systems

Switch package designed to accommodate a wide range of

temperature requirements

For worldwide use...

RIGHT SWITCH FOR THE RIGHT APPLICATION

HARSH ENVIRONMENTS • RELIABILITY • ELECTRICAL RATING

sensing.honeywell.com

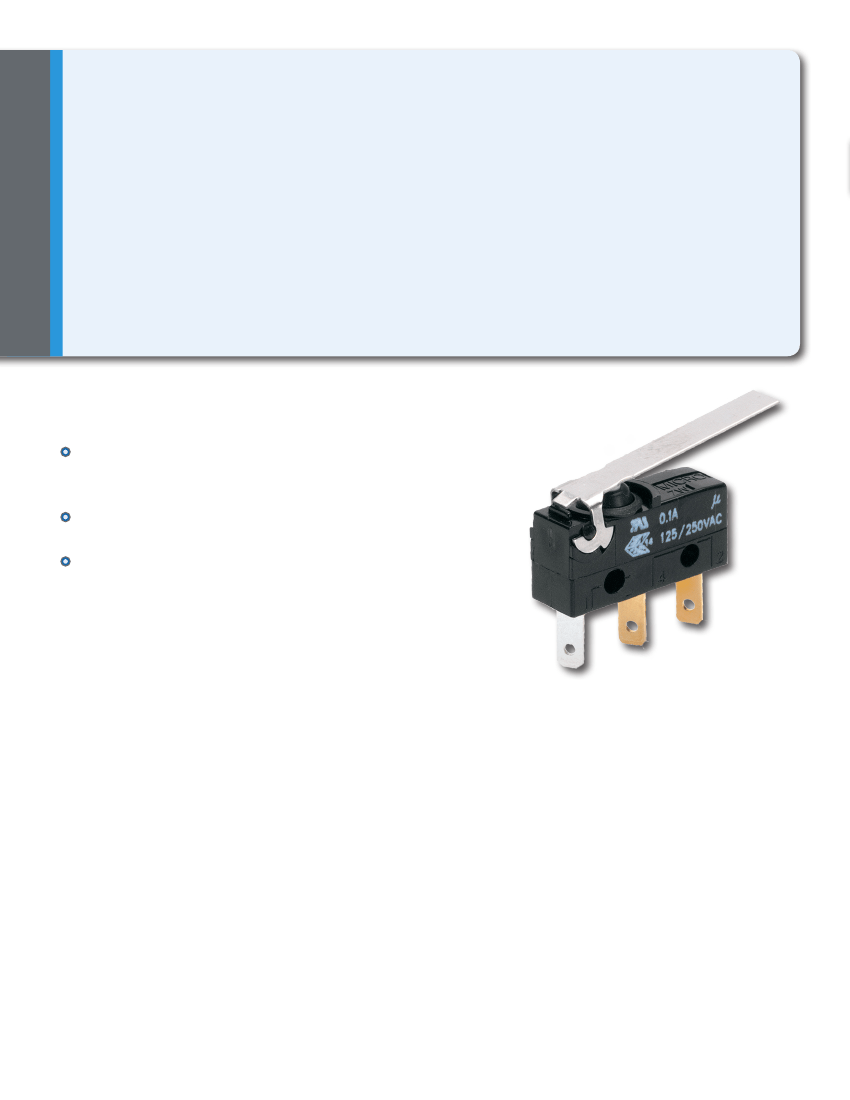

Features

and Benefits

SMALL PACKAGE SIZE

Subminiature package size

allows the MICRO SWITCH™ ZW Series switch to

fit in many applications where other sensors or switches are too large.

IP67 sealing: pre-wired switches

WELL SUITED FOR POWER-DUTY AND LOGIC-LEVEL LOADS

SPDT, SPNC, or SPNO switch options are available and designed to meet various

circuit requirements. ZW Series can control

power-duty switching

with silver

contacts or

logic-level

computer-based circuits with gold-plated contacts.

PERFORMS IN WET, DIRTY, AND DUSTY ENVIRONMENTS

Catalog listings with integral lead wires are sealed to IP67

for use in

environments where exposure to liquid ingress or particulate contaminant

could occur.

DESIGN FLEXIBILITY

Switches are built with

an integral sealed pin plunger.

Various styles of levers

expand the versatility of the ZW Series switch in the application. In addition,

the ZW Series features a

variety of terminations

to promote flexibility for the

electrical connectivity.

Potential Applications

LAWN TRACTORS

Reverse alarm for lawn tractors

Indicates seat use on lawn tractors

WATERCRAFT

Found on handle-bar controls for personal watercraft (wave runners)

SECURITY SYSTEMS

Acts as an interlock for security system panel

SNOWMOBILES

Found on handle-bar controls for snowmobiles

sensing.honeywell.com

ZW Series

PRODUCT NOMENCLATURE

Switch Type

Current

Rating

Operating Force

(at pin plunger)

150 g max.

203 g max.

Terminal

Type

(Levers Mounted Internally)

Construction

Circuitry

—

Special

Designator

A special designator

is used to indicate

a non-standard feature,

such as a special

actuator, wire color,

wire length, connector,

etc. This code

consists of up to three

alphanumeric

characters.

Actuator Type

Pin plunger

Series

0.1A 125/250 Vac

(Gold-plated

Sealed

contacts)

Subminiature

6A: 125/250 Vac

(Silver contacts)

ONLY

Basic

Switch

Solder

PCB, straight

Long solder

2,8 mm x 0,5 mm

[0.11 in x 0.02 in]

Cable, bottom

exit

(500 mm)

(UL10007 Dia 1.0)

4,5

IP00

Dust tight

IP67

Water tight

SPDT

SPNO

SPNC

Short straight

lever (17,4 mm)

Standard straight

lever (19,4 mm)

Long straight

lever (25,5 mm)

Simulated roller

lever (18,7 mm;

R 3,4 mm)

Roller lever

(17,2 mm;

Ø 4,8 mm)

Small simulated

roller lever

(18,6 mm; R1,3 mm)

Long straight

lever (55,9 mm)

SPECIAL

Lever

Cable, side exit

(Opposite plunger)

(500 mm) (UL1007 Dia)

4,5

Cable, side exit

(Plunger end)

(500 mm) (UL1007 Dia)

4,5

SPECIAL

NOTES:

Not all combinations of model code are available. Please contact your Honeywell provider/representative for assistance.

Termination style “99” and/or Actuator Type “S” designates a special and therefore requires a special designator letter at the end of the listing

Lever length is measured as follows: Straight lever - from center line of the pivot to the end of the lever; Roller and simulated roller lever - from the center line of the pivot to the center of

the roller diameter. See page 8 for more details.

Standard wire length is 500 mm [19.68 in] long. Other lengths are available upon request. Lead wire with end stripped 3,0 mm [0.118 in] and pre-tinned.

COM: black; NC: gray; NO: blue

Standard lead wire is UL1007 20 AWG cable. Other lead wire types, such as UL1015, UL1430, UL1061, and AVSS are available upon request.

sensing.honeywell.com

MICRO SWITCH™ Sealed Subminiature Basic Switches

Table 1. Specifications

Characteristic

Circuitry

Operating force

Termination

Sealing

Actuators (levers 300 series

stainless steel)

Agency certification

Operating temperature

(Manufacturer rated)

Mechanical endurance (cycles)

Switch resistance (initial)

Insulation resistance (initial)

Dielectric strength (initial)

(between live parts and ground)

ZW10 Series (Logic Level)

SPDT, SPNC, SPNO

150 g or 203 g @ plunger

PCB, solder, prewired

IP67 (prewired), IP00 for exposed terminals

pin plunger, flat lever, roller lever, sim. roller lever,

special levers

UL, cUL, ENEC, CQC, RoHS compliant

-40 °C to 120 °C [-40 °F to 248 °F] (terminal)

-20 °C to 70 °C [-4 °F to 158 °F] (pre-wired)

1,000,000 min. @ 120 cycles/minute max.

50 mΩ max. (terminals); 100 mΩ max (pre-wired)

100 MΩ min. (500 Vdc for one minute)

1500 VRMS for one minute

<0.5 mA leakage current

silicone

gold-plated silver

case, PBT (polyester); cover, PBT (polyester)

ZW50 Series (Power Duty)

SPDT, SPNC, SPNO

150 g or 203 g @ plunger

PCB, solder, prewired

IP67 (prewired), IP00 for exposed terminals

pin plunger, flat lever, roller lever, sim. roller lever,

special levers

UL, cUL, ENEC, CQC, RoHS compliant

-40 °C to 120 °C [-40 °F to 248 °F] (terminal)

-20 °C to 70 °C [-4 °F to 158 °F] (pre-wired)

1,000,000 min. @ 120 cycles/minute max.

50 mΩ max. (terminals); 100 mΩ max (pre-wired)

100 MΩ min. (500 Vdc for one minute)

1500 VRMS for one minute

<0.5 mA leakage current

silicone

silver

case, PBT (polyester); cover, PBT (polyester)

Plunger seal

Contact material

Housing material

Note: Refer to engineering drawing for additional information.

Table 2. Electrical Ratings

Switch option

ZW10 Series

(Gold-plated contacts)

ZW50 Series

(Silver contacts)

CQC (Asia-Pacific)

Per GB 15092-1

0.1 A, 125/250 Vac

10,000 cycles

6 A, 125/250 Vac

10,000 cycles

ENEC (Europe)

Per IEC 61058-1

0.1 A, 250 Vac

10,000 cycles

6 A, 250 Vac

10,000 cycles

UL, cUL (Americas)

UL 61058-1, File 12252

0.1 RA, 125/250 Vac

10,000 cycles

5 RA, 125/250 Vac

10,000 cycles

Note: The agency “use temperature” for solder or PCB terminals: 0 °C to 120 °C [32 °F to 248 °F];

CQC/ENEC “use temperature” for wire leads: 0 °C to 70 °C [32 °F to 158 °F].

UL/cUL “use temperature” for wire leads: 0 °C to 55 °C [32 °F to 131 °F].

sensing.honeywell.com
