02/11/2015
www.crouzet.com
83893 plastic, for hinged guards Lever on left 2-pole Part number 83893303
Door hinge safety switches for monitoring guards or rotating housings on small machinery
Plastic bodies and heads
Stainless steel lever and fixing accessories
Heads have 4 possible positions at 90°
Positive opening contacts
Part numbers
Type
83 893 303
Lever on left 2-pole
Type of contacts
NC+NO break before make
Action
Slow action
Specifications
Minimum actuation speed
0,01 m/s
Environment
Conforming to standards Products
Conforming to standards Machine assemblies
Certifications
Protective treatment in normal operation
Temperature Use (°C)
IEC 947-5-1, EN 60 947-5-1, UL 508, CSA C22-2 no.14, JIS C4520 (See P.3/4)
IEC 204-1, EN 60 204-1, EN 1088, EN 292
UL, CSA
"TC" and "TH"
-25 →+70
-40 →+70
Storage temperature (
0
C)
Vibration resistance according to IEC/EN 60068-2-6
Schok resistance according to IEC 28-2-27
Degree of protection according to IEC 529 and IEC 947-5-
IP 67
1
Cable entry
One threaded hole for cable gland 11
Electrical characteristics
Assigned working characteristics
Assigned insulation voltage according to IEC 947-5-1
Assigned insulation voltage according to UL 508, CSA
C22-2 no.14
Assigned impulse voltage according to IEC 947-5-1
Thermal rating according to IEC 947-5-1
Electric shock protection Class 2 according to IEC 536
Resistance between terminals according to IEC 954-5-4
Protection against short circuits
Connection Screw clamp terminals
Clamping capacity with or without ferrule
Electrical life according to IEC 947-5-1 appendix C
AC 15 A 300 Ue = 240 V, Ie = 3 A DC 13 Q 300 Ue = 250 V, Ie = 0.27 A
Ui = 500 V
Ui = 300 V
Uimp = 6 KV
Ithe = 10 A
≤ 30 mΩ
Cartridge fuse 10 A gG (gl)
min. 1 x 0,5 mm
2
, max. 1,5 mm
2
Tripping angle
Minimum actuation torque (Nm)
Minimum positive opening torque (Nm)
Mechanical life (operating cycles)
Cable entry according to NFC 68 300
Weight (g)
5°
0,1 Nm
0,25 Nm
10
6
1 PG 11
145

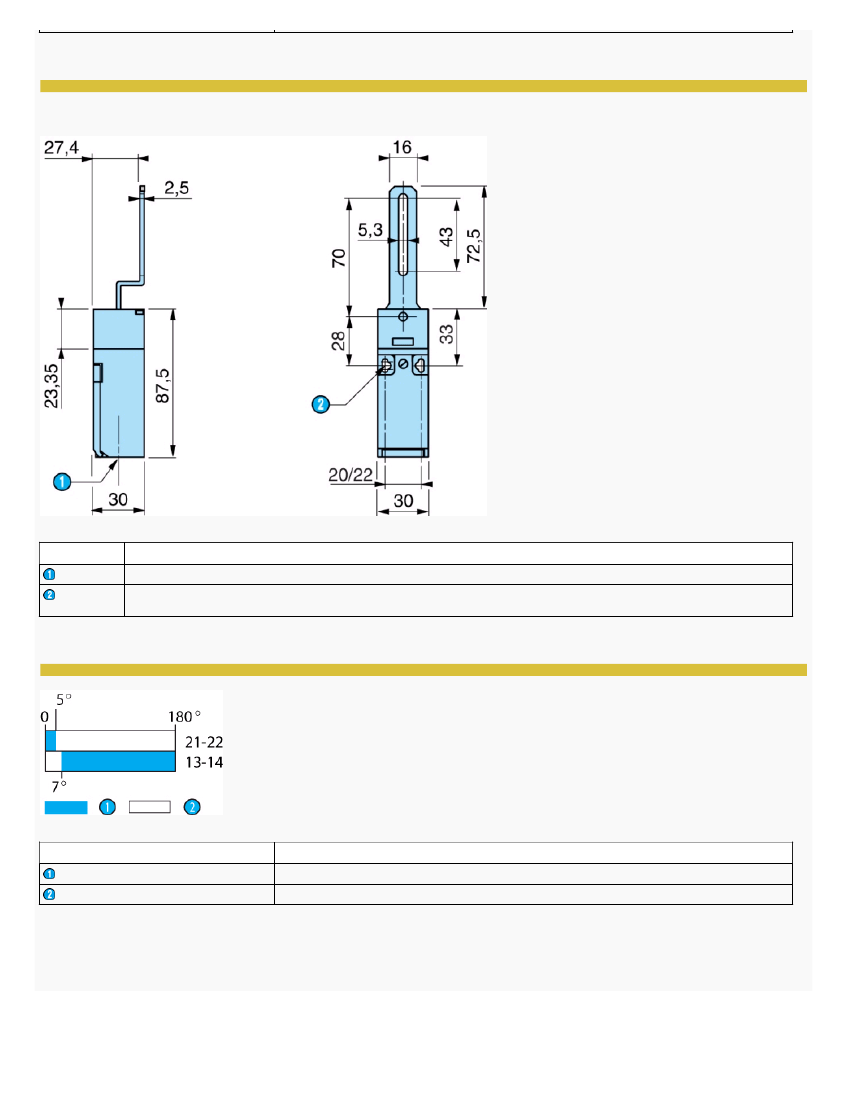

Principles
N
o
Legend
or
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
