3FTH9 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > unclassified> 3FTH9

Preview

3FTH9: DescriptionKEYPAD SWITCH, SPST, MOMENTARY, 0.05A, 24VDC, THROUGH HOLE-STRAIGHT; Categoryunclassified; File Size28KB，1 Pages; ManufacturerETC

Download Datasheet Parametric Compare View All

3FTH9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3FTH9	-	-	View	Buy Now

3FTH9 Overview

KEYPAD SWITCH, SPST, MOMENTARY, 0.05A, 24VDC, THROUGH HOLE-STRAIGHT

3FTH9 Parametric

Parameter Name	Attribute value
Maximum DC contact current	0.0500 A
Maximum DC contact voltage	24 V
Maximum operating temperature	115 Cel
Minimum operating temperature	-40 Cel
state	ACTIVE
seal	IP67
Electrical life	1.00E7 Cycle(s)
switch function	single pole single throw
Manufacturer Series	3F
high	6.4 mm
length or diameter	12.5 mm
Circuit configuration	1×1
illumination	green light emitting diode
Installation features	Straight hole
Number of switches	1
Switch action	Transient
Switch type	keyboard switch
Terminal type	welding

Preview

Download Datasheet

View All

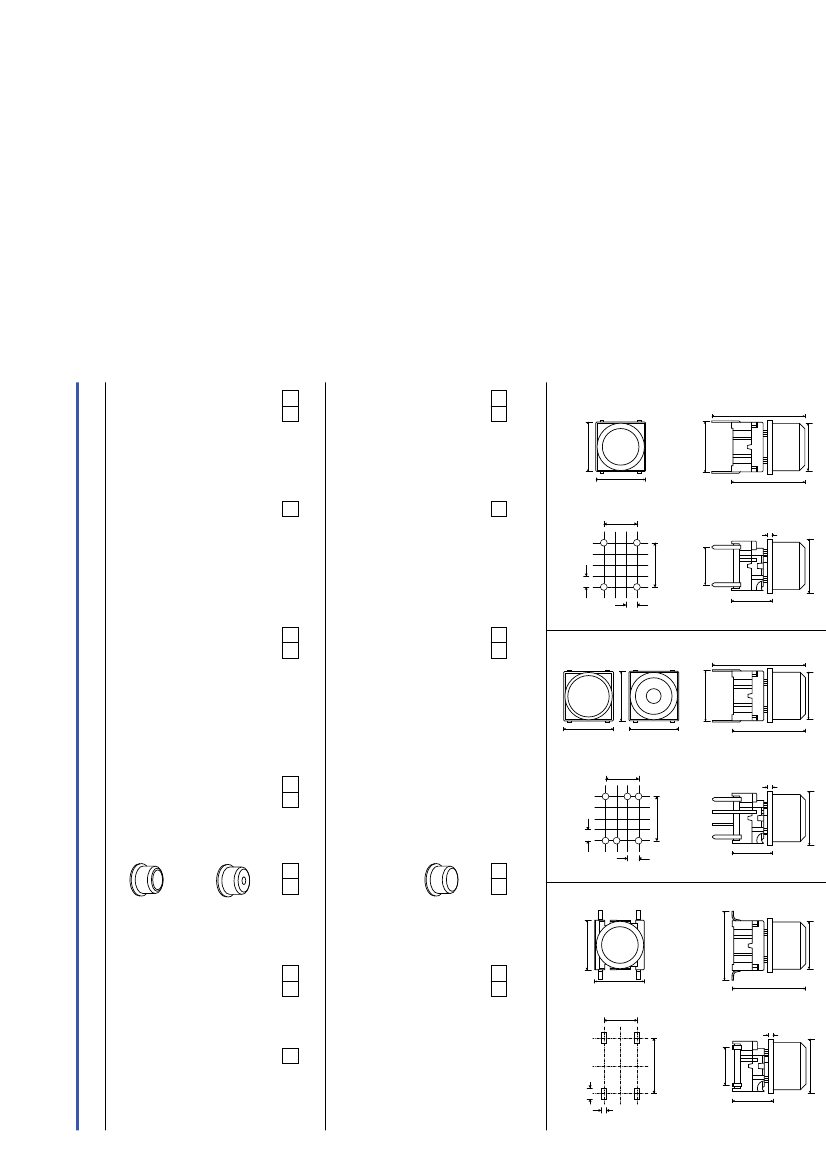

Dimensions (through-hole)

Ø 9,6

Ø = 11

Ø 9,6

Dimensions (w/LED)

Dimensions (SMD)

Ø = 11

Ø 9,6

Ø = 11

14.9

±

0.2

18.9

±

0.2

18.9

±

0.2

14.9

±

0.2

14.9

±

0.2

8.2

±

0.2

8.2

±

0.2

14

Min. 10.16

Max 12.5

7.6

±

0.5

Min. 10.16

Max 12.5

7.6

±

0.5

PCB layout

10.1

PCB layout

(top view)

PCB layout

10.16

12.5

7.62

10.1

7.62

10.1

7.62

8.2

±

0.2

1

2.54

10.1

2.54

Ø = 0.9

10.1

2.54

10.1

2.5

Ø = 0.9

HOW TO ORDER

3 F

Switch

ÿ 9.6

+

Mounting

T

through-hole

S

surface mount

L 6

low temp.

H 9

high temp.

Ø3

Ø 8.4

1 D

Cap

Standard versions:

3FTL6

3FTH9

3FSH9

Ø 9.6

00

blue

02

green

03

grey

04

yellow

06

white

08

red

09

black

3 F

Switch

T

Mounting

T

through-hole

L 6

low temp.

H 9

high temp.

+

LED

20

green

40

yellow

80

red

Standard versions:

3FTL620

3FTL640

3FTL680

Cap 1E

Cap 1F

00

blue

02

green

03

grey

04

yellow

06

white

08

red

09

black

Lens

1

transparent

2

green

4

yellow

8

red

Ordering example:

3 FTL620 + 1E032

MEC

· Industriparken 23 · P.O. BOX 26 · DK-2750 Ballerup · Denmark

Tel.: +45 44 97 33 66 · Fax: +45 44 68 15 14 · Web: http://www.mec.dk · E-mail: danmec@vip.cybercity.dk

1.2

3FTH9 Related Products

	3FTH9	3FSH9	3FTL6
Description	KEYPAD SWITCH, SPST, MOMENTARY, 0.05A, 24VDC, THROUGH HOLE-STRAIGHT	SWITCH TACTILE SPST-NO 0.05A 24V	SWITCH TACTILE SPST-NO 0.05A 24V
