DBA30C datasheet, PDF - EEWORLD Datasheet

DBA30C: Description3 A, SILICON, BRIDGE RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size90KB，2 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

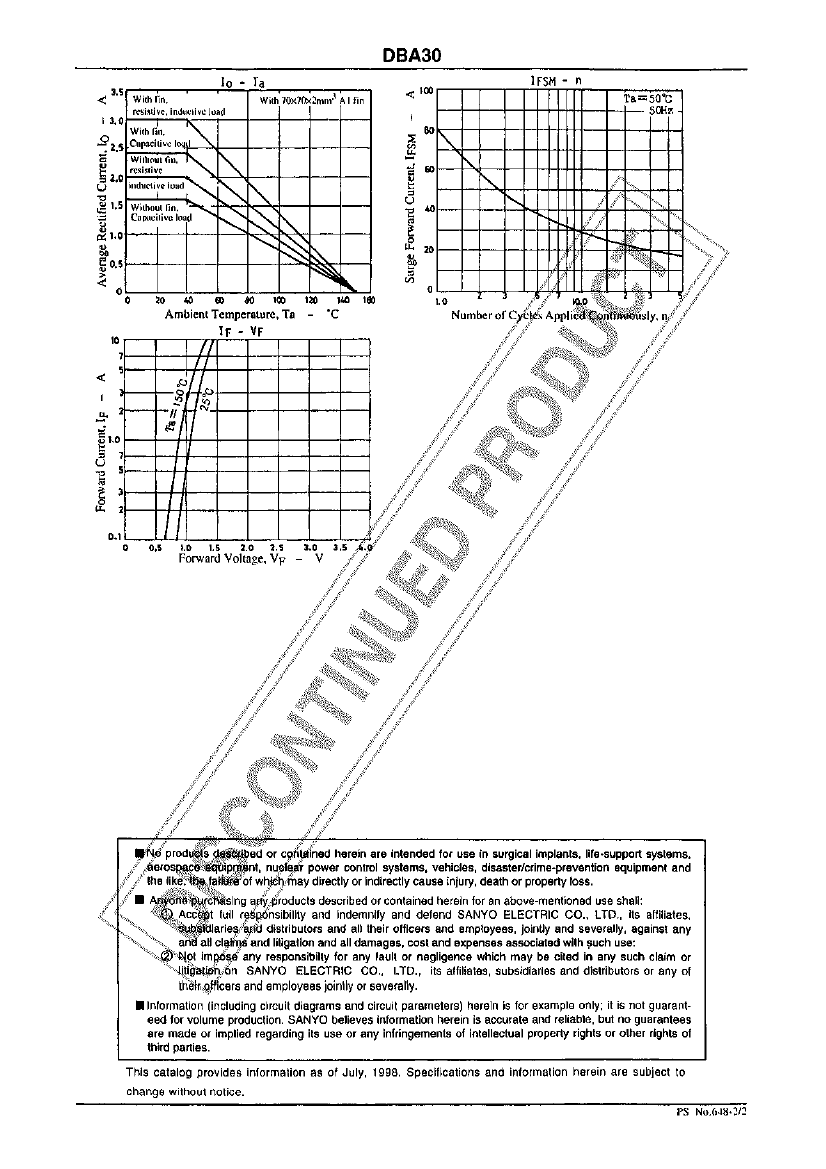

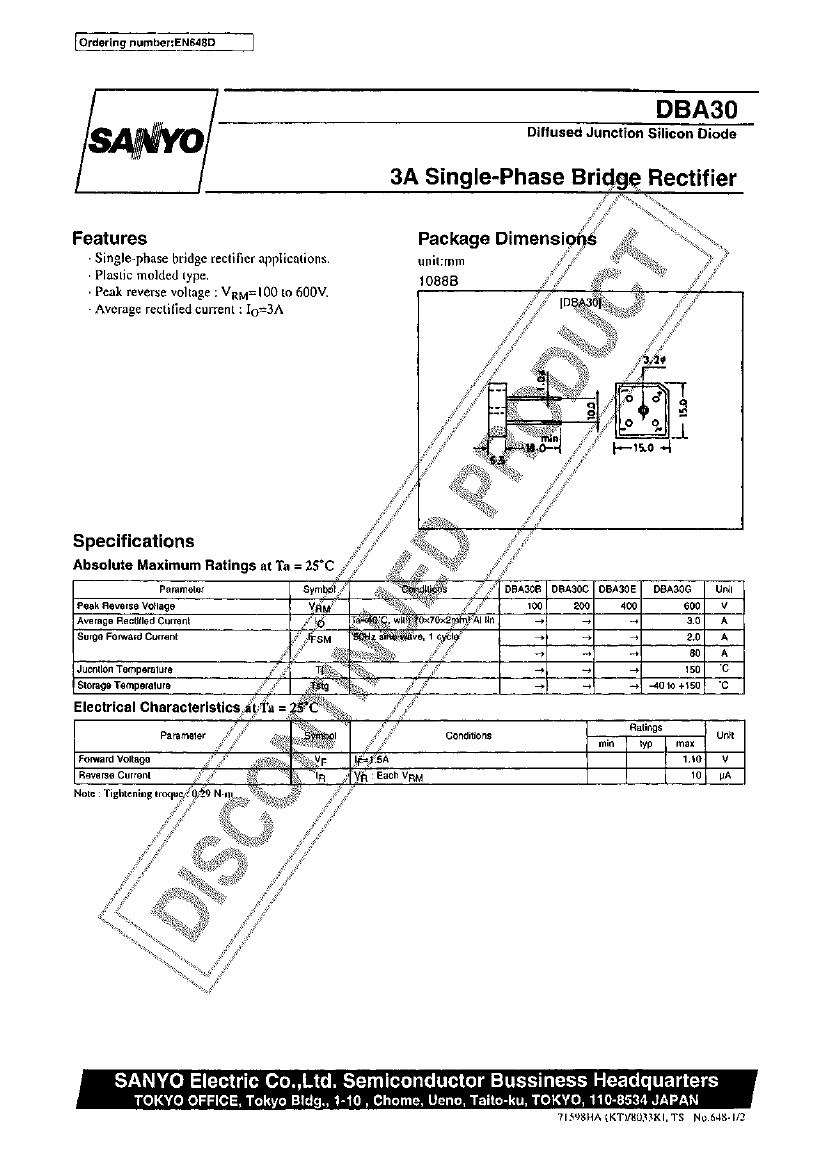

DBA30C Overview

3 A, SILICON, BRIDGE RECTIFIER DIODE

Parameter Name	Attribute value
Reach Compliance Code	unknow
Is Samacsys	N
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	S-PUFM-W4
Maximum non-repetitive peak forward current	80 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
surface mount	NO
Terminal form	WIRE
Terminal location	UPPER
Base Number Matches	1

	DBA30C	DBA30	DBA30B	DBA30E
Description	3 A, SILICON, BRIDGE RECTIFIER DIODE	3 A, SILICON, BRIDGE RECTIFIER DIODE	3 A, SILICON, BRIDGE RECTIFIER DIODE	3 A, SILICON, BRIDGE RECTIFIER DIODE
Reach Compliance Code	unknow	-	unknow	unknow
Shell connection	ISOLATED	-	ISOLATED	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	-	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	-	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	-	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	-	1.1 V	1.1 V
JESD-30 code	S-PUFM-W4	-	S-PUFM-W4	S-PUFM-W4
Maximum non-repetitive peak forward current	80 A	-	80 A	80 A
Number of components	4	-	4	4
Phase	1	-	1	1
Number of terminals	4	-	4	4
Maximum operating temperature	150 °C	-	150 °C	150 °C
Maximum output current	3 A	-	3 A	3 A
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	-	SQUARE	SQUARE
Package form	FLANGE MOUNT	-	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	-	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	-	100 V	400 V
surface mount	NO	-	NO	NO
Terminal form	WIRE	-	WIRE	WIRE
Terminal location	UPPER	-	UPPER	UPPER
