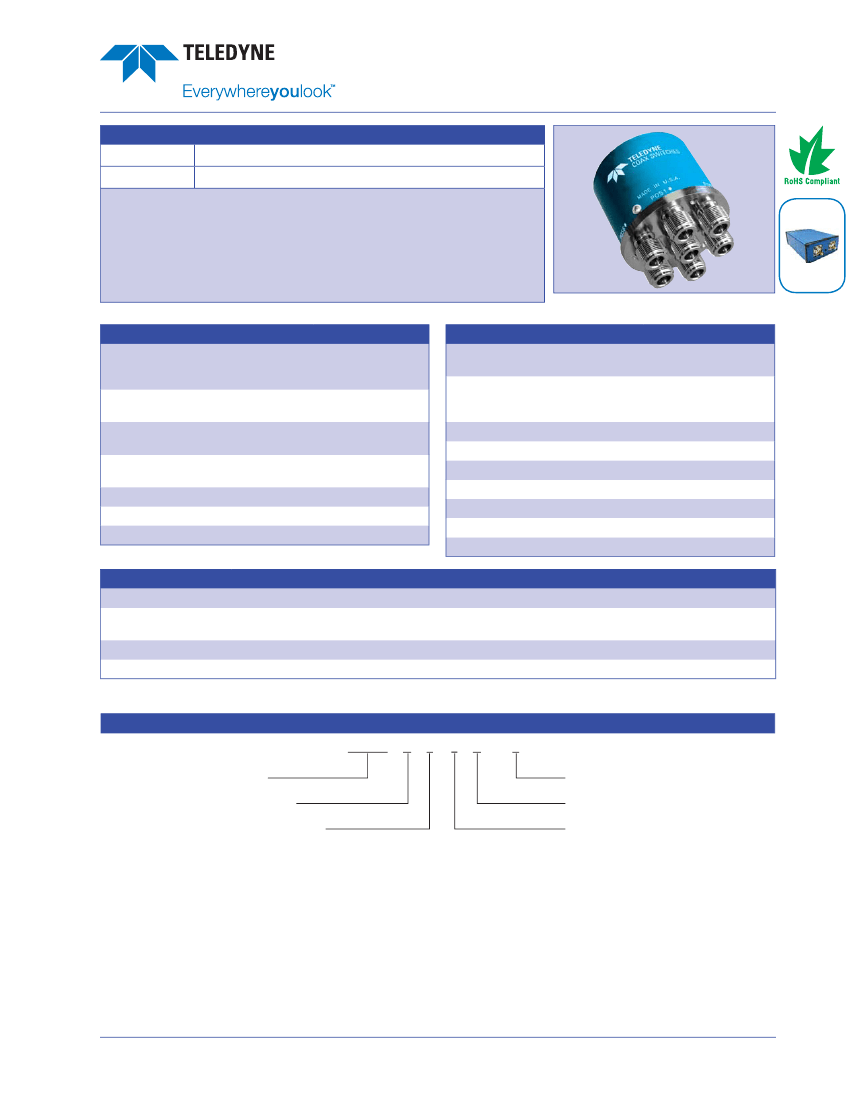

COAX SWITCHES
PART NUMBER
CCS-18
CS-18
DESCRIPTION
Commercial Normally Open Multi-throw, DC-12GHz
Elite Normally Open Multi-throw, DC-12GHz
Series CCS-18/CS-18
High Power Multi-Throw DC–12 GHz
Normally Open Coaxial Switch
The CCS-18/CS-18 is a broadband multi-position coaxial switch designed to switch RF signals from one
input port to any one of 3 through 8 output ports. It is readily adapted to any 50 Ohms transmission line
system. The standard actuator gives individual solenoid control of each position and when de-energized,
all positions are open. Standard actuator voltage is 28 VDC. The primary advantage of this switch over
the miniature versions shown on previous pages is the higher power handling capability.
Available with
USB & Ethernet
Control!
Click here
MMC SERIES
ENVIRONMENTAL AND PHYSICAL CHARACTERISTICS
Operating Temperature
Commercial Model, CCS-18
Elite Model, CS-18
Vibration (MIL-STD-202 Method 214,
Condition D, non-operating)
Shock (MIL-STD-202 Method 213,
Condition D, non-operating)
Standard Actuator Life
Actuator Life w/ Additional Features
Connector Type
Humidity (Moisture Seal)
Weight
–40°C to 65°C
–55°C to 85°C
10 g’s RMS
500 g’s
3,000,000 cycles
1,000,000 cycles
Type N or TNC
Available
9 oz. (255.2g) (max.)
ELECTRICAL CHARACTERISTICS
Form Factor
Frequency Range
CCS-18
CS-18
Characteristic Impedance
Operate Time
Release Time
Actuation Voltage Available
Actuation Current, max. @ ambient
HN & HT CONNECTORS ONLY
Reference RF Power Handling
1.1 kW CW @ 1.1 GHz
Multi-Throw,
break before make
DC–12 GHz
DC–12 GHz
50 Ohms
10 ms (max.)
10 ms (max.)
12
15
24
28 V
600 700 230 270 mA
TYPICAL PERFORMANCE CHARACTERISTICS: N CONNECTOR OPTION (TNC CONNECTOR, 11GH
Z
MAX.)
Frequency
Insertion Loss, dB,
typical.
Isolation, dB, typical.
VSWR , typical.
DC–3 GHz
0.2
80
1.3:1
3–6 GHz
0.2
80
1.3:1
6–9 GHz
0.3
80
1.5:1
9–12 GHz
0.4
75
1.7:1

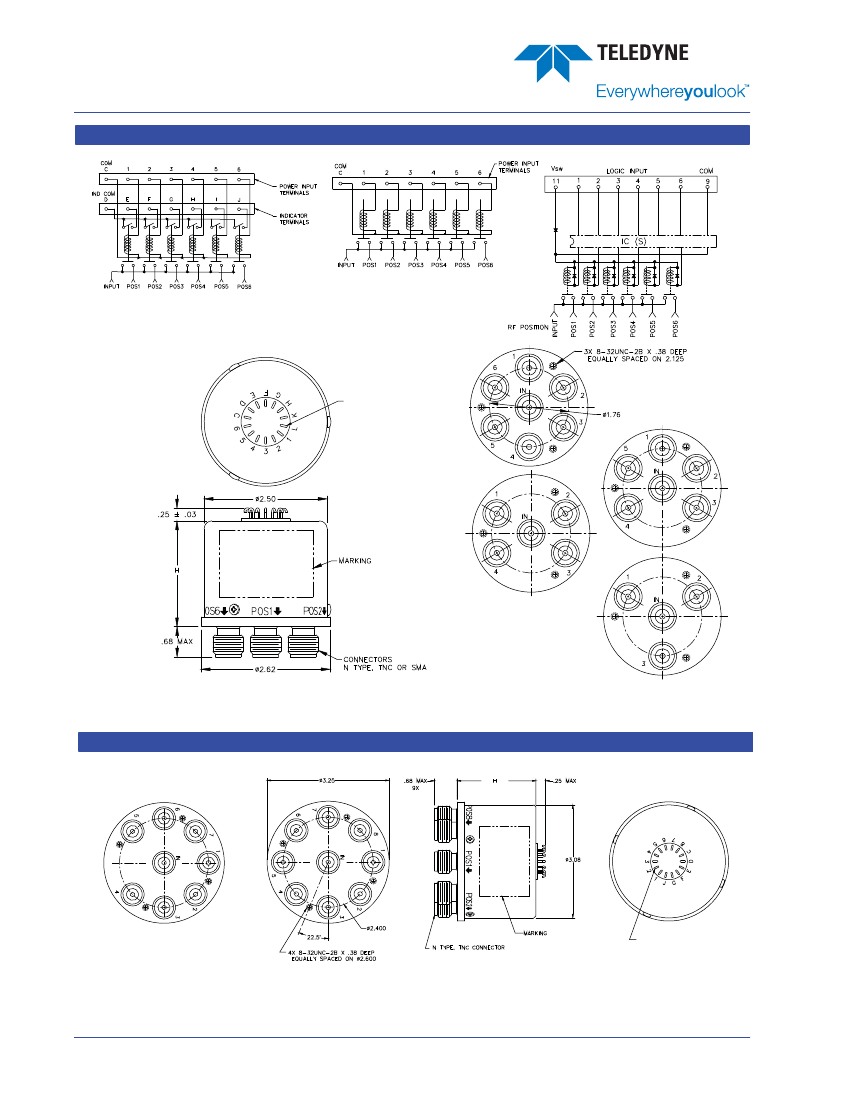

For maximum limits, please see charts on page 8-10
PART NUMBERING SYSTEM
CCS-18
N
1
6
C
-
T
**
Series
Connectors
Actuator Voltage
CONNECTOR
ACTUATOR VOLTAGE
NUMBER OF POSITIONS
ACTUATOR TYPE
Options
Actuator Type
Number of Positions
OPTIONS
T
:
TTL DRIVERS WITH DIODES
D
:
COIL TRANSIENT SUPPRESSION DIODES
S
:
D
-
SUB CONNECTOR
*
TD
:
DECODERS AND TTL DRIVERS WITH
DIODES
M
:
MOISTURE SEAL
N:
TYPE N FEMALE
T:
TNC FEMALE
1: 28
VDC NORMALLY OPEN
2: 15
VDC NORMALLY OPEN
3: 12
VDC NORMALLY OPEN
3:
SP
3
T
4:
SP
4
T
5:
SP
5
T
6:
SP
6
T
7:
SP
7
T
8:
SP
8
T
0
:
NO INDICATOR CONTACTS
C
:
INDICATOR CONTACTS
HN:
HIGH POWER
TYPE N FEMALE
4: 24
VDC NORMALLY OPEN
HT:
HIGH POWER
TNC FEMALE
**
SEE PARTS LIST ON PAGE
13-20
* D-Sub Connector may be 9 or 15 pin depending on
number of throws. (See Connector Pinout page)
For additional options, please contact factory.
© 2016 TELEDYNE RELAYS
(800) 284-7007 • www.teledynecoax.com
CCS-18/CS-18 Page 1
CCS-18\CS-18\072016\Q2
