Manual Switches
Electronic Control Rocker
INCANDESCENT OR NON-LIGHTED DISPLAY
FEATURES
Silver or gold contacts.
2 or 3 position operation.
UL recognized, CSA certified.
Lamps can be furnished installed or
ordered separately.
Lamp circuit independent of switch
circuit.
Rocker operators ordered separately.

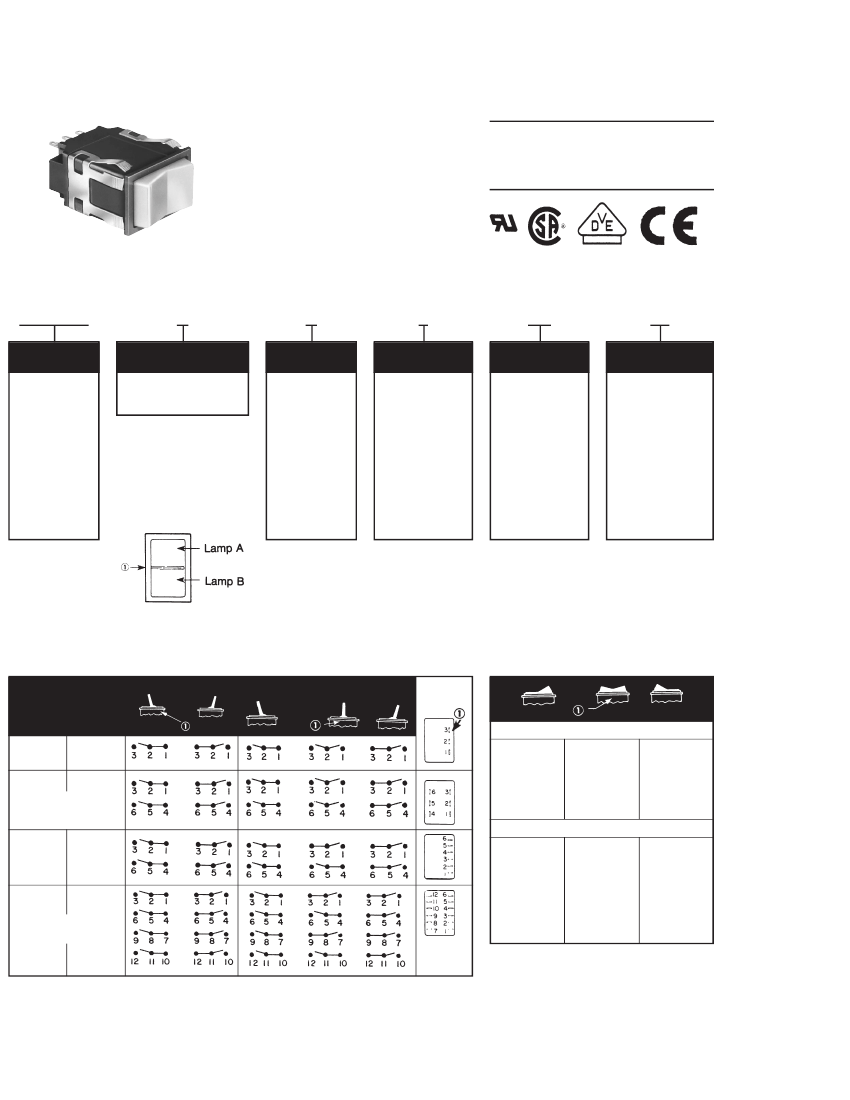

AML24 Series
Electrical Data
Rockers
Lamps
Accessories
Mounting Dimensions
*
page 19
page 51
page 58
pages 56, 57
pages 59, 62
*
*AML24 Series: 1 pole and
2-pole only.
AML24 ORDER GUIDE
AML24 E
Housing
Type
AML24 E
Rectangular
Non-Lighted
B
Bezel
Color
B
Black
A
Incandescent
Lamp Type
A
No Lamp
Installed
B
6 V Lamp*
C
14 V Lamp*
E
28 V Lamp*
2
Terminal
Type
2
.110
×
.020
(Solder or
Quick-Connect)
3
.025
×
.025
(Printed Ckt.,
or Push-on)
AA
Circuitry
Codes
Insert Code
letters as
shown in
Circuitry Chart
01
Operating
Action
Insert Code numbers
from Operating
Action Chart
AML24 F
Rectangular
1 Lamp Ckt. (A)
AML24 G
Rectangular
2 Lamp Ckts.
* Lamps will be installed per each lamp circuit specified in the Housing Type.
CIRCUITRY
Silver
Contacts
1
The ‘‘MICRO SWITCH’’
identification is shown
on this side of the
switch housings.
2-Position
3-Position
Example:
AML24EBA2AA01
Rectangular non-lighted rocker switch
housing; black bezel; .110
×
.020 termi-
nals; with one circuit ON and one circuit
OFF in each extreme operator position
(maintained).
OPERATING ACTION
Gold
Contacts
2-Position:
AA
AC
BA
Maint.
BC
Mom.
Maint.
01
None
02
None
03
None
3-Position:
Maint.
CC
DC
Mom.
Maint.
(Non-illuminated
switches only)
Mom.
04
Maint.
05
Maint.
06
Maint.
07
Maint.
Maint.
Mom.
Mom.
Maint.
Maint.
Maint.
Mom.
(Non-illuminated
switches only)
CA
DA
30
Honeywell Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
Manual Switches
Electronic Control Rocker
LED DISPLAY
FEATURES
Identical to AML24, except furnished
with one or two rectangular high
efficiency LED’s which give flush
display area and wide angle
indication.
Available with or without diode
protection for LED’s.
LED circuit independent of switch
circuit.

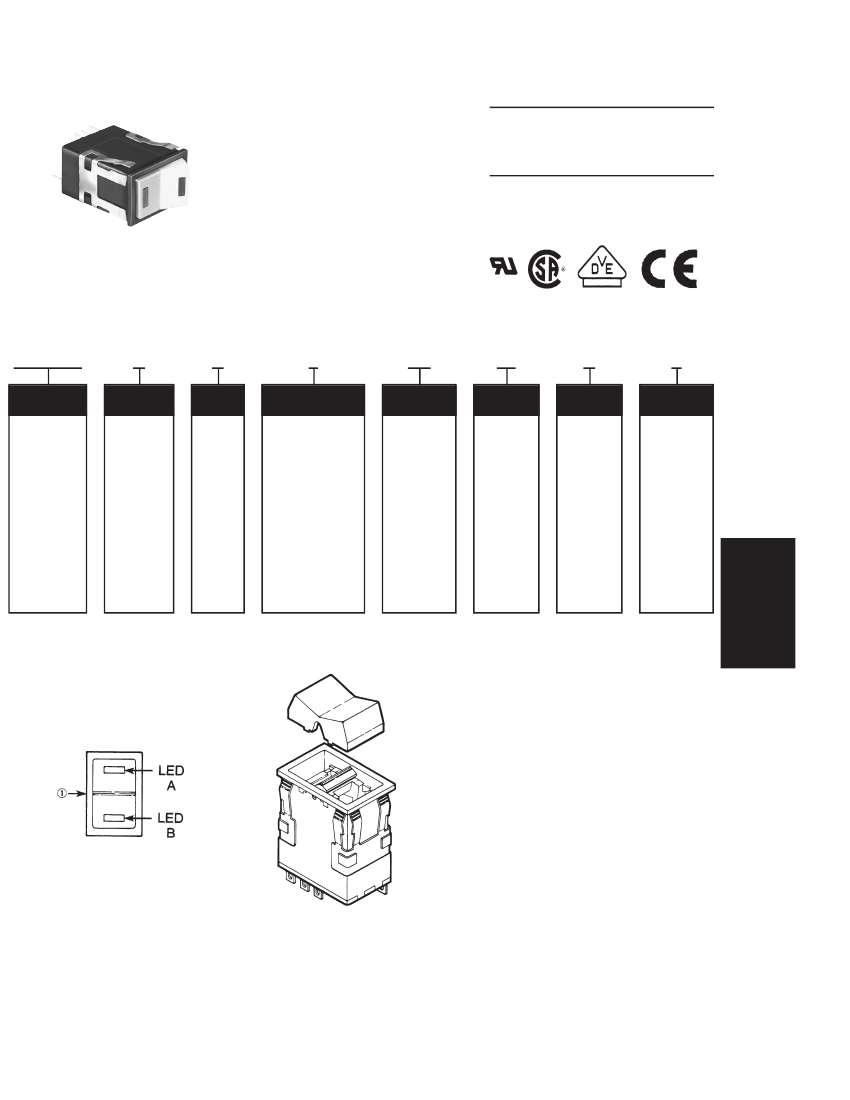

AML26 Series
Electrical Data
Rockers
Lamps and LEDs
Accessories
Mounting Dimensions
page 19
page 52
page 58
page 57
pages 59, 62
5 thru 24 VDC LED devices have
internal resistor to maintain current at
nominal 20 mA.
UL recognized, CSA certified.
*
*
Rocker operators ordered separately.
LEDs are not replaceable.
*AML26 Series: 1 pole and
2-pole only.
AML26 ORDER GUIDE
AML26 F
Housing
Type
AML26 F
1 LED
AML26 G
2 LED’s
B
B
LED
Voltage
B
V*
C
5V
D
10 V
E
15 V
F
24 V
2
Terminal Type/
Diode Protection
2
.110
×
.020
(Solder or
Quick-Connect
3
.025
×
.025
(Printed Ckt.,
or Push-On)
8
.110
×
.020
w/Diode
for LED
protection
AA
Circuitry
Codes
Insert code
letters
as shown in
Circuitry
Chart
LED version
available
only with
AA
BA
CA
DA
circuitry
01
Operating
Action
Insert code
numbers
from
Operating
Action
Chart
R
LED Color
(LED A)
R
Red
Y
Yellow
G
Green
X
No LED
X
LED Color
(LED B)
R
Red
Y
Yellow
G
Green
X
No LED
Bezel Color
B
Black
Manuals
* See LED application information for devices without current-limiting resistor, page 58.
Example:
AML26FBB2AA01RX
Rectangular rocker switch; illuminated
with one LED, this device has a black
bezel, .110
×
.020 terminals; with one
circuit ON and one circuit OFF in each
extreme operator position (maintained).
Rocker
ordered
separately
1
The ‘‘MICRO SWITCH’’ identification is
shown on this side of the switch housings.
Honeywell Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
31
