39-138-RED

Description
Pushbutton Switches PushBtn SwitchSealed PC Mnt Red Btn
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size197KB,2 Pages
ManufacturerGrayhill
Websitehttp://www.grayhill.com
Download Datasheet Parametric Compare View All

39-138-RED Online Shopping

Suppliers Part Number Price MOQ In stock
39-138-RED - - View Buy Now

39-138-RED Overview

Pushbutton Switches PushBtn SwitchSealed PC Mnt Red Btn

39-138-RED Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerGrayhill
Product CategoryPushbutton Switches
RoHSDetails
ProductStandard Switches
Contact FormSPST
Switch FunctionOFF - (ON)
Current Rating500 mA
Voltage Rating AC125 VAC
Mounting StyleThrough Hole
Termination StyleSolder Pin
ActuatorRound
ColorSilver
Contact PlatingGold over Silver
Height9.53 mm
Housing MaterialAluminum
Length7.92 mm
MaterialThermoplastic
Width7.92 mm
Cap ColorRed
Life250000 Cycles
Factory Pack Quantity25

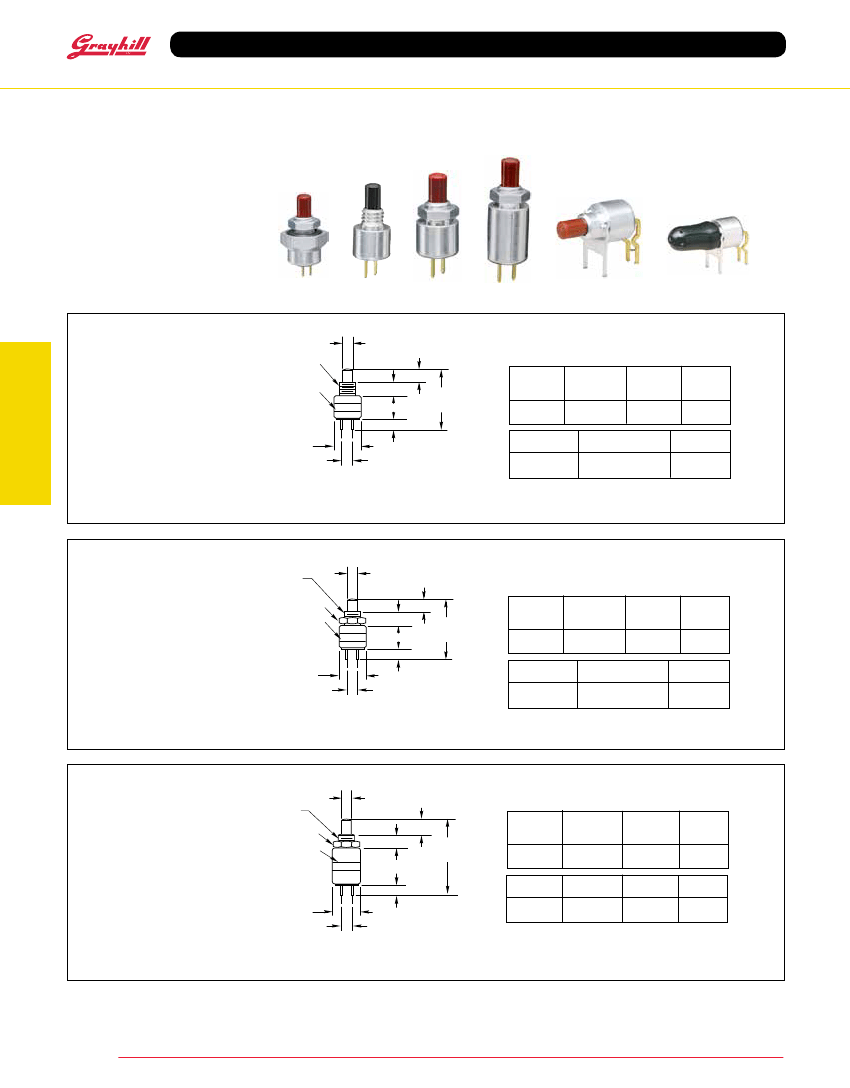

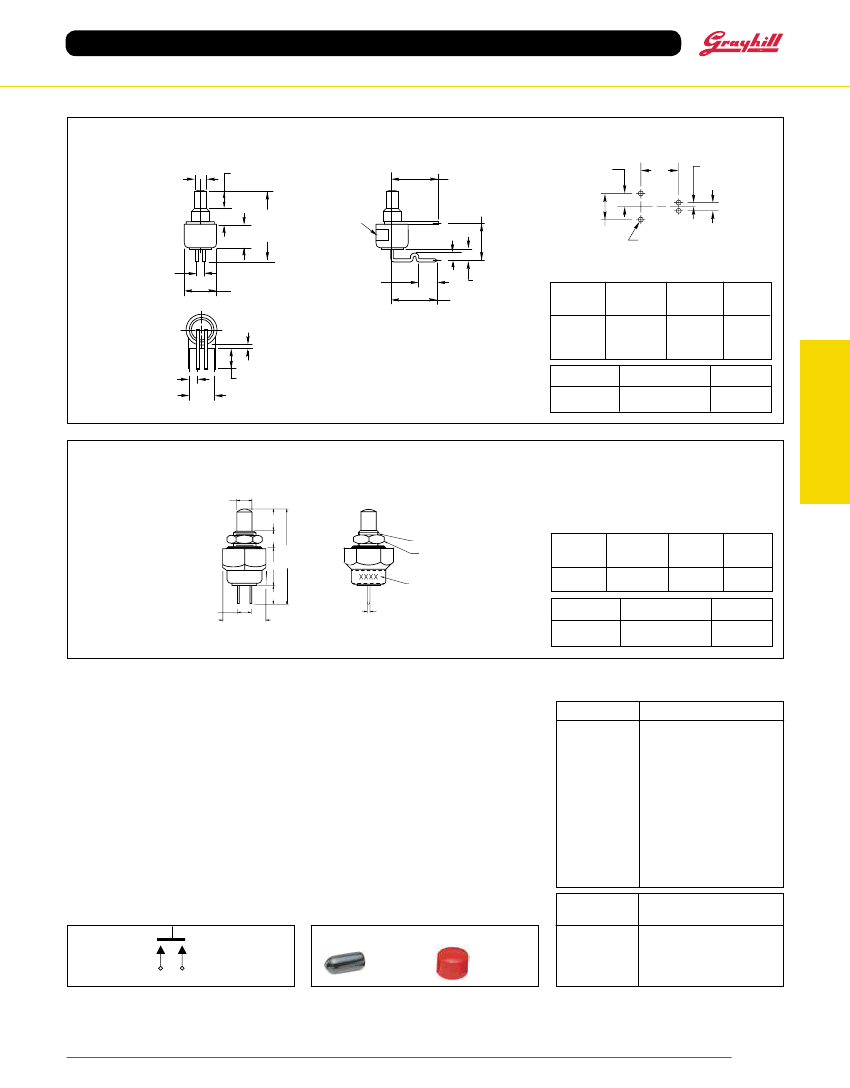

Butt Contact Pushbutton Switches
SERIES 39
SPST, 150 mA
FEATURES
• 1/4" Diameter
• Up to 1,000,000
Cycles of Operation
• PC Mount
DIMENSIONS
39-405*
Pushbutton Switches
39-401*
39-424*
in inches (and millimeters)
.110 ± .005
(2,79 ± 0,13) DIA.
A
E.I.A. DATE
CODE LABEL*
TERMINALS ARE
.020 (0,50) SQUARE
B
C
D
Action
Momentary
Rating at
28 Vdc
Resistive
150 mA
Operations
at Rated
Load
1,000,000
*Complete
Part
Number
39-405 RED
39-405 BLK
Button
Color
Red
Black
Actuating
Force (oz.)
4
+4
–2
SPST–Normally Open, without Nut
8-40 UNS-2A
THREAD
.640 (16,26)
REF.
.250 +.010/ –.005
(6,35 + 0,25/ – 0,13)
.100 ± .010 (2,54 ± 0,25)
DIAMETER
A = .175 + .025/ –.020 (4,45 + 0,64/ – 0,51)
*Label increases
B = .125 ± .010 (3,18 ± 0,25)
nominal diameter
C = .215 ± .015 (5,46 ± 0,38)
to .255 (6,48)
D = .125 ± .010 (3,18 ± 0,25)
Total
Travel
.035 ± .015
(0,89 ± 0,38)
SPST–Normally Open, with Nut
8-40 UNS-2A
THREAD
H = HEX MTG NUT
.219 ± .010 (5,56 ± 0,25)
ACROSS FLATS
.063 ± .010 (1,59 ± 0,25)
THICK
TERMINALS ARE
.020 (0,50) SQUARE
H
E.I.A.
DATE
CODE
LABEL*
.110 ± .005
(2,79 ± 0,13) DIA.
A
B
C
D
.640 (16,26)
REF.
Rating at
28 Vdc
Resistive
150 mA
Action
Momentary
Operations
at Rated
Load
1,000,000
*Complete
Part
Number
39-401 RED
39-401 BLK
Button
Color
Red
Black
Actuating
Force (oz.)
4
+4
–2
.250 +.010/ –.005
(6,35 +0,25/ – 0,13)
.100 ± .010 (2,54 ± 0,25)
DIAMETER
A = .175 + .025/ –.020 (4,45 + 0,64/ – 0,51)
*Label increases
B = .125 ± .010 (3,18 ± 0,25)
nominal diameter
C = .215 ± .015 (5,46 ± 0,38)
to .255 (6,48)
D = .125 ± .010 (3,18 ± 0,25)
Total
Travel
.035 ± .015
(0,89 ± 0,38)
SPST–Normally Open, with Overtravel
8-40 UNS-2A
THREAD
H = HEX MTG NUT
.219 ± .010 (5,56 ± 0,25)
ACROSS FLATS
.063 ± .010 (1,60 ± 0,25)
THICK
TERMINALS ARE
.020 (0,50) SQUARE
H
E.I.A.
DATE
CODE
LABEL*
.110 ± .005
(2,79 ± 0,13) DIA.
A
B
C
D
.780 (19,81)
REF.
Rating at
28 Vdc
Resistive
150 mA
Action
Momentary
Operations
at Rated
Load
100,000
Total
Travel
.130 ± .025
(3,30 ± 0,64)
*Complete
Part
Number
39-424 RED
39-424 BLK
Over
Travel
.015 (0,38)
Min.
Button
Color
Red
Black
Actuating
Force (oz.)
5±3
.250 +.010/ –.005
(6,35 +0,25/ – 0,13)
.100 ± .010 (2,54 ± 0,25)
DIAMETER
A = .175 + .025/ –.020 (4,45 + 0,64/ – 0,51)
*Label increases
B = .125 ± .010 (3,18 ± 0,25)
nominal diameter
C = .355 ± .015 (9,02 ± 0,38)
to .255 (6,48)
D = .125 ± .010 (3,18 ± 0,25)
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois
60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

39-138-RED Related Products

39-138-RED 39-405-BLK 39-424-RED 39-405-RED 39-501-BLK 39-503-RED 39-401-BLK
Description Pushbutton Switches PushBtn SwitchSealed PC Mnt Red Btn Pushbutton Switches PushBtn Switch N.O. No Nut Black Btn Pushbutton Switches Pushbutton Switch, N.O., overtravel, red button Pushbutton Switches PushBtn Switch N.O. No Nut Red Btn Pushbutton Switches PushBtn Switch Right Angle Black Btn Pushbutton Switches PushBtn Switch Red Btn Cap Seal Pushbutton Switches PushBtn Switch N.O. Black Btn
Product Attribute Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value
Manufacturer Grayhill Grayhill Grayhill Grayhill Grayhill Grayhill Grayhill
Product Category Pushbutton Switches Pushbutton Switches Pushbutton Switches Pushbutton Switches Pushbutton Switches Pushbutton Switches Pushbutton Switches
RoHS Details Details Details Details Details Details Details
Product Standard Switches Standard Switches Standard Switches Standard Switches Standard Switches Standard Switches Standard Switches
Contact Form SPST SPST SPST SPST SPST SPST SPST
Switch Function OFF - (ON) OFF - (ON) OFF - (ON) OFF - (ON) OFF - (ON) OFF - (ON) OFF - (ON)
Current Rating 500 mA 150 mA 150 mA 150 mA 150 mA 150 mA 150 mA
Mounting Style Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Termination Style Solder Pin Solder Pin Solder Pin Solder Pin Solder Pin Solder Pin Solder Pin
Actuator Round Round Round Round Round Round Round
Housing Material Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
Cap Color Red Black Red Red Black Red Black
Life 250000 Cycles 1000000 Cycles 100000 Cycles 1000000 Cycles 1000000 Cycles 1000000 Cycles 1000000 Cycles
Factory Pack Quantity 25 200 25 100 300 25 500
Color Silver Silver - Silver Silver Silver Silver
Contact Plating Gold over Silver Gold over Nickel - Gold over Nickel Gold over Nickel Gold over Nickel Gold over Nickel
Height 9.53 mm 8.64 mm - 8.64 mm 8.64 mm 8.64 mm 8.64 mm
Length 7.92 mm 6.35 mm - 6.35 mm 6.35 mm 6.35 mm 6.35 mm
Material Thermoplastic Thermoplastic - Thermoplastic Thermoplastic Thermoplastic Thermoplastic
Width 7.92 mm 6.35 mm - 6.35 mm 6.35 mm 6.35 mm 6.35 mm
Voltage Rating DC - 28 VDC 28 VDC 28 VDC 28 VDC 28 VDC 28 VDC
