02/11/2015
www.crouzet.com
83589 Top-mounted plunger Part number 83589031
Press button protected by O-ring and scraper seal
Part numbers
Type
83 589 031
Top-mounted plunger
Housing
Thermoplastic
Features
Standard
Specifications
Conformity to standards
Version
Protection
NFC 20030 class I (the plunger is operated manually by an earthed metal part, or by an insulated part which provides additional
insulation).
Single-pole
IP66 resistant to hydrocarbons and saline mist (400 hours)
Electrical characteristics
Electrical endurance
Standard : 8 A 250 VAC : 30,000 operations
200 mA 24 V DC relay load L / R = 3 ms 10
7
operations
Dual-current : 1 mA 4 VAC : 10
7
operations
200 mA 24 V DC relay load L / R = 3 ms 5 x 10
6
operations
5 A 250 VAC : 30,000 operations
This version is designed to operate both on dual-current (1 mA 4 V minimum) and medium-current (5A) circuits. However, a given
product should only be used to switch one type of circuit during its working life.
Dual-current
Connections
Cable
PVC Ø5 - 3 x 0.75 mm
2
Length 0.50 m
Conforming to NFR 13414/13415
Max. tightening torque 9 Nm

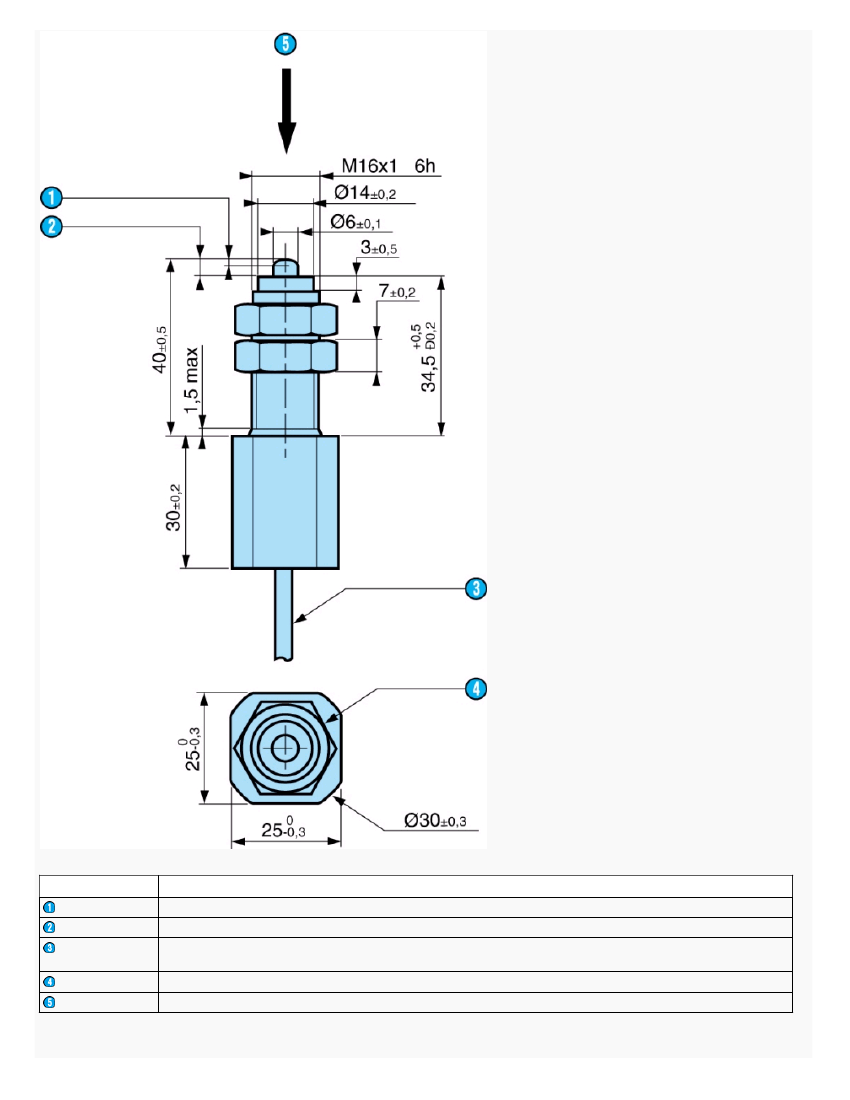

Mounting
Mechanical characteristics
Minimum operating force (N)
Minimum total travel force (N)
Minimum operating travel (mm)
Differential travel (mm)
Maximum total travel (mm)
Mechanical life (millions of operations) mini.
Operating temperature (°C)
Protection rating
Weight (g)
10
15
2
0,1
4,5
10
7
-40 →+85
IP66/67
80
Additional characteristics
Material
- Case : Thermoplastic polyester
- Plunger : Stainless steel
- Contact : Agcdo - AgNi (gold-plated)
- Nuts : Galvanized steel
Sealing
- O-ring : Silicon
- Scraper seal : Teflon
PU resin
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
