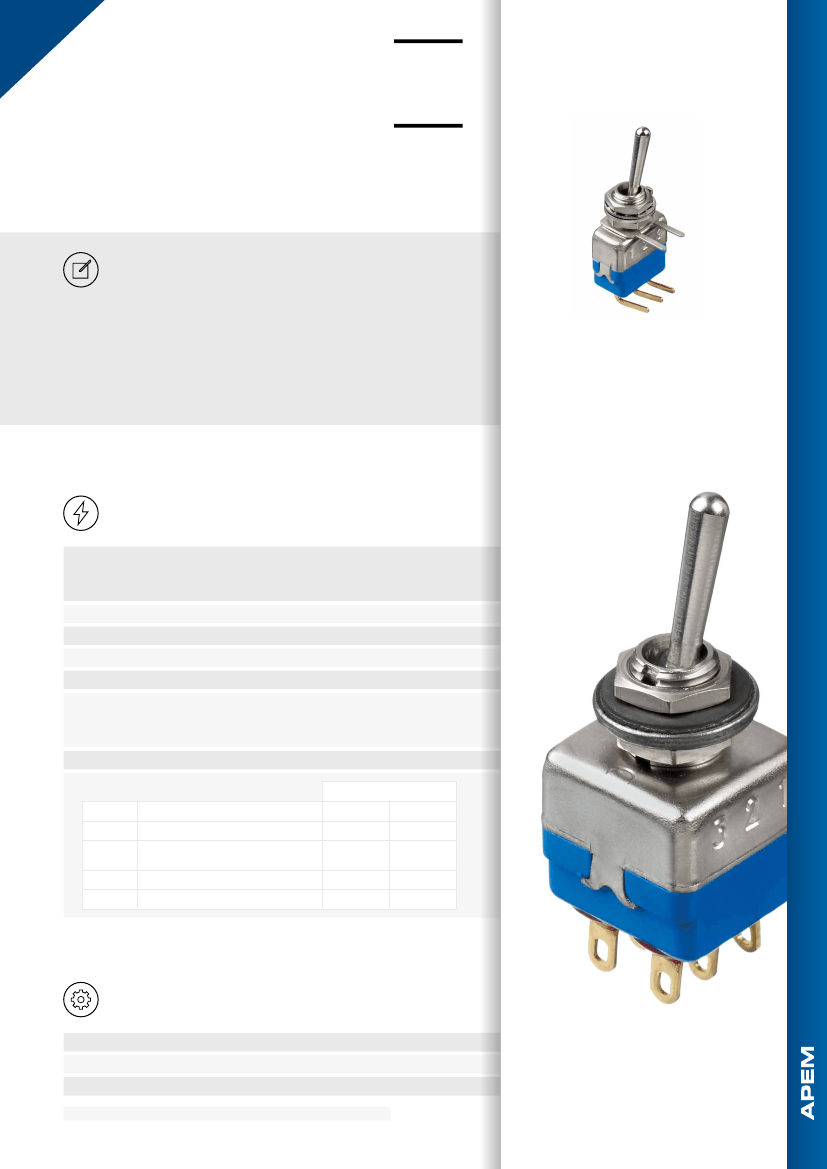

11000 series
Professional toggle switches •
threaded bushing Ø 6.35 mm
DISTINCTIVE FEATURES
CECC approved
Robust switches for high specification environments
Toggle action on 2-position models for a smooth
mechanical operation
Several front panel sealing options
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load:
- silver contacts (A-AD2-X780): 4 A 30 VDC
- gold contacts (D): 100 mA 30 VDC
• Minimum load : AD2-X780-D contacts: 10 mA 50 mV, 10 µA 5 V min.
• Peak currents, refer to "Special options".
• Initial contact resistance: 10 mΩ max.
• Insulation resistance: 1,000 MΩ min. at 500 VDC
• Dielectric strength:
1,000 Vrms 50 Hz min. between terminals
2,000 Vrms 50 Hz min. between poles and between terminals and frame
• Contact bounce: 2 ms max.
• Electrical life at full load:
Contacts
A
AD2
X780
D
Max. current/voltage rating
4 A 30 VDC
4 A 30 VDC
(Gold plating : 100mA 30VDC max.)
100 mA 30 VDC
Low level or mechanical life
Number of cycles
2 positions
50,000
20,000
80,000
150,000
3 positions
50,000
20,000
50,000
100,000
GENERAL SPECIFICATIONS
• Torque: 1.25 Nm (.92 Ft.lb) max. applied between the 2 nuts
• Standard panel thickness: 2.5 mm (.098) max.
• Operating temperature: -40 °C to +85 °C (-40 °F to +185 °F)
The company reserves the right to change specifications without notice.
1
PANEL SWITCHES
17
0-
08
PANEL SWITCHES
11000 series
Professional toggle switches •
threaded bushing Ø 6.35 mm
MATERIALS
• Case: diallylphthalate (DAP)
1.70
(.066)
TERMINALS
• Actuator: brass, nickel plated
• Bushing: brass, nickel plated
• Housing: brass, nickel plated
• Contacts
A:
silver
AD2:
gold plated silver (2 microns gold)
X780:
solid rivet - gold plated, silver/nickel alloy
D:
solid gold rivet
X910:
silver/nickel alloy (for peak currents,
see "Special options")
• Terminal seal: epoxy
Note: AD2 and X780 contacts can be used for high level applications. In this
case, the gold layer is considered only as a protection against oxidation
during storage.
5.00
(.196)
1.20
(.047)
2.50
(.098)

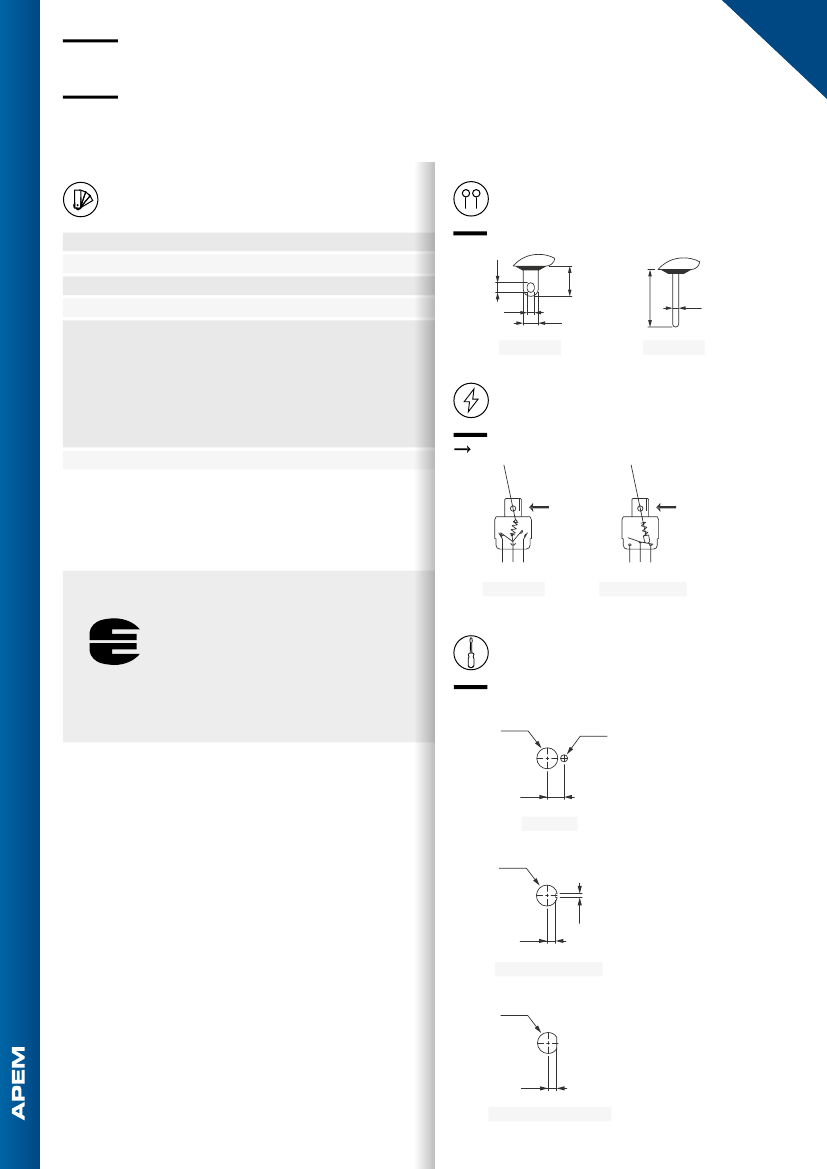

Solder lugs
9.50
(.374)
1.00
(.039)
Straight PC
ELECTRICAL FUNCTIONS
KEYWAY
1
2
3
1
2
3
AGENCY APPROVALS
CECC 96201-005
CECC 96201-008
Availability:
consult factory for details of approved models.
Marking:
to order switches marked CECC, complete
appropriate box of ordering format.
Function 6
Other functions
PANEL CUT-OUT
Ø6.50
(.255 DIA)
Ø2.20
(.086 DIA)
Ø6.50
(.255 DIA)
5.20
(.204)
2.70
(.106)
Standard
Ø6.50
(.255 DIA)
Ø2.20
(.086 DIA)
Ø6.50
(.255 DIA)
Ø6.50
(.255 DIA)
5.20
(.204)
2.70
(.106)
1.10
(.043)
2.70
(.106)
With
K
sealing option
Ø6.50
(.255 DIA)
Ø6.50
(.255 DIA)
Ø6.50
(.255 DIA)
Ø2.20
(.086 DIA)
5.20
(.204)
2.70
(.106)
1.10
(.043)
2.70
(.106)
With
X408
sealing option
2
1.10
(.043)
11000 series
Professional toggle switches •
threaded bushing Ø 6.35 mm
BUILD YOUR PART NUMBER
BASIC PART NUMBER
11
SERIES
TERMINALS AND BUSHINGS
NUMBER OF POLES
ELECTRICAL FUNCTIONS
TERMINALS
1
2
Solder lug or right
angle
Straight PC
terminals
3
4
5
6
Single pole
Double pole
Three pole
Four pole
6
9
7
8
ON
ON
MOM
ON
-
OFF
OFF
OFF
ON
ON
MOM
MOM
Blank
W
Solder lug or
straight PC
Right angle,
horizontal mounting
(function 6, SP only)
All models with Ø 6. 35
(1/4) threaded bushing.
OPTIONS
FINISH
LEVERS
APPROVAL
Blank
G
Nickel plated
Black finish on
bushing, actuator
and hardware.
Blank
-26
Standard
Cylindrical
CECC
Availability : Consult
factory for details of
approved models.
CONTACT MATERIALS
SEALING
SPECIAL OPTIONS
A
AD2
D
Silver
Gold plated silver
(2 microns)
Solid gold rivet
Blank
Epoxy sealed
terminals
standard
Front panel
sealing by one
O-ring and
sealing washer
Blank
X408
No special
requirement
Front panel
sealing by two
O-rings
K
See "Special options" for
X780 (solid silver/nickel rivet)
and X910 (for peak currents).
Other : see following pages.
Sealing by two O-rings, see
X408, "Special options" box.
ABOUT THIS SERIES
On the following pages, you will find successively basic part numbers of switches and options in the same order as in above chart
Notice:
please note that not all combinations of above numbers are available. Refer to www.apem.com for further information.
Sealing boots
are available to protect the switches against dust and water. See "Sealing Boots" section of website.
Mounting accessories :
standard hardware supplied with all models: 2 hex nuts 8 (.314) across flats, 1 locking ring and 1 lockwasher.
Standard and special hardware is presented in the "Hardware" section of website.
3
PANEL SWITCHES
PANEL SWITCHES
11000 series
Professional toggle switches •
threaded bushing Ø 6.35 mm

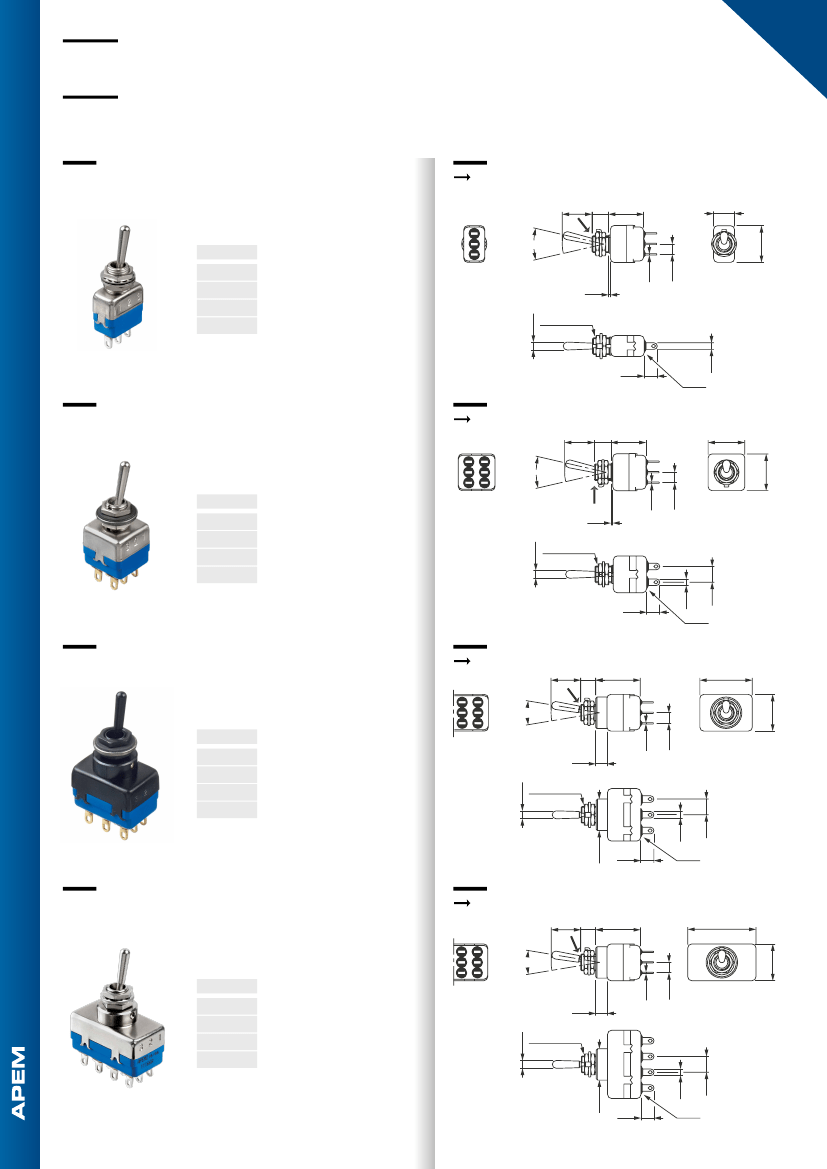

SOLDER LUG TERMINALS - SINGLE POLE
3
2
1
KEYWAY
Shown with standard lever
11.30 6.30
(.444) (.248)
III
II 26˚
I
0.70
(.027)
Ø6.35-40UNS
(1/4-40UNS)
13.40
(.527)
8.00
(.314)
1 2 3
BASIC P/N
I
ON
ON
MOM
ON
II
-
OFF
OFF
OFF
III
ON
ON
MOM
MOM
11139
11137
11138
Ø3.00
(.118 DIA)
0.50
(.019)
4.00
(.157)
11136
5.00
(.196)
EPOXY
SOLDER LUG TERMINALS - DOUBLE POLE
1
2
3
KEYWAY
2.50
(.098)
11.30 6.30
(.444) (.248)
I
II 26˚
III
0.70
(.027)
Ø3.00
(.118 DIA)
Ø6.35-40UNS
(1/4-40UNS)
13.40
(.527)
14.00
(.551)
3 2 1
6
11146
11149
11147
11148
ON
ON
MOM
ON
-
OFF
OFF
OFF
ON
ON
MOM
MOM
0.50
(.019)
4.00
(.157)
BASIC P/N
I
II
III
5.00
(.196)
2.50
(.098)
EPOXY
SOLDER LUG TERMINALS - THREE POLE
4
5
6
KEYWAY
I
II 20˚
III
6.00
(.236)
11.30 5.70
(.444) (.224)
17.00
(.669)
20.00
(.787)
3 2 1
9
11156
11159
11157
11158
ON
ON
MOM
ON
-
OFF
OFF
OFF
ON
MOM
MOM
Ø3.00
(.118 DIA)
4.30
(.169)
Ø6.35-40UNS
(1/4-40UNS)
ON
0.50
(.019)
4.00
(.157)
BASIC P/N
I
II
III
Ø12.00
(.472 DIA)
5.00
(.196)
2.50
(.098)
EPOXY
SOLDER LUG TERMINALS - FOUR POLE
7
8
9
KEYWAY
11.30 5.70
(.444) (.224)
I
II 20˚
III
4.30
(.169)
Ø3.00
(.118 DIA)
Ø6.35-40UNS
(1/4-40UNS)
17.00
(.669)
26.00
(1.023)
3 2 1
12
11166
11169
11167
11168
ON
ON
MOM
ON
-
OFF
OFF
OFF
ON
ON
MOM
MOM
0.50
(.019)
4.00
(.157)
BASIC P/N
I
II
III
Ø12.00
(.472 DIA)
5.00
(.196)
2.50
(.098)
EPOXY
4
6.00
(.236)
14.00
(.551)
10
11
6.00
(.236)
14.00
(.551)
7
8
14.00
(.551)
4
5
14.00
(.551)
11000 series
Professional toggle switches •
threaded bushing Ø 6.35 mm

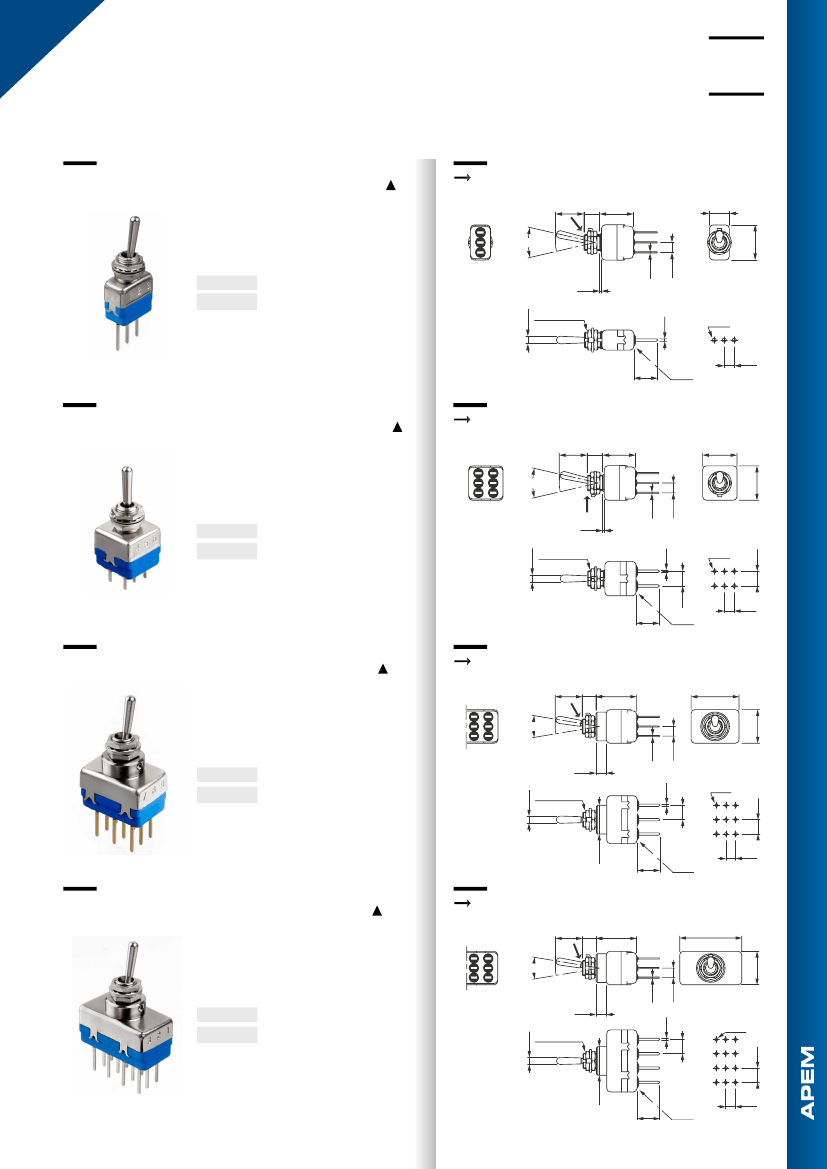

STRAIGHT PC TERMINALS - SINGLE POLE
