E5908-1701R3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> E5908-1701R3

E5908-1701R3: DescriptionTelecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Jack; CategoryThe connector The connector; File Size40KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

E5908-1701R3 Overview

Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Jack

E5908-1701R3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Other features	OTHER STACKING CONNECTOR: 8 CONTACTS
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (15)
Contact completed and terminated	TIN LEAD (150) OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	E5908
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYESTER
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

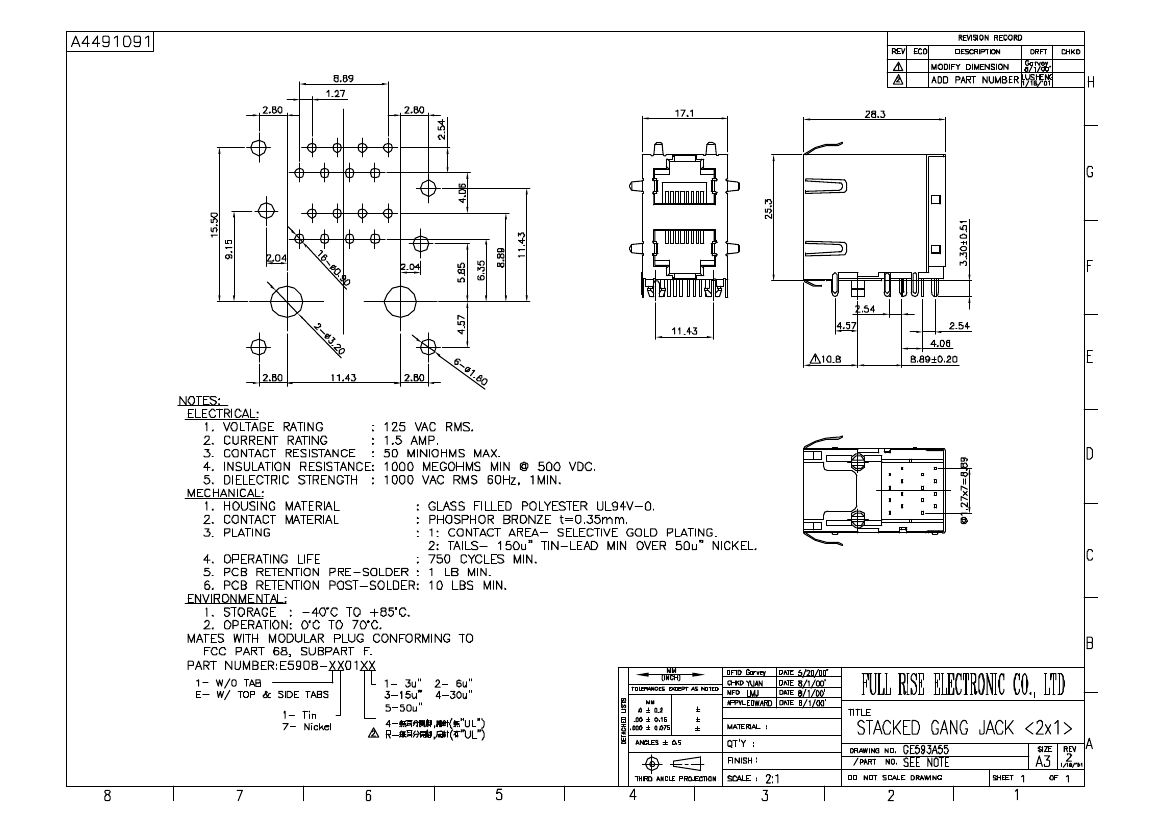

Preview

Download Datasheet

View All

FRE

E5908-1701R3 Related Products

	E5908-1701R3	E5908-170145	E5908-1701R4	E5908-1701R2	E5908-1701R1	E5908-170143	E5908-170141	E5908-1101R1	E5908-1101R2
Description	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Jack	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Jack	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Jack	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Jack	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Jack	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Jack	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Jack	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Jack	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Jack
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	OTHER STACKING CONNECTOR: 8 CONTACTS	OTHER STACKING CONNECTOR: 8 CONTACTS	OTHER STACKING CONNECTOR: 8 CONTACTS	OTHER STACKING CONNECTOR: 8 CONTACTS	OTHER STACKING CONNECTOR: 8 CONTACTS	OTHER STACKING CONNECTOR: 8 CONTACTS	OTHER STACKING CONNECTOR: 8 CONTACTS	OTHER STACKING CONNECTOR: 8 CONTACTS	OTHER STACKING CONNECTOR: 8 CONTACTS
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (15)	GOLD (50)	GOLD (30)	GOLD (6)	GOLD (3)	GOLD (15)	GOLD (3)	GOLD (3)	GOLD (6)
Contact completed and terminated	TIN LEAD (150) OVER NICKEL	TIN LEAD (150) OVER NICKEL	TIN LEAD (150) OVER NICKEL	TIN LEAD (150) OVER NICKEL	TIN LEAD (150) OVER NICKEL	TIN LEAD (150) OVER NICKEL	TIN LEAD (150) OVER NICKEL	TIN LEAD (150) OVER NICKEL	TIN LEAD (150) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	E5908	E5908	E5908	E5908	E5908	E5908	E5908	E5908	E5908
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	8	8	8	8	8	8	8	8
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	-	-
