Product Data Sheet
Product Data Sheet
3M
™

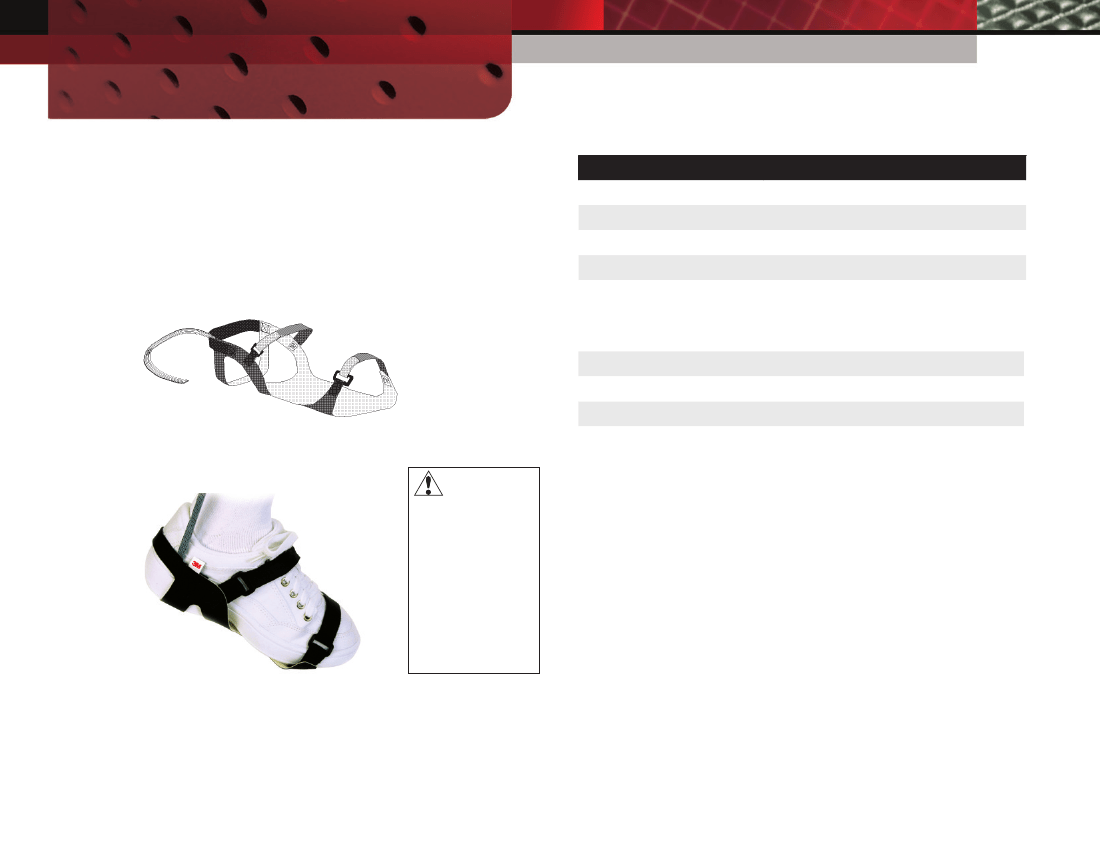

Sole Grounder SG1M
Full Coverage
The Sole Grounder SG1M provides maximum floor contact by covering both the ball of
the foot and the heel. Three elastic straps create a comfortable secure fit. This quality
grounder is tested for electrical performance and is lot numbered for QC traceability.
Specifications
Typical Value
3/4" Black
2
3/4" Black
<10
5
ohms
1.1 x 10
6
ohms
Hook and Loop
D-Ring
Elastic Strap
Sole Exterior
Elastic Hook and Loop Strap
18" Conductive Ribbon
Elastic Hook and Loop
Total Grounder*
*Meets the requirements of ANSI/ESD S20.20-2014, EIA 625
*ESD-SP9.2
Part Numbers
SG1M-S
SG1M-M
D-rings for Complete Adjustability
Small Sole Grounder, 1 meg resistor
Medium Sole Grounder, 1 meg resistor
Large Sole Grounder, 1meg resistor
Extra Large Sole Grounder, 1 meg resistor
SG1M-L
2-layer Sole for Durability
SG1M-XL
WARNING:
All 3M Shoe
Grounding Straps and
Assemblies should
not be used in areas
where the individual
may come in contact
with electrical
circuitry exceeding
250 volts.
How Sole Grounders Work
Sole grounders eliminate a charge on a person by electrically connecting the person to
a grounded surface. A conductive ribbon placed inside the wearer’s shoe or sock makes
electrical contact with the skin through perspiration. The assembly contains a current-
limiting resistor which protects the operator from accidental exposure to electricity. Sole
grounders must be worn on both feet to maintain ground contact while walking.
3M is a trademark of 3M Company. All other trademarks are owned by their respective companies.
3
Electronics Materials Solutions Division
Static Control Products
926 JR Industrial Drive
Sanford, NC 27332-9733
Toll-Free: 866-722-3736
International: 919-718-0000
Email: 3mstaticinfo@mmm.com
www.3Mstatic.com
Important Notice
All statements, technical information, and recommendations related to 3M’s products
are based on information believed to be reliable, but the accuracy or completeness is not
guaranteed. Before using this product, you must evaluate it and determine if it is suitable for
your intended application. You assume all risks and liability associated with such use. Any
statements related to the product which are not contained in 3M’s current publications, or
any contrary statements contained on your purchase order shall have no force or effect unless
expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for one year from the
time of purchase.
3M MAKES NO OTHER WARRANTIES INCLUDING, BUT NOT
LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
If this product is defective within the warranty period
stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M
product or refund the purchase price of the 3M product.
Except where prohibited by law,
3M will not be liable for any indirect, special, incidental or consequential loss or damage
arising from this 3M product, regardless of the legal theory asserted.
Please recycle. Printed in USA.
© 3M 2014. All rights reserved.
78-9102-1613-0 JHA
