TR31R15-2-2-1RSC5SE1 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> TR31R15-2-2-1RSC5SE1

TR31R15-2-2-1RSC5SE1: DescriptionFiber Optic Device; CategoryWireless rf/communication Optical fiber; File Size216KB，7 Pages; ManufacturerAppointech Inc

Download Datasheet Parametric Compare View All

TR31R15-2-2-1RSC5SE1 Overview

Fiber Optic Device

TR31R15-2-2-1RSC5SE1 Parametric

Parameter Name	Attribute value
Maker	Appointech Inc
package instruction	SINGLEMODE 622MBPS BI-DIRECTIONAL SINGLE FIBER 2X5 SFF OPTICAL TRANSCEIVER
Reach Compliance Code	unknown
Other features	IT ALSO OPERATES AT RECEIVER WAVELENGTH OF 1500 TO 1600 NM

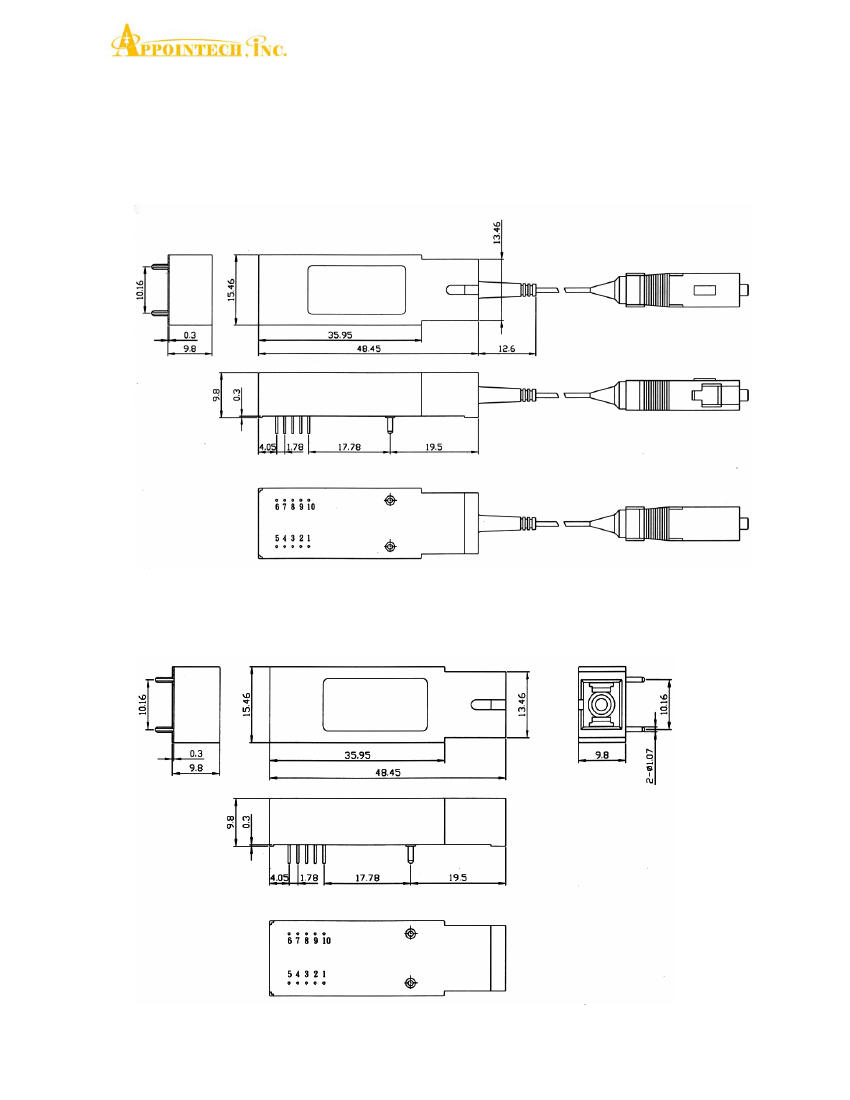

body width	15.46 mm
body height	9.8 mm
Body length or diameter	48.45 mm
Communication standards	ITU-T-G.957
Connection Type	SC CONNECTOR
Data rate (receive)	622 Mbps
Data rate (send)	622 Mbps
Emitter/Detector Type	LASER
Fiber optic equipment types	TRANSCEIVER
Fiber type	9/125, SMF
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum operating wavelength	1330 nm
Minimum operating wavelength	1290 nm
Nominal operating wavelength	1310 nm
Nominal optical power output	0.281 mW
minimum return loss	50 dB
Sensitivity	-24 dBm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

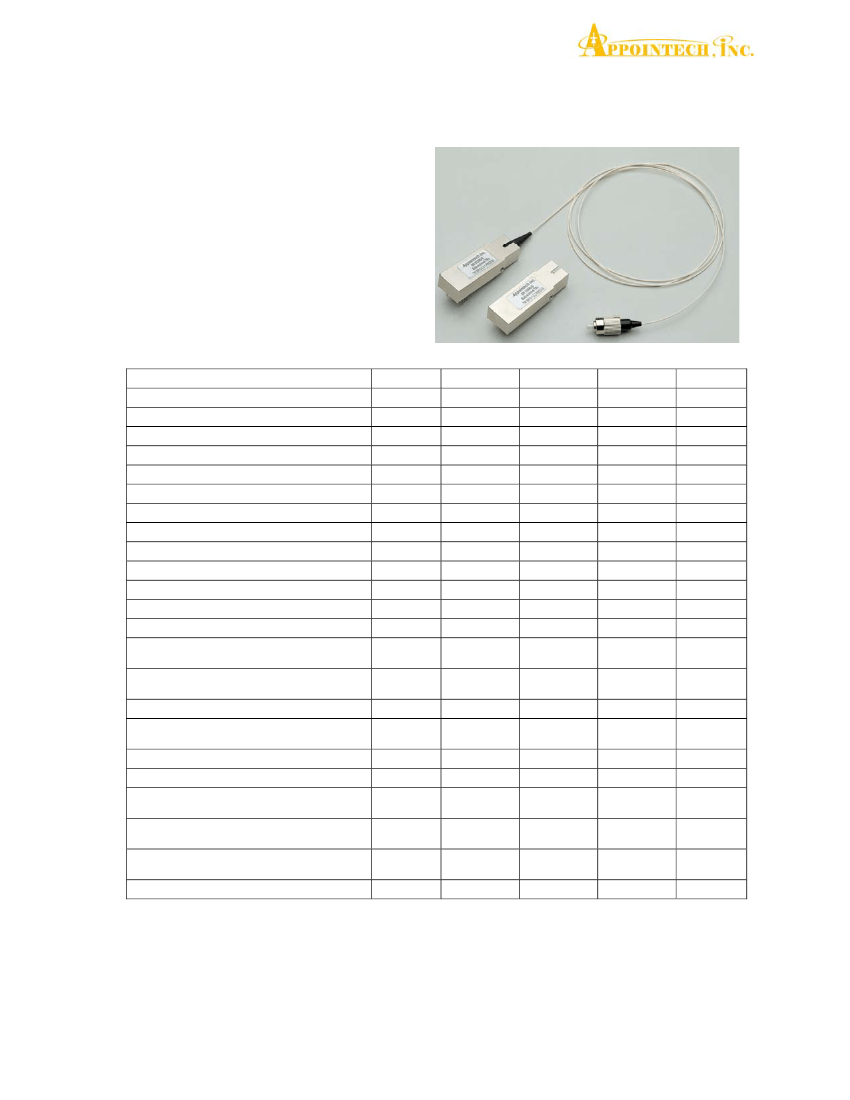

Singlemode 622Mbps Bi-Directional Single Fiber

2x5 SFF Optical Transceiver

Features

•

Intermediate and long reach

•

Industrial standard 2 x 5 pin footprint

•

Single SC/ST/FC connector interface

•

Receiver signal detect function

•

Wide dynamic rang receiver with AGC

•

PECL/LVPECL logic interface, DC or AC

•

coupling

Single supply 5V/3.3V

Low power consumption

Specifications

Parameter

Transmitter

Data rate (NRZ)

Optical Output Power (avg.)

(1) (3)

-1

-2

-3

Extinction Ratio

Optical Wavelength

TR13R15 (1310nm FP LD)

TR31R15 (1310nm DFB LD)

TR15R13 (1550nm FP LD)

TR55R13 (1550nm DFB LD)

Spectral Width

TR13R15 (RMS)

TR15R13 (RMS)

TR31R15 (-20dB)

TR55R13 (-20dB)

Side Mode Suppression Ratio

TR31R15

TR55R13

Output risetime (10-90%)

Output falltime (10-90%)

Data Input

(6)

Tx Disable Input

Supply voltage

Supply current

Symbol

Δλ

Min.

-15

-8

-3

8.3

1260

1290

1490

1530

Typ.

622

1310

1550

1.0

Max.

-8

-3

1360

1330

1610

1570

2.5

Unit

Mb/s

dBm

SMSR

DIL

DIH

-1.810

-1.165

4.75

3.10

0.5

5.0

3.3

0.8

-1.475

-0.880

0.8

5.25

3.50

110

2005-06

TR31R15-2-2-1RSC5SE1 Related Products

	TR31R15-2-2-1RSC5SE1	TR13R15-2-2-1RSC5SC1	TR13R15-2-2-1RFC5SF1	TR31R15-2-2-1PFC3SC1	TR31R15-2-2-1RSC5SJ1	TR31R15-2-2-1RFC3SJ2	TR31R15-2-2-1RST5SF2	TR31R15-2-2-1RST5SH1
Description	Fiber Optic Device	Fiber Optic Device	Fiber Optic Device	Fiber Optic Device	Fiber Optic Device	Fiber Optic Device	Fiber Optic Device	Fiber Optic Device
Maker	Appointech Inc	Appointech Inc	Appointech Inc	Appointech Inc	Appointech Inc	Appointech Inc	Appointech Inc	Appointech Inc
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	IT ALSO OPERATES AT RECEIVER WAVELENGTH OF 1500 TO 1600 NM	IT ALSO OPERATES AT RECEIVER WAVELENGTH OF 1500 TO 1600 NM	IT ALSO OPERATES AT RECEIVER WAVELENGTH OF 1500 TO 1600 NM	IT ALSO OPERATES AT RECEIVER WAVELENGTH OF 1500 TO 1600 NM	IT ALSO OPERATES AT RECEIVER WAVELENGTH OF 1500 TO 1600 NM	IT ALSO OPERATES AT RECEIVER WAVELENGTH OF 1500 TO 1600 NM	IT ALSO OPERATES AT RECEIVER WAVELENGTH OF 1500 TO 1600 NM	IT ALSO OPERATES AT RECEIVER WAVELENGTH OF 1500 TO 1600 NM
body width	15.46 mm	15.46 mm	15.46 mm	15.46 mm	15.46 mm	15.46 mm	15.46 mm	15.46 mm
body height	9.8 mm	9.8 mm	9.8 mm	9.8 mm	9.8 mm	9.8 mm	9.8 mm	9.8 mm
Body length or diameter	48.45 mm	48.45 mm	48.45 mm	48.45 mm	48.45 mm	48.45 mm	48.45 mm	48.45 mm
Communication standards	ITU-T-G.957	ITU-T-G.957	ITU-T-G.957	ITU-T-G.957	ITU-T-G.957	ITU-T-G.957	ITU-T-G.957	ITU-T-G.957
Connection Type	SC CONNECTOR	SC CONNECTOR	FC CONNECTOR	FC CONNECTOR	SC CONNECTOR	FC CONNECTOR	ST CONNECTOR	ST CONNECTOR
Data rate (receive)	622 Mbps	622 Mbps	622 Mbps	622 Mbps	622 Mbps	622 Mbps	622 Mbps	622 Mbps
Data rate (send)	622 Mbps	622 Mbps	622 Mbps	622 Mbps	622 Mbps	622 Mbps	622 Mbps	622 Mbps
Emitter/Detector Type	LASER	LASER	LASER	LASER	LASER	LASER	LASER	LASER
Fiber optic equipment types	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER	TRANSCEIVER
Fiber type	9/125, SMF	9/125, SMF	9/125, SMF	9/125, SMF	9/125, SMF	9/125, SMF	9/125, SMF	9/125, SMF
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	85 °C	85 °C	70 °C
Maximum operating wavelength	1330 nm	1360 nm	1360 nm	1330 nm	1330 nm	1330 nm	1330 nm	1330 nm
Minimum operating wavelength	1290 nm	1260 nm	1260 nm	1290 nm	1290 nm	1290 nm	1290 nm	1290 nm
Nominal operating wavelength	1310 nm	1310 nm	1310 nm	1310 nm	1310 nm	1310 nm	1310 nm	1310 nm
Nominal optical power output	0.281 mW	0.281 mW	0.281 mW	0.281 mW	0.281 mW	0.281 mW	0.281 mW	0.281 mW
minimum return loss	50 dB	50 dB	50 dB	50 dB	50 dB	50 dB	50 dB	50 dB
Sensitivity	-24 dBm	-24 dBm	-24 dBm	-24 dBm	-24 dBm	-24 dBm	-24 dBm	-24 dBm
Maximum supply voltage	5.25 V	5.25 V	5.25 V	3.5 V	5.25 V	3.5 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	3.1 V	4.75 V	3.1 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	3.3 V	5 V	3.3 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Base Number Matches	1	1	1	1	1	1	1	1
package instruction	SINGLEMODE 622MBPS BI-DIRECTIONAL SINGLE FIBER 2X5 SFF OPTICAL TRANSCEIVER	SINGLEMODE 622MBPS BI-DIRECTIONAL SINGLE FIBER 2X5 SFF OPTICAL TRANSCEIVER	-	SINGLEMODE 622MBPS BI-DIRECTIONAL SINGLE FIBER 2X5 SFF OPTICAL TRANSCEIVER	SINGLEMODE 622MBPS BI-DIRECTIONAL SINGLE FIBER 2X5 SFF OPTICAL TRANSCEIVER	SINGLEMODE 622MBPS BI-DIRECTIONAL SINGLE FIBER 2X5 SFF OPTICAL TRANSCEIVER	-	-
