PR2H3U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Tools and equipment> PR2H3U

PR2H3U: DescriptionPCBs & Breadboards 2HOLE PER STRIP PROTOBD 3U 100X160mm; CategoryTools and equipment; File Size471KB，1 Pages; ManufacturerBusBoard

Download Datasheet Parametric View All

PR2H3U Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PR2H3U	-	-	View	Buy Now

PR2H3U Overview

PCBs & Breadboards 2HOLE PER STRIP PROTOBD 3U 100X160mm

PR2H3U Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	BusBoard
Product Category	PCBs & Breadboards
RoHS	Details
Product	Prototyping Boards
Type	Through Hole
Description/Function	2 hole proto-board
Length	100 mm
Width	160 mm
Factory Pack Quantity	1

Preview

Download Datasheet

View All

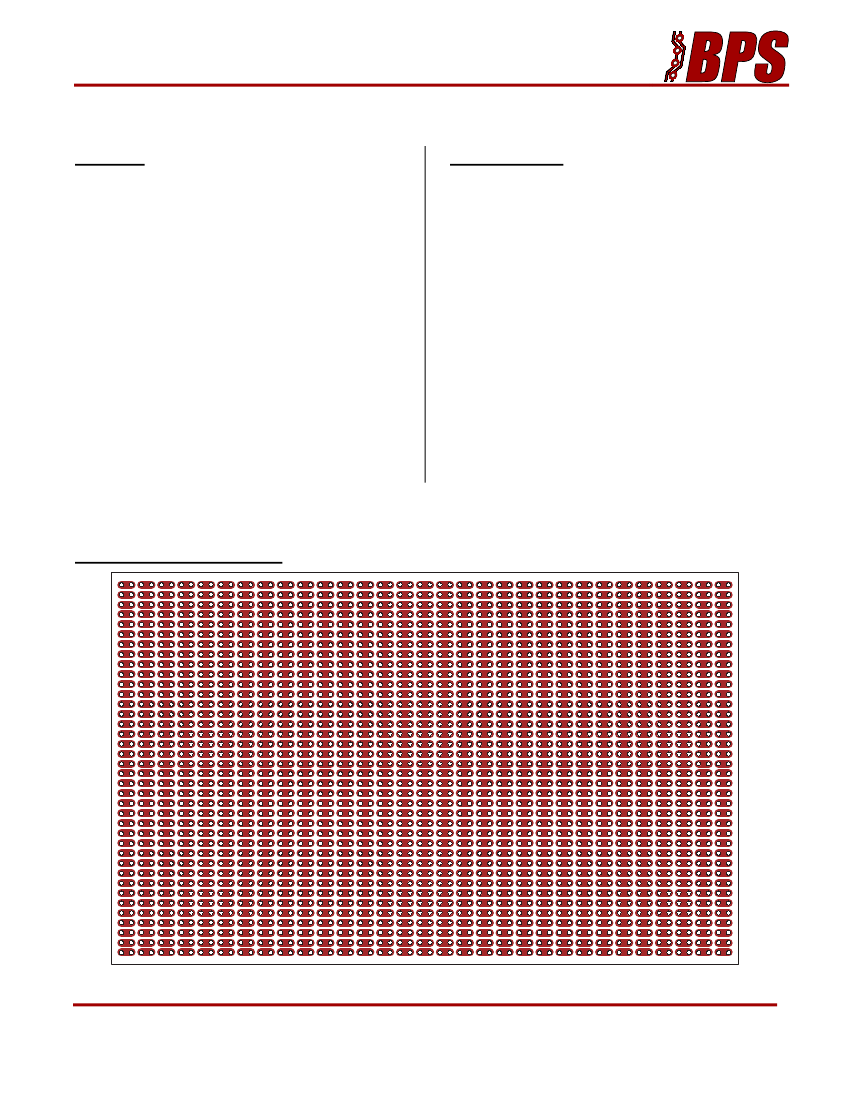

ProtoBoard-2H-3U

– 2-hole segmented stripboard

Prototype circuit board for general purpose analog and digital use.

Features

•

Specifications

•

ProtoBoard

saves time! ProtoBoard-2H

has a general purpose stripboard circuit

pattern that is pre-cut with 2 holes per

segment.

0.1" hole spacing for DIP integrated circuits

and headers.

Standard single height (3U) Eurocard/VME

size. Many off the shelf enclosures and card

cages are available.

ProtoBoard-2H-3U uses a high-quality FR4

glass epoxy board. It has better stability and

moisture resistance than boards using

phenolic or SRBP (synthetic resin bonded

paper) to avoid warping.

•

Etched FR4 glass-epoxy circuit board.

1oz/ft2 copper with an anti-tarnish coating

for easy soldering.

Lead free and RoHS compatible.

Holes are drilled on 0.1" (2.54mm) centers.

0.037" (0.94mm) holes sized for ICs or

square post headers.

38 x 62 holes

Size 3U = 3.9" wide, 6.3" long, 1/16" thick

(100 x 160 x 1.6mm).

Order Part# PR2H3U

Board Layout (actual size)

BusBoard Prototype Systems

Built for designers

www.BusBoard.com

sales@busboard.com

BPS-MAR-(PR2H3U)-001 Rev 4.00
