3M Industrial Products
Abrasives and Power tools for welders
Welding
Solutions
What’s New
for
3
2011
4
5
6
1
2
1

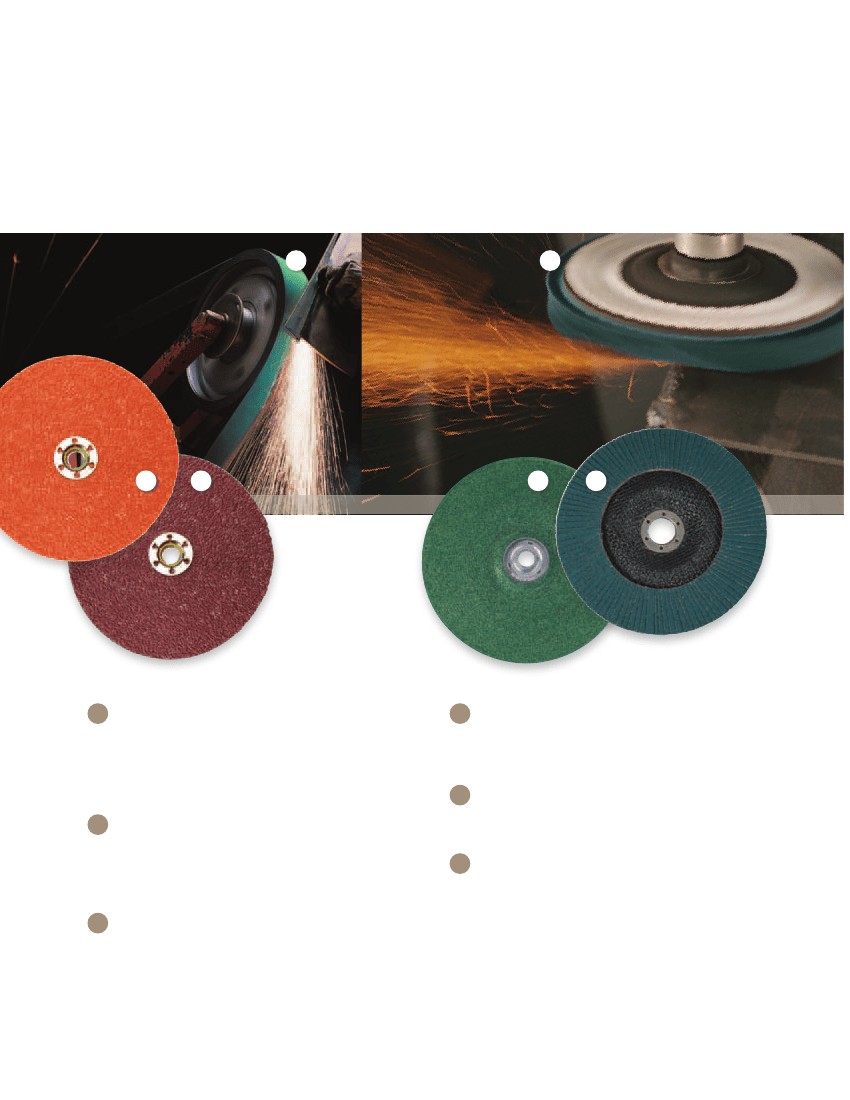

3M
™
Cubitron
™
II Fibre Discs 987C
The coolest way to increase
productivity. If you work with heat-sensitive metals, like stainless steel,
and you value increased throughput and greater operator comfort,
try 3M
™
Cubitron
™
II Fibre Discs 987C. These discs are made with
revolutionary 3M precision shaped ceramic grain technology, engineered
with ultra-sharp points that dig in and cut fast, run cool and last up to
3 times longer than conventional ceramic discs!
3M
™
Cubitron
™
II Fibre Discs 982C
are made with revolutionary 3M
precision-shaped ceramic grain technology, engineered with ultra-sharp,
fast-cutting points that wear evenly, run cool and optimize mineral
breakdown to maximize disc life. 982C out performs comparable fibre
discs on life, cut and cost per grind, guaranteed. Finish more parts with
fewer discs regardless of grinding pressure.
3M
™
AZ Belt 577F
Because new 3M
™
AZ Belts 577F last up to 20%
longer than competitive belts, you can grind more parts for about the
same price you’re now paying for abrasives. Its new and improved
premium mineral resin system, tough durable backing, and waterproof
grinding aid offers a big bang for your buck. Their outstanding balance
of high performance and affordability make 3M AZ Belts 577F an ideal
alternative for many day-to-day grinding operations.
4
3M
™
Flap Disc 546D
is a versatile product that delivers a fast cut, long
life, and a smooth finish. Performance and price make these discs a great
value and the flap design allows one disc to perform both the grinding
and blending steps. Plus, the economic alumina zirconia mineral is ideal
for lowering abrasive costs on both mild and stainless steel applications.
3M
™
Green Corps
™
Type 28 Depressed Center Wheel
is constructed
of 3M
™
Ceramic abrasive grain to provide fast cut, long life and high stock
removal. Its dish shape is perfect for grinding at lower angles of 15° to 25°
and is great for hard to reach areas.
3M
™
Flap Disc 577F
When finish is important, and you value the
extra cutting power of alumina zirconia over aluminum oxide, and the
versatility to work on all types of metals, choose 3M
™
Flap Disc 577F.
This durable polyester-backed product provides longer life in high
pressure applications, and allows you to combine grinding and blending
in one step. Tough enough to tackle sharp edge work and beveling. For
those
really big
jobs, try the 3M
™
Giant Flap Disc 577F with 25% more
thickness for aggressive cut and durability.
5
6
2
3
Table of Contents
Power Tools
Power Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7
Coated Abrasives
Fibre Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–11
Flap Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–14
Stikit
™
and PSA Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15–16
Roloc
™
Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–20
Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21–24
Sheets and Rolls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25–27
Flap Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28–29
Specialty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30–32
Surface Conditioning Abrasives
Scotch-Brite
™
Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33–36
Roloc
™
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33–34
Hook-and-Loop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
TN Quick Change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Spindle Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Scotch-Brite
™
Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Scotch-Brite
™
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38–40
Scotch-Brite
™
Specialty Abrasives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41–42
Scotch-Brite
™
Hand Pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Scotch-Brite
™
Rolls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Bonded Abrasives
Bonded Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45–46
Cut-Off Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Kits and Packs
Abrasive Kits/Packs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Accessories
Abrasive Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48–55
12
P12
P16
Abrasive Grade Guides
Abrasive Grade Comparison Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Scotch-Brite
™
Disc Grade Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
1

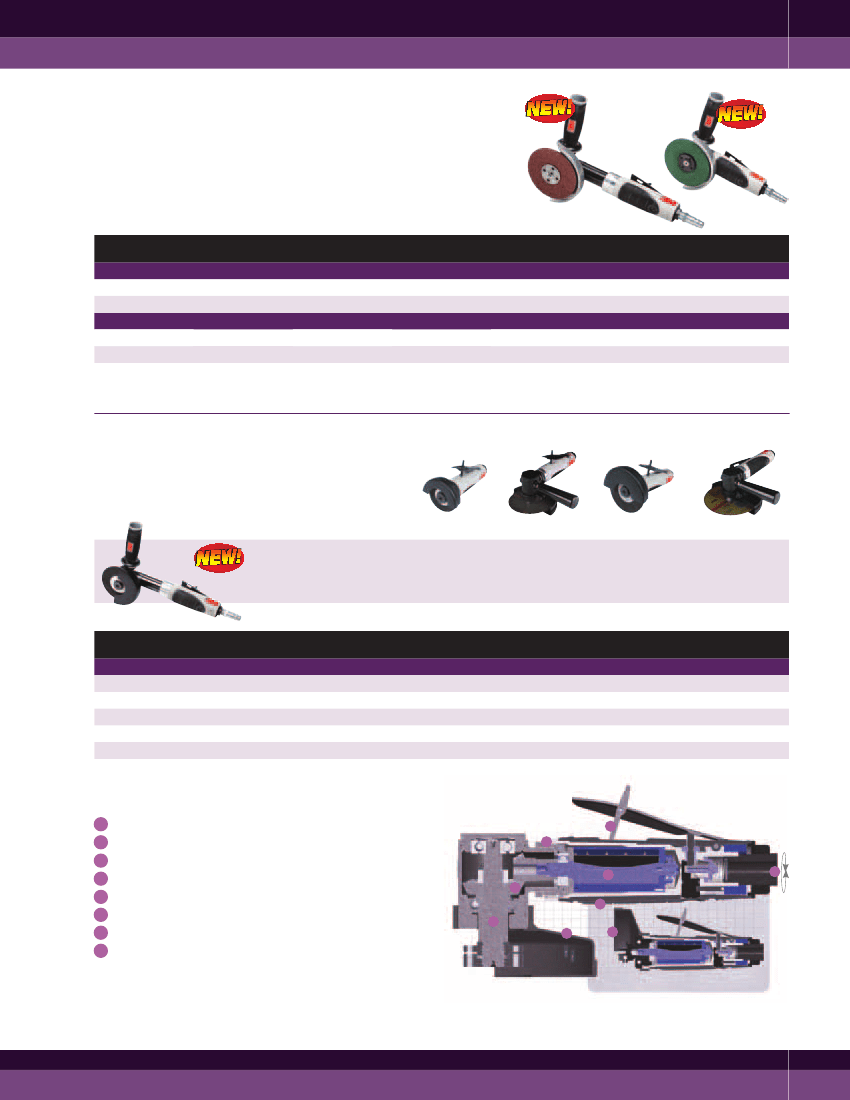

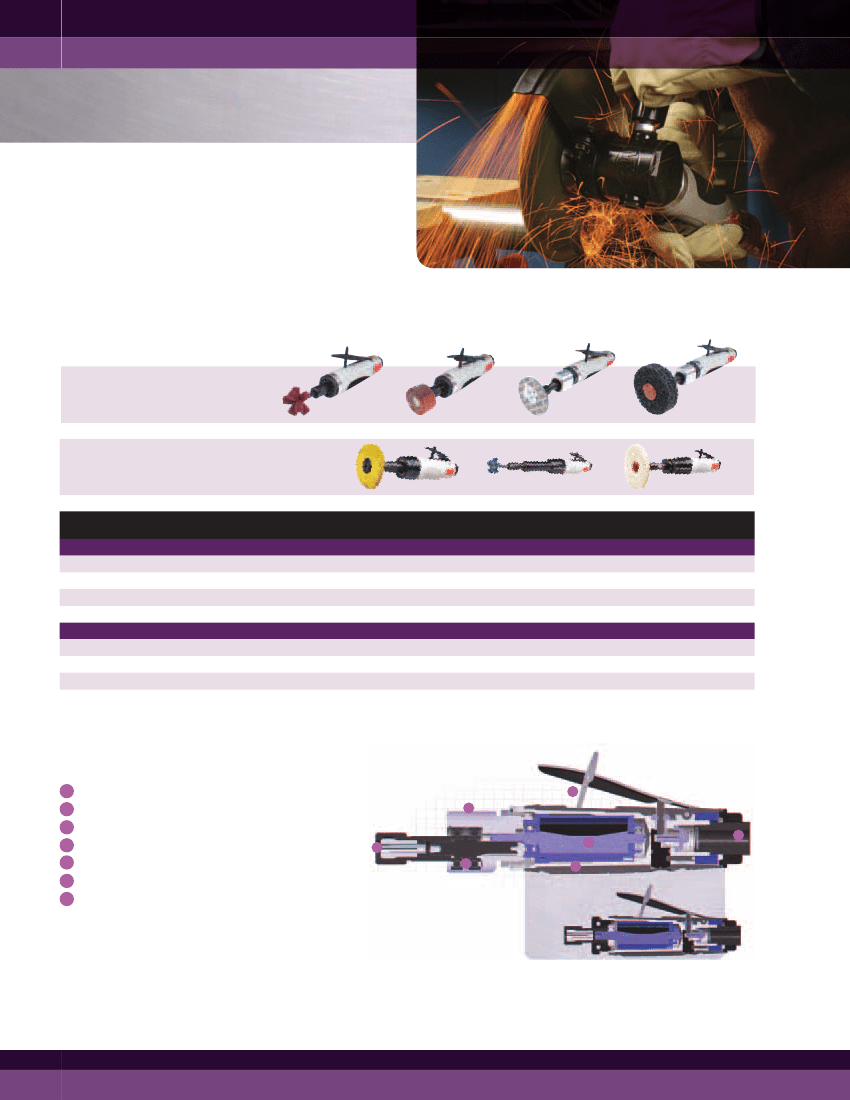

Power Tools
3M
family of innovative tools
Power Tools
A full
to optimize
your abrasive performance
™
& maximize your comfort
3M
™
Die Grinders
Heavy-Duty Grinding
Powerful 1 HP Die Grinders are excellent for
big jobs such as weld or stock removal.
Medium-Duty Grinding
These .5 HP Die Grinders are ideal for medium-duty
applications. Available in extended shaft models.
Weight
20237
20238
20239
20240
28330
28331
28332
Model No.
1 HP (744 W) Motor
20237
20238
20239
20240
.5 HP (372 W) Motor
NEW!
NEW!
NEW!
28330
28331
28332
*with extension
Max RPM
20,000
18,000
12,000
Pound (kg)
Inch (mm)
Length
Air Inlet Thread
1/4" NPT
1/4" NPT
1/4" NPT
1/4" NPT
1/4" NPT
1/4" NPT
1/4" NPT
Collet Size
1/4"
1/4"
1/4"
1/4"
1/4"
1/4"
1/4"
UPC
051141-20237-2
051141-20238-9
051141-20239-6
051141-20240-2
051141-28330-2
051141-28331-9
051141-28332-6
Airflow Rate: 35 SCFM (991 LPM)
1.69 (.77)
1.69 (.77)
2.06 (.93)
7.75 (196.9)
7.75 (196.9)
10 (254)
10 (254)
6.88 (174.6)
10.63 (269.9)
8.88 (200)
8,000
2.06 (.93)
Airflow Rate: 35 SCFM (991 LPM)
18,000
18,000*
4,000
1.13 (.512)
1.54 (.697)
1.58 (.717)
8,000 and 12,000 RPM Die Grinder
1
High-output thermally balanced air motor
2
Directional exhaust (360 degree)
3
3M
™
Gripping Material
4
Safety lever throttle to avoid accidental starting
5
Tandum double-sealed bearings
6
Double-taper collet assembly
7
Offset gear box for increased torque
6
5
7
Models 20239, 20240
4
1
3
18,000 and 20,000 RPM
Die Grinder
Models 20237, 20238
2
2
Power Tools
3M
™
Grinder and Extended Grinder
Packed with power without excessive weight for more comfortable grinding and improved
productivity. With a maximum run speed of 12,000 RPM, high torque, 1 HP motor and
hardened steel rotor, these air-tools are built for durability and smooth operation. The new
3M
™
Grinders are the perfect complement for use with 3M Abrasive Discs with 4" or 4.5"
diameters. 3M Grinders feature repositionable guards for better visibility, steel gear heads
for added durability and superior noise reduction. Get more power and productivity from
3M
™
Power Tools.
Model No.
Tool Diameter: 4"
NEW!
NEW!
NEW!
NEW!
28403
28413
Tool Diameter: 4-1/2"
28405
28414
*includes 3/8" to 1/4" reducer
Pound (kg)
Weight
Length
Motor: 1 HP (744 W)
Standard
Extended
Motor: 1 HP (744 W)
Standard
Extended
Inch (mm)
Height
Air Inlet
3/8" NPT*
3/8" NPT*
3/8" NPT*
3/8" NPT*
Thread
3/8–24 EXT
3/8–24 EXT
5/8–11 EXT
5/8–11 EXT
UPC
051141-28403-3
051141-28413-2
051141-28405-7
051141-28414-9
Max RPM: 12,000
2.66 (1.21)
4.5 (114)
4.5 (114)
4.7 (119)
4.7 (119)
3.85 (1.75)
Max RPM: 12,000
2.84 (1.29)
4.03 (1.83)
3M
™
Cut-Off Wheel Tools
Designed to easily handle cutting through everything from standard
rebar to oversized bolts, you can count on the performance and
dependability of the new line of 3M
™
Cut-Off Wheel Tools.
20235
20233
20234
20236
28407
3M
™
Cut-Off Wheel Tool Extended
New 18,000 RPM, 1 HP tool with right angle head and repositionable guard for optimal power and visibility.
Extended body style for greater versatility and control. Features 3M
™
Gripping Material for added comfort.
Model No.
Motor: 1 HP (744 W)
20233
20234
20235
20236
NEW!
28407*
Tool Dia.
Inch (mm)
Max RPM
25,000
20,000
12,000
10,000
18,000
Pound (kg)
Weight
Inch (mm)
Length
Inch (mm)
Height
Air Inlet Thread
1/4" NPT
3/8" NPT
3/8" NPT
3/8" NPT
3/8" NPT*
UPC
051141-20233-4
051141-20234-1
051141-20235-8
051141-20236-5
051141-28407-1
Airflow Rate: 35 SCFM (991 LPM)
3 (76)
4 (100)
5 (125)
6 (152)
4 (100)
2.09 (.95)
2.25 (1.02)
3.47 (1.57)
3.69 (1.67)
2.77 (1.26)
7.75 (196.9)
7.75 (196.9)
8.75 (222.3)
8.75 (222.3)
8.5 (216)
3 (76.2)
3.25 (82.6)
5.25 (133.4)
5.25 (133.4)
4.7 (119)
*includes 3/8" to 1/4" reducer
5" and 6" Cut-Off Wheel Tool
1
High-output air motor
2
Directional exhaust (360 degree) — not on Model No. 28407
3
3M
™
Gripping Material
4
Safety lever throttle to avoid accidental starting
5
Over-sized ball bearings on output spindle
6
Robust spiral bevel gearing
7
4-place indexable head
8
360° rotatable safety guard
5
8
7
4
Models 20235, 20236
1
6
3
8
2
3" and 4" Cut-Off Wheel Tool
Models 20233, 20234
3
