HELAVIA
®
universal flexible DV wire-clamps
in polychloroprene rubber (Neoprene) black
(for technical properties see page D100)
H E L AV I A
®
-30 to +90°C
RoHS
For protection and strain relief, very effective when used with SES-QUICK cable ties.
•
DV wire-clamps in Bags, without ties

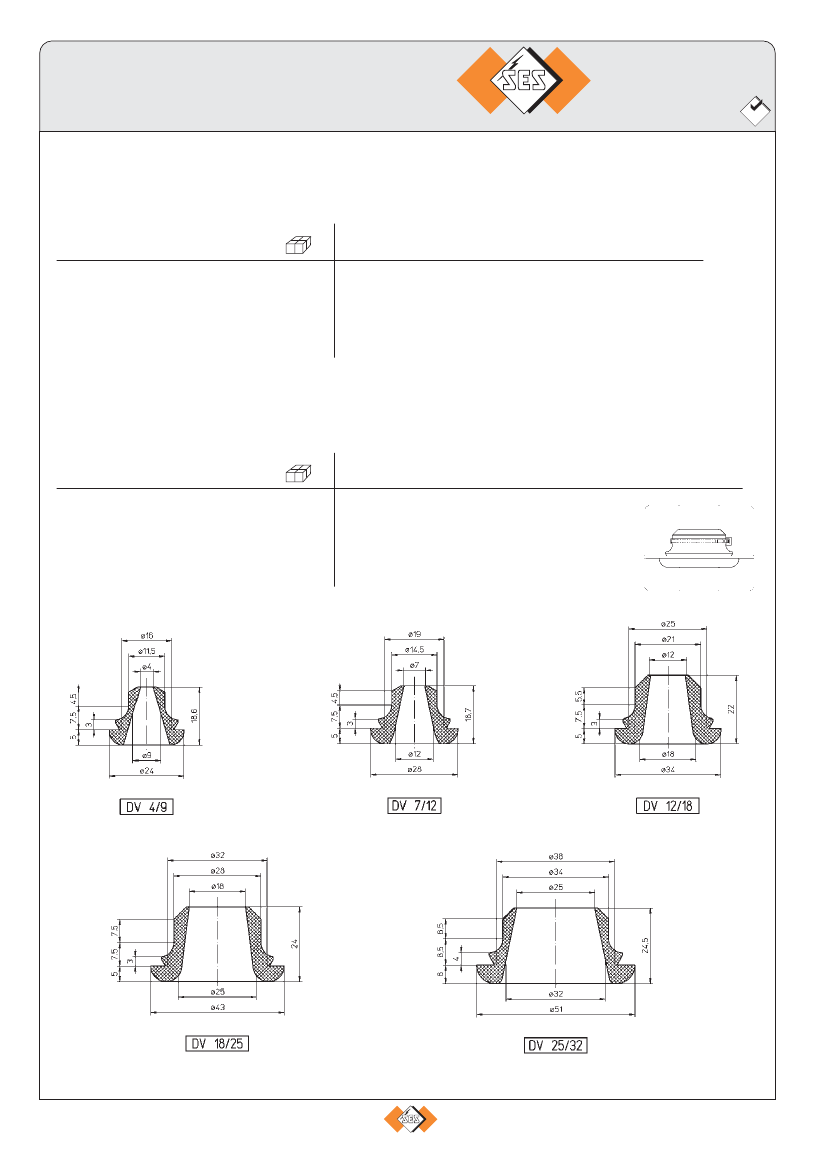

type
DV 4 / 9
DV 7 / 12
DV 12 / 18
DV 18 / 25
DV 25 / 32
article
number
0252 0511 010
0252 0521 010
0252 0531 010
0252 0541 010
0252 0551 010
100
100
100
50
50
housing
Ø (mm)
16
19
25
32
38
wire
Ø (mm)
4- 9
7 - 12
12 - 18
18 - 25
25 - 32
type
cable ties to be used
article number
0186 0979 010
0186 0979 010
0186 0983 010
0186 0983 010
0186 0983 010
145/34 SL-C
145/34 SL-C
185/46 SL-C
185/46 SL-C
185/46 SL-C
For more information about cable ties see page C12/11-01
•
DV wire-clamps in Bags, with ties
type
DV 4 / 9
DV 7 / 12
DV 12 / 18
DV 18 / 25
DV 25 / 32
article
number
0252 0510 010
0252 0520 010
0252 0530 010
0252 0540 010
0252 0550 010
10
10
10
5
5
housing
Ø (mm)
16
19
25
32
38
wire
Ø (mm)
4- 9
7 - 12
12 - 18
18 - 25
25 - 32
delivered with ties
type
145/34 SL-C
145/34 SL-C
185/46 SL-C
185/46 SL-C
185/46 SL-C
0252 0511 010
0252 0510 010
0252 0521 010
0252 0520 010
0252 0531 010
0252 0530 010
0252 0541 010
0252 0540 010
II/03
0252 0551 010
0252 0550 010
A20/7-01
❉
A20/7-01
HELAVIA
®
grommets DX,
in polychloroprene rubber, black
(for technical properties see page D100)
H E L AV I A
®
-30 to +90°C
RoHS
Sealing grommets DX according IP66/IP67: dust proof, protection against temporary
flooding, as well as when submersed under water.
The grommets DX are applied for cable diameters 10 - 20 mm and with a metal thickness of
1 - 4 mm. Owing to the closed cover, it is possible to use it as a temporary seal for a later
wiring.In order to introduce the cable, the cover can be perforated for example with the help
of a screwdriver.
The hole diameters correspond to the metric gland.
Application:
for all exits of panels, enclosures and housings of all types, etc.
type
article
number
hole
Ø (mm)
wires
Ø (mm)
metal thickness
mm
DX 10 - 15
DX 14 - 20
0252 0603 010
0252 0604 010
100
50
25,5
32,5
10 - 15
14 - 20
1-4
1-4
0252 0603 010
0252 0604 010

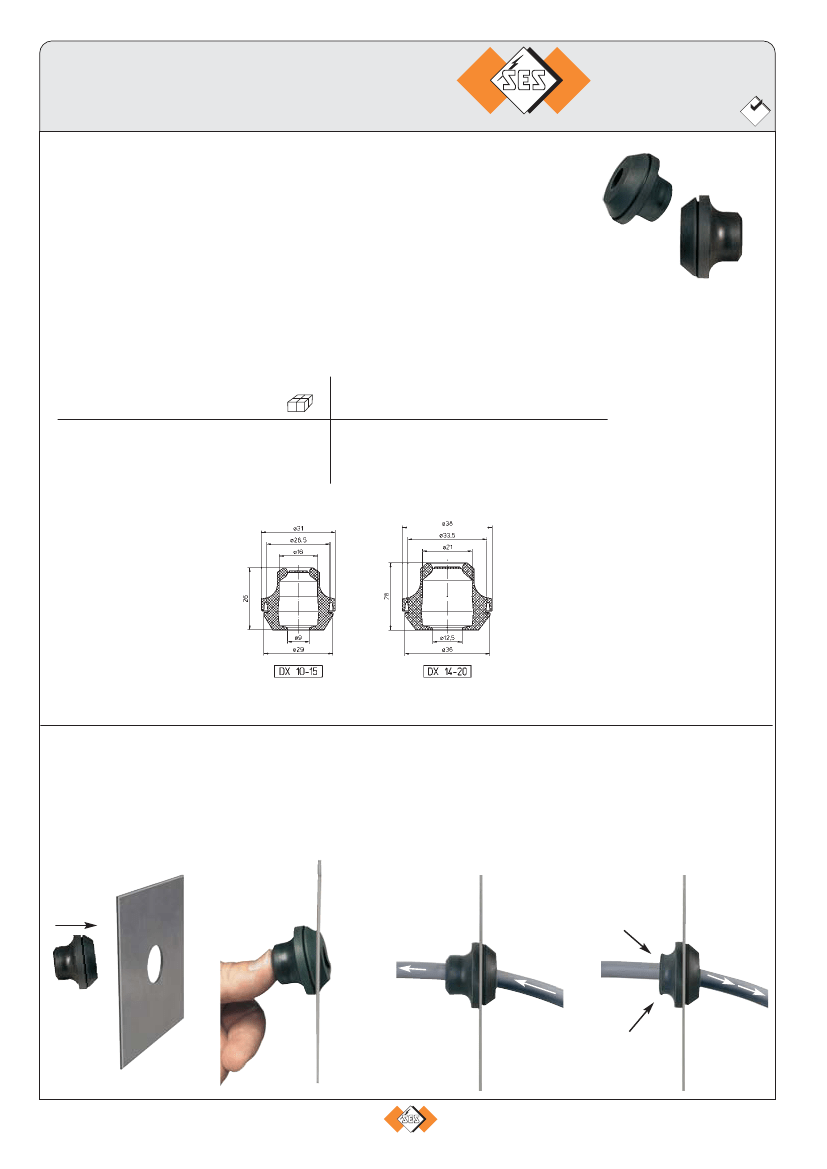

Assembly instruction :
1. Push the grommet in the hole
2. Introduce the cable from the outside to the inside.
3. Pull the cable towards outside for blocking and sealing.
Push - introduce - pull. It is so easy.
blocking
and sealing
A20/7-02
IX/03
❉
A20/7-02
DX grommets, sealing
in EPDM rubber
SH
DX
RoHS
DX-M / DX-PG
Material:
Colour:
Temperature of use:
Specification:
EPDM
black
grey (RAL 7035)
-40 to +110°C
IP 67 according to EN 60 529
Applications:
Grommets, sealing for all exits of panels,
enclosures and housings of all types, etc...

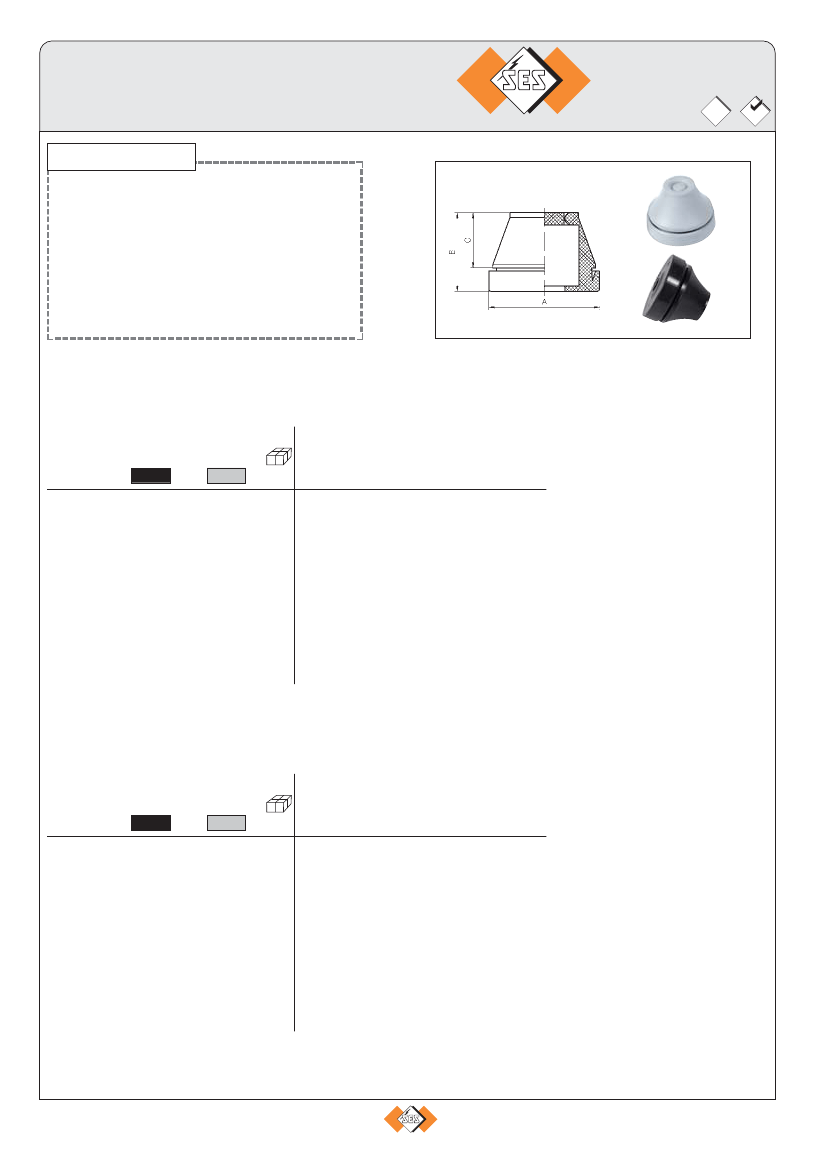

• Metric grommets
article number
black
type
DX-M12
DX-M16
DX-M20
DX-M25
DX-M32
DX-M40
DX-M50
010
metal
grey
025
Ø cable
pces
50
50
50
mm
4-7
5-9
8 - 12
Ø hole
mm
12,5
16,5
20,5
25,5
32,5
40,5
50,5
thickness
mm
A
mm
B
mm
C
mm
5,6
11,0
13,4
15,3
18,6
21,7
25,0
0252 0610 010
0252 0611 010
0252 0612 010
0252 0613 010
0252 0614 010
0252 0615 010
0252 0616 010
0252 0610 025
0252 0611 025
0252 0612 025
0252 0613 025
0252 0614 025
0252 0615 025
0252 0616 025
0,5 - 2 20,0 12,8
1-4
1-4
1-4
1-4
1-4
1-4
21,0 17,7
25,5 20,0
30,5 21,3
38,5 24,6
48,5 29,5
60,5 34,8
50 11 - 16
25 15 - 20
25 19 - 28
10 27 - 35
• PG grommets
article number
black
type
DX-PG7
DX-PG9
DX-PG11
DX-PG16
DX-PG21
DX-PG29
DX-PG36
010
metal
grey
025
Ø cable
pces
50
50
50
mm
3-5
5-7
7 - 10
Ø hole
mm
13,0
16,0
19,0
23,0
29,0
38,0
48,0
thickness
mm
A
mm
B
mm
C
mm
5,4
10,3
12,7
14,7
17,6
20,0
23,9
0252 0620 010
0252 0621 010
0252 0622 010
0252 0623 010
0252 0624 010
0252 0625 010
0252 0626 010
0252 0620 025
0252 0621 025
0252 0622 025
0252 0623 025
0252 0624 025
0252 0625 025
0252 0626 025
0,5 - 2 20,0 12,6
1-4
1-4
1-4
1-4
1-4
1-4
21,0 17,8
24,0 19,8
28,0 21,6
35,0 24,6
46,0 28,5
58,0 34,9
50 10 - 14
25 14 - 20
25 20 - 26
10 26 - 35
X/06
A20/7-03
❉
A20/7-03
