FFC & FPC Connectors VERTICAL SMT ZIF 8P

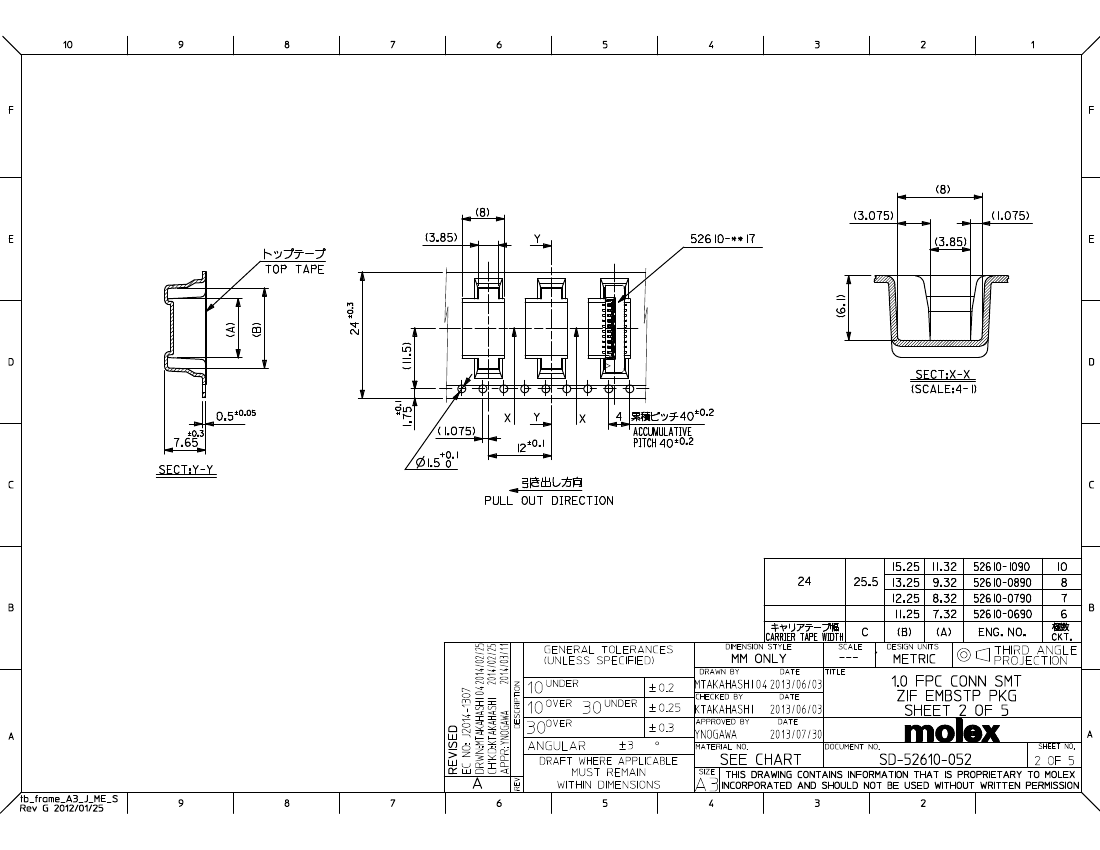

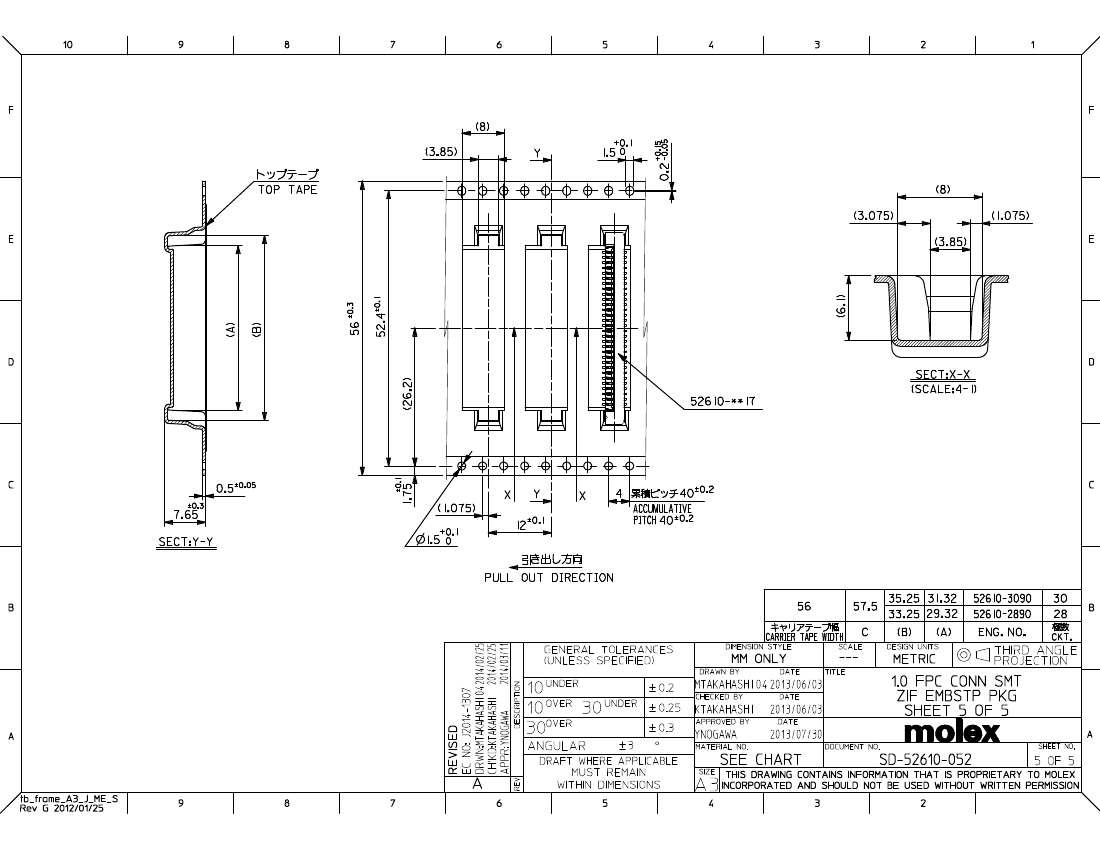

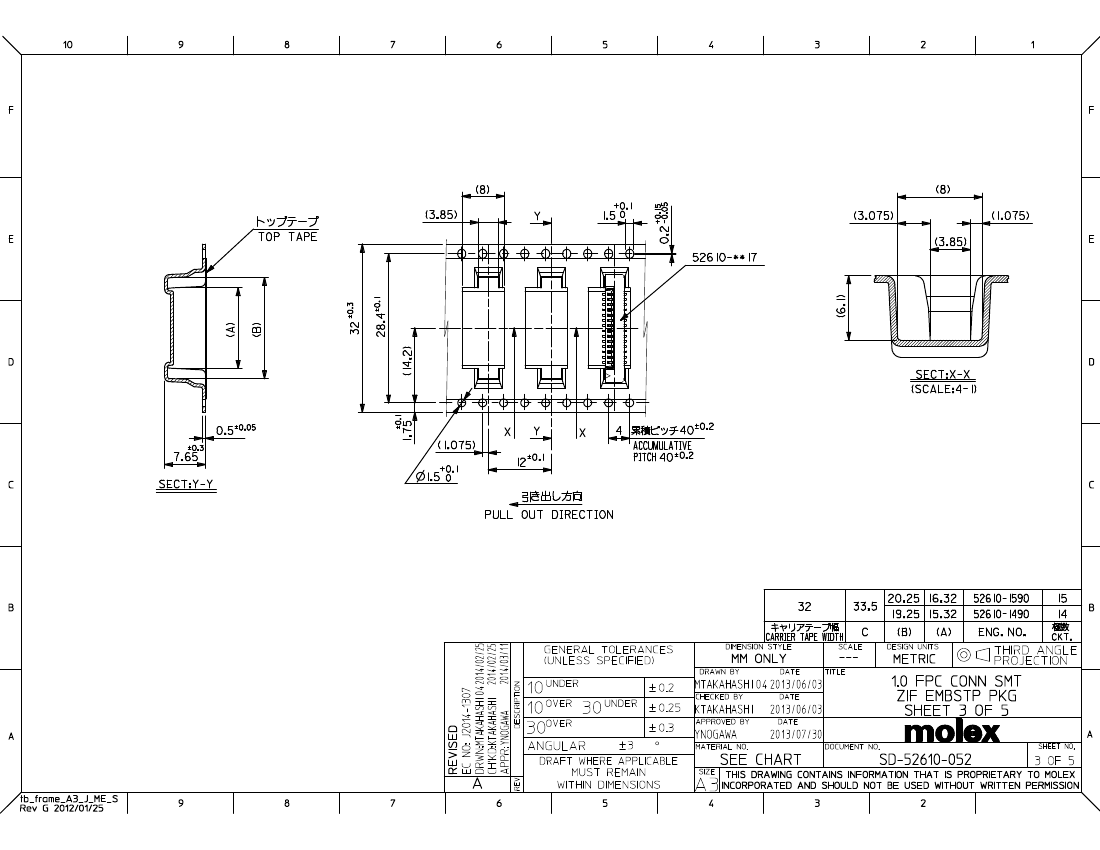

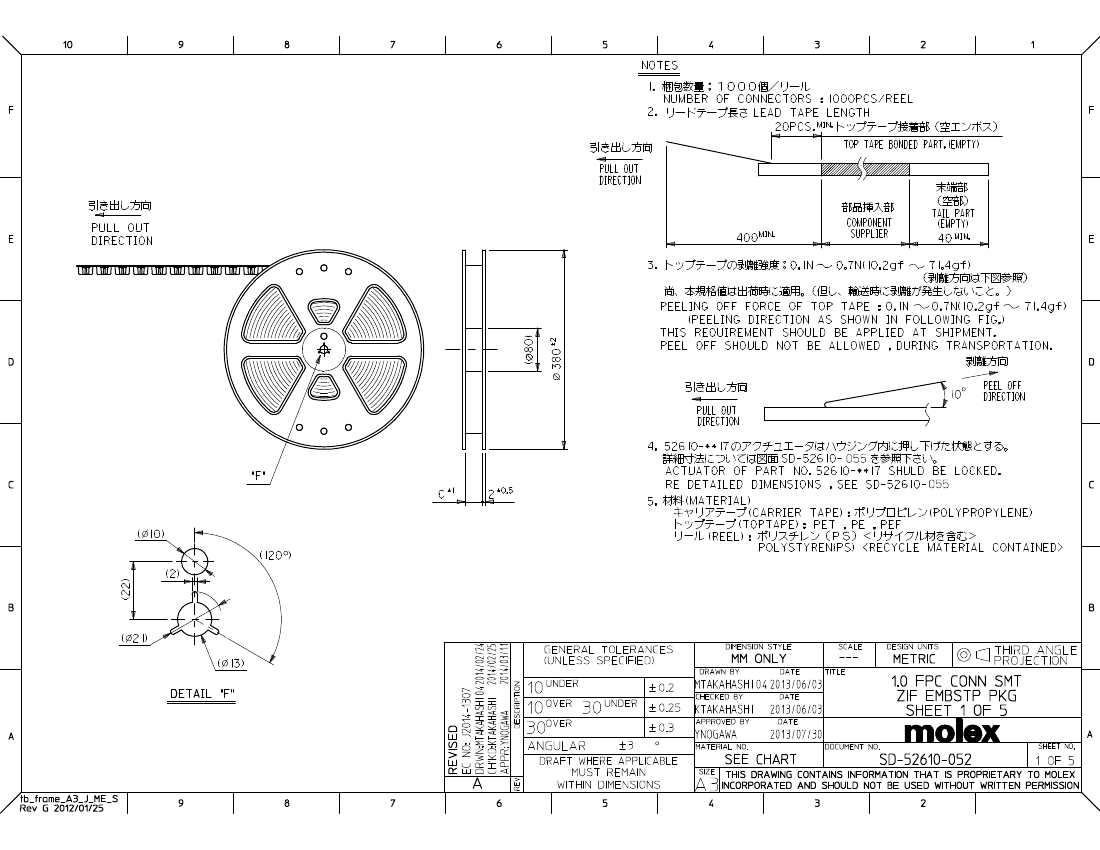

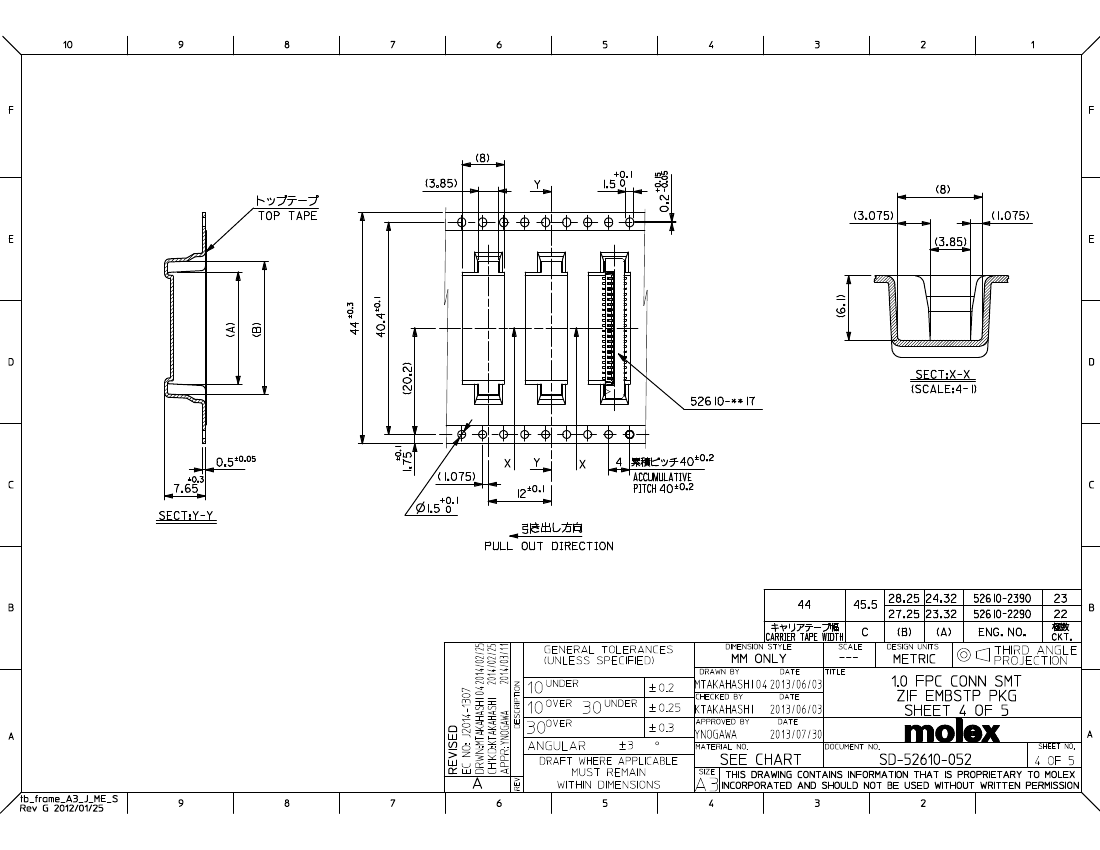

| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Molex |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | ZIF |
| body width | 0.178 inch |
| subject depth | 0.285 inch |
| body length | 0.575 inch |
| Connector type | FFC/FPC CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| DIN compliance | NO |
| Dielectric withstand voltage | 500VAC V |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | ZIF N |
| Insulation resistance | 100000000 Ω |
| insulator material | NYLON |
| MIL compliance | NO |
| Plug contact pitch | 0.039 inch |
| Mixed contacts | NO |
| Installation option 1 | FCC RETNN DVC |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| PCB row number | 2 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -20 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 3.7592 mm |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 1 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 8 |
| UL Flammability Code | 94V-0 |
| 52610-0890 | 52610-1690 | 52610-1490 | 52610-0878 | 52610-2090 | 52610-1890 | 52610-2490 | 52610-2890 | |
|---|---|---|---|---|---|---|---|---|
| Description | FFC & FPC Connectors VERTICAL SMT ZIF 8P | FFC & FPC Connectors VERTICAL SMT ZIF 16P vertical | FFC & FPC Connectors VERTICAL SMT ZIF 14P | FFC & FPC Connectors 1.0 FPC ZIF Assy SMT MT ST 8Ckt EmbsTpPkg | FFC & FPC Connectors VERTICAL SMT ZIF 20P vertical | FFC & FPC Connectors VERTICAL SMT ZIF 18P | FFC & FPC Connectors VERTICAL SMT ZIF 24P | FFC & FPC Connectors VERTICAL SMT ZIF 28P |
| Is it Rohs certified? | conform to | conform to | incompatible | conform to | incompatible | incompatible | incompatible | conform to |
| Maker | Molex | Molex | Molex | Molex | Molex | Molex | Molex | Molex |
| Reach Compliance Code | compliant | compliant | compliant | unknown | compliant | compliant | compliant | compliant |
| Connector type | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | NOT SPECIFIED | PHOSPHOR BRONZE | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO | NO |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO | NO |
| Mixed contacts | NO | NO | NO | NO | NO | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 8 | 16 | 14 | 8 | 20 | 18 | 24 | 28 |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | - |
| Other features | ZIF | ZIF | ZIF | - | ZIF | ZIF | ZIF | ZIF |
| body width | 0.178 inch | 0.178 inch | 0.178 inch | - | 0.178 inch | 0.178 inch | 0.178 inch | 0.178 inch |
| subject depth | 0.285 inch | 0.285 inch | 0.285 inch | - | 0.285 inch | 0.285 inch | 0.285 inch | 0.285 inch |
| body length | 0.575 inch | 0.89 inch | 0.811 inch | - | 1.047 inch | 0.969 inch | 1.205 inch | 1.362 inch |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ | - | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V | - | 500VAC V | 500VAC V | 500VAC V | 500VAC V |
| maximum insertion force | ZIF N | ZIF N | ZIF N | - | ZIF N | ZIF N | ZIF N | ZIF N |
| Insulation resistance | 100000000 Ω | 100000000 Ω | 100000000 Ω | - | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω |
| insulator material | NYLON | NYLON | NYLON | - | NYLON | NYLON | NYLON | NYLON |
| Plug contact pitch | 0.039 inch | 0.039 inch | 0.039 inch | - | 0.039 inch | 0.039 inch | 0.039 inch | 0.039 inch |
| Installation option 1 | FCC RETNN DVC | FCC RETNN DVC | FCC RETNN DVC | - | FCC RETNN DVC | FCC RETNN DVC | FCC RETNN DVC | FCC RETNN DVC |
| PCB row number | 2 | 2 | 2 | - | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | - | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -20 °C | -20 °C | -20 °C | - | -20 °C | -20 °C | -20 °C | -20 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 3.7592 mm | 3.7592 mm | 3.7592 mm | - | 3.7592 mm | 3.7592 mm | 3.7592 mm | 3.7592 mm |
| Rated current (signal) | 1 A | 1 A | 1 A | - | 1 A | 1 A | 1 A | 1 A |
| Guideline | UL | UL | UL | - | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | - | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | - | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Is it lead-free? | - | Contains lead | Contains lead | - | Contains lead | Contains lead | Contains lead | Contains lead |
