TMP87PM29N: DescriptionCMOS 8-Bit Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size462KB，12 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TMP87PM29N Overview

CMOS 8-Bit Microcontroller

TMP87PM29N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	SDIP, SDIP64,.75
Contacts	64
Reach Compliance Code	unknow
Has ADC	YES
Other features	OPERATES AT 2.7V MINIMUM SUPPLY @ 4.2MHZ
Address bus width
bit size	8
CPU series	TLCS-870
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T64
JESD-609 code	e0
length	57.5 mm
Number of I/O lines	43
Number of terminals	64
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP64,.75
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/5 V
Certification status	Not Qualified
RAM (bytes)	1024
rom(word)	32768
ROM programmability	OTPROM
Maximum seat height	5 mm
speed	8 MHz
Maximum slew rate	16 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	19.05 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

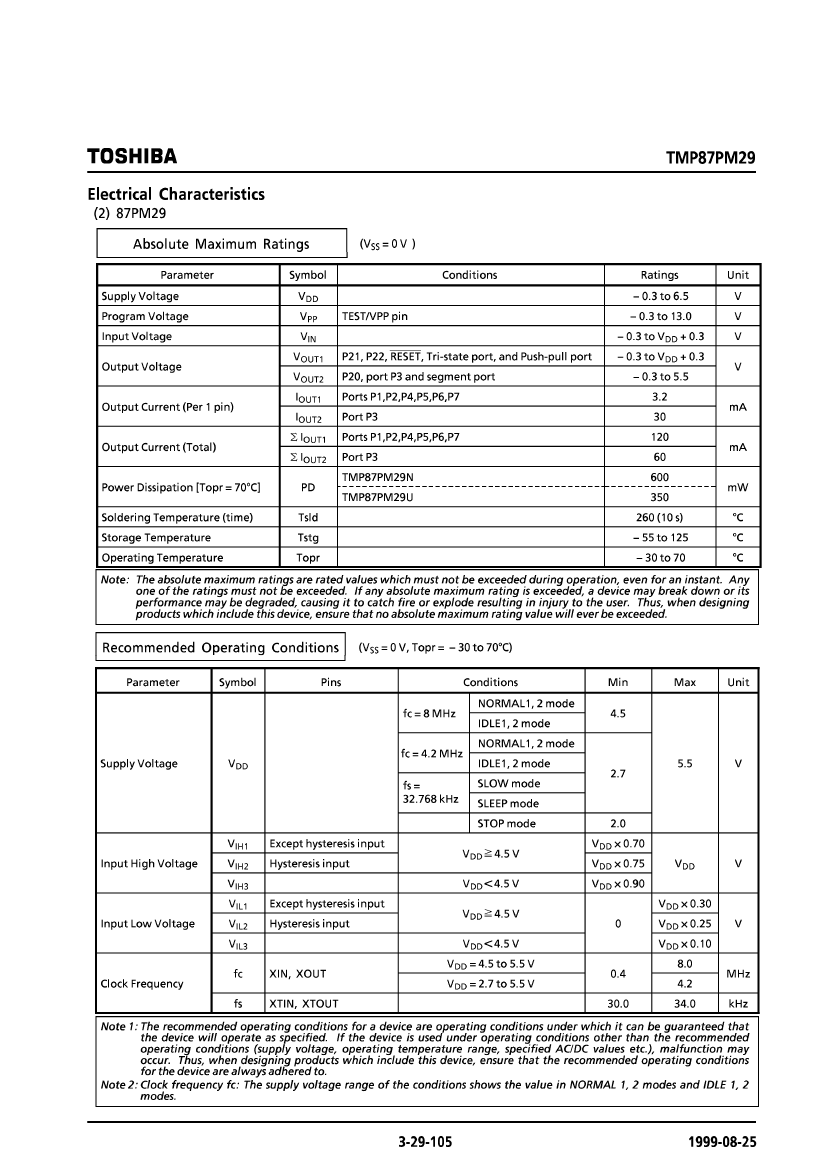

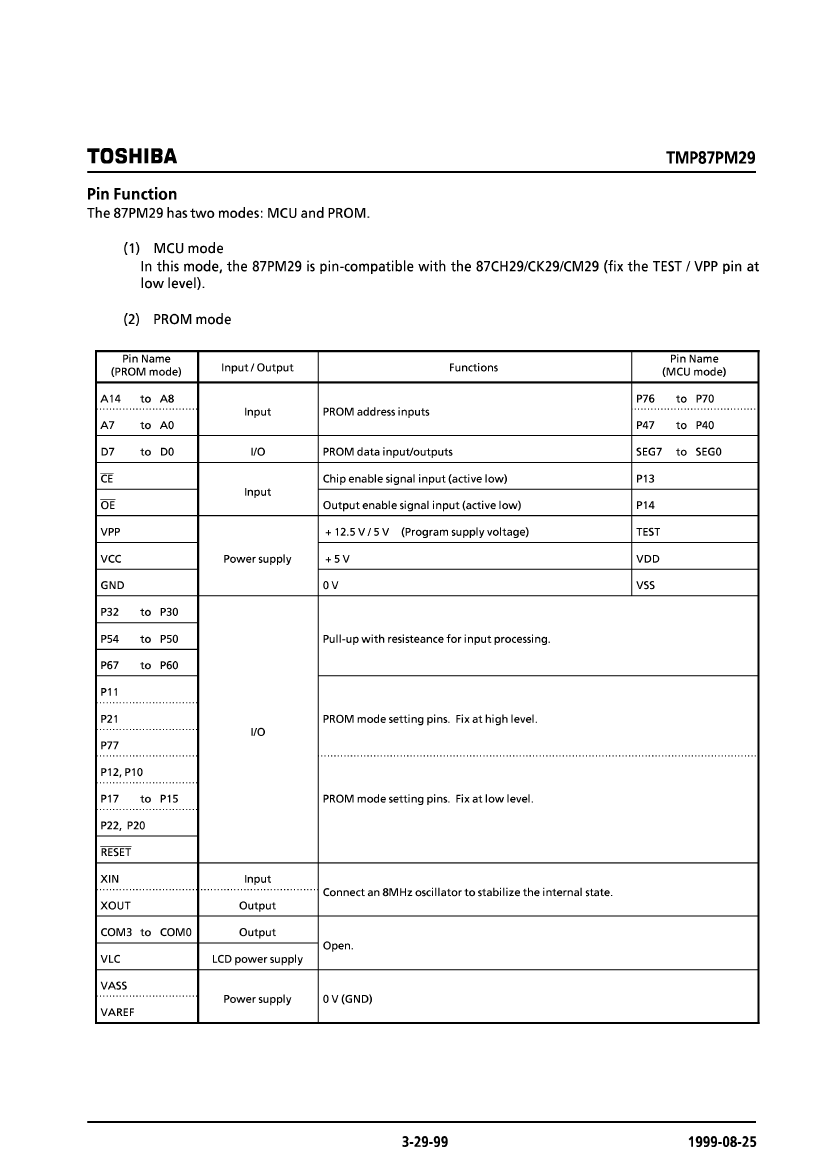

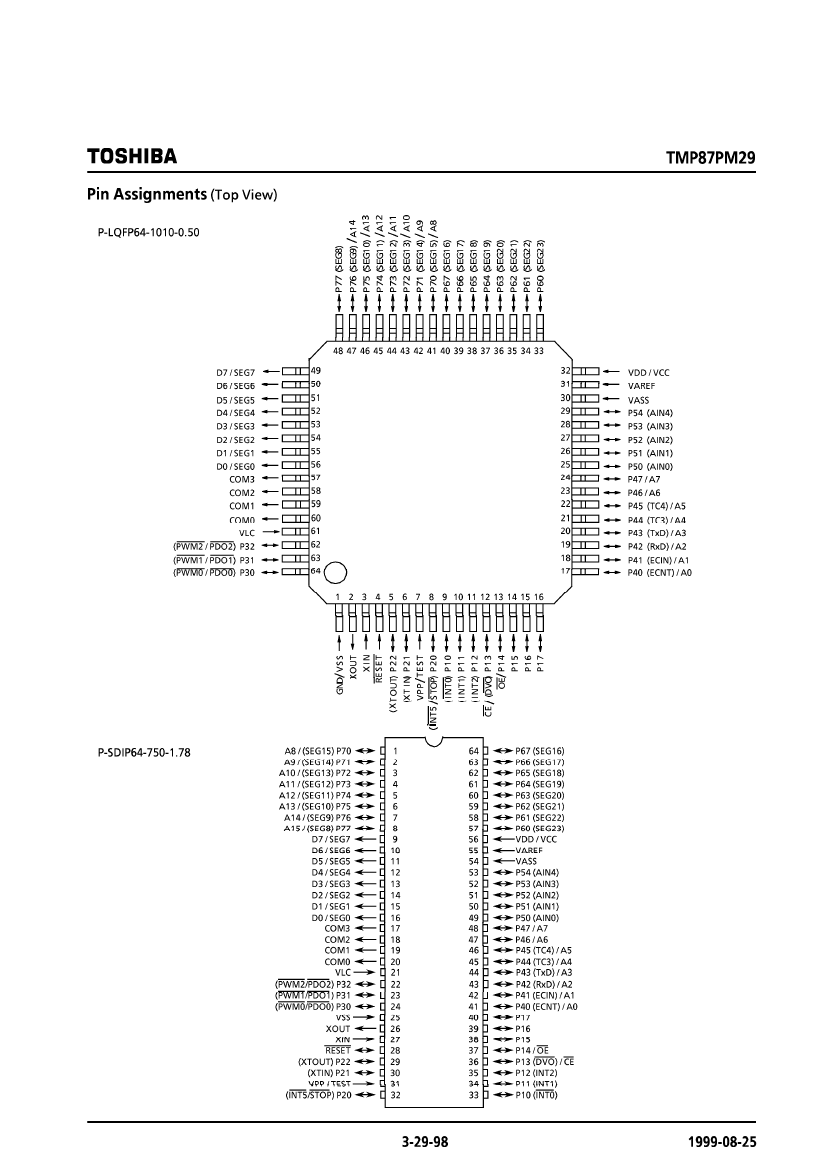

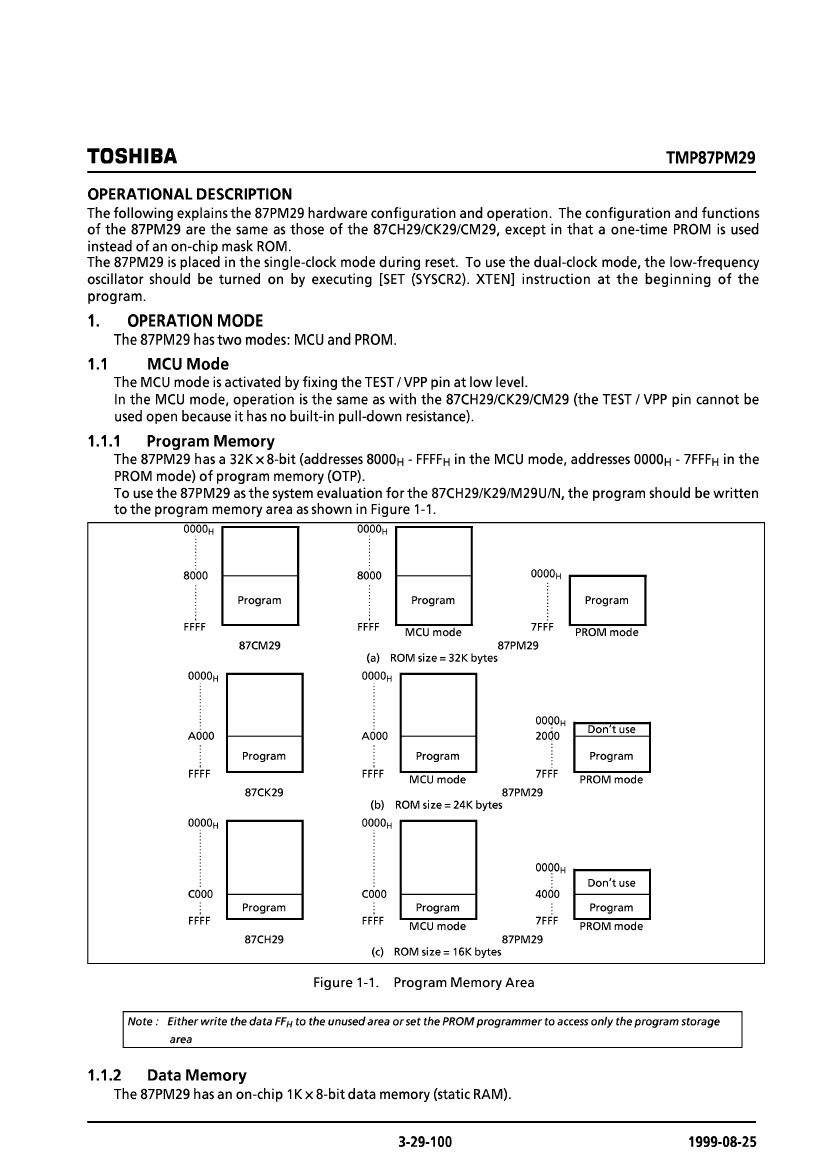

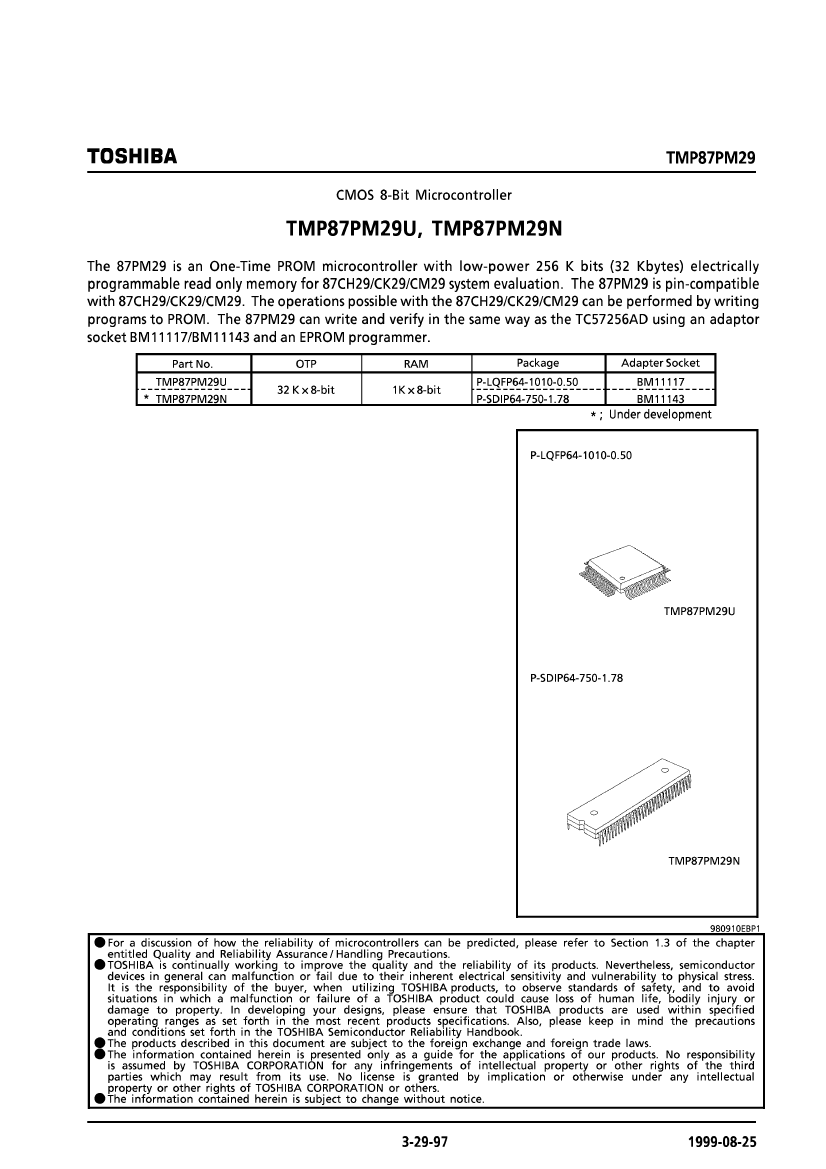

Preview

Download Datasheet

View All

TMP87PM29N Related Products

	TMP87PM29N	TMP87PM29U
Description	CMOS 8-Bit Microcontroller	CMOS 8-Bit Microcontroller
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	DIP	QFP
package instruction	SDIP, SDIP64,.75	LFQFP, QFP64,.47SQ,20
Contacts	64	64
Reach Compliance Code	unknow	unknow
Has ADC	YES	YES
Other features	OPERATES AT 2.7V MINIMUM SUPPLY @ 4.2MHZ	OPERATES AT 2.7V MINIMUM SUPPLY @ 4.2MHZ
bit size	8	8
CPU series	TLCS-870	TLCS-870
maximum clock frequency	8 MHz	8 MHz
DAC channel	NO	NO
DMA channel	NO	NO
JESD-30 code	R-PDIP-T64	S-PQFP-G64
JESD-609 code	e0	e0
length	57.5 mm	10 mm
Number of I/O lines	43	43
Number of terminals	64	64
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C
PWM channel	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SDIP	LFQFP
Encapsulate equivalent code	SDIP64,.75	QFP64,.47SQ,20
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE, SHRINK PITCH	FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	3/5 V	3/5 V
Certification status	Not Qualified	Not Qualified
RAM (bytes)	1024	1024
rom(word)	32768	32768
ROM programmability	OTPROM	OTPROM
Maximum seat height	5 mm	1.6 mm
speed	8 MHz	8 MHz
Maximum slew rate	16 mA	16 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	1.778 mm	0.5 mm
Terminal location	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	19.05 mm	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1
