AN6360 datasheet, PDF - EEWORLD Datasheet

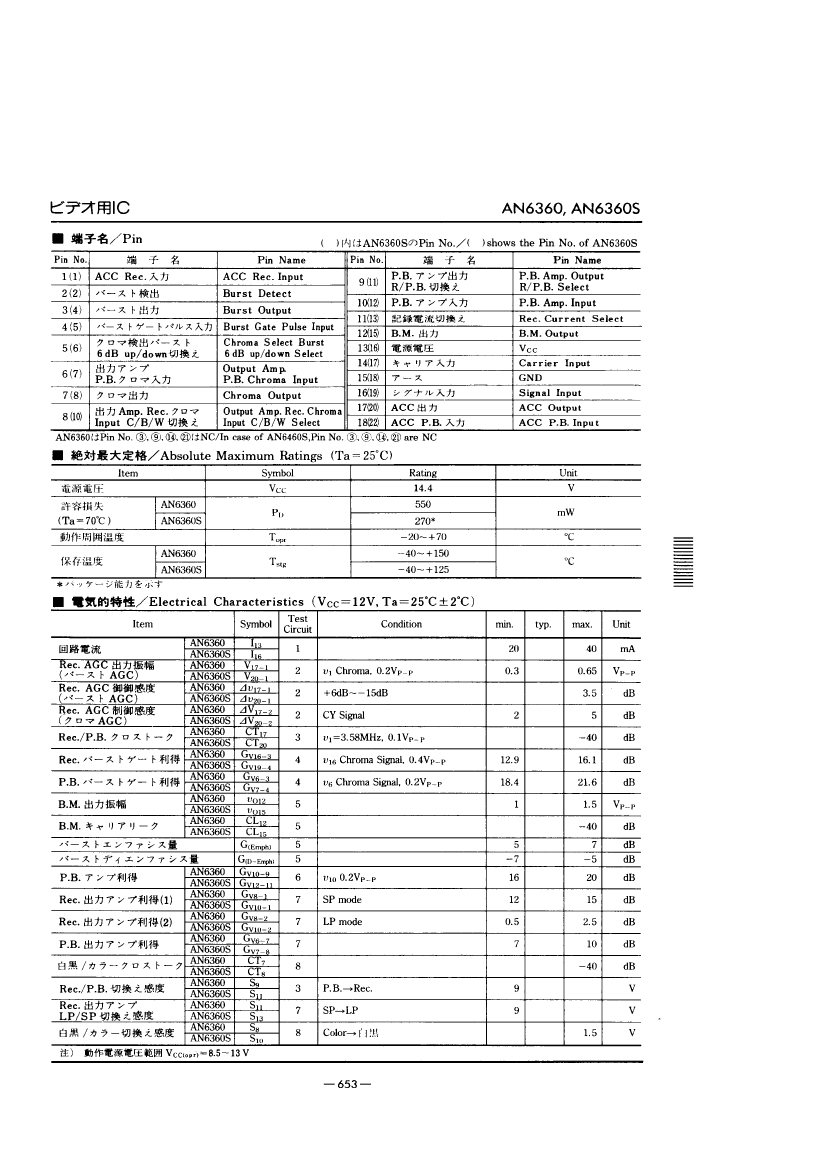

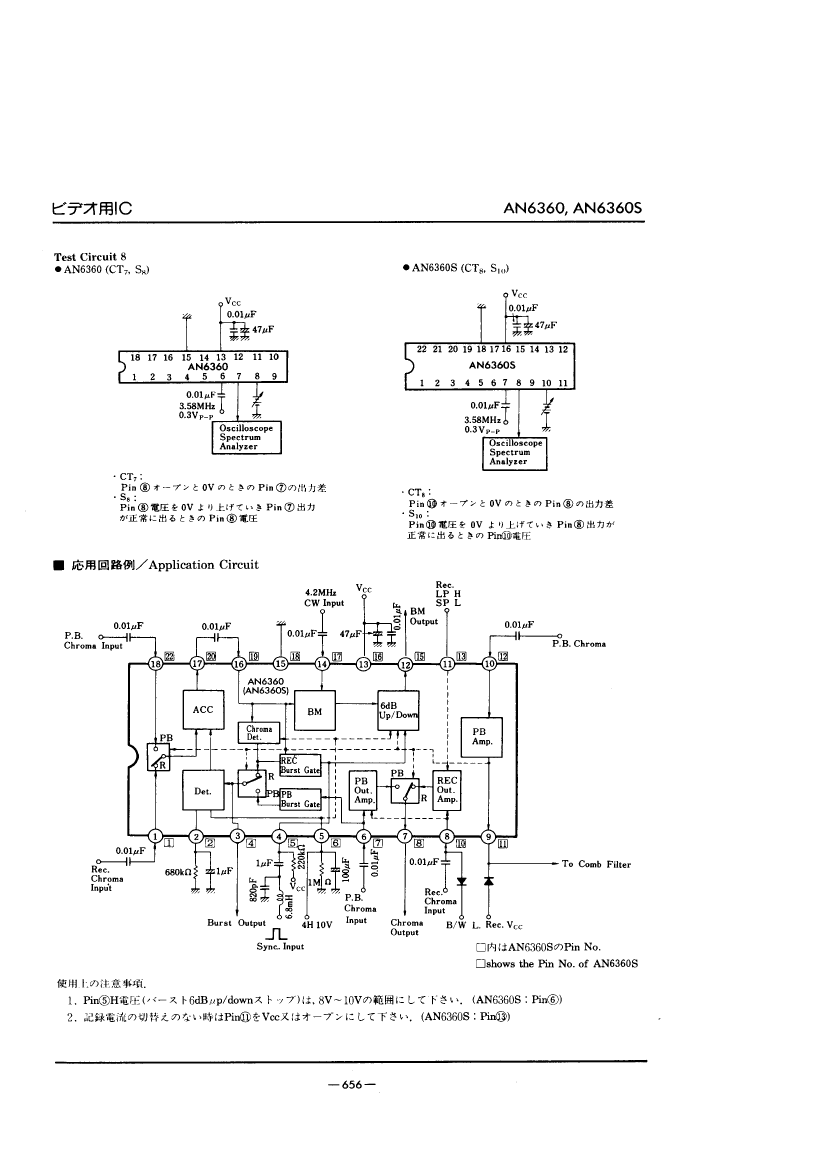

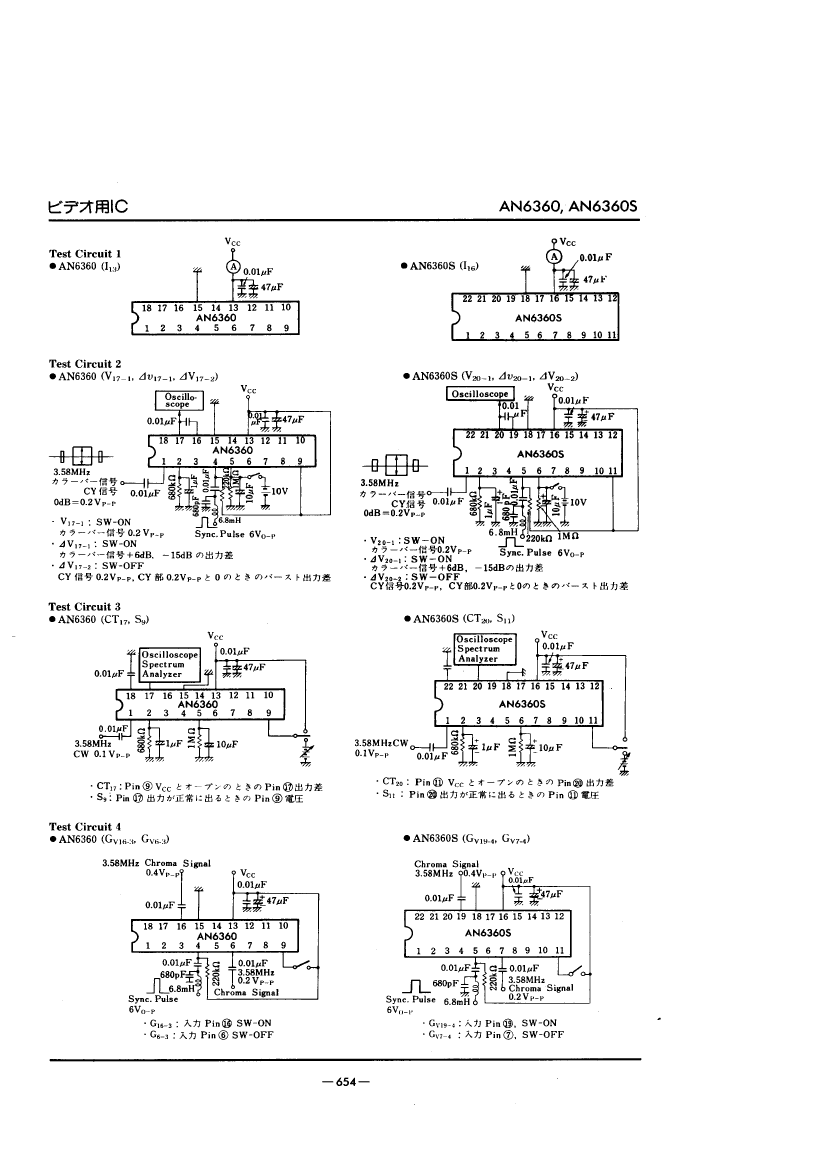

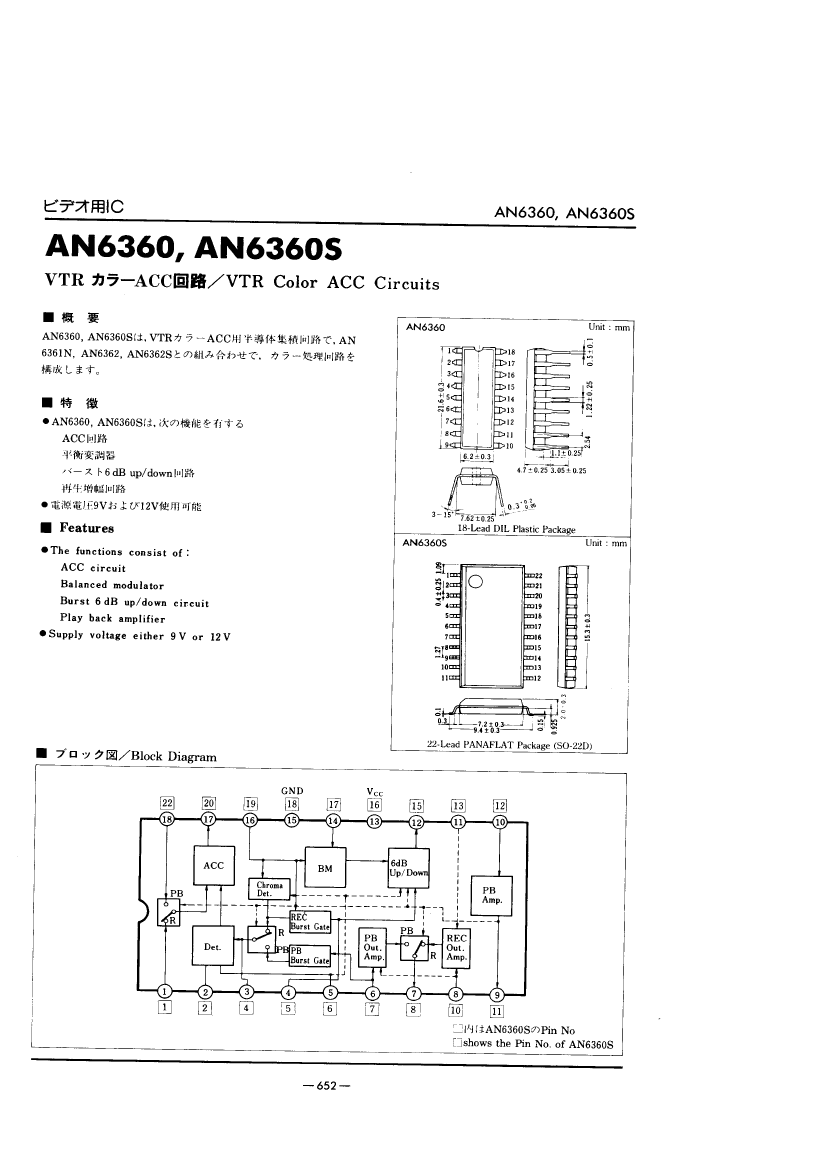

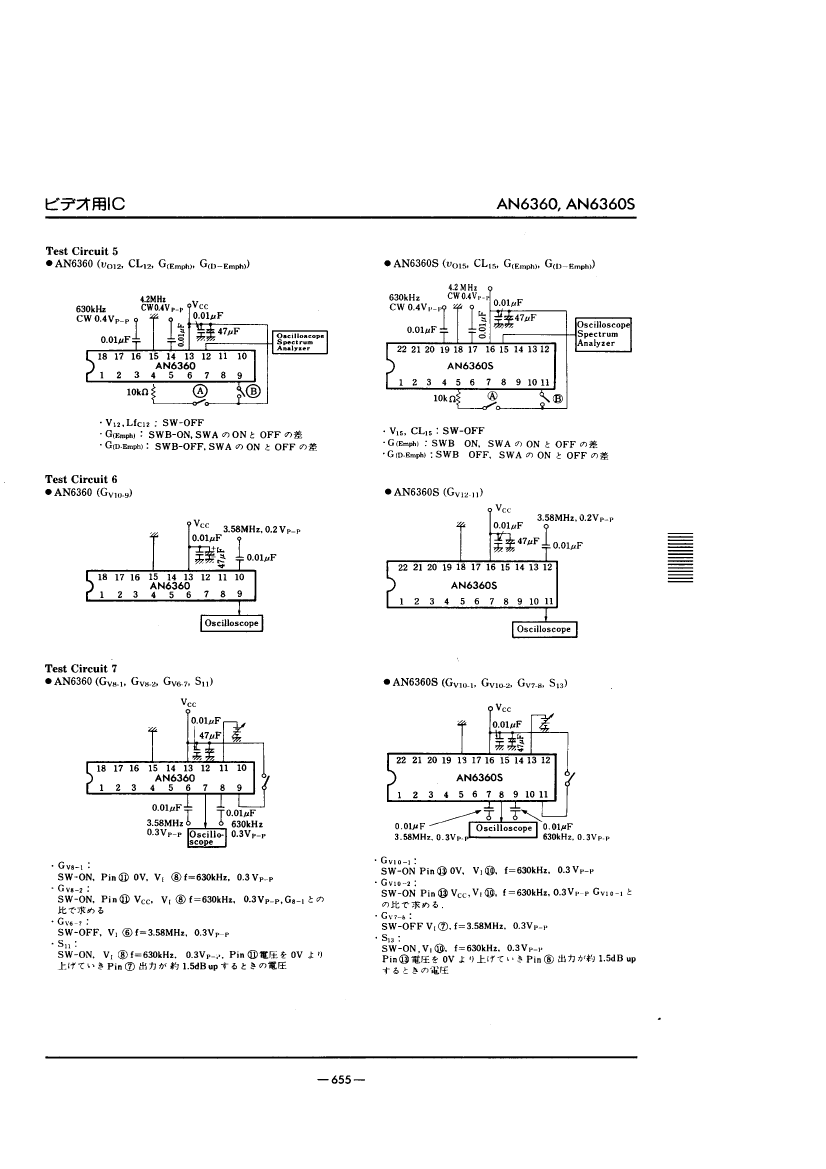

AN6360: DescriptionVTR COLOR ACC CIRCUIT; CategoryOther integrated circuit (IC) Consumption circuit; File Size188KB，5 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric View All

AN6360 Overview

VTR COLOR ACC CIRCUIT

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Panasonic
Parts packaging code	DIP
package instruction	DIP, DIP18,.3
Contacts	18
Reach Compliance Code	unknow
Other features	CAN ALSO OPERATE AT 12V SUPPLY
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDIP-T18
JESD-609 code	e0
length	21.7 mm
Number of functions	1
Number of terminals	18
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	12 V
Certification status	Not Qualified
Maximum seat height	4.05 mm
Maximum supply voltage (Vsup)	9 V
Minimum supply voltage (Vsup)	9 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
