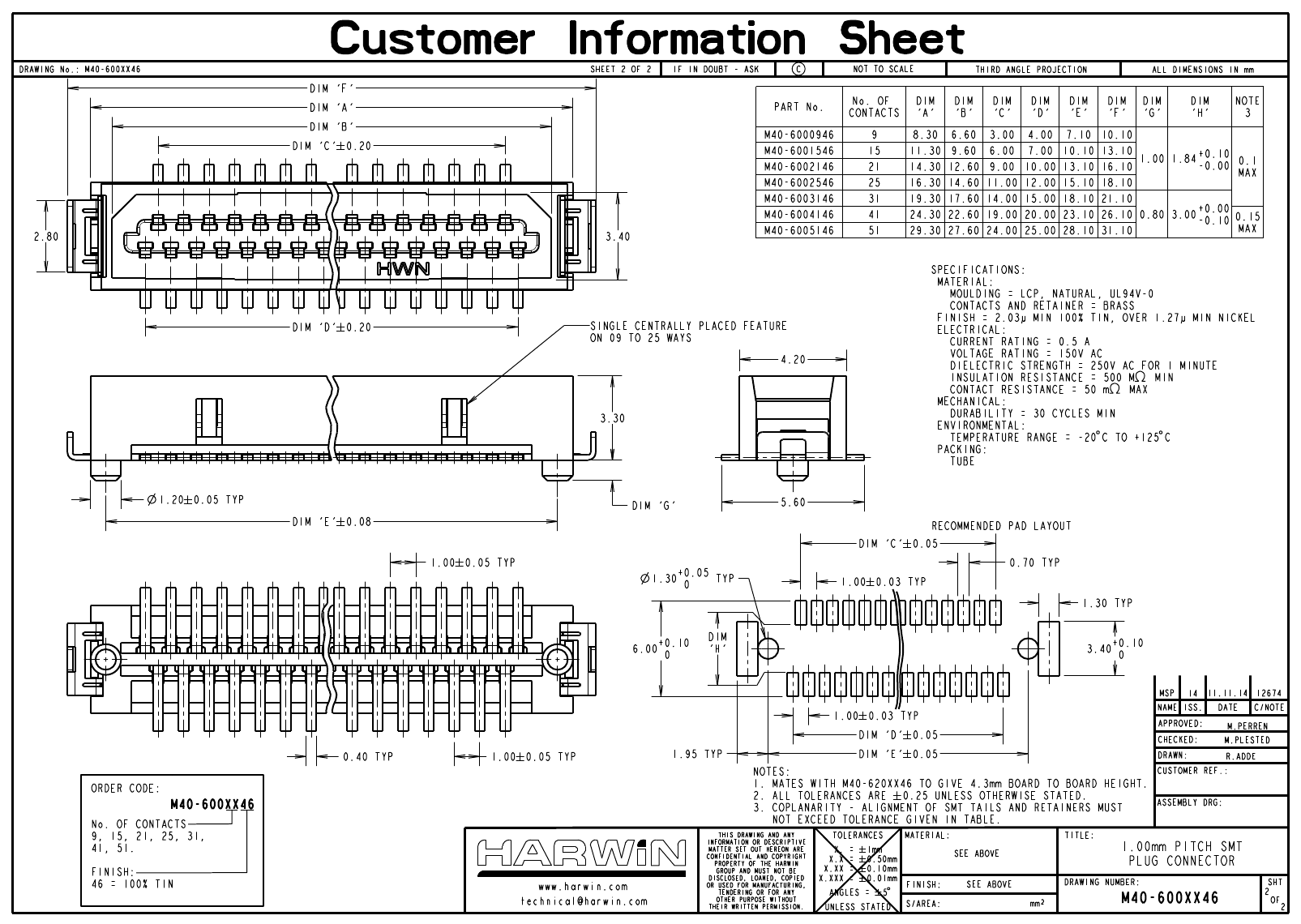

M40-6002146 |
M40-6001546 |
M40-6002546 |
M40-6005146 |
| Description |
Board to Board & Mezzanine Connectors 21P DIL SMT PLG ASSY 1MM PITCH-VERTICAL |
Board to Board & Mezzanine Connectors 15 WAY SMT PLUG |
Board to Board & Mezzanine Connectors 25 WAY SMT PLUG |
Board to Board & Mezzanine Connectors 51 WAY SMT PLUG |
| Is it lead-free? |
Lead free |
Lead free |
Lead free |
Lead free |
| Is it Rohs certified? |
conform to |
conform to |
conform to |
conform to |
| Maker |
Harwin |
Harwin |
Harwin |
Harwin |
| package instruction |
LEAD FREE |
LEAD FREE |
LEAD FREE |
LEAD FREE |
| Reach Compliance Code |
compliant |
compliant |
compliant |
compliant |
| Other features |
POLARISED |
POLARISED |
POLARISED |
POLARISED |
| Board mount options |
PEG |
PEG |
PEG |
PEG |
| body width |
0.165 inch |
0.165 inch |
0.165 inch |
0.165 inch |
| subject depth |
0.13 inch |
0.13 inch |
0.13 inch |
0.13 inch |
| body length |
0.563 inch |
0.445 inch |
0.642 inch |
1.153 inch |
| Body/casing type |
PLUG |
PLUG |
PLUG |
PLUG |
| Connector type |
BOARD CONNECTOR |
BOARD CONNECTOR |
BOARD CONNECTOR |
BOARD CONNECTOR |
| Contact to complete cooperation |
NOT SPECIFIED |
NOT SPECIFIED |
NOT SPECIFIED |
NOT SPECIFIED |
| Contact completed and terminated |
Tin (Sn) - with Nickel (Ni) barrier |
Tin (Sn) - with Nickel (Ni) barrier |
Tin (Sn) |
Tin (Sn) - with Nickel (Ni) barrier |
| Contact point gender |
MALE |
MALE |
MALE |
MALE |
| Contact material |
NOT SPECIFIED |
NOT SPECIFIED |
NOT SPECIFIED |
NOT SPECIFIED |
| contact mode |
STAGGERED |
STAGGERED |
STAGGERED |
STAGGERED |
| Contact resistance |
50 mΩ |
50 mΩ |
50 mΩ |
50 mΩ |
| Contact style |
CENTRONIC |
CENTRONIC |
CENTRONIC |
CENTRONIC |
| DIN compliance |
NO |
NO |
NO |
NO |
| Dielectric withstand voltage |
250VAC V |
250VAC V |
250VAC V |
250VAC V |
| Durability |
30 Cycles |
30 Cycles |
30 Cycles |
30 Cycles |
| Filter function |
NO |
NO |
NO |
NO |
| IEC compliance |
NO |
NO |
NO |
NO |
| Insulation resistance |
500000000 Ω |
500000000 Ω |
500000000 Ω |
500000000 Ω |
| Insulator color |
NATURAL |
NATURAL |
NATURAL |
NATURAL |
| insulator material |
POLYAMIDE |
LIQUID CRYSTAL POLYMER (LCP) |
LIQUID CRYSTAL POLYMER (LCP) |
LIQUID CRYSTAL POLYMER (LCP) |
| JESD-609 code |
e3 |
e3 |
e3 |
e3 |
| MIL compliance |
NO |
NO |
NO |
NO |
| Plug contact pitch |
0.039 inch |
0.039 inch |
0.039 inch |
0.039 inch |
| Plug information |
MULTIPLE MATING PARTS AVAILABLE |
MULTIPLE MATING PARTS AVAILABLE |
MULTIPLE MATING PARTS AVAILABLE |
MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts |
NO |
NO |
NO |
NO |
| Installation option 1 |
LOCKING |
LOCKING |
LOCKING |
LOCKING |
| Installation method |
STRAIGHT |
STRAIGHT |
STRAIGHT |
STRAIGHT |
| Installation type |
BOARD |
BOARD |
BOARD |
BOARD |
| Number of connectors |
ONE |
ONE |
ONE |
ONE |
| PCB row number |
2 |
2 |
2 |
2 |
| Number of rows loaded |
2 |
2 |
2 |
2 |
| Maximum operating temperature |
125 °C |
125 °C |
125 °C |
125 °C |
| Minimum operating temperature |
-20 °C |
-20 °C |
-20 °C |
-20 °C |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
GENERAL PURPOSE |
GENERAL PURPOSE |
| PCB contact pattern |
STAGGERED |
STAGGERED |
STAGGERED |
STAGGERED |
| PCB contact row spacing |
3.9116 mm |
3.9116 mm |
3.9116 mm |
4.4958 mm |
| Plating thickness |
80u inch |
80u inch |
80u inch |
80u inch |
| polarization key |
POLARIZED HOUSING |
POLARIZED HOUSING |
POLARIZED HOUSING |
POLARIZED HOUSING |
| Rated current (signal) |
0.5 A |
0.5 A |
0.5 A |
0.5 A |
| Guideline |
UL |
UL |
UL |
UL |
| reliability |
COMMERCIAL |
COMMERCIAL |
COMMERCIAL |
COMMERCIAL |
| Terminal pitch |
1 mm |
1 mm |
1 mm |
1 mm |
| Termination type |
SURFACE MOUNT |
SURFACE MOUNT |
SURFACE MOUNT |
SURFACE MOUNT |
| Total number of contacts |
21 |
15 |
25 |
51 |
| UL Flammability Code |
94V-0 |
94V-0 |
94V-0 |
94V-0 |
| ECCN code |
EAR99 |
- |
EAR99 |
EAR99 |
