Si52111-B5-GT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> Si52111-B5-GT

Si52111-B5-GT: DescriptionClock Generators & Support Products Tiny Clock PCIe 1 output PCI Express; Categorysemiconductor Analog mixed-signal IC; File Size1MB，20 Pages; ManufacturerSilicon Laboratories

Download Datasheet Parametric Compare View All

Si52111-B5-GT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	Si52111-B5-GT	-	-	View	Buy Now

Si52111-B5-GT Overview

Clock Generators & Support Products Tiny Clock PCIe 1 output PCI Express

Si52111-B5-GT Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Silicon Laboratories
Product Category	Clock Generators & Support Products
RoHS	Details
Type	Clock Generators
Maximum Input Frequency	25 MHz
Max Output Freq	100 MHz
Number of Outputs	1 Output
Duty Cycle - Max	55 %
Operating Supply Voltage	3.3 V
Operating Supply Current	13 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	TSSOP-8
Packaging	Reel
Output Type	Differential
Jitter	250 ps
Moisture Sensitive	Yes
Factory Pack Quantity	2500
Unit Weight	0.005573 oz

Preview

Download Datasheet

View All

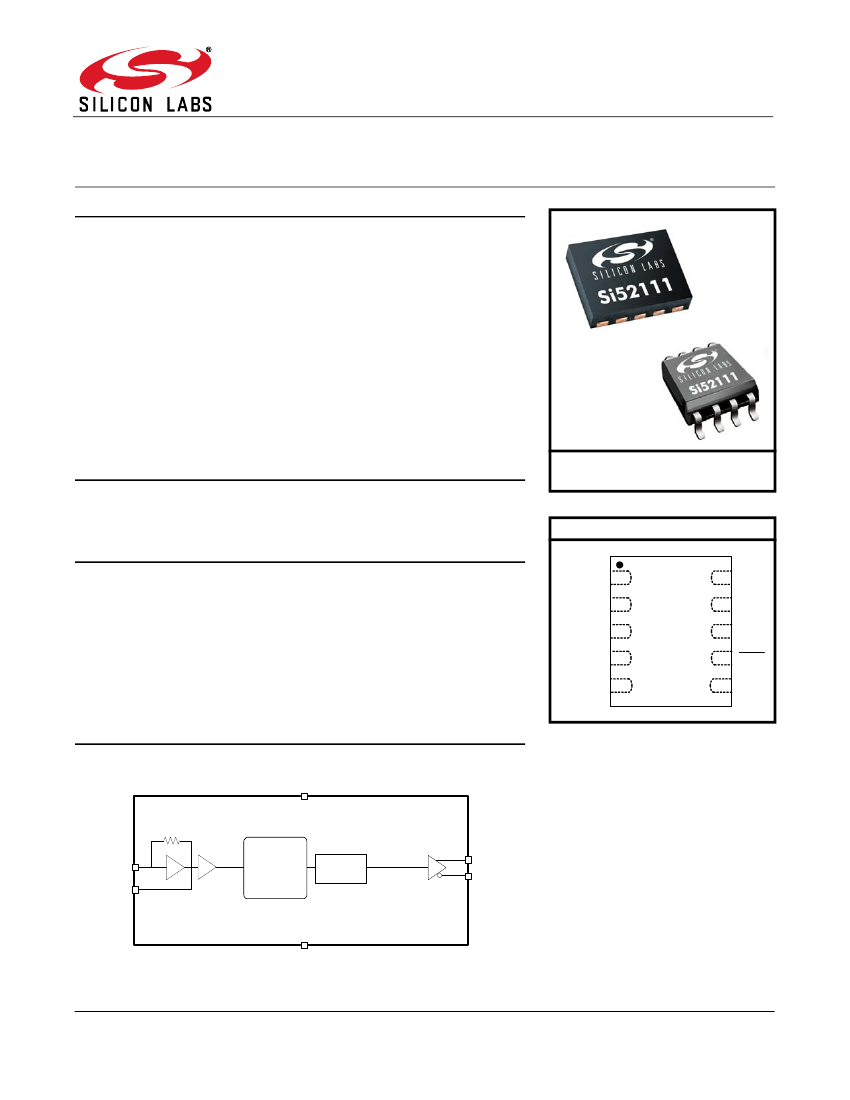

S i5 2111- B5/ B 6

PCI-E

XPRESS

3 S

INGLE

UTPUT

LOCK

ENERATOR

Features



PCI-Express Gen 1, Gen 2,



Gen 3, and Gen 4 common clock

compliant

Gen 3 SRNS Compliant



Low power HCSL differential

output buffer



Supports Serial-ATA (SATA) at



100 MHz

No termination resistors required



25 MHz Crystal Input or Clock

input



Triangular spread spectrum

profile for maximum EMI

reduction (Si52111-B6)

Extended Temperature:

–40 to 85 °C

3.3 V Power supply

Small package 10-pin TDFN

(3x3 mm)

Si52111-B5 does not support

spread spectrum outputs

Si52111-B6 supports 0.5% down

spread outputs

Ordering Information:

See page 13

Applications

Network Attached Storage



Multi-function Printer



Wireless Access Point



Routers



Pin Assignments

Description

Si52111-B5/B6 is a high-performance, PCIe clock generator that can

source one PCIe clock output from a 25 MHz crystal or clock input. The

clock output is compliant to PCIe Gen 1, Gen 2, Gen 3, Gen 3 SRNS and

Gen 4 common clock specifications. The ultra-small footprint (3x3 mm)

and industry leading low power consumption make Si52111-B5/B6 the

ideal clock solution for consumer and embedded applications. Measuring

PCIe clock jitter is quick and easy with the Silicon Labs PCIe Clock Jitter

Tool. Download it for free at

www.silabs.com/pcie-learningcenter.

VDD

XOUT

XIN/CLKIN

VSS

VDD

DIFF1

Functional Block Diagram

Patents pending

VDD

XIN/CLKIN

XOUT

PLL

Divider

DIFF1

VSS

Rev 1.2 12/15

Si52111-B5/B6

Si52111-B5/B6

ABLE

Section

ONTENTS

Page

1. Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2. Crystal Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1. Crystal Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.2. Calculating Load Capacitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3. Test and Measurement Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4. Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.1. 10-Pin TDFN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.2. 8-Pin TSSOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

5. Ordering Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

6. Package Outlines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

6.1. TDFN Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

6.2. TSSOP Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

7. Recommended Design Guideline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Document Change List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Rev 1.2
