A36-2 / SMA36-2
Cascadable Amplifier
10 to 2600 MHz
Features
AVAILABLE IN SURFACE MOUNT
ULTRA-WIDE BANDWIDTH 100-2600 MHz
HIGH GAIN-TWO STAGES 15 dB (TYP.)
MEDIUM OUTPUT LEVEL +14 dBm,
2000-2600 MHz (TYP.)
Rev. V3

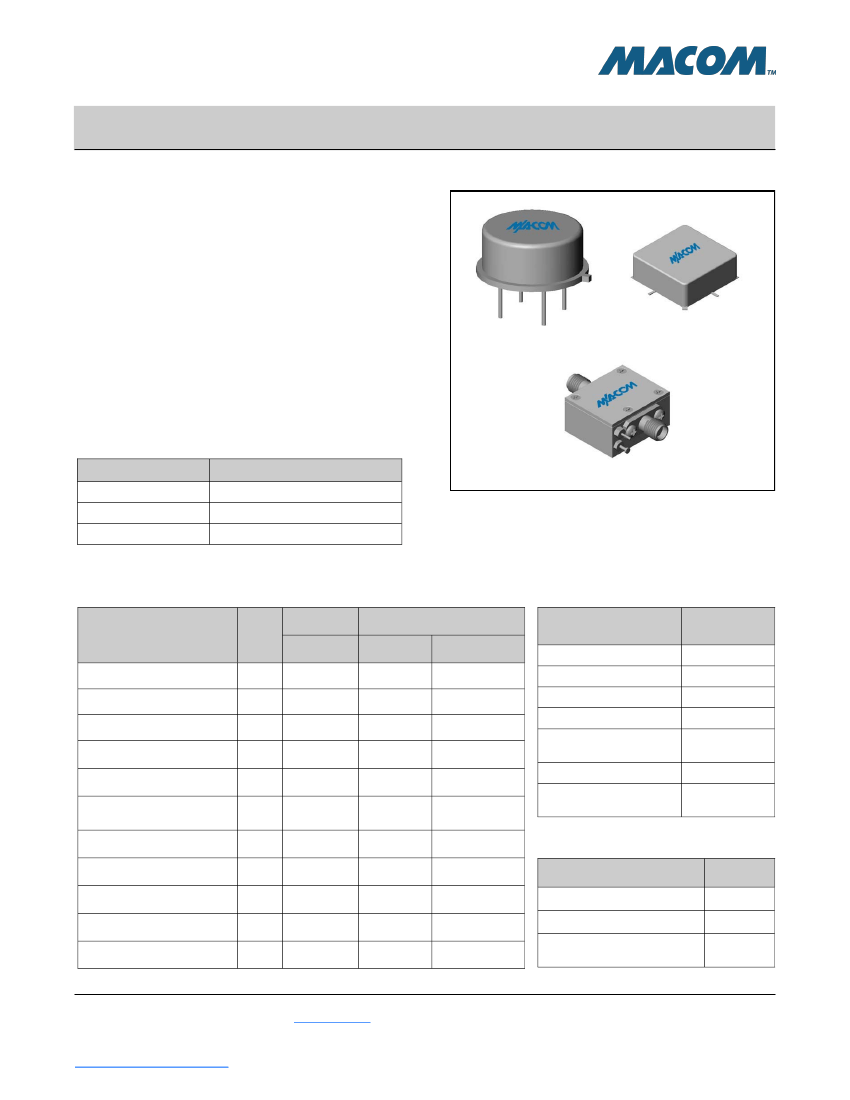

Product Image
Description
The A36-2 RF amplifier is a discrete hybrid design, which uses
thin film manufacturing processes for consistent performance
and high reliability.
This 2 stage bipolar transistor feedback amplifier design
displays impressive performance over a broadband
frequency range. An active DC biasing network insures
temperature-stable performance.
Both TO-8 and Surface Mount packages are hermetically
sealed, and MIL-STD-883 environmental screening is available
Ordering Information
Part Number
A36-2
SMA36-2
MAAM-007947-CA3602
Package
TO-8
Surface Mount
SMA Connectorized **
**The connectorized version is not RoHs compliant.
Electrical Specifications: Z
0
= 50, V
CC
= +15 V
DC
Parameter
Frequency
Small Signal Gain (min)
Gain Flatness (max)
Reverse Isolation
Noise Figure (max)
Power Output
@ 1 dB comp. (min)
IP3
IP2
Second Order Harmonic IP
VSWR Input / Output (max)
DC Current @ 15 Volts (max)
1
mA
Absolute Maximum Ratings
Parameter
Storage Temperature
Case Temperature
DC Voltage
Continuous Input Power
Short Term Input power
(1 minute max.)
Peak Power (3 µsec max.)
“S” Series Burn-In
Temperature (case)
Units
MHz
dB
dB
dB
dB
dBm
dBm
dBm
dBm
Typical
25ºC
100-2700
15.0
±0.5
28
7.0
14.0
+30
+32
+37
1.9:1 / 1.9:1
63
7.5
12.5
Guaranteed
0º to 50ºC
100-2600
14.0
±0.8
Absolute
Maximum
-62ºC to +125ºC
+125ºC
+17 V
10 dBm
50 mW
0.5 W
+125ºC
-54º to +85ºC*
100-2600
13.0
±1.2
8.0
12.0
Thermal Data: V
CC
= +15 V
DC
Parameter
Thermal Resistance θ
jc
2.1:1 / 2.1:1
64
2.3:1 / 2.3:1
67
Transistor Power Dissipation P
d
Junction Temperature Rise
Above Case T
jc
Rating
45ºC/W
0.426 W
+19ºC
* Over temperature performance limits for part number CA36-2, guaranteed from 0
o
C to +50
o
C only.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
A36-2 / SMA36-2
Cascadable Amplifier
10 to 2600 MHz

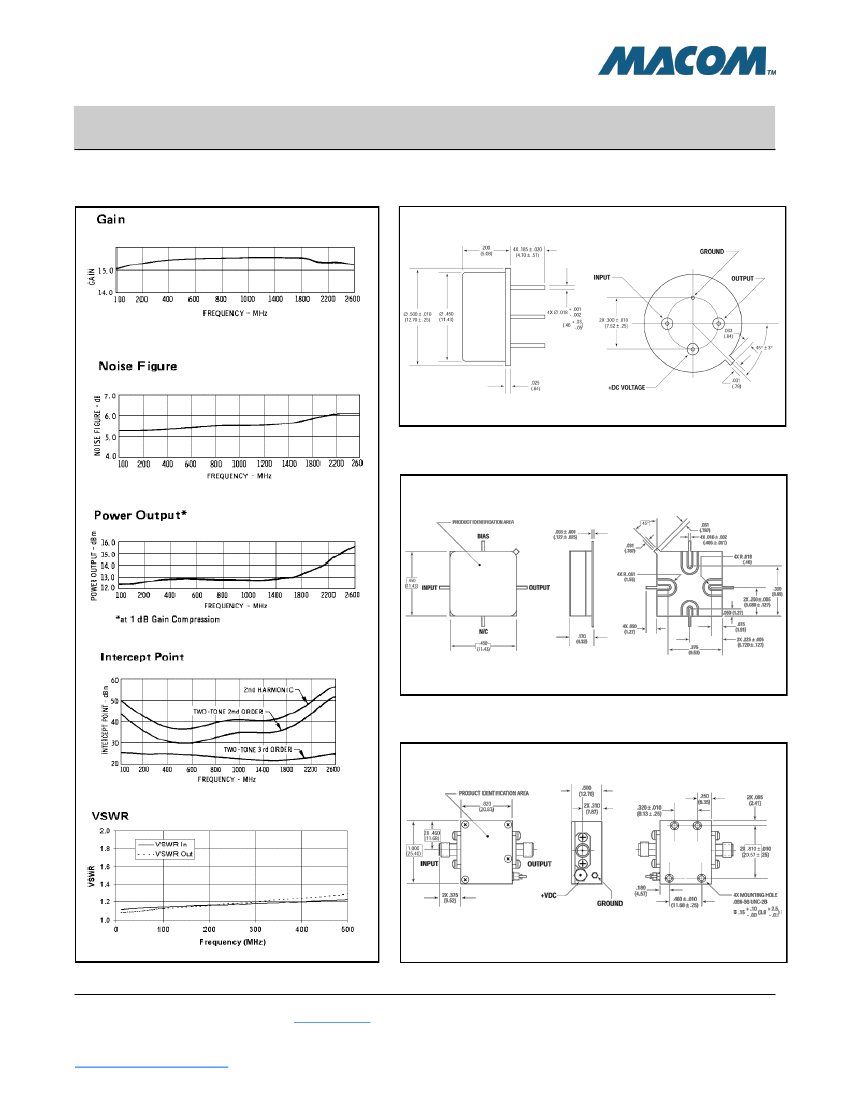

Typical Performance Curves at +25°C
Outline Drawing: TO-8
*
Rev. V3
WEIGHT: 1 gram (0.04 oz.) max
Outline Drawing: Surface Mount
*
WEIGHT: 1 gram (0.04 oz.) max
Outline Drawing: SMA Connectorized
*
WEIGHT: 19 grams (0.67 oz.) max
2
Dimensions are inches (millimeters) ±0.015 (0.38) unless otherwise specified.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
