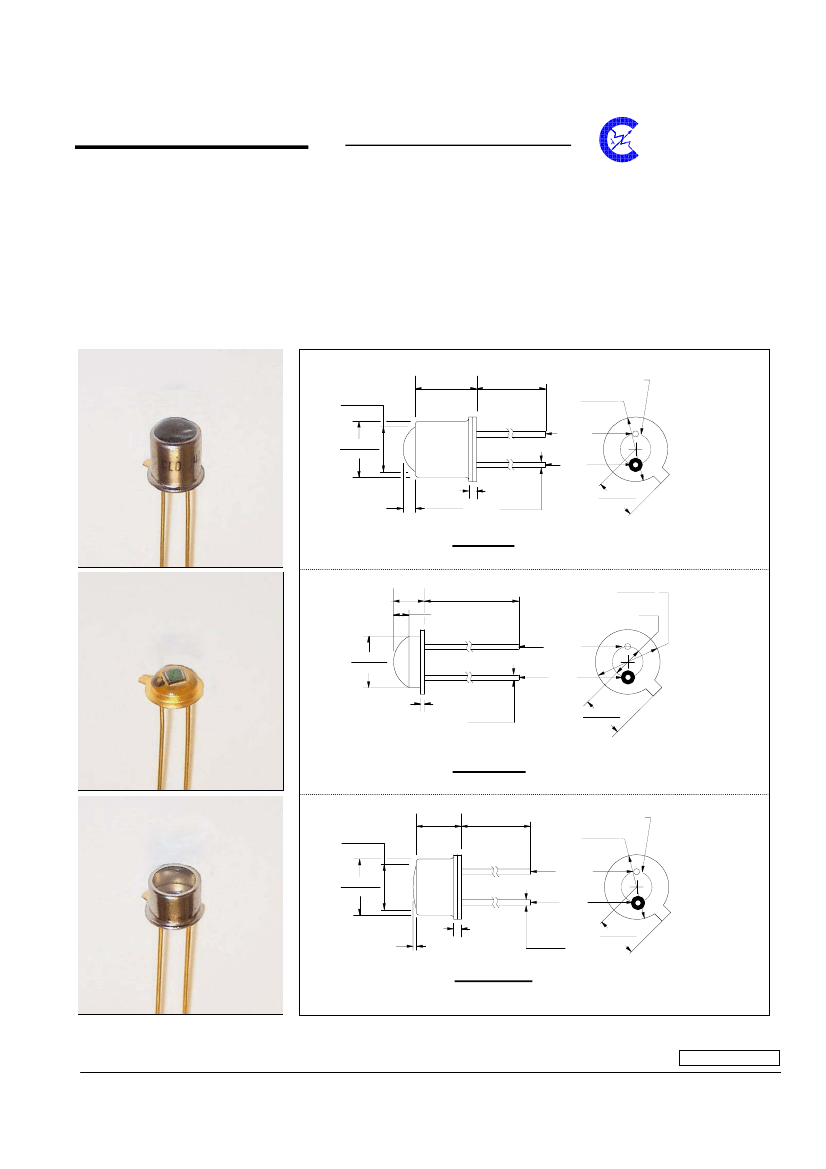

CLD240 Series
Silicon PIN Photodiodes
CLD240 replaces CLD142 and CLD142R
CLD240E replaces CLD140
CLD240W replaces CLD141 and CLD141R
features
•
TO-46 header with three lens options
•
cathode connected to case
•
large photosensitive area
•
usable for visible through near-IR
UPGRADED SERIES
®
Clairex
May, 2005
Technologies, Inc.
description
The CLD240 series are new, direct replacements for the older
CLD140 series and feature larger (0.060” x 0.060”) active area
silicon PIN photodiode chips. Also featured are faster switching
and lower junction capacitance. Three different lensing options
are offered which satisfy the majority of application requirements.
Contact Clairex for other packaging options.
0.158 (4.01)
0.136 (3.45)
0.210 (5.33)
0.190 (4.83)
1.00 (25.4) min.
0.100 (2.54) dia.
0.215 (5.46)
0.205 (5.21)
CATHODE
0.190 (4.83)
0.176 (4.47)
ANODE
0.025 (0.64) max.
0.050 (1.27)
0.030 (0.76)
0.019 (0.48)
0.016 (0.41)
0.147 (3.73)
0.137 (3.48)
CLD240
0.213 (5.41)
0.207 (5.26)
0.100 (2.54) pin circle
0.130 (3.30) max
1.00 (25.4) min.
0.050 (1.27) max
CATHODE
0.169 (4.29)
0.163 (4.14)
ANODE
0.010 (0.25) nom
0.019 (0.48)
0.016 (0.41)
0.147 (3.73)
0.137 (3.48)
CLD240E
0.100 (2.54) dia.
0.215 (5.46)
0.205 (5.21)
CATHODE
0.190 (4.83)
0.176 (4.47)
ANODE
0.025 (0.64) max.
0.010 (0.25) max
0.019 (0.48)
0.016 (0.41)
0.147 (3.73)
0.137 (3.48)
C
5
0.165 (4.19)
0.145 (3.68)
0.156 (3.96)
0.136 (3.45)
1.00 (25.4) min.
CLD240W
ALL DIMENSIONS ARE IN INCHES (MILLIMETERS)
Clairex reserves the right to make changes at any time to improve design and to provide the best possible product.
Revised 3/15/06
Clairex Technologies, Inc.
Phone: 972-265-4900
1301 East Plano Parkway
Fax: 972-265-4949
Plano, Texas 75074-8524
www.clairex.com
CLD240 Series
Silicon PIN Photodiodes
absolute maximum ratings
(T
A
= 25°C unless otherwise stated)
storage and operating temperature
CLD240 and CLD240W .............................................................-65°C to +150°C
CLD240E....................................................................................-40°C to +125°C
lead soldering temperature
(1)
......................................................................... 260°C
reverse voltage..................................................................................................60V
note:
1. 0.06” (1.5mm) from the header for 5 seconds maximum.
®
Clairex
Technologies, Inc.
electrical characteristics
(T
A
= 25°C unless otherwise noted)
symbol parameter
CLD240 Series
I
D
C
J
V
BR
t
r
, t
f
Dark current
Junction capacitance
Breakdown voltage
Output rise and fall time
min
-
-
-
60
-
typ
-
-
14
-
15
max
10
10
-
-
20
units
nA
nA
pF
V
ns
test conditions
V
R
= 20V, E
e
= 0
V
F
= 100mV, E
e
= 0
V
BIAS
= 0V, f = 1MHz, E
e
= 0
I
R
= 30µA, E
e
= 0
R
L
= 1KΩ
CLD240
I
SC
θ
HP
Short-circuit current
(2)
Total angle at half sensitivity points
Short-circuit current
(2)
Total angle at half sensitivity points
30
-
10
-
10
-
40
14
13
80
13
70
-
-
-
-
-
-
µA
deg.
µA
deg.
µA
deg.
V
BIAS
= 0V
CLD240E
I
SC
θ
HP
V
BIAS
= 0V
I
SC
Short-circuit current
(2)
θ
HP
Total angle at half sensitivity points
note:
2. E
e
= 1mW/cm
2
,
λ
= 850nm.
CLD240W
V
BIAS
= 0V
Clairex reserves the right to make changes at any time to improve design and to provide the best possible product.
Clairex Technologies, Inc.
Phone: 972-265-4900
1301 East Plano Parkway
Fax: 972-265-4949
Plano, Texas 75074-8524
www.clairex.com
